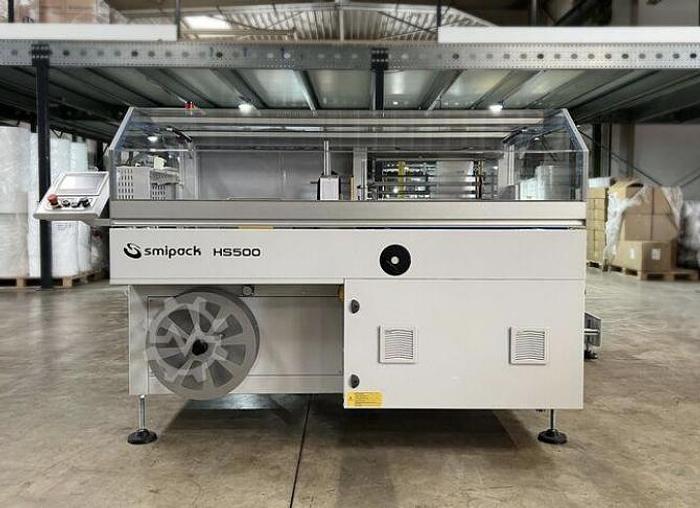

2021 SMI-Pack HS500 with PX750
2021 SMI-Pack HS500 with PX750
Contact us for price
Available quantity: 2
Stuttgart, Germany
Description
SMI-Pack film wrapping machine HS500 with SMI-Pack film folder machine PX750 incl. printer "Made in Italy"
As good as new packaging machine with film folder from the manufacturer SMI-Pack, model HS500 with PX750 with the following optional equipment:
- -PX750 with printer
The HS series with continuous sealing and intermittent motion cycle can wrap polyolefin and polyethylene, polypropylene semi-tubular or flat films with the film folder PX and is suitable for outputs of up to 9,000 packs/hour.
The PX series film folder, which can be connected to it, feeds films that are in the form of wide goods and are folded for optimum supply of the packaging material. As an optional extra, the film folder includes a printer to add continuous labeling during the process. The permanently guided and controlled product and film run ensures the production of qualitatively consistent packaging.
Advantages at a glance:
- Intermittent operation
- Side sealing system by friction with hot blade
- Motorized center sealing system
- FLXMOD® control system equipped with user-friendly 7" touch screen
- CE compliant
- Max. 9.000 packages/hour
- Max. Pack height 200 mm
- Motorized conveyor closing system, controlled by an included inverter
Dimensions of the single machines:
Machine size
HS500
B: 2,30 m
H: 1,65 m
D: 1,55 m
- PX750
W: 1,25 m
H: 1,15 m
D: approx. 2 m
Max. Production
- HS500
6.000 packages/hour
Power supply
- HS500
Voltage: 3PH + N + PE: 380-415 V
Frequency: 50-60 Hz
Current: 11 A
- PX750
Voltage: 1PH +N + PE: 220/240 V
Frequency: 50-60 Hz
current: 0,8 A
Power
- HS500
2.500 W
- PX750
180 W
Welding bar
- HS500
500 mm
Max. Packing height
- HS500
200 mm
Conveyor belt speed
- HS500
11 - 45 m/min
Max. Film spool size
- HS500
600 - ø 350
- PX750
750 - ø 350
Machine net weight
- HS500
730 Kg
- PX750
145 Kg
There are two of each model (HS500 and PX750) for sale.
Find more here - https://www.ucymachines.com/
Contact us at - sales@ucymachines.com
Specifications
Manufacturer | SMI-Pack |
Model | HS500 with PX750 |
Year | 2021 |
Condition | Used |
