2019 Terry GX-2-2

Unused

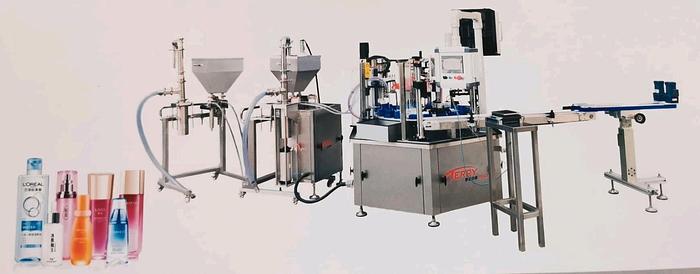

Model: GX-2-2 filling and capping machine GGZ300-6S

year: 2019

Filling volume range: 20-300 ml

Bottle shape customisation range: ø25-70 mm (For diameters of 10-25 mm, an inverse mould can be used if required. Products with a diameter above ø70 mm can use customised moulds for automated production).

Filling accuracy: 20-100 ml, ±0.5 g; 101-300 ml, ±0.5 %.

Production speeds: 300 ml capacity products ≥15 bottles/minute, 200 ml capacity products ≥20 bottles/minute, 100 ml capacity products ≥35 bottles/minute, 50 ml capacity products ≥40 bottles/minute. (All data based on the use of water as medium.) Products with 150 ml content achieve a production speed of ≥20 bottles/minute. (All data based on the use of cream as medium).

Air pressure source: 0.6-0.8 MPa

Air consumption: 200 L/min
