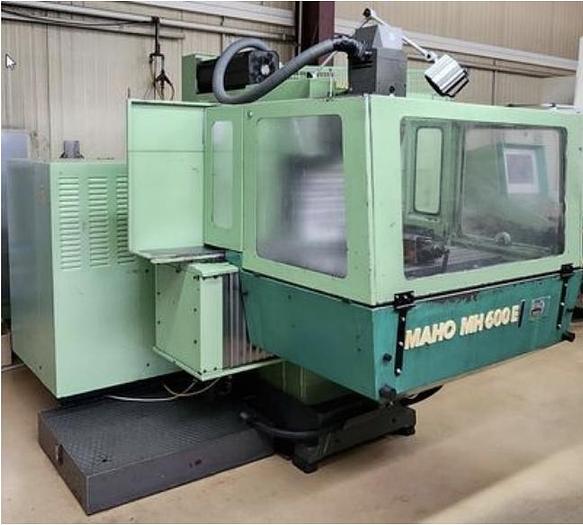

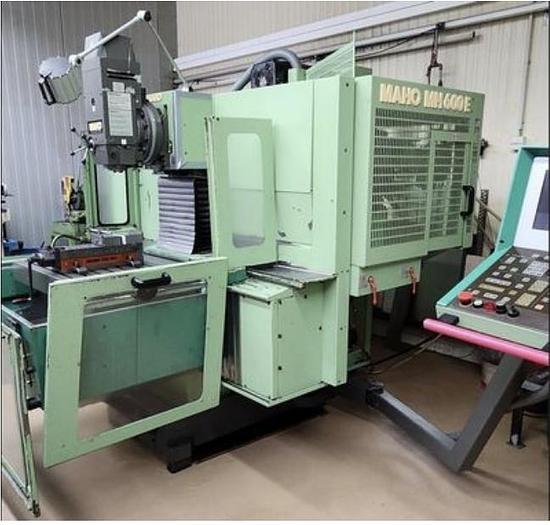

1990 MAHO MH 600E2
1990 MAHO MH 600E2
Contact us for price
Available quantity: 1
Frankfurt, Germany
Description
Used, very well maintained and fully functioning CNC milling machine, immediately available. Serial number: 660590, Operating hours: 25721 h, Comes with extensive original documents (operating instructions, wiring diagrams, etc.)
Technical data:
- Working range X 600 mm, Y 400 mm, Z 400 mm.
- Table size / rigid angle table 1000 x 400 mm

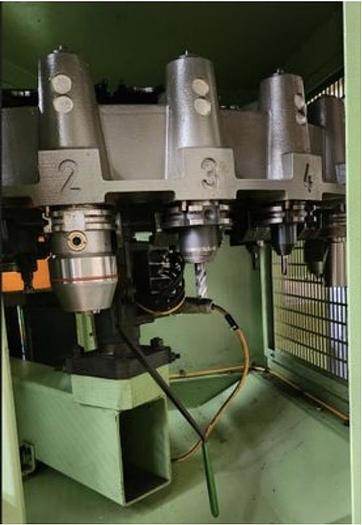

- Tool holder ISO 40 (with 24 different tool holders)
- Quill stroke 80 mm
- Cooling lubricant tank: approx. 100 litres
- Speed range/gear 80 - 4000 rpm.
- Feed range X,Y,Z 1 - 2000 mm/min.
- Rapid traverse X 4 m/min, Y 3 m/min, Z 5 m/min
- Resolution 0.001 mm
- Drive power/ total connected load 4.0 kW/ 16 kVA
- Footprint approx.2300 x 2160 x 1900 mm
- Weight 2,25 t
- incl. extensive accessories
ALLMATIC-NC 4-ton clamping vice
Clamping vice set
Glass scale rinsing with pressure flushing (prevents cooling water or vapours from settling on the measuring system/glass scale).
on the measuring system/glass scale)
Tool measuring device (digital)
Tool mounting or dismounting fixture
various SK40 tool holders
1x zero point probe head
2x collet chuck holder (collet chuck set ø3-ø20mm (1mm graduation))
1x chuck ø1-13mm
1x precision chuck
1x Thread cutting device for M2 / M4 / M 5 / M6
Cutter head fixture 1x ø16mm / 2x ø22mm / 1x ø27mm / 1x ø32mm
Weldon milling cutter holders 2x ø3mm / 4x ø10mm / 1x ø12mm / 1x ø14mm / 2x ø16mm / 1x ø20mm / 3x ø25mm
Find more here - https://www.ucymachines.com/
Contact us at - sales@ucymachines.com
Specifications
Manufacturer | MAHO |
Model | MH 600E2 |
Year | 1990 |
Condition | Used |
