Festo L500

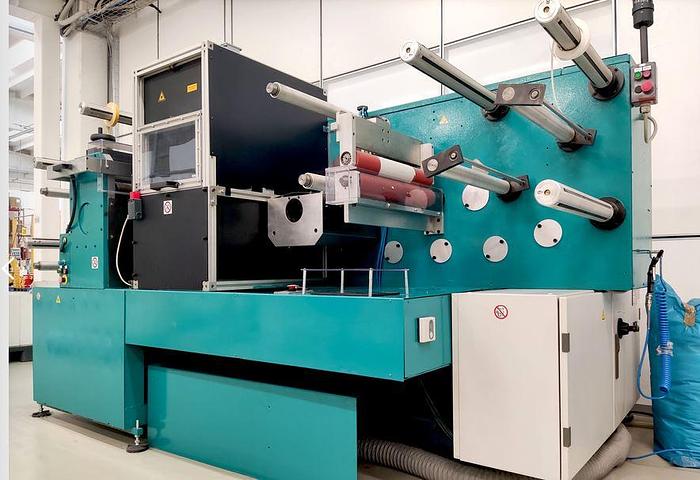

Laser cutting and die-cutting machine for paper, cardboard and adhesive materials (Model L500) for sale.

Main Features:

Precise Laser Cutting/Die Cutting: Equipped with a powerful CO2 laser, the machine ensures precise and clean cuts on various materials.

State-of-the-art Technical Data: Three-phase power supply, stable frequency and 10 kW power rating.

Compact Size: With a length of 3700 mm, width of 2200 mm and height of 2400 mm, the machine easily fits into small production spaces.

High Feed Speed: 60 m/min.

Integrated Rewinders: It has rewinders for mechanical scrap and finished product.

Detailed Technical Data: - Power Supply: Three-phase + N + PE - Electrical Voltage: 400 V (operating), 230 V (auxiliary), 24 Vdc (auxiliary) - Rated Power: 10 kW - Pneumatic Pressure: 6 - 8 bar - Dimensions: 3700 mm x 2200 mm x 2400 mm - Feed Speed: 60 m/min - Laser Type: CO2, Class 4 - Laser Power: 200 W - Laser Wavelength: 10200 - 10800 nm Integrated Systems: - Main Unrollers: Pull control by electromagnetic clutch adjustable from touch screen. - Incoming Pulling Group: Mechanical pulling with electromagnetic clutch. - Laser Cutting Group: CO2 laser for precise cutting, with certified safe guards. - Mechanical Scrap Rewinder: Rewinding
