UET Compact 4

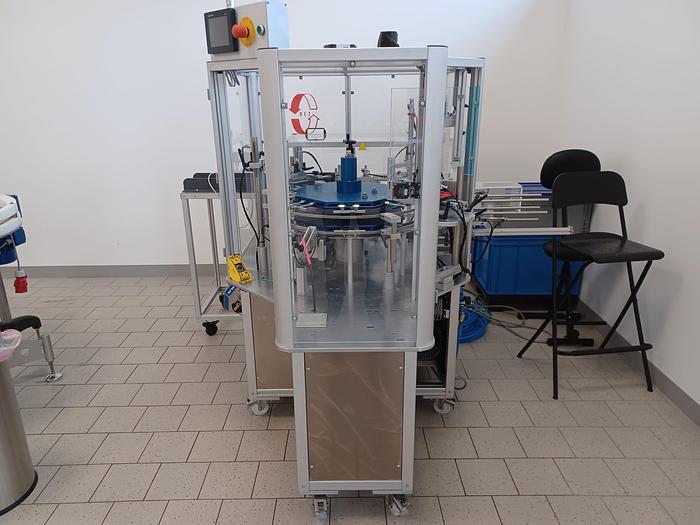

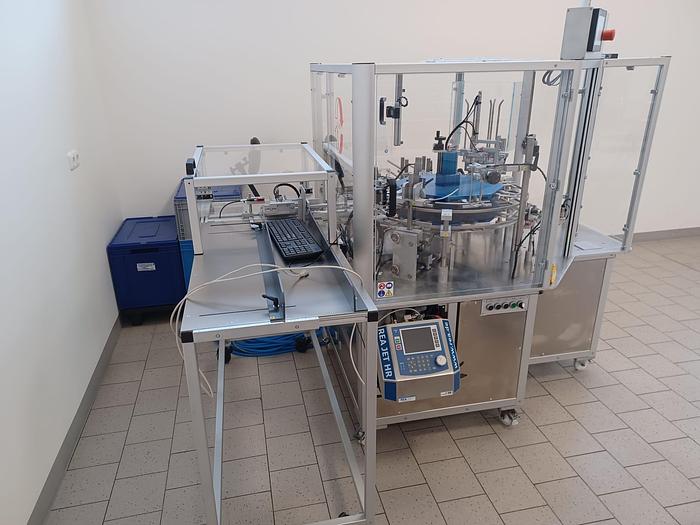

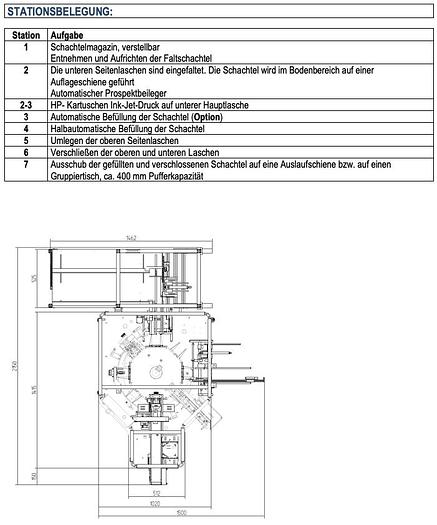

COMPACT CARTONING MACHINE TYPE COMPACT 4

-> PREPARED FOR AUTOMATIC FEEDING OF THE PRODUCTS 8 STATIONS incl.

Carton magazine, adjustable

Clockwise running direction

Closing tools for staggered tuck-in flaps

Adjustable outlet

4 ACCESS DOORS

Protected by safety switches

Electrical control cabinet integrated in machine housing

Main drive via electric motor, rotary indexing table, mechanical overload clutch

PLC type LOGO from SIEMENS

SAFETY CAMERA SYSTEM

via two filling points for enabling the working cycle in the closed state with SAFETY RELAY

PRODUCT SENSOR

for automatic cycle release after successful filling process complete with selector switch for 3 modes:

Empty: Idle function (e.g. for end of batch)

Man.: Manual indexing

Auto: Automatic cycle on presence of product

TEACH-BOX

for fine adjustment of the capping tools, integrated in the machine body

CONTINUOUSLY ADJUSTABLE FORMAT STARWHEEL "STELLA 68

Width (A): 25-120 mm,

depth (B): 18-90 mm,

Height (H): 60-180 mm - (A/2+B) ≤140 mm.

OPERATOR'S PANEL TOP, fixed

AUTOMATIC machine plate

Protective bonnet with rounded corners

Integrated base frame on lockable castors

LEVEL CONTROL at the folding box magazine with machine stop

COMPRESSED AIR SHUT-OFF VALVE

TOUCH-PANEL 5,7" WITH AMPLE (3-coloured), fixed at the top for the status messages EMERGENCY STOP - door open / teach box / overload clutch / filling level box / crash in the outlet and COUNTER for "good boxes

AUTOMATIC LEAFLET INSERTER TYPE PROSPEKTBOY PB2

-> FOR COMPACT 4 - AUTOMATIC -

for prefolded leaflets - suitable for packaging bottles, jars, cans, etc. - leaflet is inserted parallel to the side flaps size of prefolded leaflet: width 20-50 mm, length 90-200 mm, minimum thickness of 2 mm must be given, fold definition enclosed max. speed 35 cycles/min, incl. LEVEL CONTROL AT THE MAGAZINE AND CHECKING WHETHER THE PROSPECTUS HAS ENTERED THE BOX with machine stop and display at the control panel - box without leaflet must be evacuated!

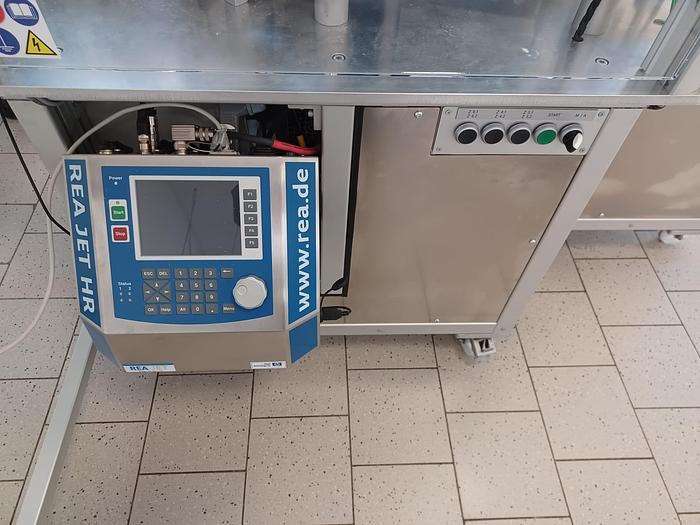

REA-JET TYPE HR COMPLETE HP CARTRIDGE PRINTER

Incl. rotary pulse generator, complete with mains plug, 1 print head Complete with 1 cartridge "Universal Black", integrated in cartoning machine, for printing on lower flap, 12.7 mm print height, incl. fixed holder at station 2, height adjustable for max. 2 print heads, control via rotary knob, colour graphic display prepared for 2D printing (Datamatrix)

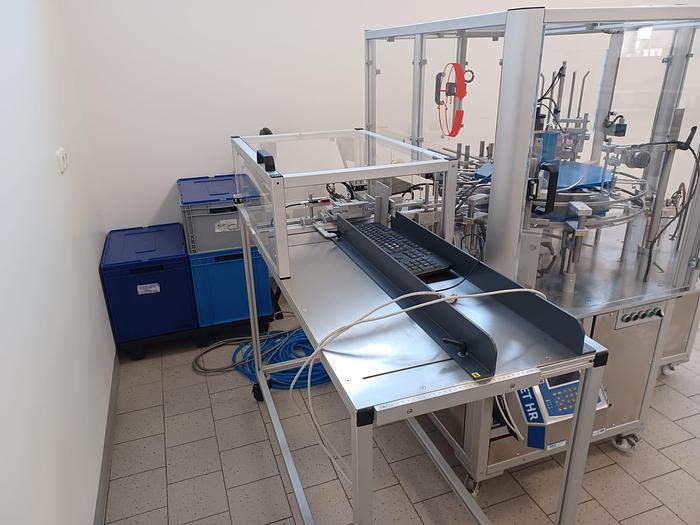

GROUPING AND PUSH-OFF TABLE INFINITELY ADJUSTABLE, FOR DIFFERENT FORMATS,

with counter-pressure, lateral shearing, filling level control via photocell, cover in plexi/aluminium, Schmersal circuit breaker, power supply can be swivelled away from Compact 4 on wheels, approx. 1000 mm long, shearing width min. 180mm - max. 360mm
