1992 GE Frame 3 G 3142 J Gas turbine and waste heat boiler
1992 GE Frame 3 G 3142 J Gas turbine and waste heat boiler
Contact us for price
Chemnitz, Germany
Description
Gas turbine and waste heat boiler for sale.

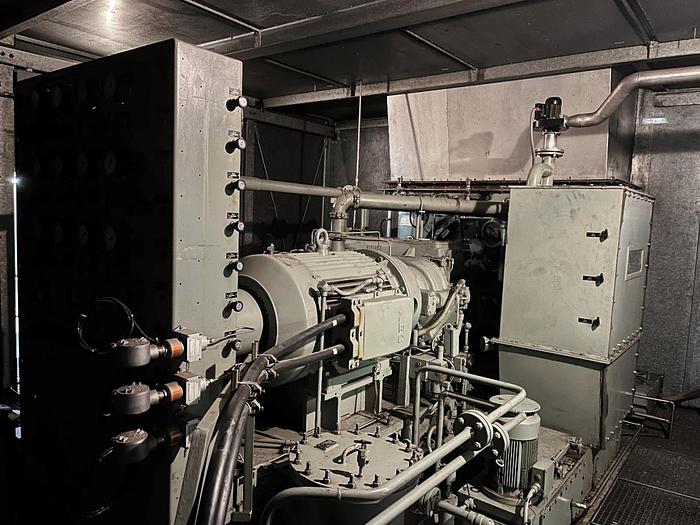

Gas turbine GE Frame 3 (G 3142 J)

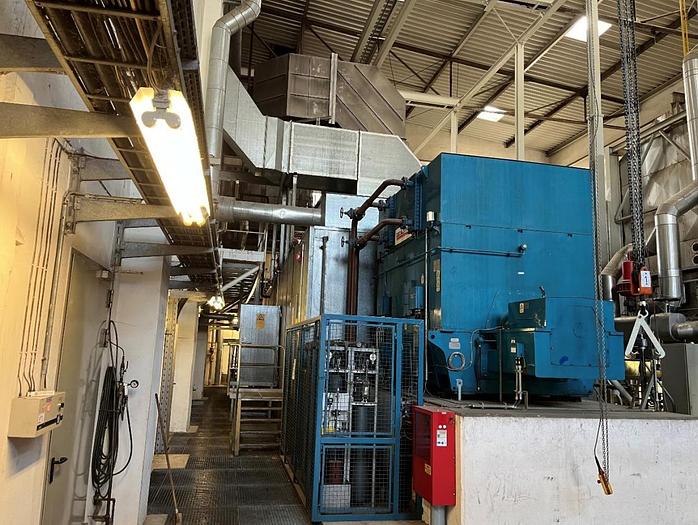

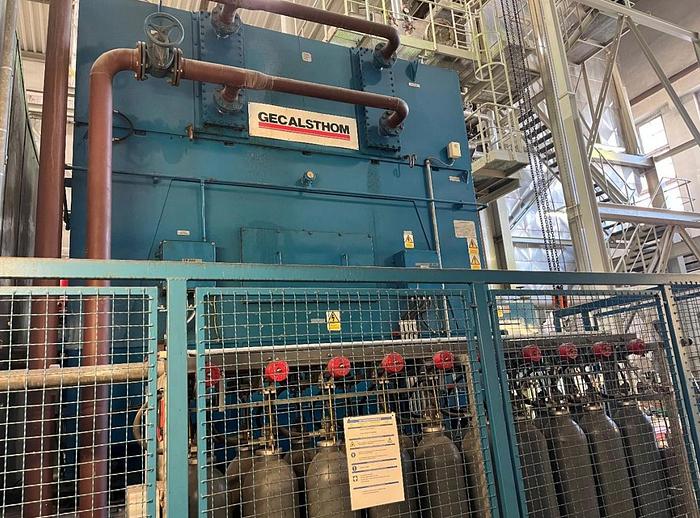

Year of construction: 1992, fuel natural gas / fuel oil EL, power electr. 10 MW, thermal 20 MW, outlet temp. 531 °C, inlet temp. 15°C, generator drive, 15 compressor stages synchronous generator GEC type DG 800, power 12. 500 KVA, S/N G21125401, dead weight approx. 28,800 kg incl. housing (silenced), platform ladders with electric motor start-up system, lubricating oil system incl. oil filter, hydr. supply system, Speedtronic control system, discharge overtemperature alarm, quick-acting shut-off system, overspeed system, vibration protection system, flame guard system
Weight turbine with auxiliary equipment approx. 51,500 kg, dim. LxWxH approx. 10.7 x 3.2 x 3.8 m, installation of new rotor in 2021

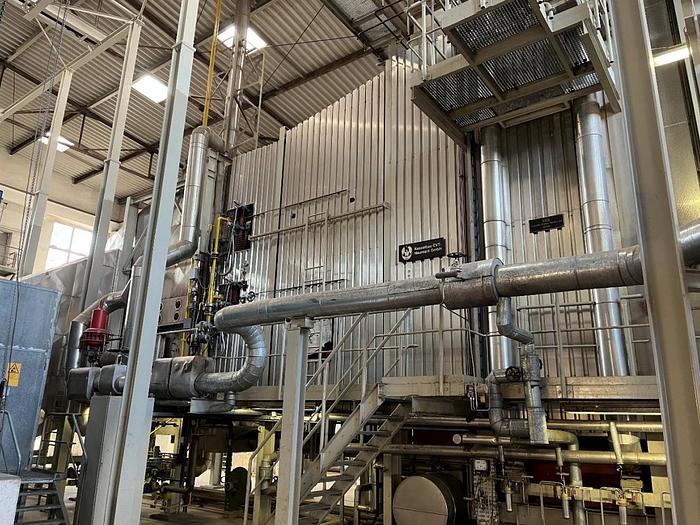

Waste heat boiler, year of construction: 1993, incl. auxiliary burner, steam pressure 40 bar, steam output 26 t/h, 42 t/h with auxiliary burner, steam temperature 420 C*.
Process data at 15°C outside air temperature:
Gas turbine load 100%, thermal output approx. 10.9 MW.
Design data:
1 end superheater (200 fins per m,
1 combustion chamber (width 2,695 mm, height front 5,000 mm, height rear 6,000 mm, depth 4,000 mm, gas side
volume 59 m°, inside insulated)
1 economiser (250 fins per m, inlet and outlet box, average fuel gas flow approx. 6,000 x 2,695 mm, approval temperature 291°C)
1 steam drum (outer diameter 1,600 mm, wall thickness 31 mm, cylindrical length 4,400 mm, 2
manholes, 10 cyclones, dryer)
(1 live steam cooler (outer diameter 558.8 mm, wall thickness 25 mm, cylindrical length 3,000 mm, number of steam pipes 108 pieces, heating surface water/steam 25, 4/21.4 m')
11 Deionised water preheater
with duct, boiler jacket, insulation and boiler chimney (outer diameter 2,300 mm, wall thickness 6 mm, height above ground 30 m, approval temperature 250°C)
Find more here - https://www.ucymachines.com/
Contact us at - sales@ucymachines.com
Specifications
Manufacturer | GE Frame 3 |
Model | G 3142 J Gas turbine and waste heat boiler |
Year | 1992 |
Condition | Used |
