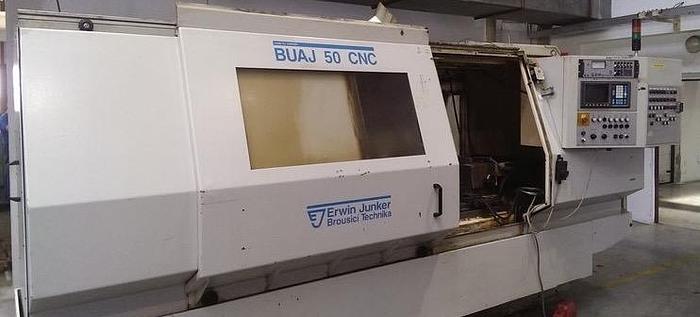

1997 Erwin Junker BUAJ 50 CNC

CNC grinding machine

Type: BUAJ 50 CNC

Manufacturer: Erwin Junker

Year: 1997

Max.workpiece diameter 500 mm

Length of the workpiece 1300 mm

Dimensions 4800 x 2800 x 2300 mm

Weight 14,900 kg

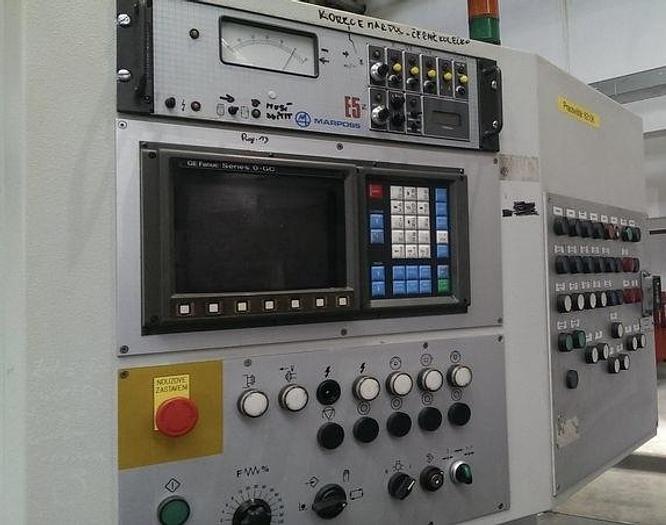

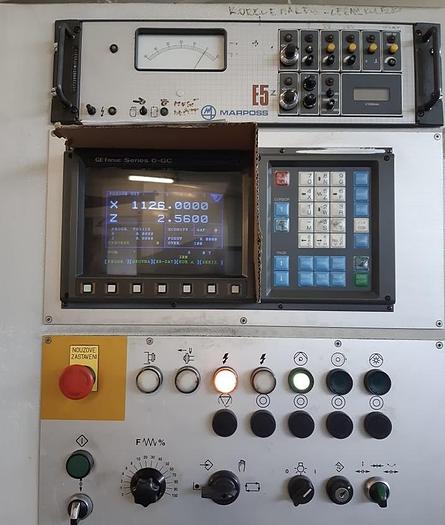

Control system Fanuc 0-GC

Voltage 3x400V, 50 Hz

The total input power of the machine is 60 k VA

Fuse 3 x 100 A

Max diameter of grinding wheel 600 mm

Max. width of grinding disc 160 mm

Electric performance 22 kW engine

The highest peripheral speed of the grinding wheel is 45 m/s

Clamping cone MK 5

Spindle speed continuously 23 – 291

Angle of rotation of the driving spindle 90°
