2015 Weightpack WF30-188

WEIGHTPACK 30 HEAD FILLER WITH 12 HEAD CAPPER

This machine was designed and built in 2015 for primary packaging of Peanut Butter. Design formats and production speeds:

NEEDS WATERFALL CAP SORTER

12 oz PET Jar with 70mm 1-1/4 turn PP Cap – 300 bpm

16 oz PET Jar with 70mm 1-1/4 turn PP Cap – 300 bpm

18 oz PET Jar with 70mm 1-1/4 turn PP Cap – 220 bpm

28 oz PET Jar with 83mm 1-3/8 turn PP Cap – 140 bpm

37.5 oz PET Jar with 83mm 1-3/8 turn PP Cap – 120 bpm

40 oz PET Jar with 89mm 1-3/8 turn PP Cap – 100 bpm

Machine cover and frame built in AISI 304 SS

Polycarbonate Windows

N2 injection under cap

Filler uses WeightPack net weight filling technology.

Electrical Technical Data:

Line Voltage - 460 V 3 Ph

Frequency – 60 Hz

Rated Power – 23 KW

Rated Current – 45 A

Auxiliary Voltages AC – 110 V

Auxiliary Voltages DC – 24 V

WEIGHTPACK FILLER

Model WF 30 - 188 Tube Filler

Serial No. WL - 398

460 V 3 ph 60 Hz

Mfg 2014

WEIGHTPACK CAPPER

Model WC 12 - 188

Serial No WL- 398

460 V 3 Ph  60 Hz

Mfg 2014

Ran: 70, 83 and 89 mm caps

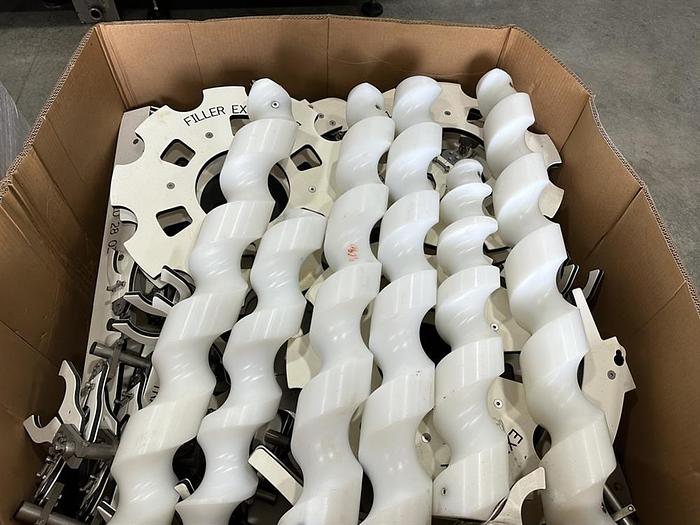

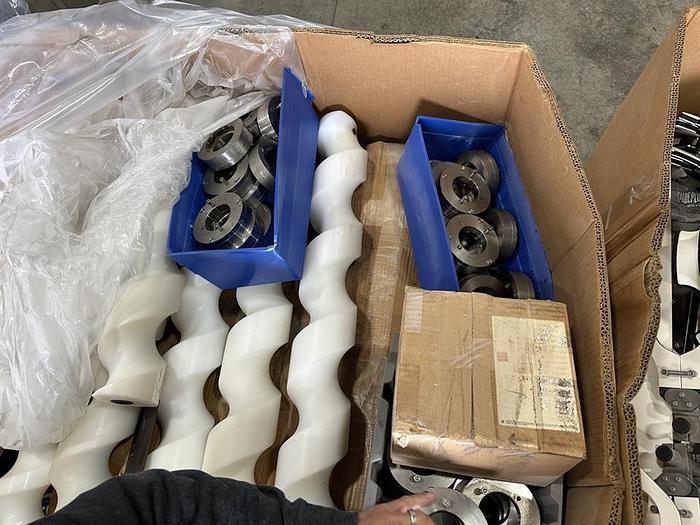

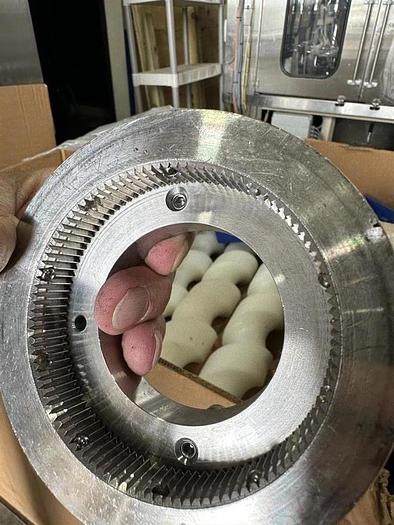

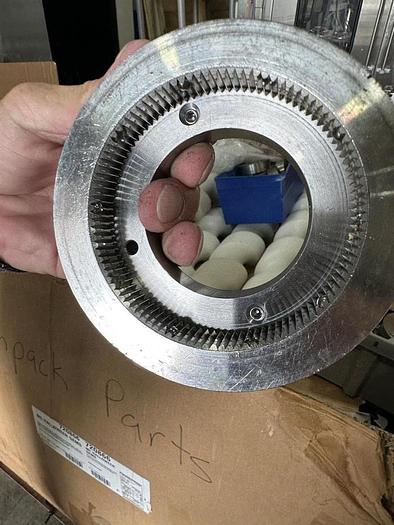

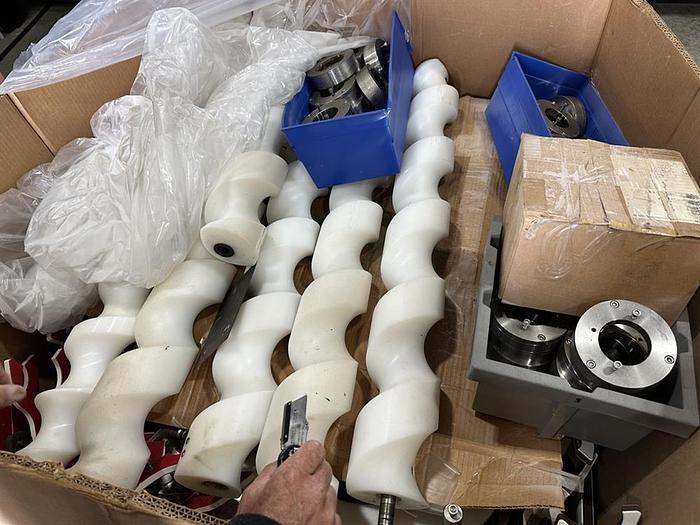

Unit comes with the stainless steel control panel and an inventory of spare parts and all container - capper change parts FOR PEANUT BUTTER.
