Name: 2005 Seram WH 192
Brand: Seram
Availability: InStock

Seram WH 192

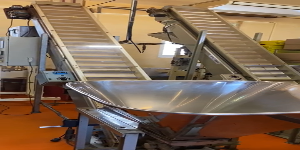

Packaging machine with WH 192 weigher and ascending conveyor

Currently used for filling coffee into bags.

2 identical machines expected to be available at the end of April

SERAM NET FILLING SCALE WH192A

technical data

Filling product: Coffee beans and ground coffee

Weighing range:

Requested weights: 80g to 1000g

Production capacity: 10 weighings/minute at 1000 g

18 weighings/minute at 80g

Weight precision: Standard deviation 0.8-1g

Storage container: See layout

Compressed air: 6 bar, 40 NI/minute

Mains connection: 220 V, 50 Hz

Connected load: approx. 0.9kW

Net weight: approx. 300 kg

The electrical installation of the system complies with SEV regulations.

Storage container with special shape and automatically adjustable

automatically adjustable sliding closures to regulate the product flow, ensures an

extremely fast and uniform product discharge to the dosing chutes.

Vibrating chute system: consisting of a coarse and fine filling chute, both with

equipped with an electro-pneumatically controlled shut-off flap.

Maintenance-free and inertia-free scales.

All parts that come into contact with the product are made of highly polished stainless steel

polished stainless steel 18/8 (AISI 304).

Stable weight in the room temperature range from -10 to + 40°C.

Control system

Computer control with parameter memory, autoregulating product flow,

automatic zero adjustment and automatic minus control and standard deviation.

standard deviation. Input via keyboard, by pressing a key one of the

20 weighing programs can be called up by pressing a key.

Date and time display.

Automatic product slide lock setting when changing programs.

2005 Seram WH 192
