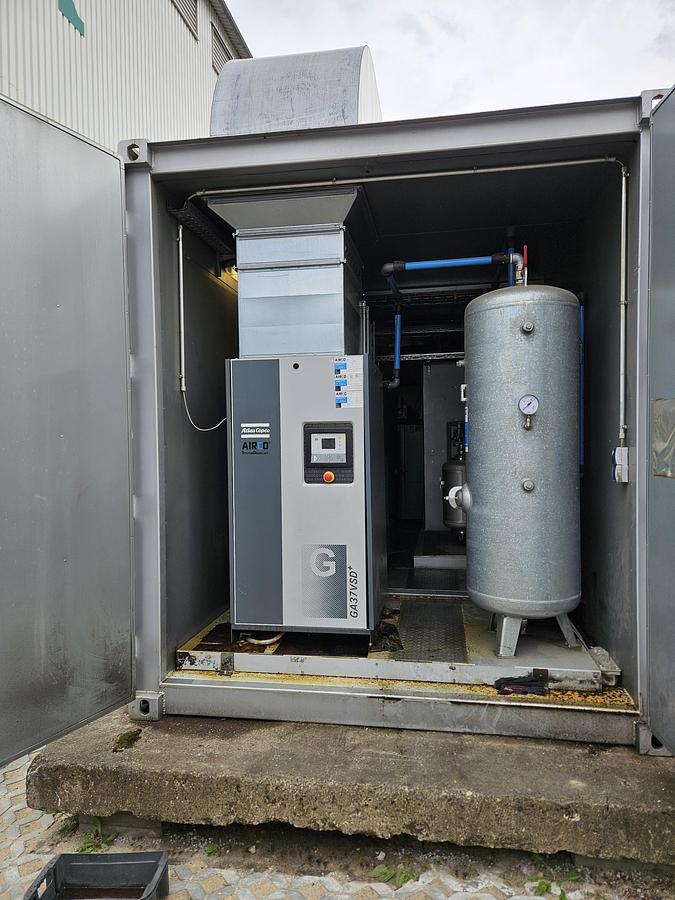

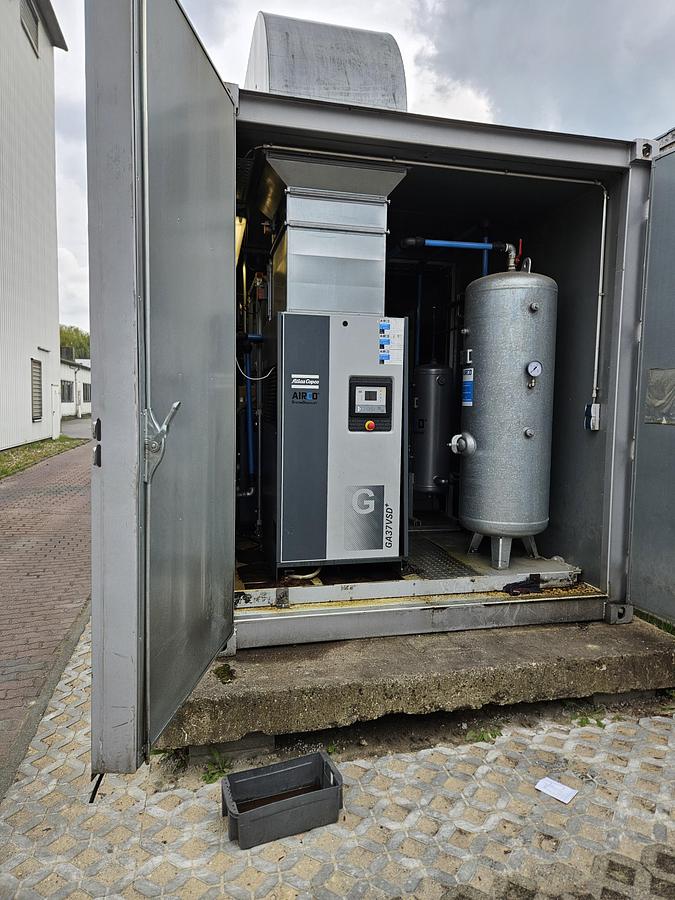

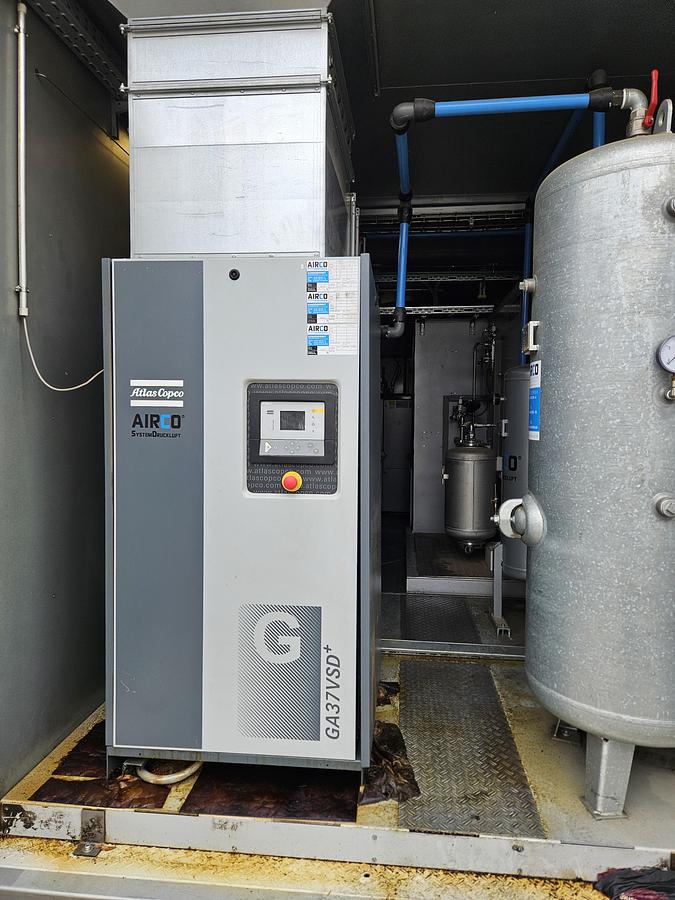

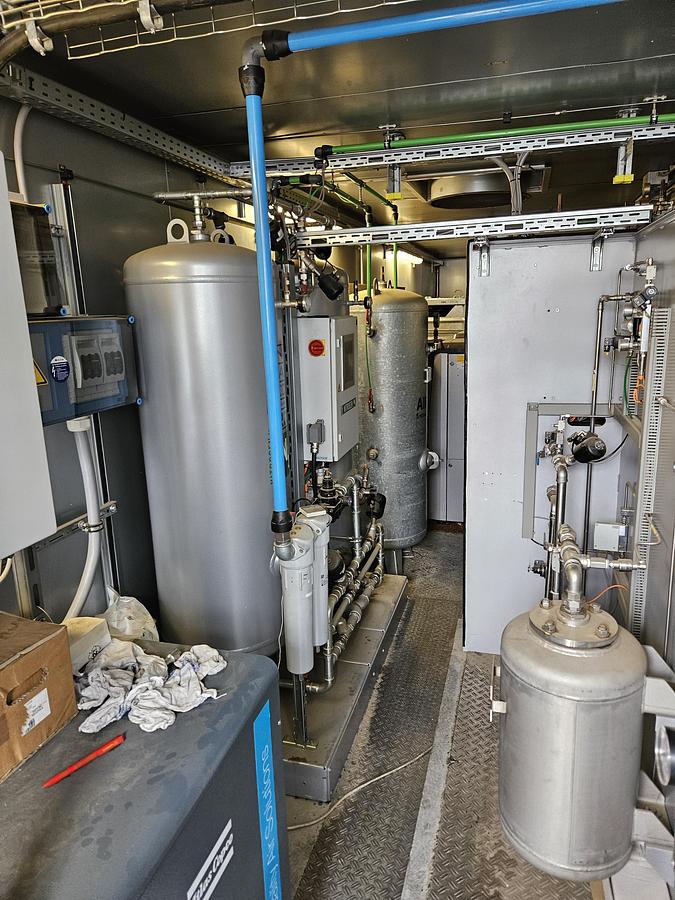

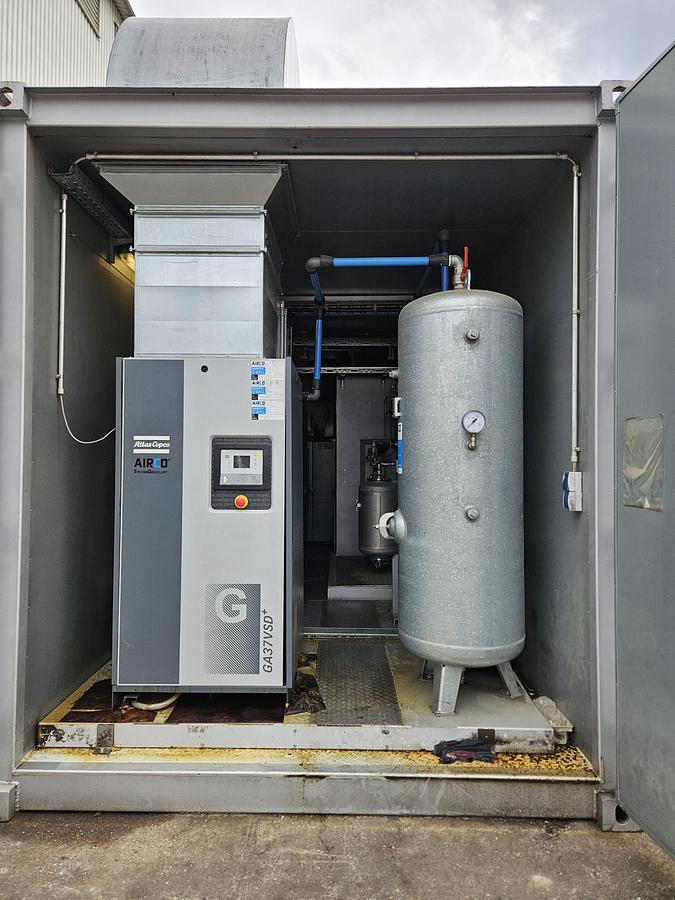

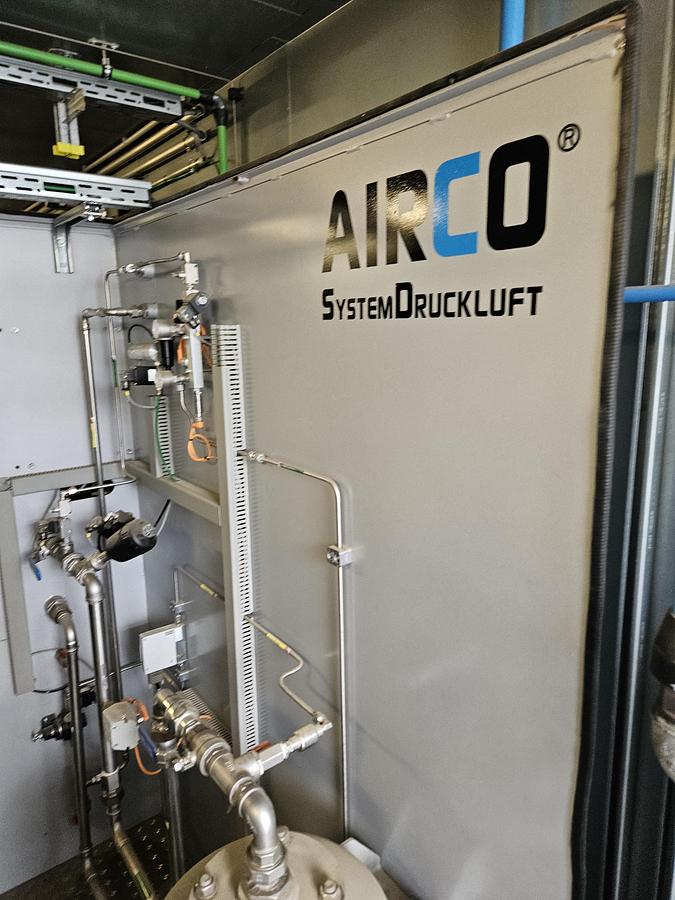

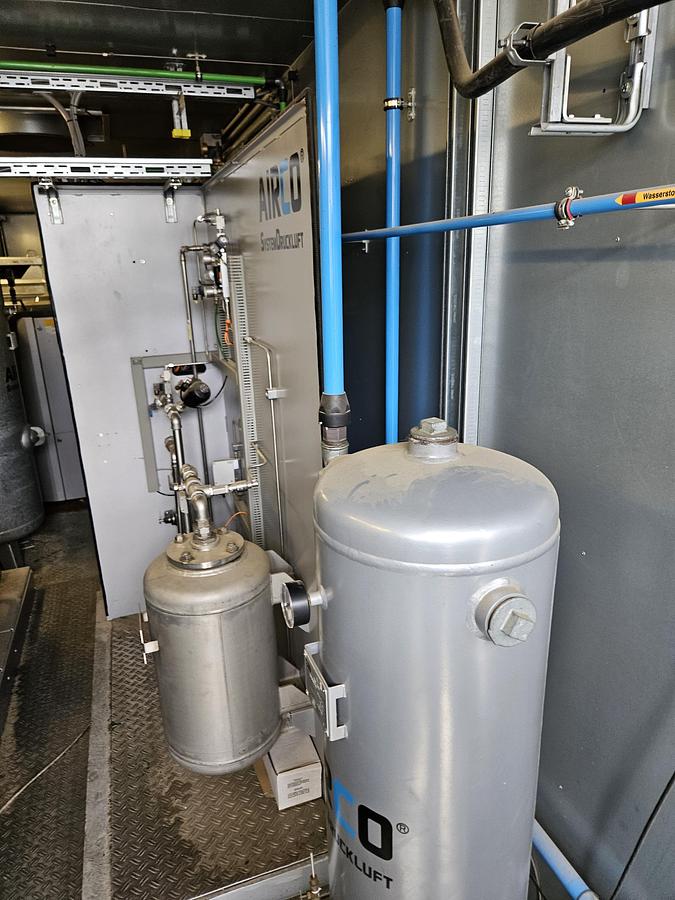

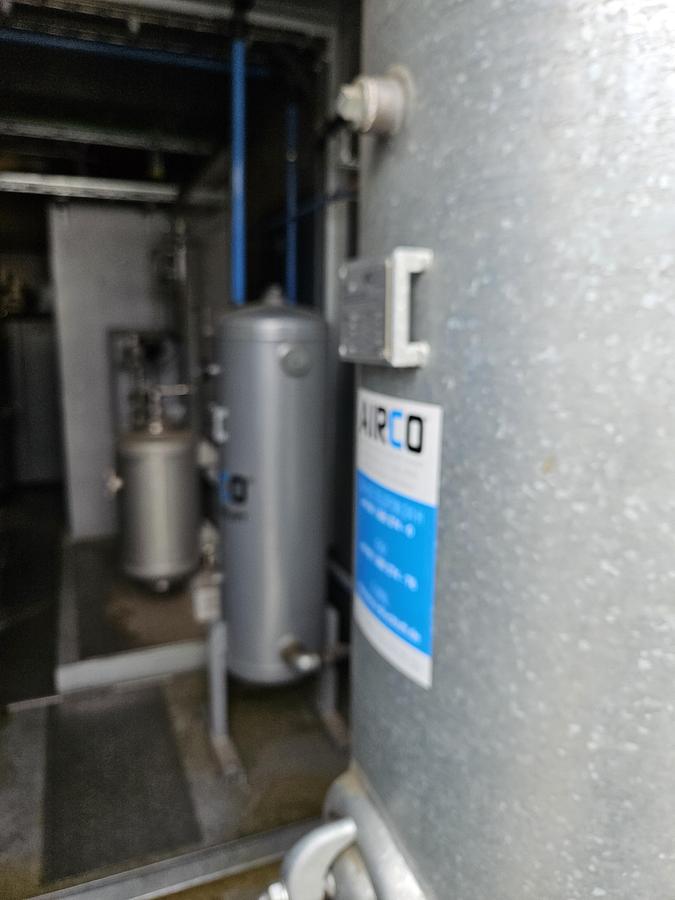

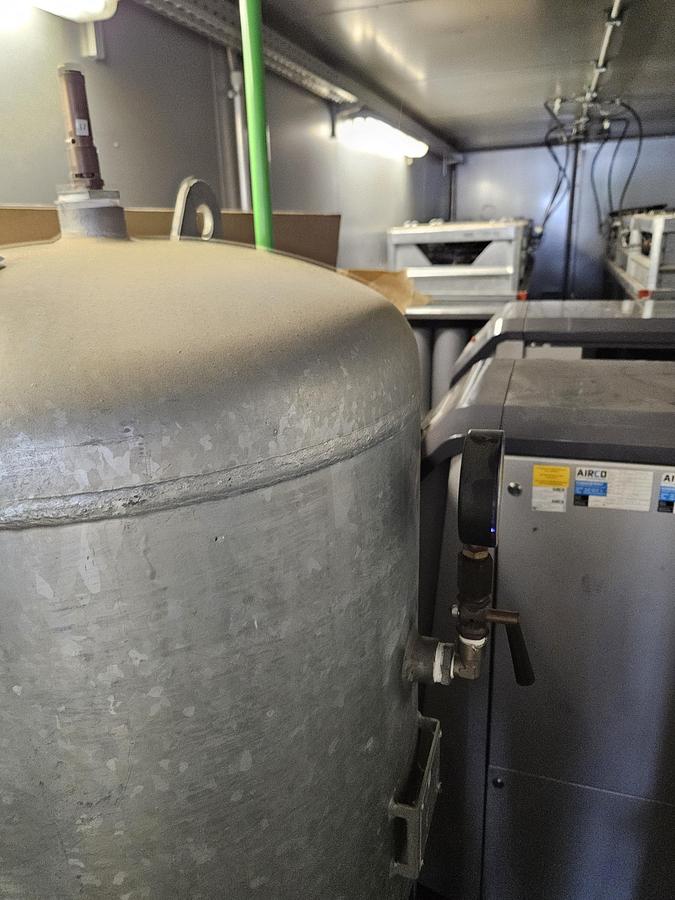

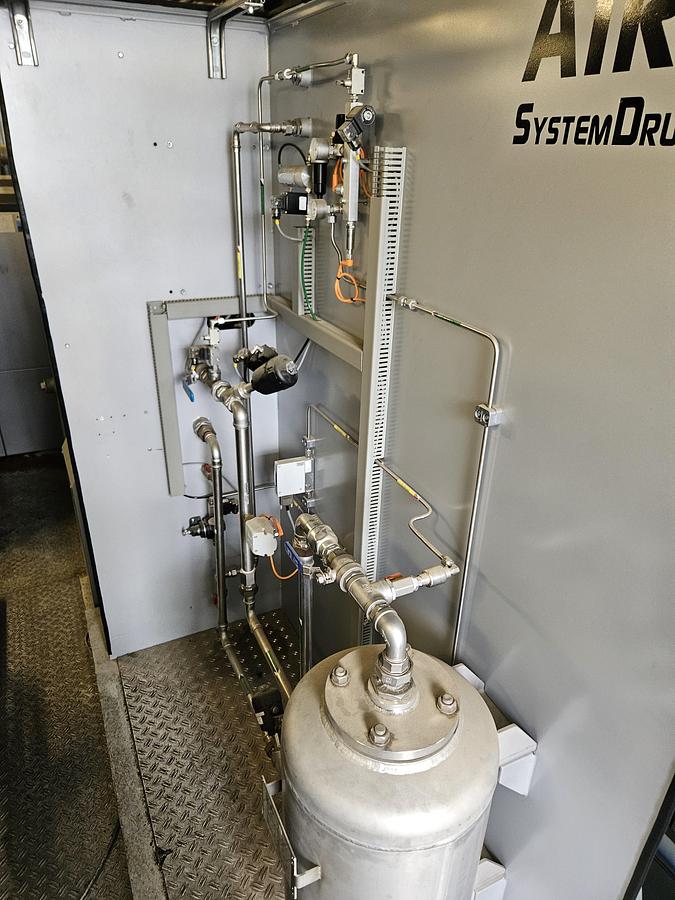

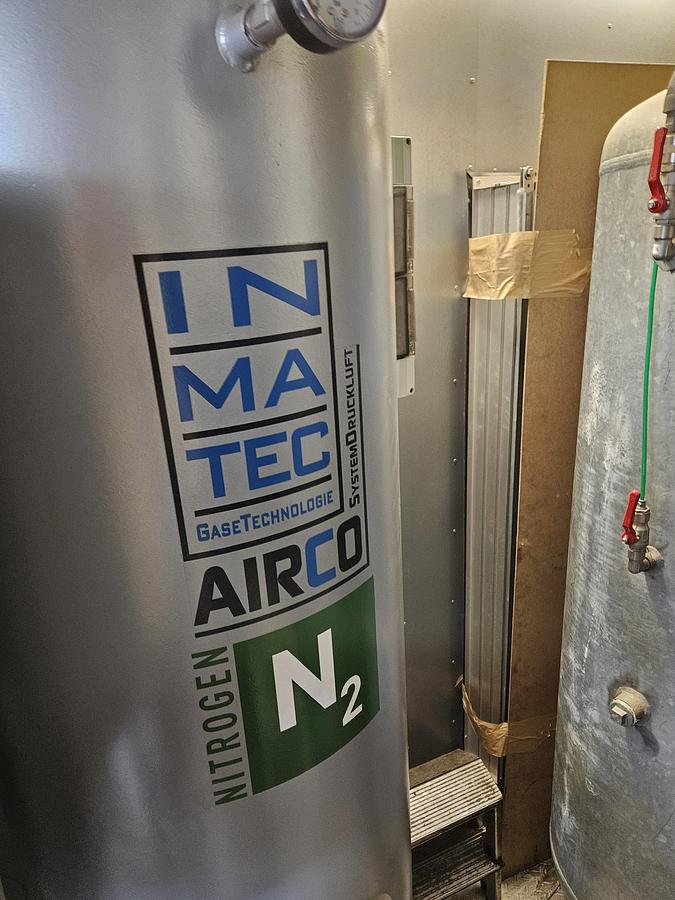

2019 Airco Nitrogen container

Capacity 70 Nm³/h at 99.9999% N2

Compressed air specification

Maximum operating pressure 8 bar

Temperature range +10 °C-50°C

Air quality according to ISO 8573.1

Ambient conditions

Temperature range +10°C-45°С

Technical dimensions and connections

Dimensions LxWxH (mm) 4400x2200x2500

Weight (kg) net 1300 +1850 kg

N2 connection 1 1/2"

DL connection 1"

Electrical connection 230V/50 Hz

Noise level from 55 to max. 85 dB(A)

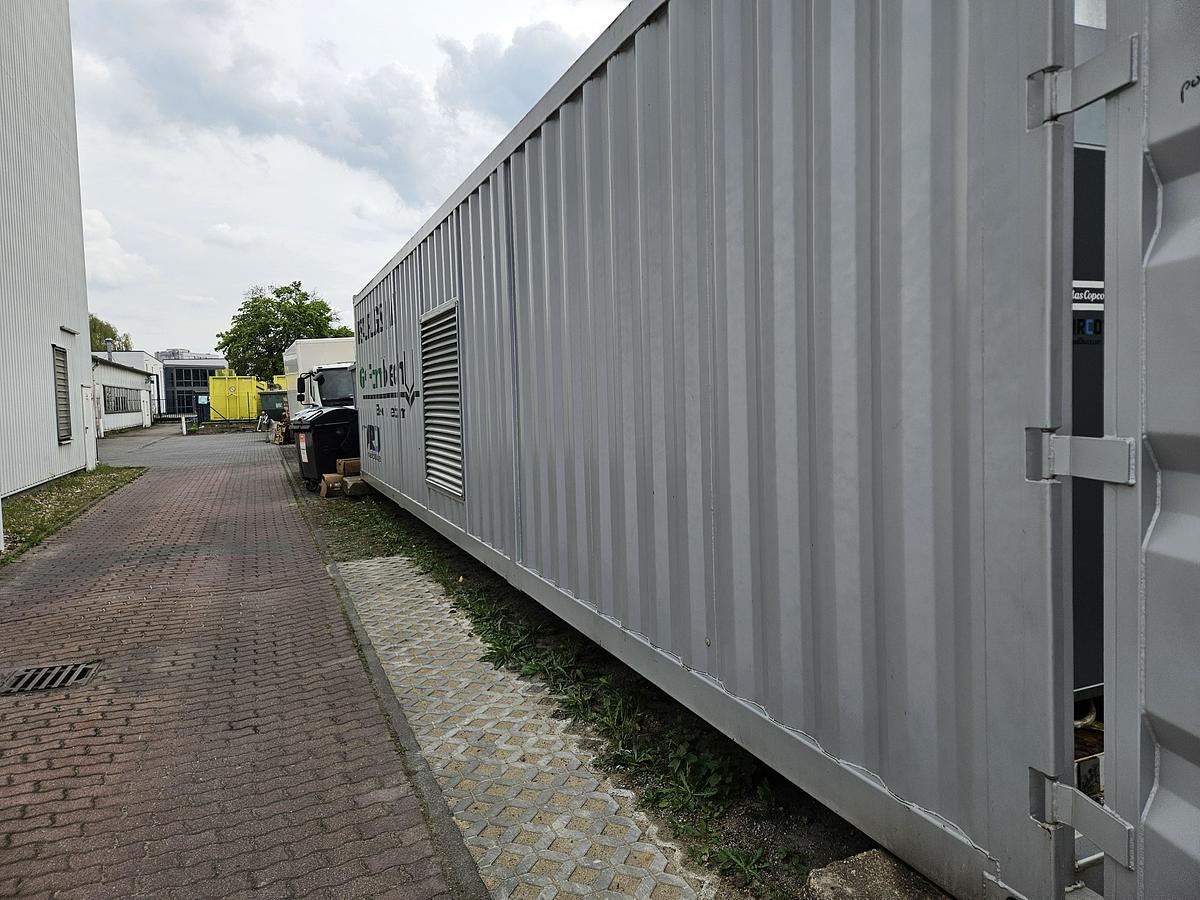

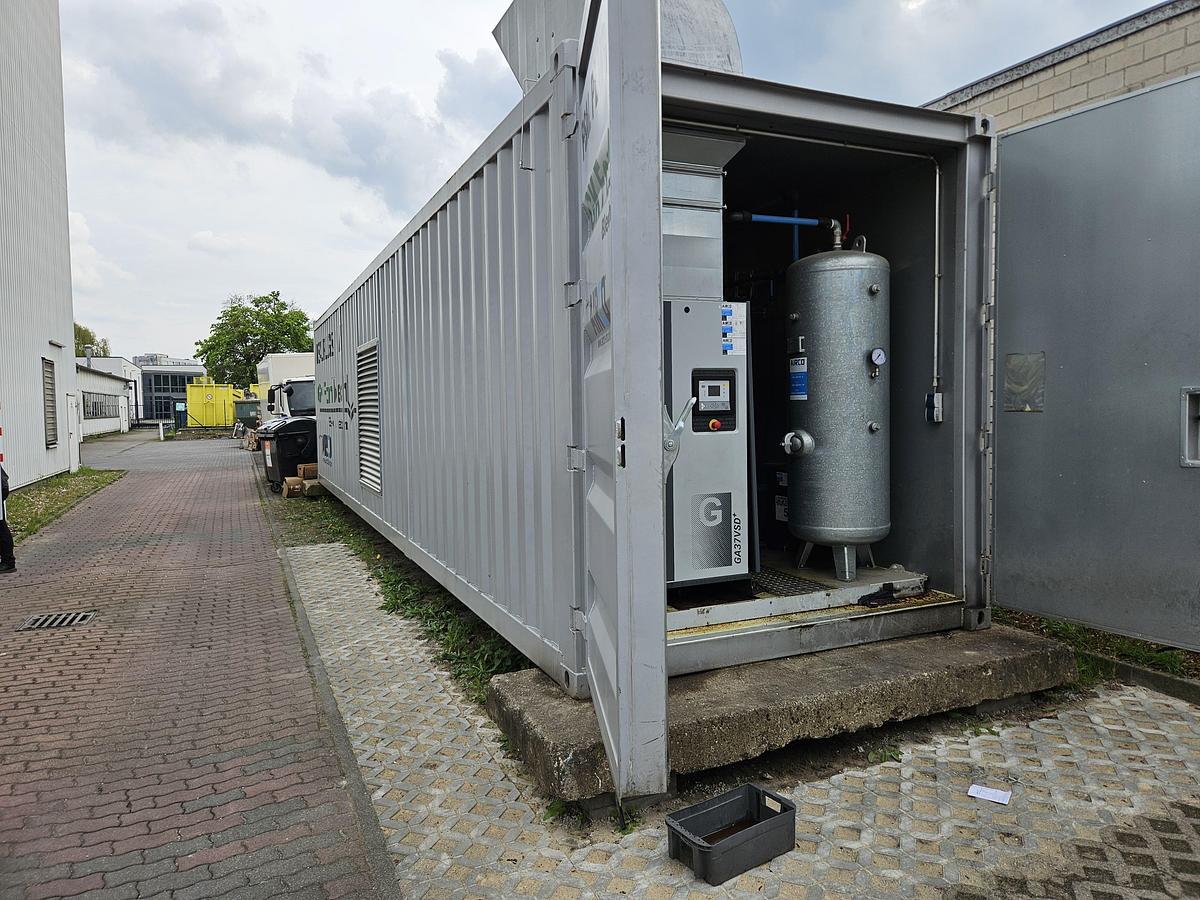

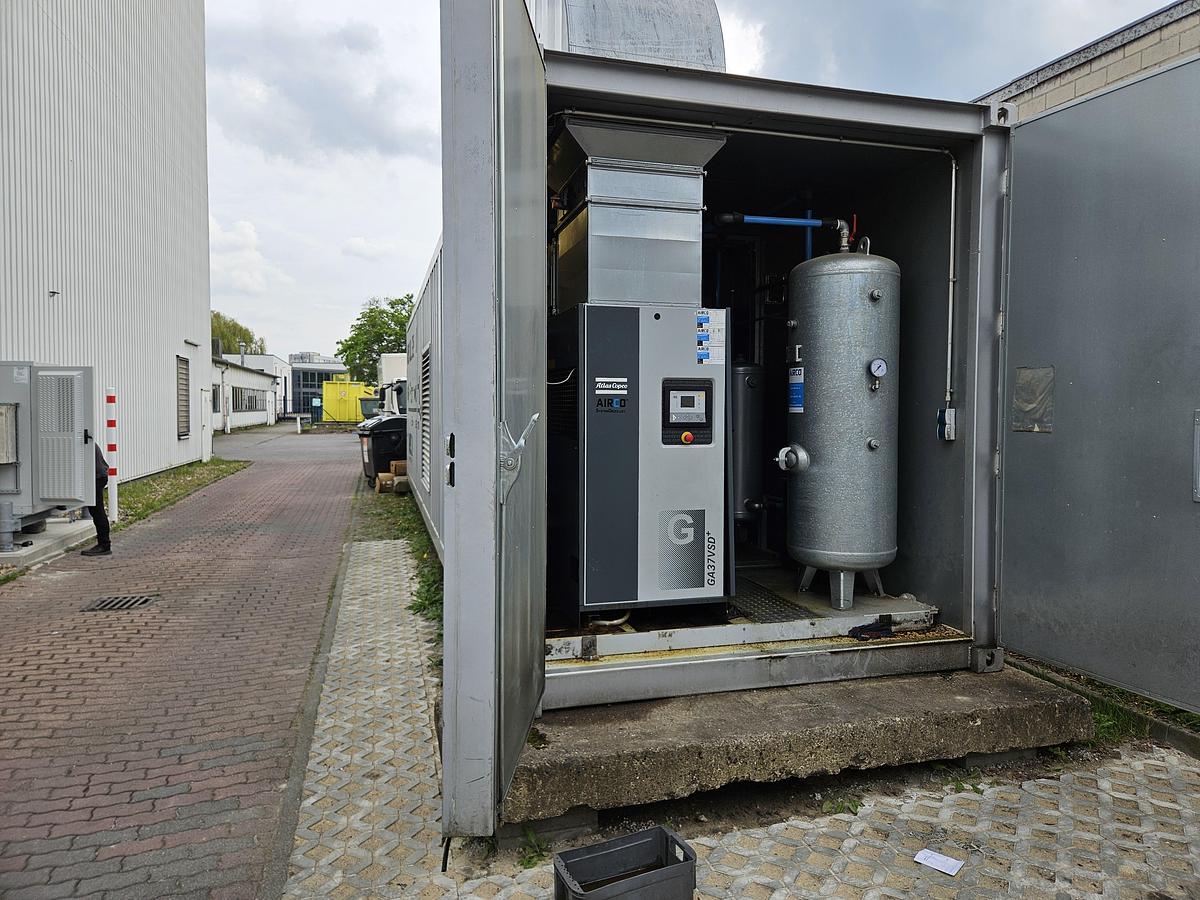

1 x 40' container high cube, insulated with supply and exhaust air, summer and winter

winter switching.

1x activated carbon stage AK 300

1x AF 267 UHU pre- and after-filter

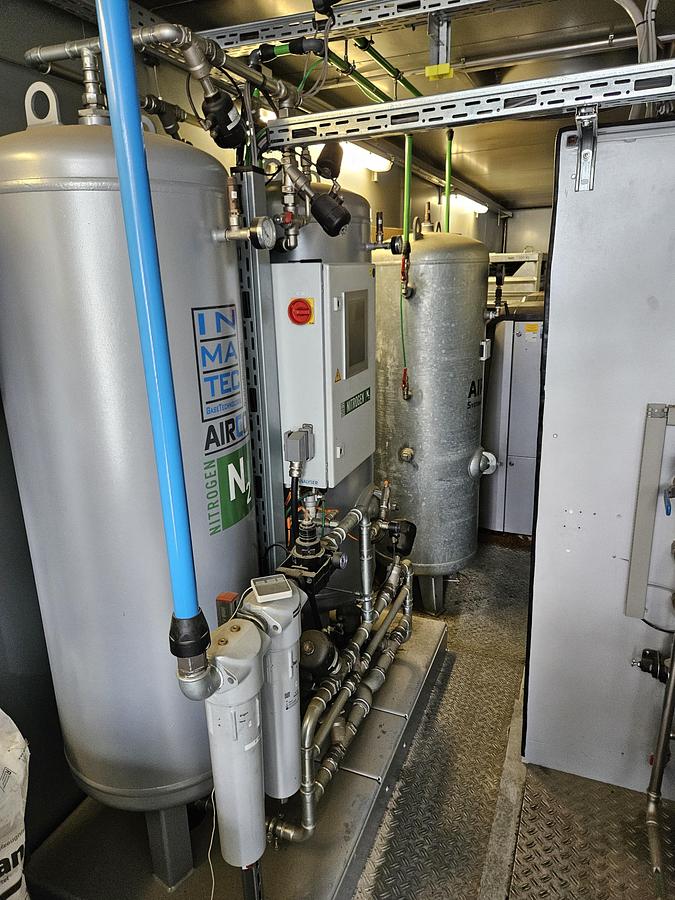

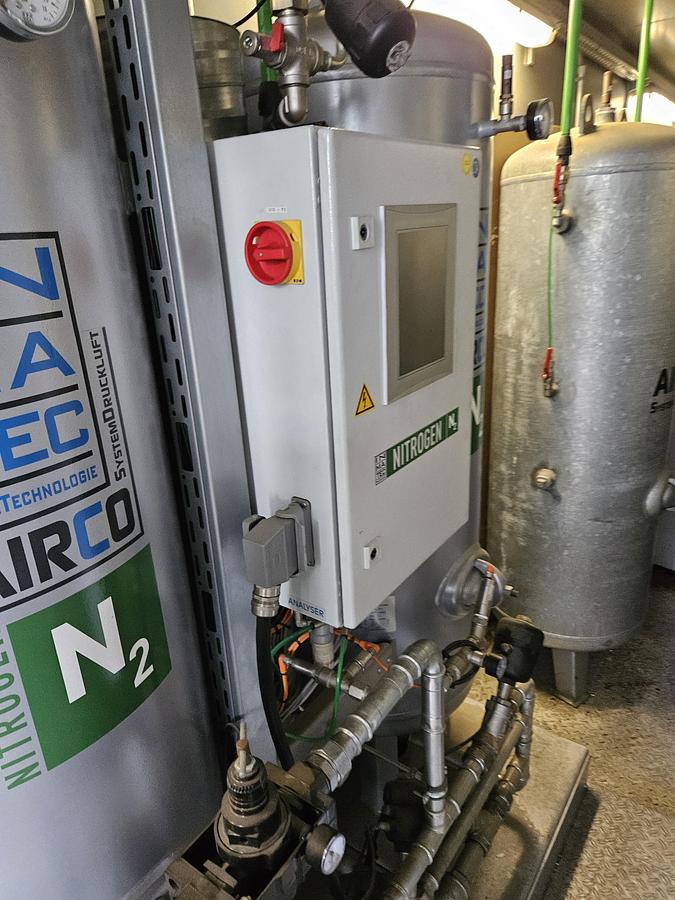

1x N-Kat system 100+PAN

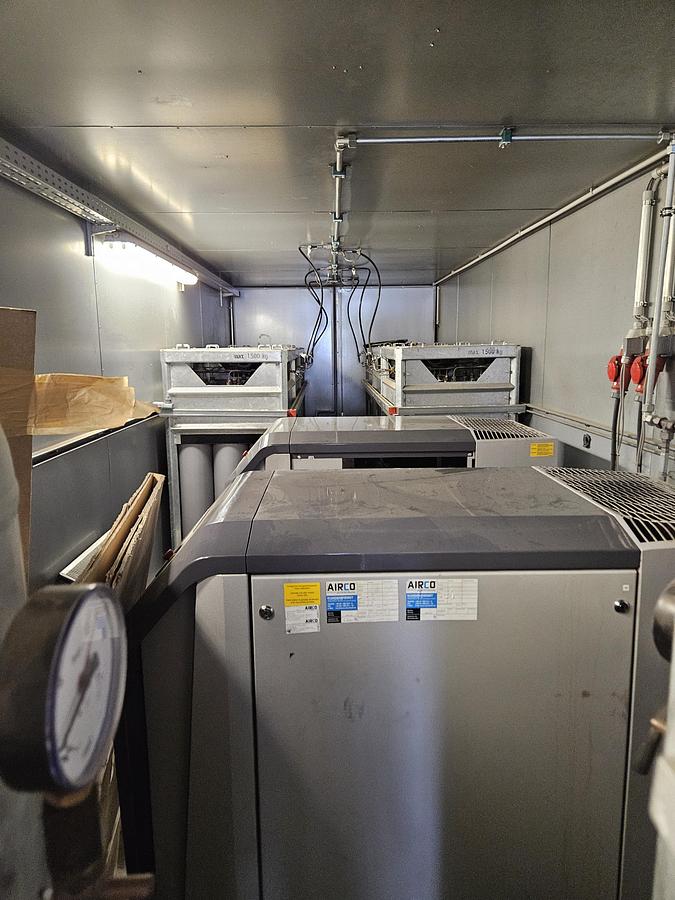

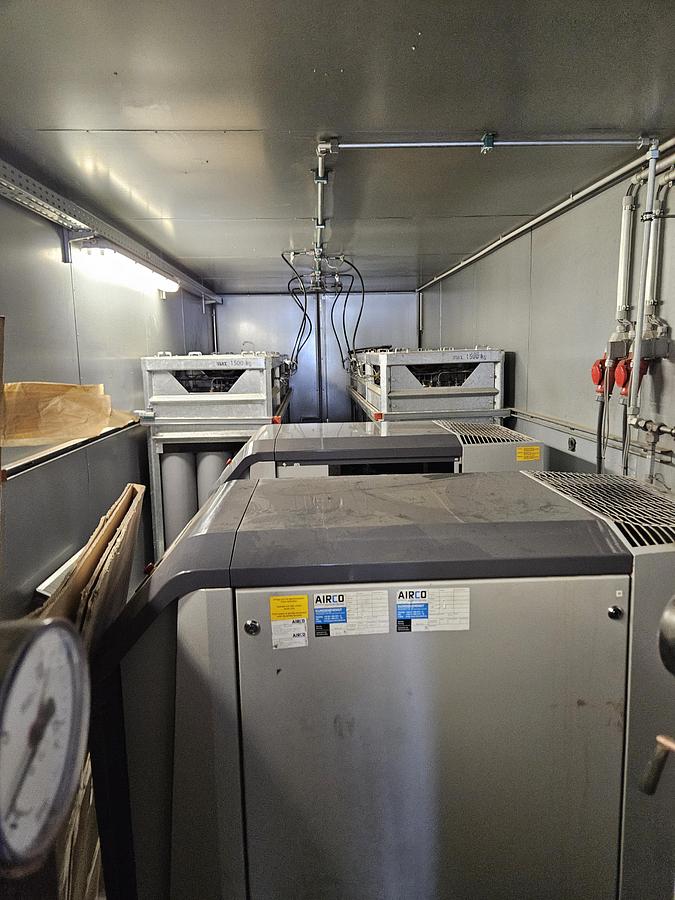

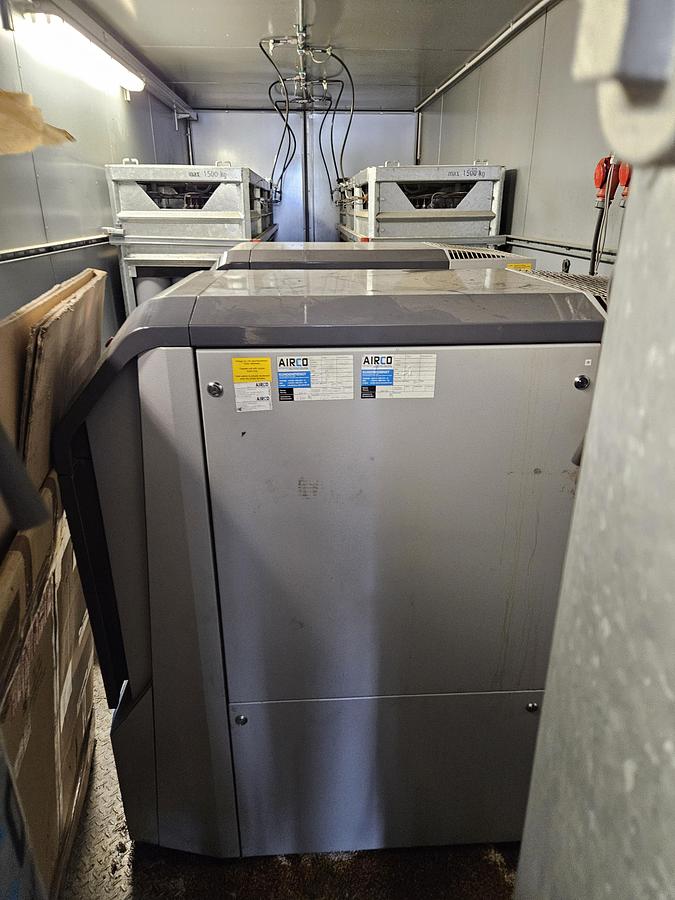

2x high-pressure compressor 15 kW

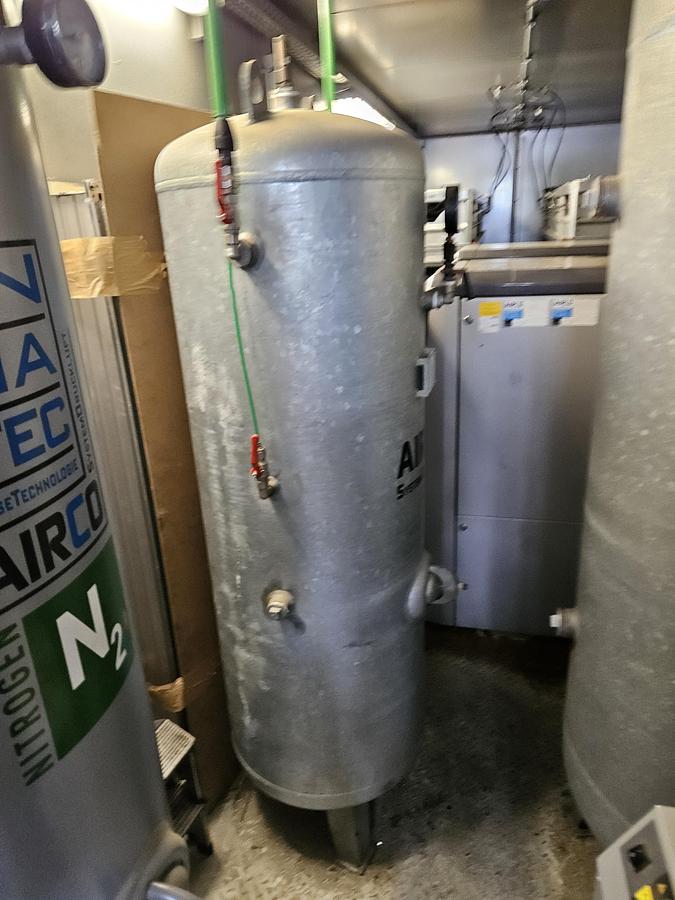

1x nitrogen tank 500 L

1x nitrogen tank 1000L

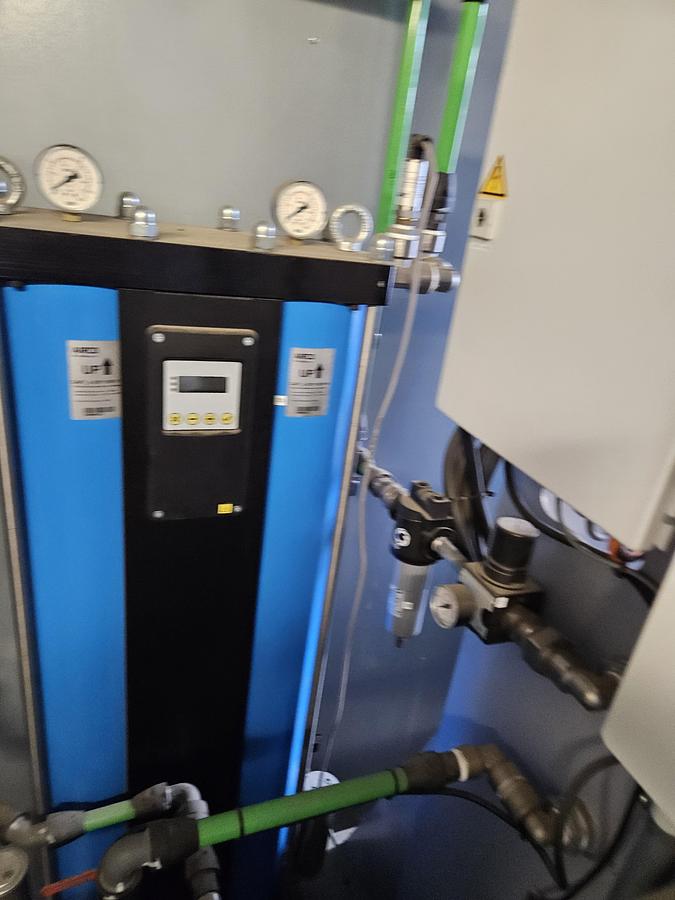

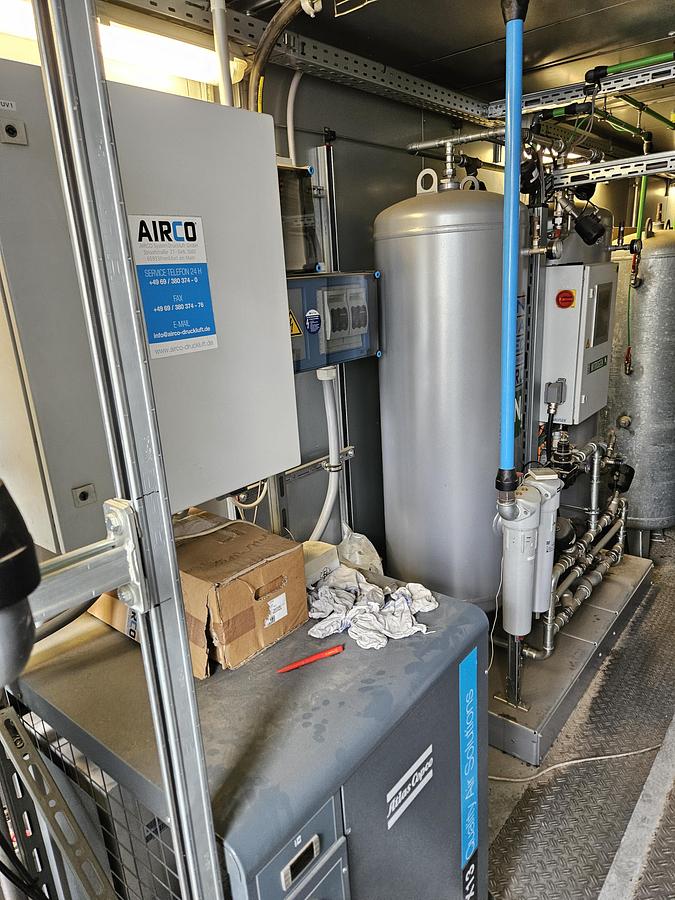

1x adsorption dryer A-DRY-105

2x AF 85 H filter

6x nitrogen bundles 300 bar

1x assembly & commissioning
