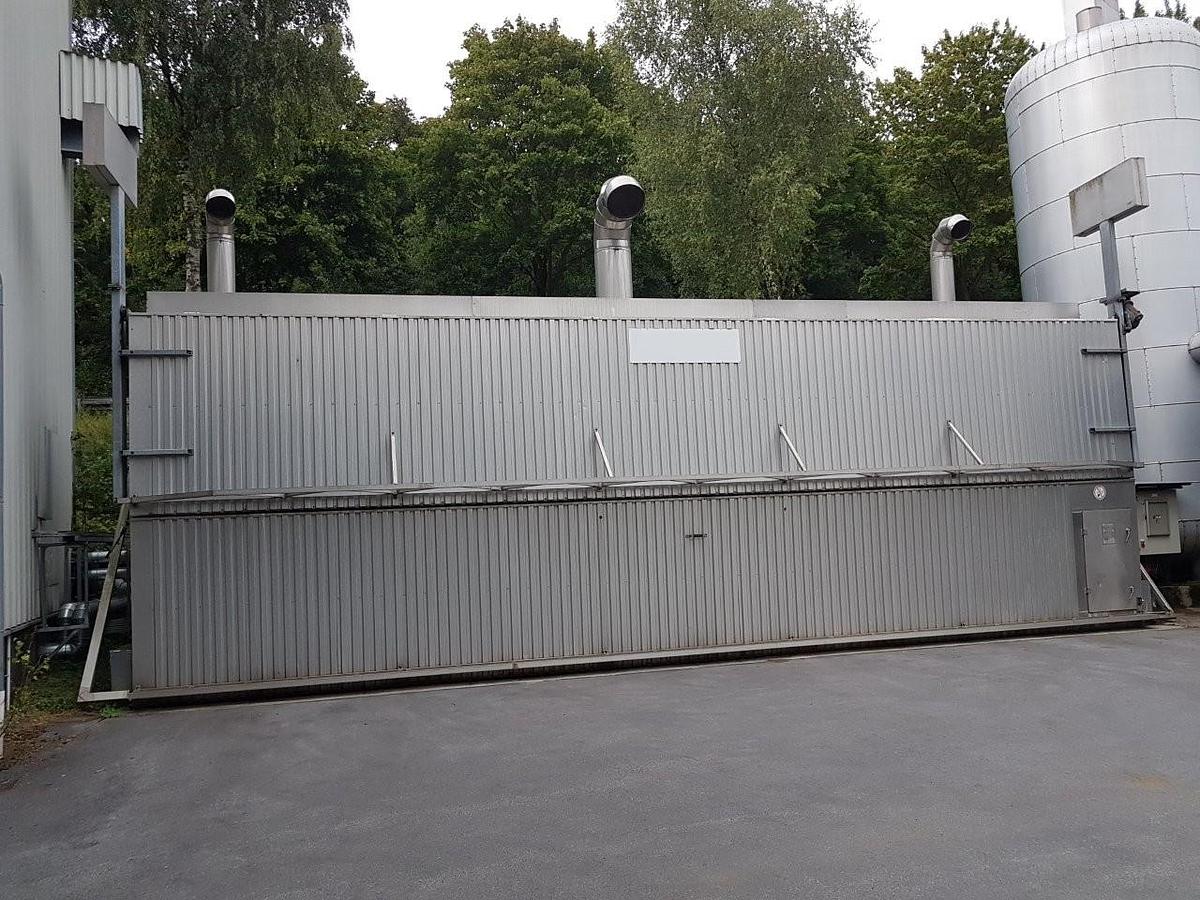

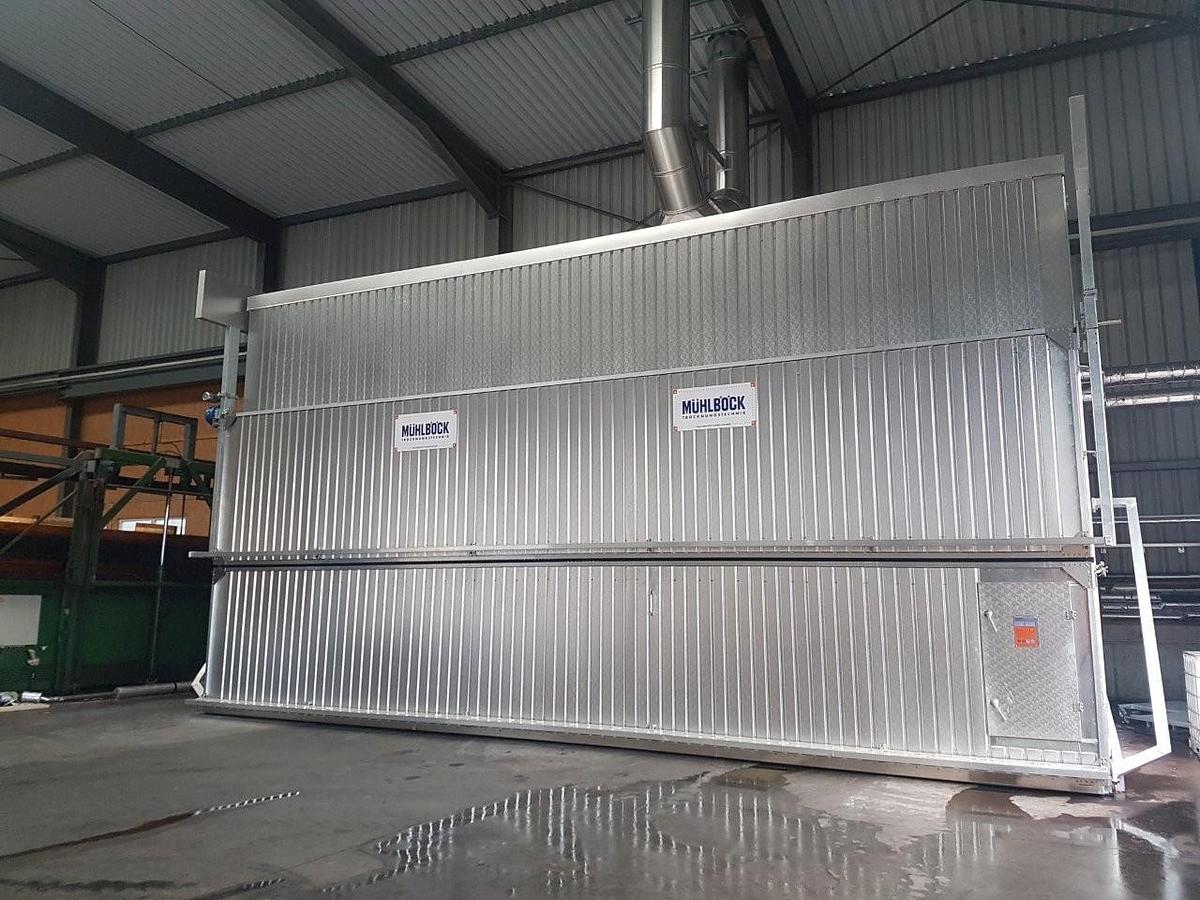

2012 Trockenkammer Lauber /Mühlböck Drying Chamber

We are offering for sale 3 Drying Chambers manufactured by Trockenkammer Lauber /Mühlböck

Industrial drying chamber system with 3 chambers. Each chamber has a gross stack volume of 162 m³. Hot water heating with 780 kW heating capacity per chamber, operating at 95 °C flow temperature. Water flow rate 45 m³/h, DN100 connections. Equipped with circulation and exhaust/fresh air fans. Suitable for high-capacity industrial drying applications..

Chamber 1

Manufacturer: Trockenkammer Lauber /Mühlböck Wood Drying System

Model:  ZLSM 2120-3120-1252-11-0606-5.0

Year of Manufacture: 2012

Type of Machine : Wood Drying System

Heating capacity : 410 kW

Maximum flow temperature : 95 °C

Water flow rate : 24 m³/h

Pressure loss : 3 mWS

Electrical supply voltage: 230 / 400 V

Installed electrical power : 28 kW

Fans :  7 units, 3.0 kW each

Chamber 2

Manufacturer: Trockenkammer Lauber /Mühlböck

Year of Manufacture: 2004

Type of Machine : Wood Drying System

Chamber 3

Manufacturer:

Model: ZLSM3150-3120-1072-11-1306-6

Year of Manufacture: 2019

Type of Machine : Wood Drying System

Rated output (heating capacity): 780 kW

Water temperature: 95 °C

Water flow rate: 45 m³/h

Water pressure loss: 3 m WS

Power supply voltage: 230/400 V

Connected electrical load: 32 kW

Fans: 6 × 3.0 kW

Fan type: WRG-1306

WRG fan motors: 2 × 4.0 kW

Technical data per chamber

Heating system: hot water heating

Heating capacity: 67,080 kcal/h / 780 kW

Flow temperature: 95.0 °C

Water flow rate: 45 m³/h

Pressure loss: 3.0 m WS / 0.3 bar

Water connections

Flow connection: DN 100, PN 10

Return connection: DN 100, PN 10

Spray system

Medium: water

Water temperature: > +4 °C

Max pressure: 6.0 bar

Water consumption: 105 l/h

Connection: R 1/2 inch

Fans

Circulation air fans: 6 units, 3.0 kW, 400 V, 50 Hz

Exhaust / fresh air fans: 2 units, 4.0 kW, 400 V, 50 Hz

Number of chambers: 3

Stack dimensions per chamber

Stack length: 2 × 5.00 m + 0.56 m

Stack depth: 3 × 1.50 m + 2 × 0.10 m

Stack height: 3 × 1.20 m + 3 × 0.10 m

Gross stack volume: 162 m³
