2021 Mahlo Webpro M

Manufacturer: Mahlo

Model: Webpro M

Year of Manufacture:2021

Power supply: 230 V AC

Electrical connection: 1L / N / PE

Frequency: 50/60 Hz

EMC interference class: G

Protection class: IP43

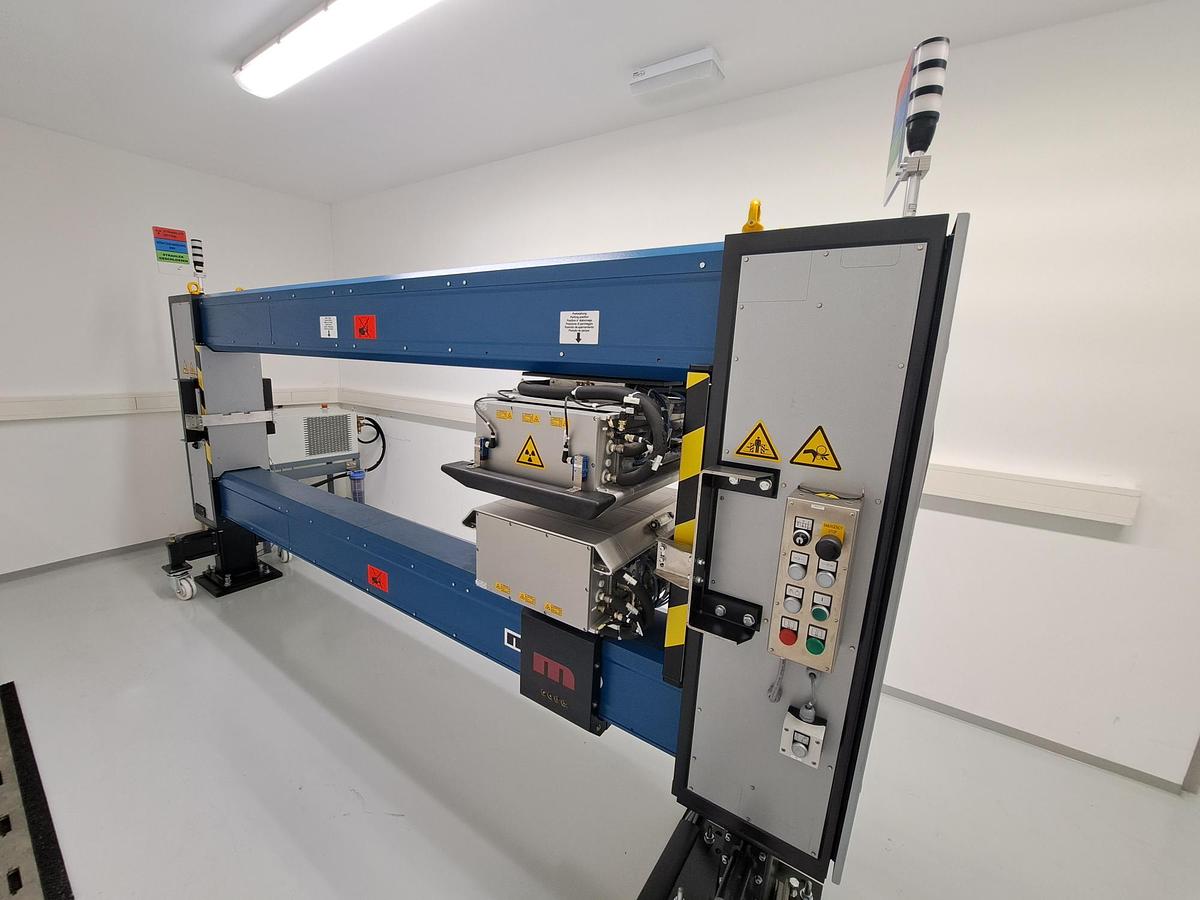

Product: Inline quality measurement system QUALISCAN QMS-12 by Mahlo

Function:

Inline system for continuous measurement of thickness and basis weight during production. Sensors are mounted on a traversing frame and move left to right across the material to measure over the full production width and length.

Measured parameters:

Thickness

Basis weight

Additional parameters possible depending on configuration

Measurement principles:

Thickness measurement by laser triangulation, double-sided measurement of top and bottom surfaces

Measurement range: 0–100 mm

Reproducibility: ±25–50 µm

Basis weight measurement by X-ray transmission

X-ray intensity is reduced according to material mass

Reproducibility: 0.1 g/m² (1 sigma, 1 s)

Measurement gap: 60 mm

Water-cooled system

X-ray system details:

Industrial metal-ceramic X-ray tube

Variable power supply 15–50 kV

Special ionization chambers with noble gas filling

Compensation for temperature and product distance

X-ray radiation can be switched off

Sensor itself is not radioactive

Radiation only generated when voltage is applied

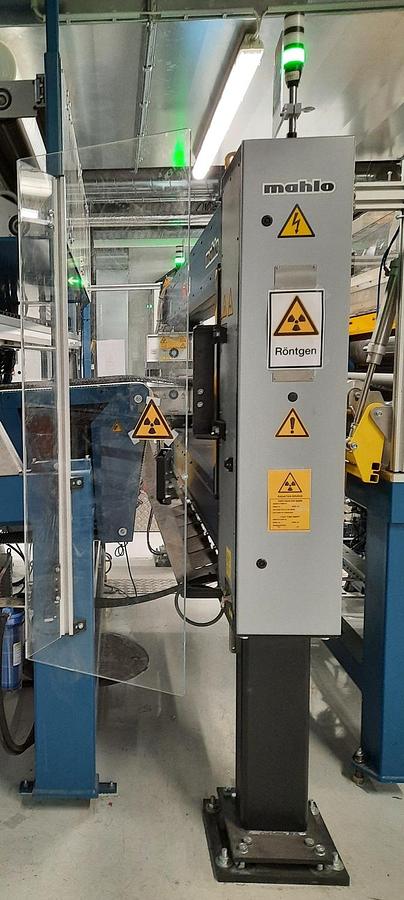

Safety information:

X-ray shutter opens only during measurement

Automatic shutter closing in case of power failure or malfunction

Clearly marked control and hazard areas

Visual status indicator with signal lights:

Red: shutter open, radiation emitted

Blue: tube active, shutter closed

Green: shutter closed, no radiation

Approach is safe when shutter is closed

System configuration:

Modular design, expandable with additional sensors and measuring points

Continuous data acquisition for quality monitoring and automatic control

Operating conditions:

Ambient temperature: 0–45 °C

Relative humidity: 0–95%, non-condensing

Power supply: 230 V 1~ or 400 V 3~, 50/60 Hz

Control and software:

19-inch color touchscreen operator panel

Real-time display of profiles, averages, min/max values, trends, alarms

Recipe management and data backup functions

Interfaces for network integration and data logging

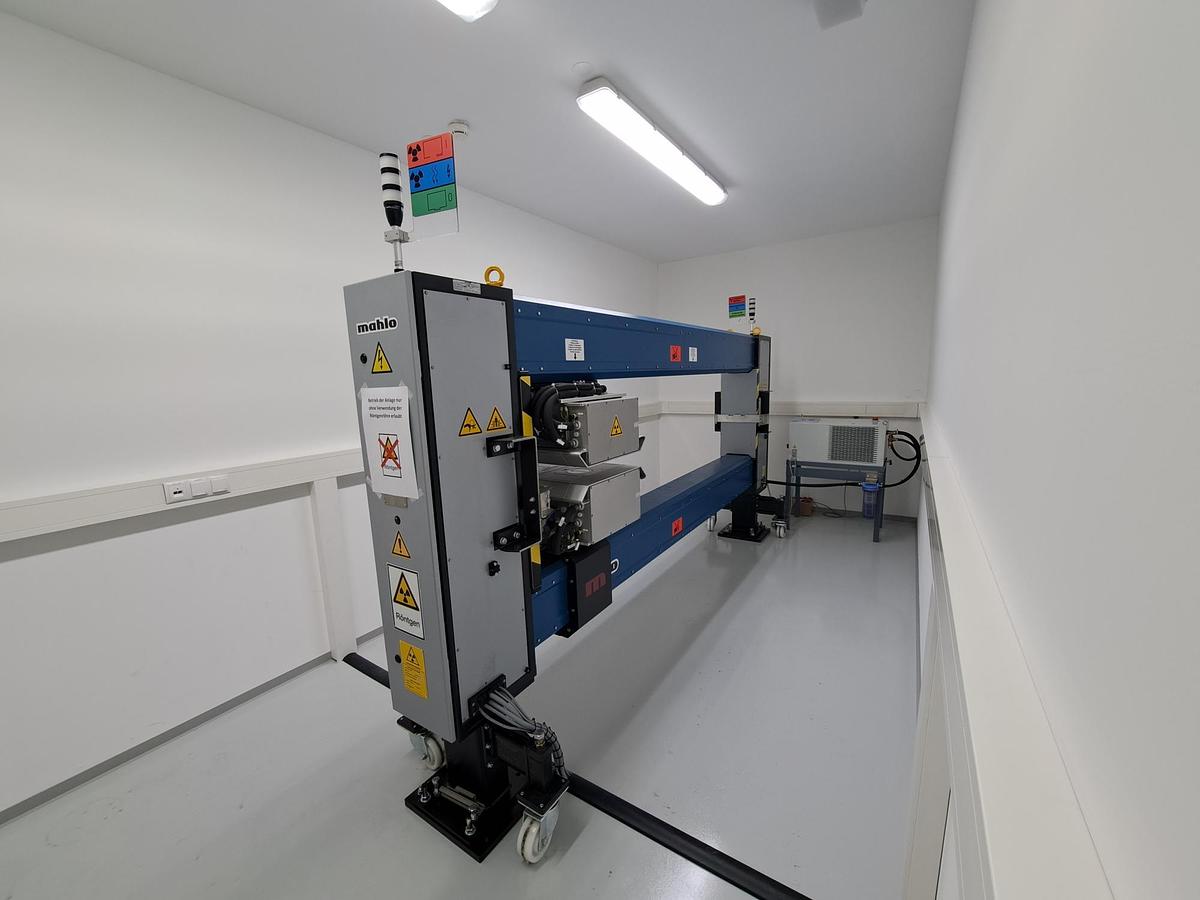

Traversing frame:

Sensors mounted on a traversing platform

Traversing speed: 30–300 mm/s

Aluminum construction

Integrated safety and position monitoring

Compressed air supported measurement gap stabilization
