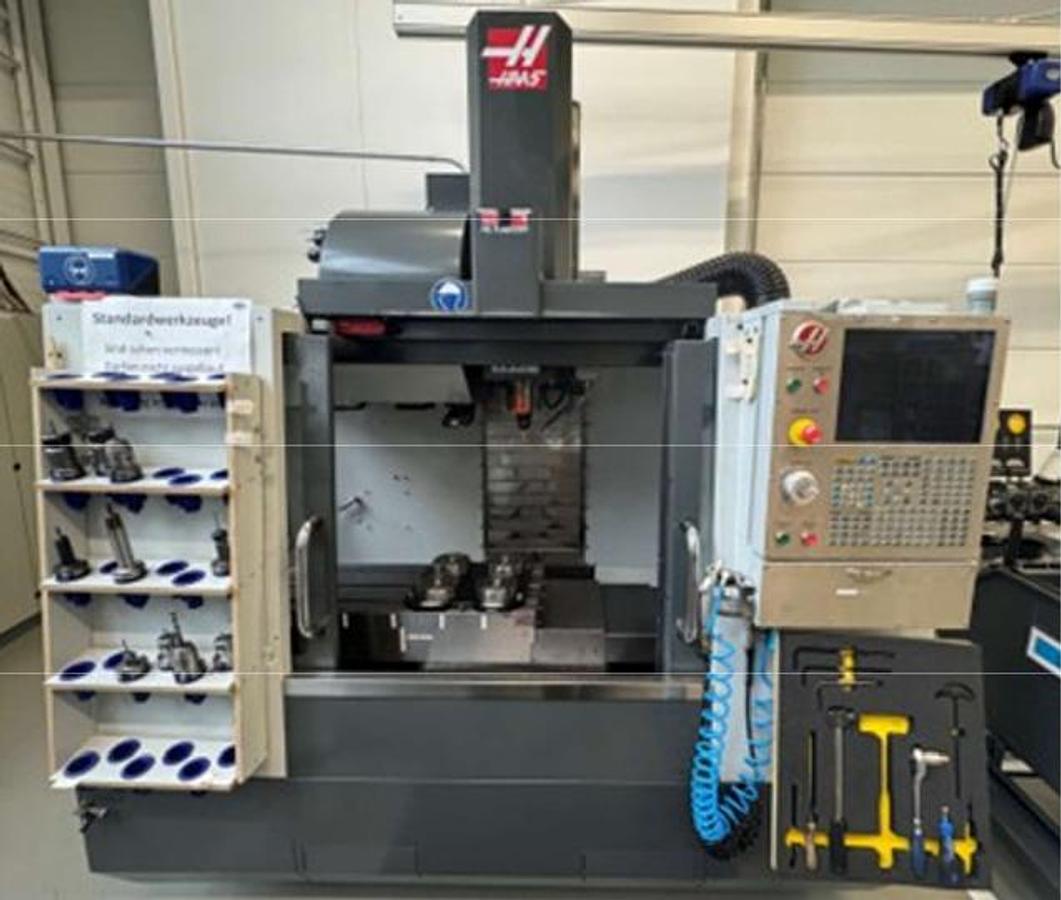

2014 Haas VF-2

Manufacturer:  Haas

Model:VF-2

Year of Manufacture: 2014

Machine type: Vertical Milling Machine

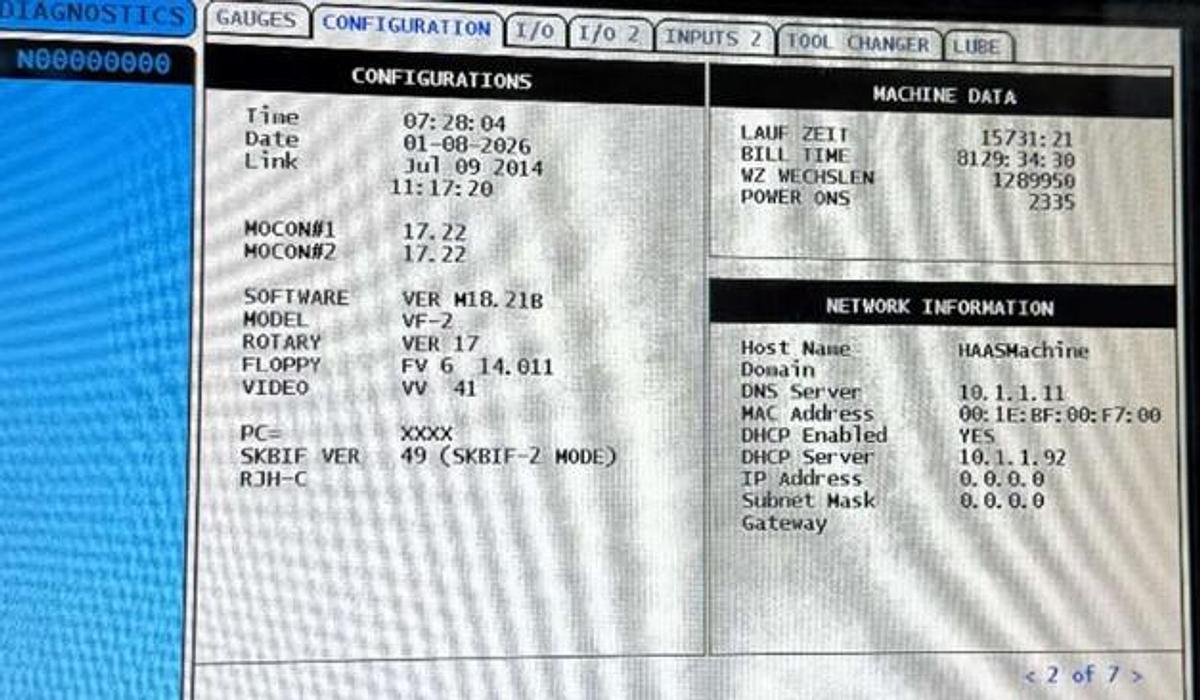

Operating hours: approx. 15,700 h

Technical Data

Table size: 914 x 356 mm

Axes: 3-axis

Table load: max. 1,361 kg (evenly distributed)

Working range: X 762 mm × Y 406 mm × Z 508 mm

Feed rate: 16.5 m/min

Rapid traverse X/Y/Z: 25.4 m/min

Tool Magazine

Positions: 24

Receptacle: SK40 DIN 69871 Part 1

Pull studs: DIN 69871 / DIN 69872 / ISO 7388-2

Tool diameter:

- Standard: max. 89 mm

- With free adjacent positions: max. 127 mm

Tool length: max. 330 mm

Tool weight: max. 5.4 kg (individual tool), max. 81.6 kg in magazine

Spindle

Speed: max. 15,000 RPM

Drive power: 7 kW (40% ED) / 5 kW (100% ED)

Torque: 88 Nm (40% ED) / 63 Nm (100% ED)

Equipment

Splash guard full cabin

Machine light

Minimum quantity lubrication

3D measuring system: Infrarot Renishaw 40-2 (Serial No. 155F35)

Special Equipment

Zero point clamping system

Vacuum aggregate

One set tool holder

Dimensions and Weight

Machine weight: approx. 3,539 kg

Connection value: 354-488 V / 35 A

Machine dimensions: 2,490 × 2,320 × 2,540 mm

Space requirement: 2,600 × 4,000 × 2,700 mm
