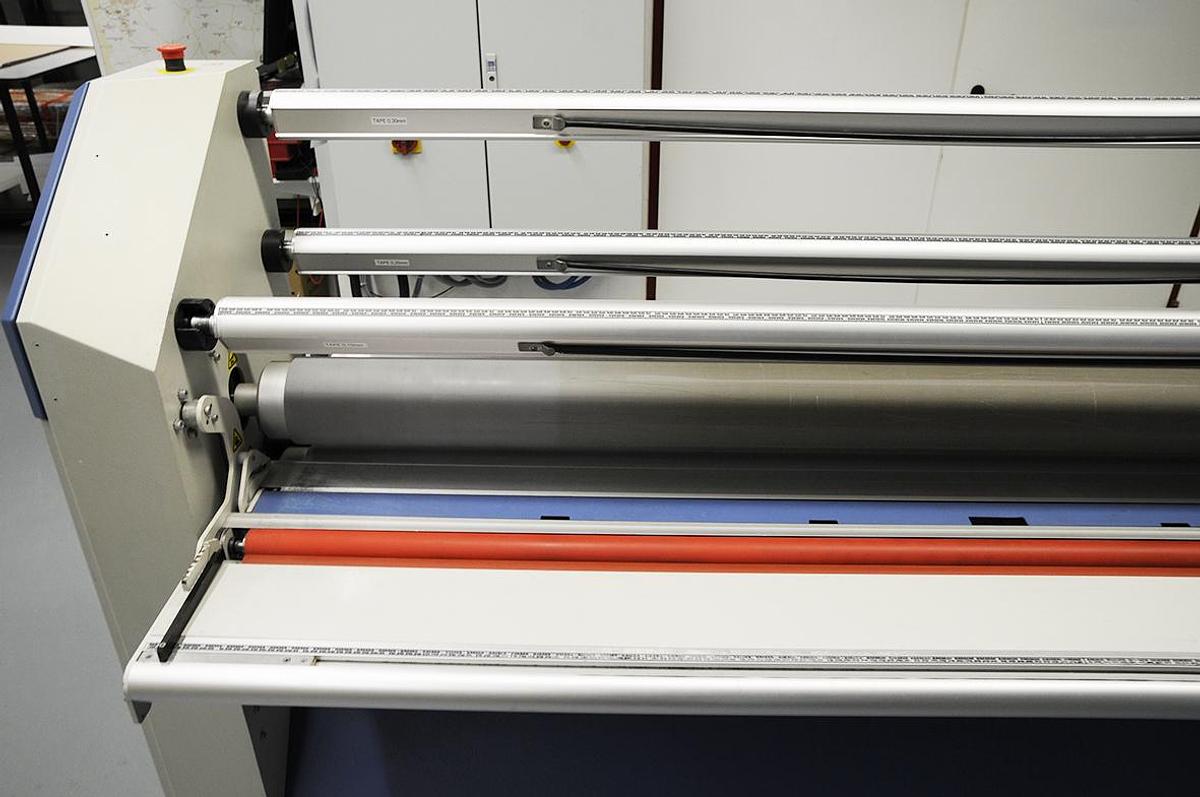

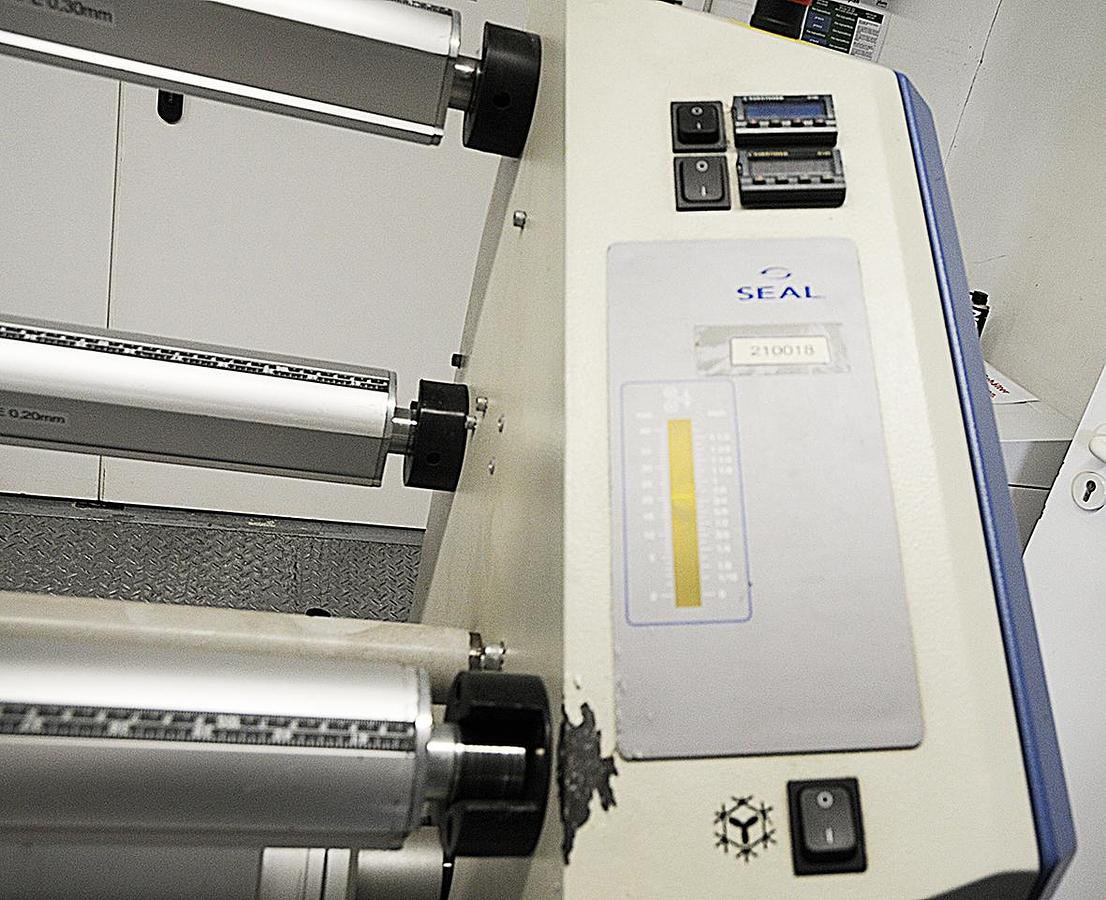

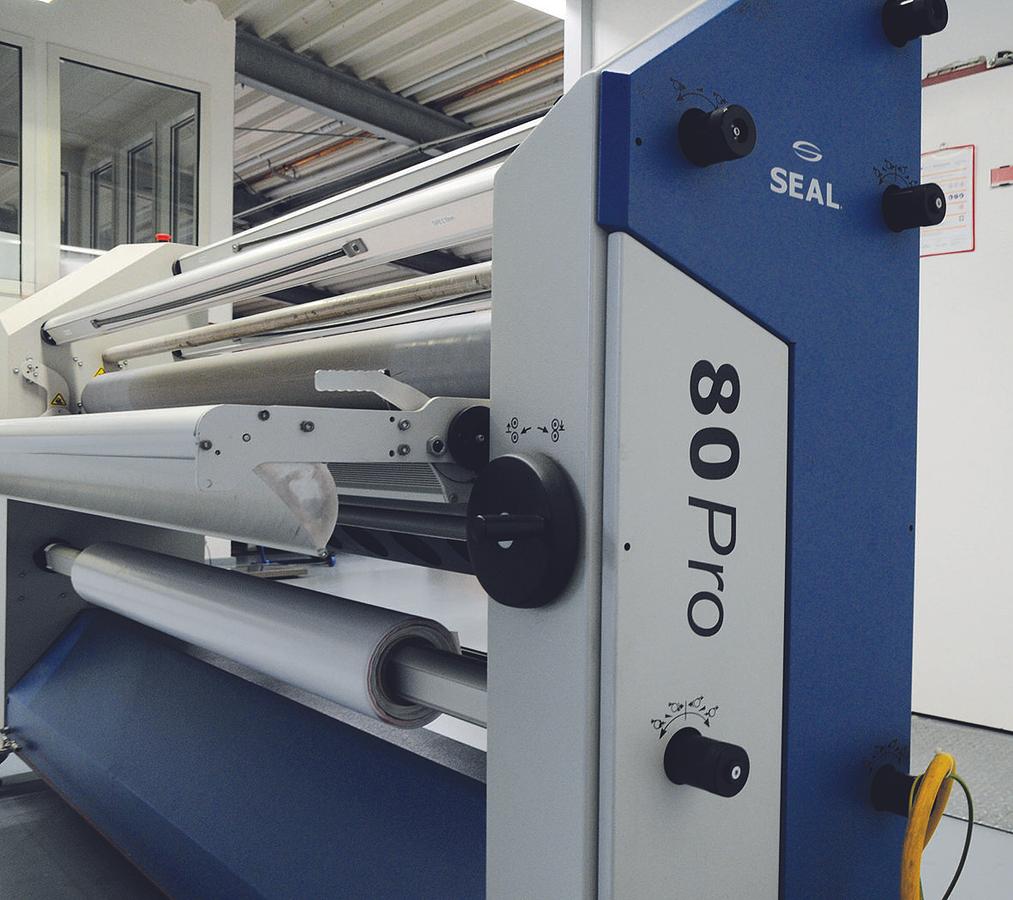

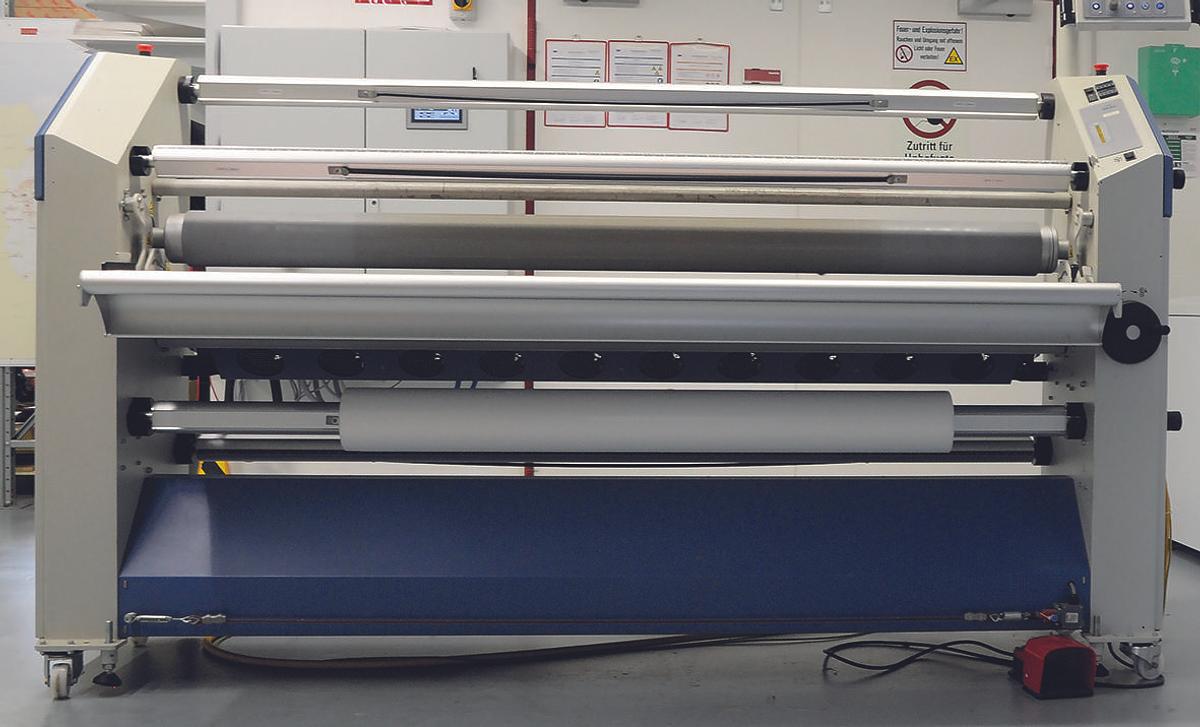

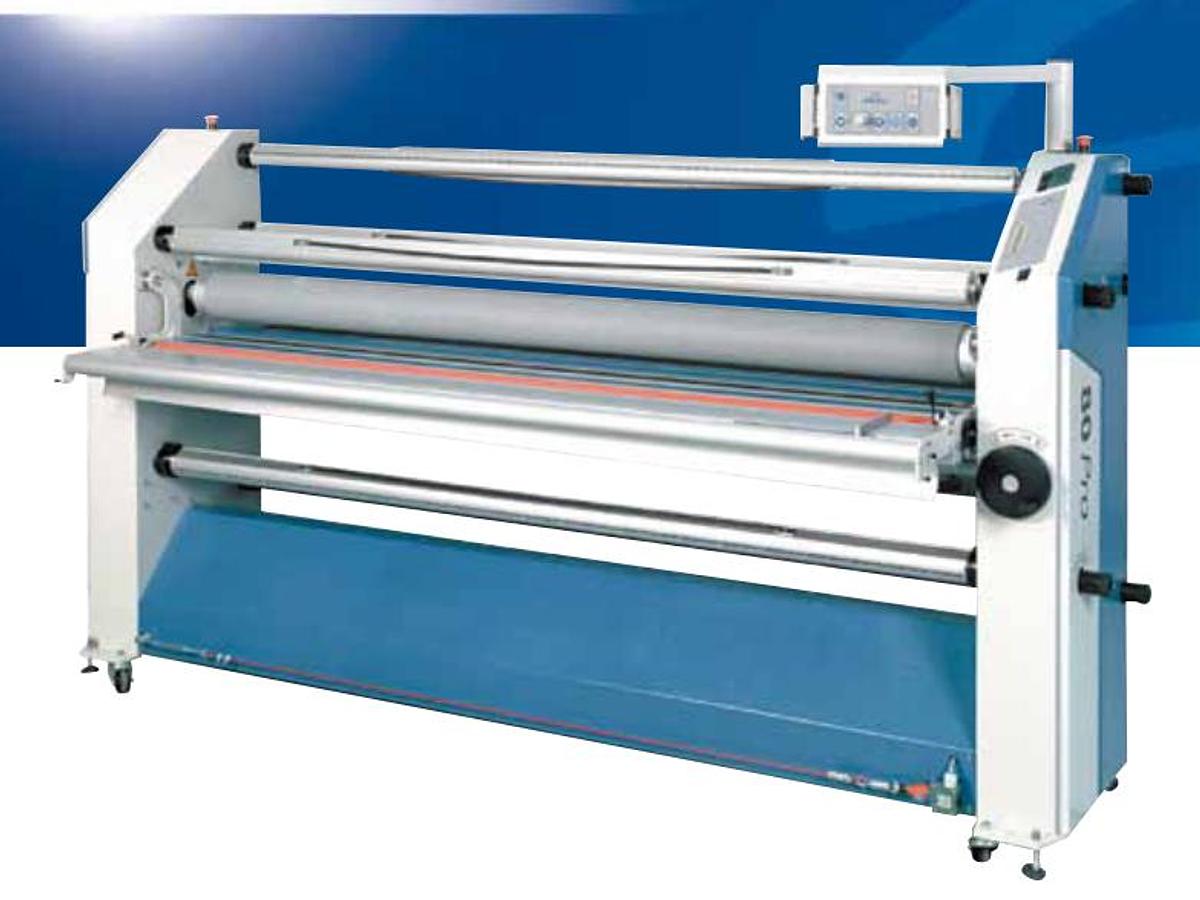

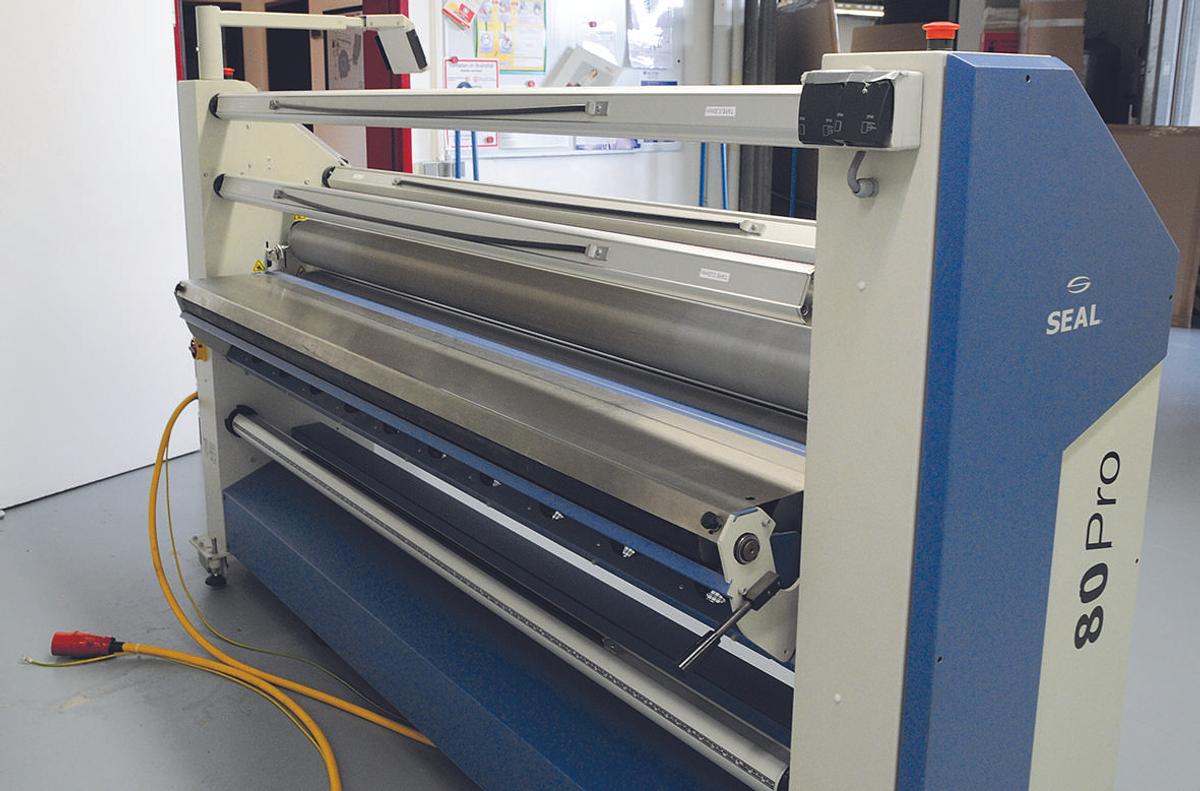

2009 SEAL 80 Pro D

Manufacturer: SEAL

Model:  80 Pro D

Technical Specifications

• Maximum processing width: 2,030 mm
• Maximum speed: 6 m/min
• Maximum material thickness: 38 mm
• Maximum roller pressure: 2.5 N/mm
• Maximum roller temperature: 140 degrees C
• Roller heating: both sides (top and bottom)

Machine Dimensions

• Width: 2,667 mm
• Height: 1,654 mm
• Depth: 634 mm
• Net weight: 780 kg

Transport Dimensions

• Width: 2,710 mm
• Height: 1,690 mm
• Depth: 900 mm
• Transport weight: 840 kg

Electrical Data

• Power supply: 3N/PE 230 VAC +/- 10%, 50/60 Hz, 25A

Key Features

• Variable temperature, speed and pressure settings
• Ergonomic touchscreen control panel on swivel arm (operable from front and rear)
• Feed table with tension rollers and fold-down print guide for smooth and even media feed
• Longitudinal cutting device for trimming finished products during processing
• Foldable pull rollers for flatter encapsulation and easier access during processing interruptions
• Manual roller gap adjustment for precision work
• Variable roller technology for improved processing of soft substrates
• Combination feed shafts for maximum flexibility
• Automatic cooling fans for extended run times
• Feed table trough for longer prints
• Siliconized rollers for easy cleaning
• Auto-grip swivel arm system for comfortable media loading
• Automatic upper rewind shaft for liner removal
• Roll-to-roll processing capability

Safety Features

• Foot switch operation
• Panic bar for operator safety
• Emergency stop switches and light barriers with self-diagnosis
• CE certified
