2007 Mazak Super Turbo X510 MkII

Manufacturer:  Mazak

Model: Super Turbo X510 MkII

Year of Manufacture: 2007

Machine Type : Flatbed CO2 laser cutting machine

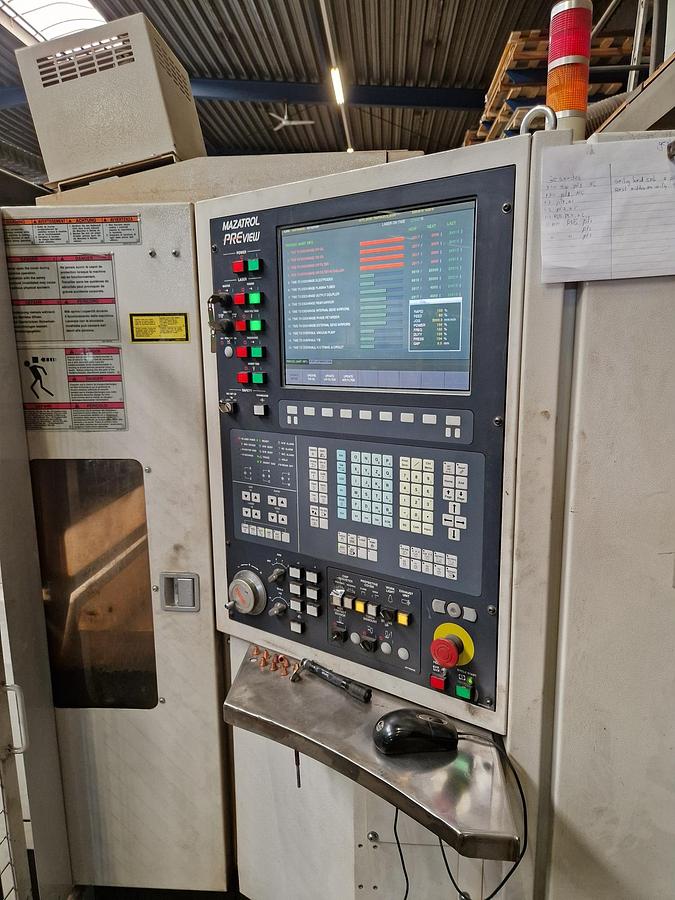

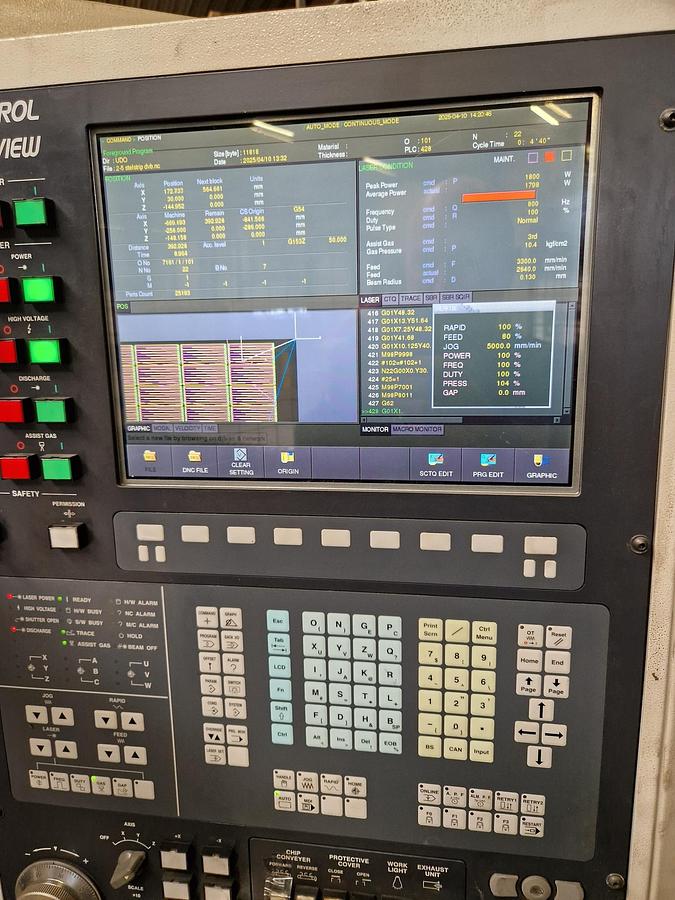

CNC control: Mazatrol Preview

Operating hours : 27.000 h

Technical Specifications

• Working area: 3050 x 1525 mm (5 ft x 10 ft)
• X axis travel: 3235 mm
• Y axis travel: 1545 mm
• Z axis travel: 100 mm
• Laser type: CO2 continuous wave
• Laser power: 2,500 W or 4,000 W depending on version and resonator fitted
• Maximum workpiece size: 3050 x 1525 x 22 mm
• Maximum table load: 805 to 930 kg
• Rapid traverse speed: 24 m/min (945 IPM)
• Maximum cutting speed: 20 m/min
• Machine weight: approximately 12,700 to 13,900 kg depending on configuration

Maximum Cutting Thickness by Material

• Mild steel: up to 22 mm
• Stainless steel: up to 12 mm
• Aluminium: up to 8 mm
