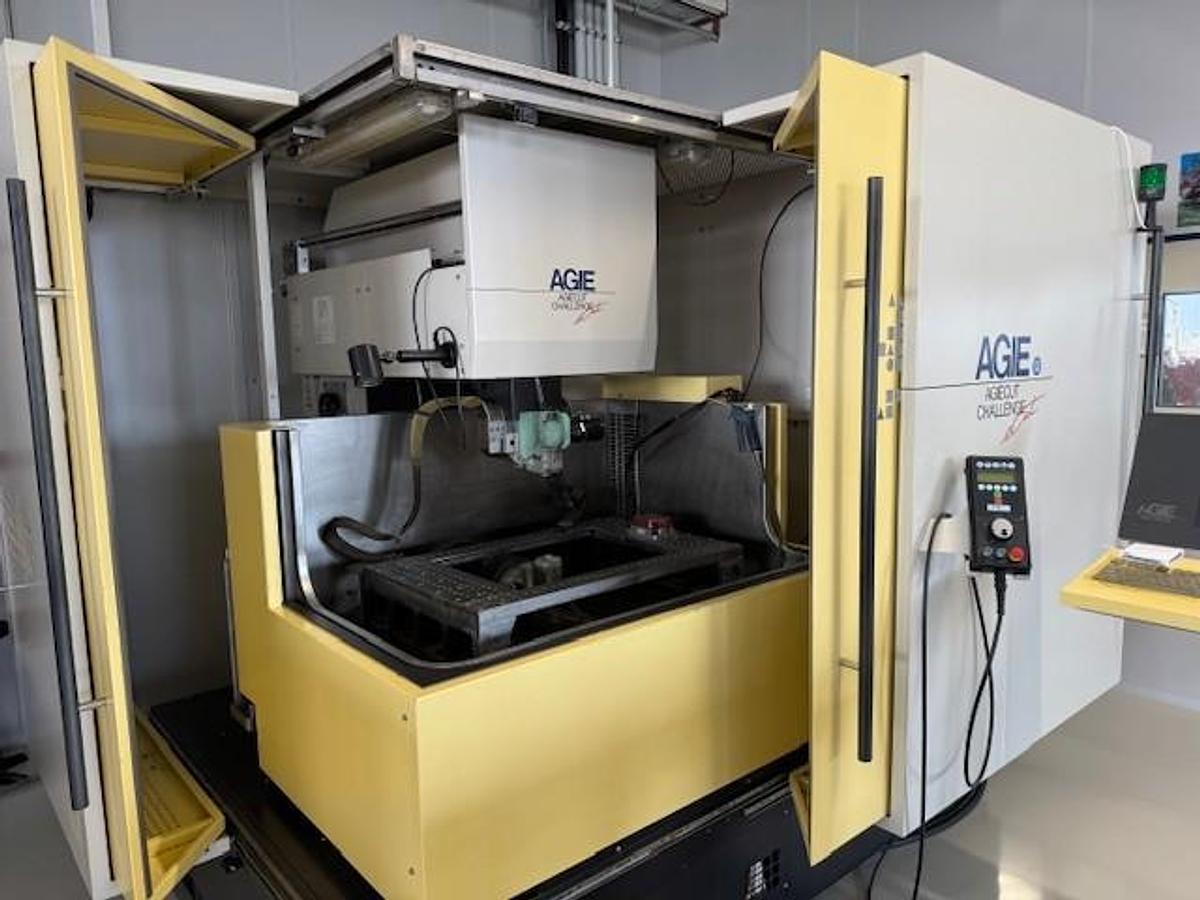

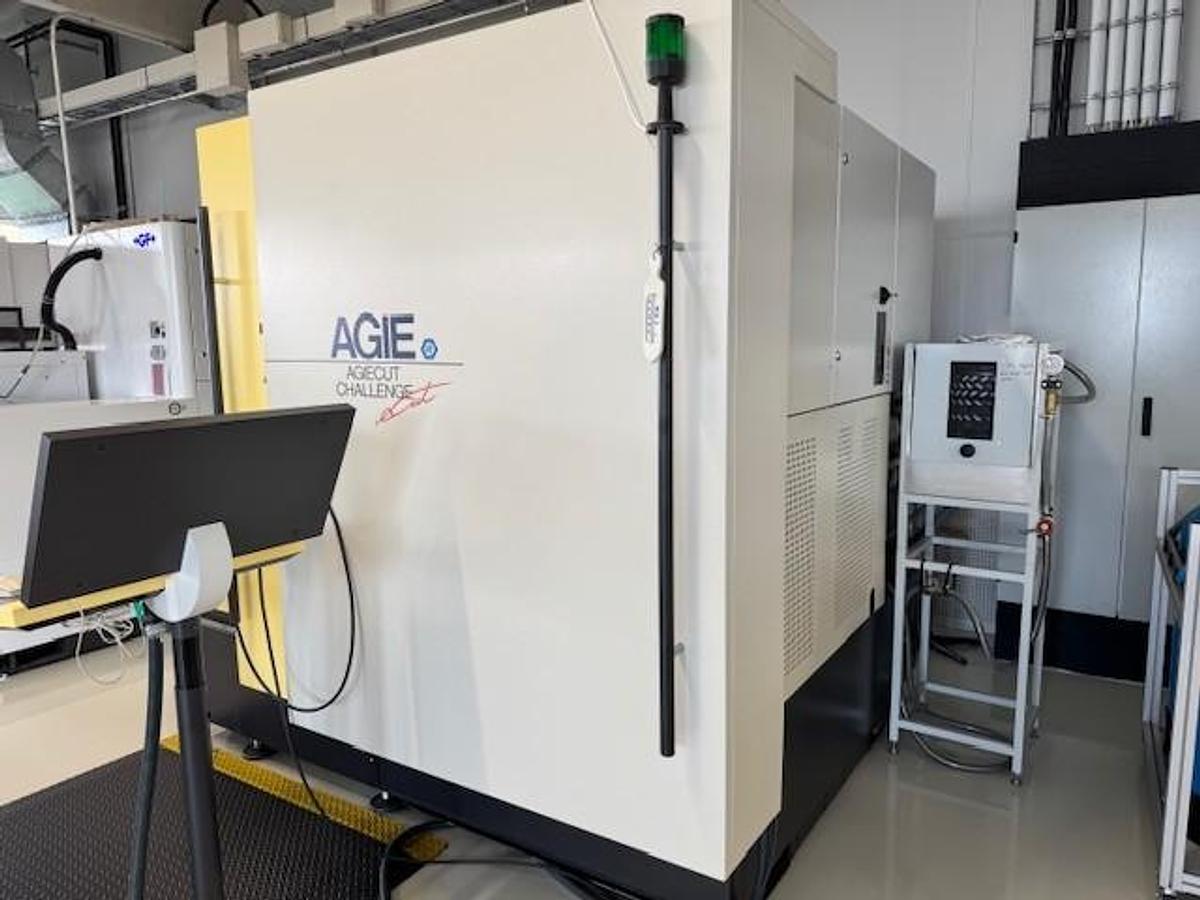

2004 AGIE Challenge 3 eCut

Manufacturer:  AGIE

Model: Challenge 3 eCut

Year of Manufacture: 2004

Type of Machine : Wire EDM Machine

Condition: Used, fully operational

All annual maintenance documented

Operating Hours

• Re: 109,008 hours
• Eros. Std.: 27,172 hours

Electrical Data

• Weight: 4,400 kg
• Voltage: 3 x 400 V
• Frequency: 50 Hz
• Power: 9 kVA
• Rated current: 15.2 A
• Short-circuit current: 10 kA

Travel Distances

• X axis: 500 mm
• Y axis: 350 mm
• Z axis: 256 mm
• U axis: +/- 70 mm
• V axis: +/- 70 mm

Technical Features

• Wire diameter: variable from 0.1 to 0.3 mm (open guides)
• Konik-Plus for very precise conical cutting
• Surface finish down to Ra 0.3 um
• 3D measuring probe for automatic part alignment on the machine
• 1 additional filter for very long runtimes
• Variocut
• Easyrun
• Purecut
• Dynamic Corner Control
• R module
• CAM link
• Pieceinsert
