2019 Eurotherm Manual Wash Booth with Automatic Spray Ring

Manufacturer: Eurotherm

Year of Manufacture:  2019

Type of Machine : Manual Wash Booth with Automatic Spray Ring

Condition: Good, regularly maintained (once per year)

Cabin Dimensions

• Internal Width: 4,000 mm
• Internal Length: 7,000 mm
• Internal Height: 3,500 mm
• External Width: 4,100 mm
• External Depth: 7,100 mm
• External Height: 4,100 mm (double base tray)

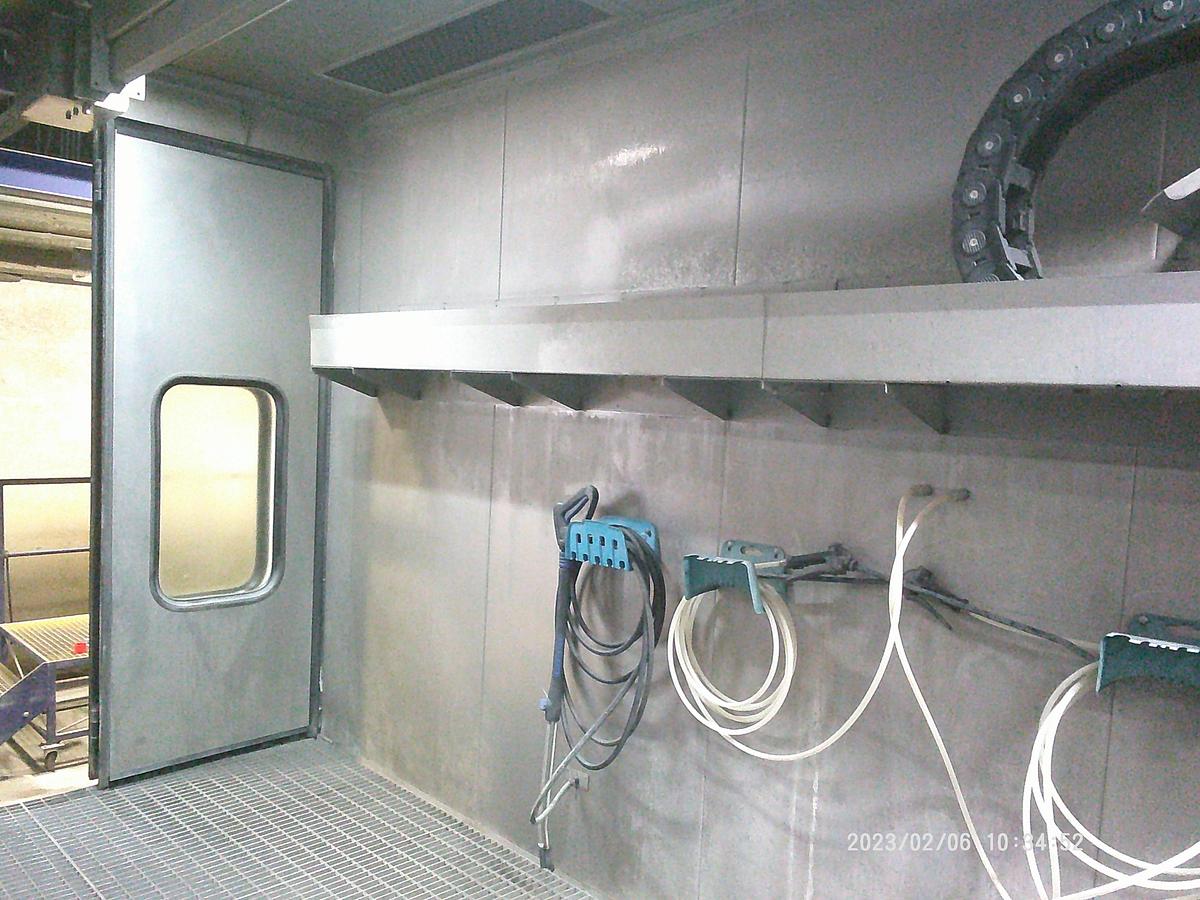

Construction

• Cabin Type: Closed
• Exhaust Air: Extraction at end of cabin
• Panel Thickness: 50 mm with polyurethane insulation
• Inner Walls: Stainless steel AISI 304 (V2A)
• Outer Walls: Galvanized sheet metal, painted
• Steel Profiles: Blue RAL 5002

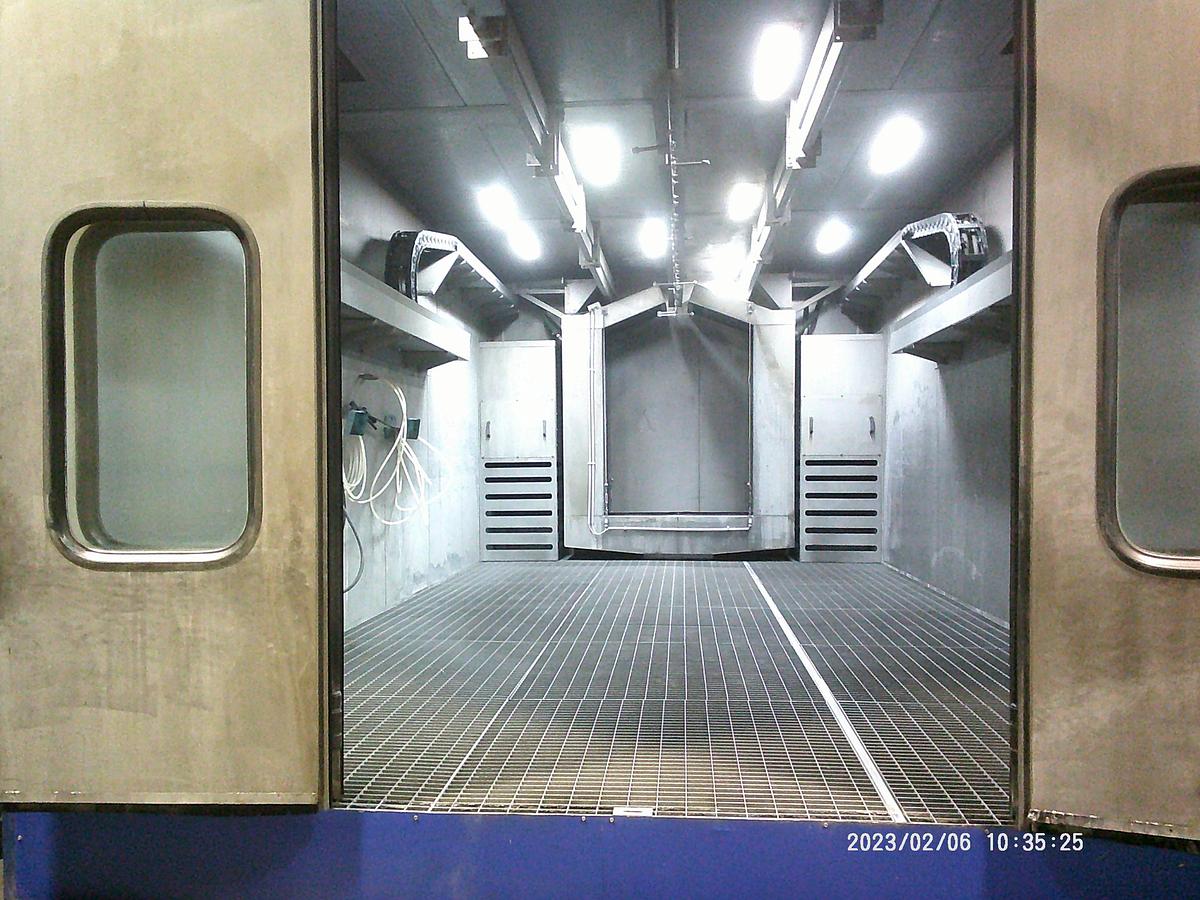

• Access Door: 1 door, manual 4-leaf type, 4,000 x 3,500 mm, Blue RAL 5002

Exhaust and Ventilation

• Air Flow Rate: 10,000 m3/h
• Fan Motor Output: 1.5 kW
• Droplet Separator: Yes

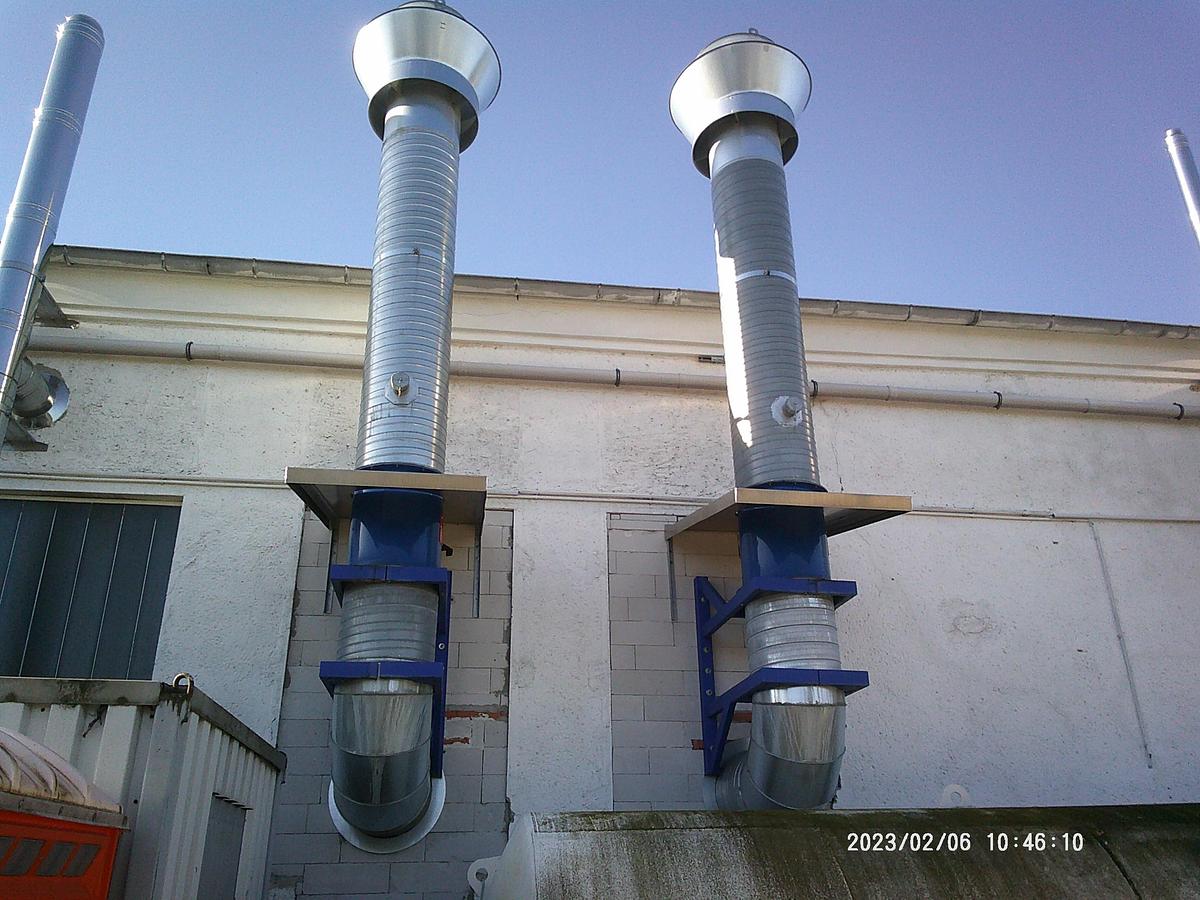

• Chimney: Included, height 6.5 m
• Lighting: 8 LED fixtures

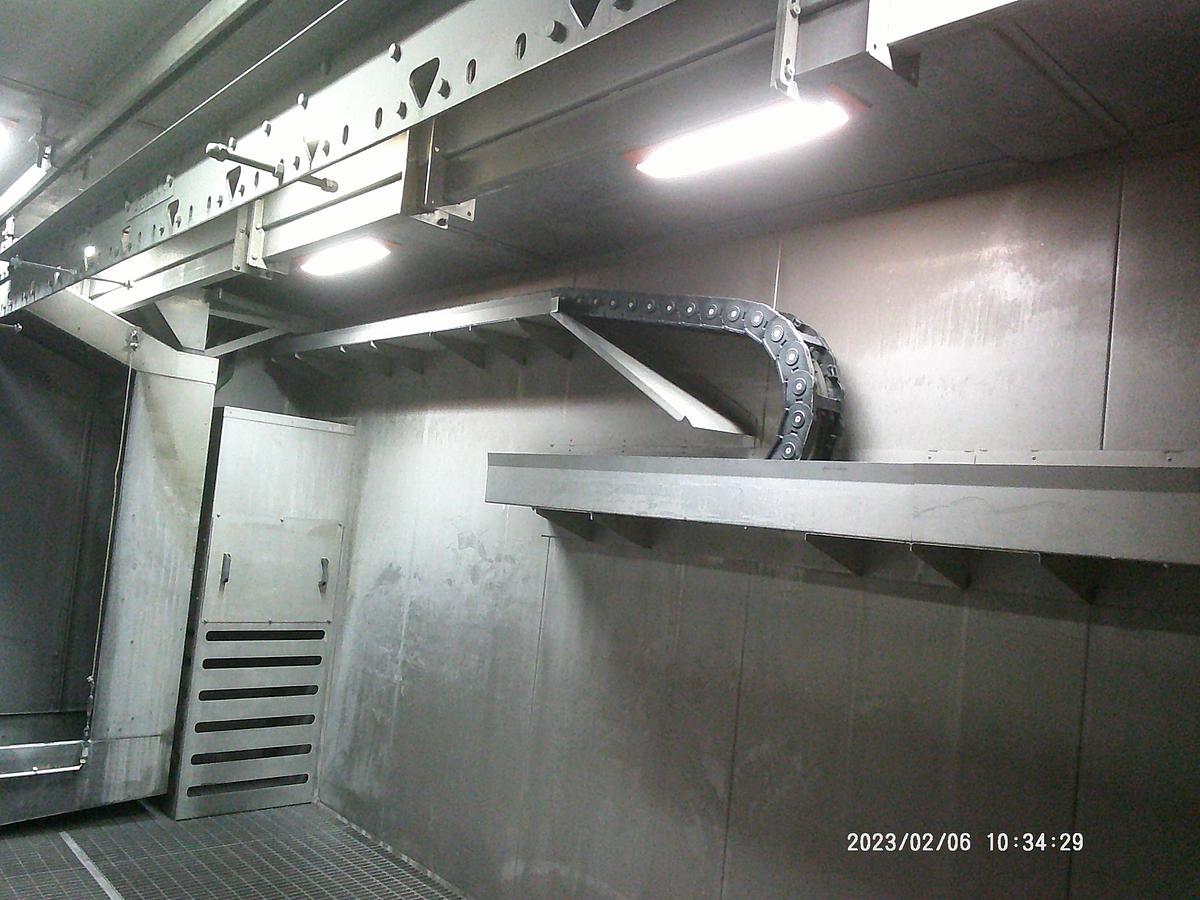

Automatic Spray Ring

• Maximum Workpiece Width: 1,000 mm
• Maximum Workpiece Length: 5,200 mm
• Maximum Workpiece Height: 2,100 mm
• Spray Ring Material: Stainless steel AISI 304 (V2A)

5-Phase Washing Cycle

• Phase 1: Degreasing with alkaline cleaning (manual and automatic spray ring)
• Phase 2: Rinse 1 with mains water (manual and automatic spray ring)
• Phase 3: Rinse 2 with osmosis water (manual and automatic spray ring)
• Phase 4: Rinse 3 with passivation (manual and automatic spray ring)
• Phase 5: Rinse 4 with osmosis water (manual and automatic spray ring)

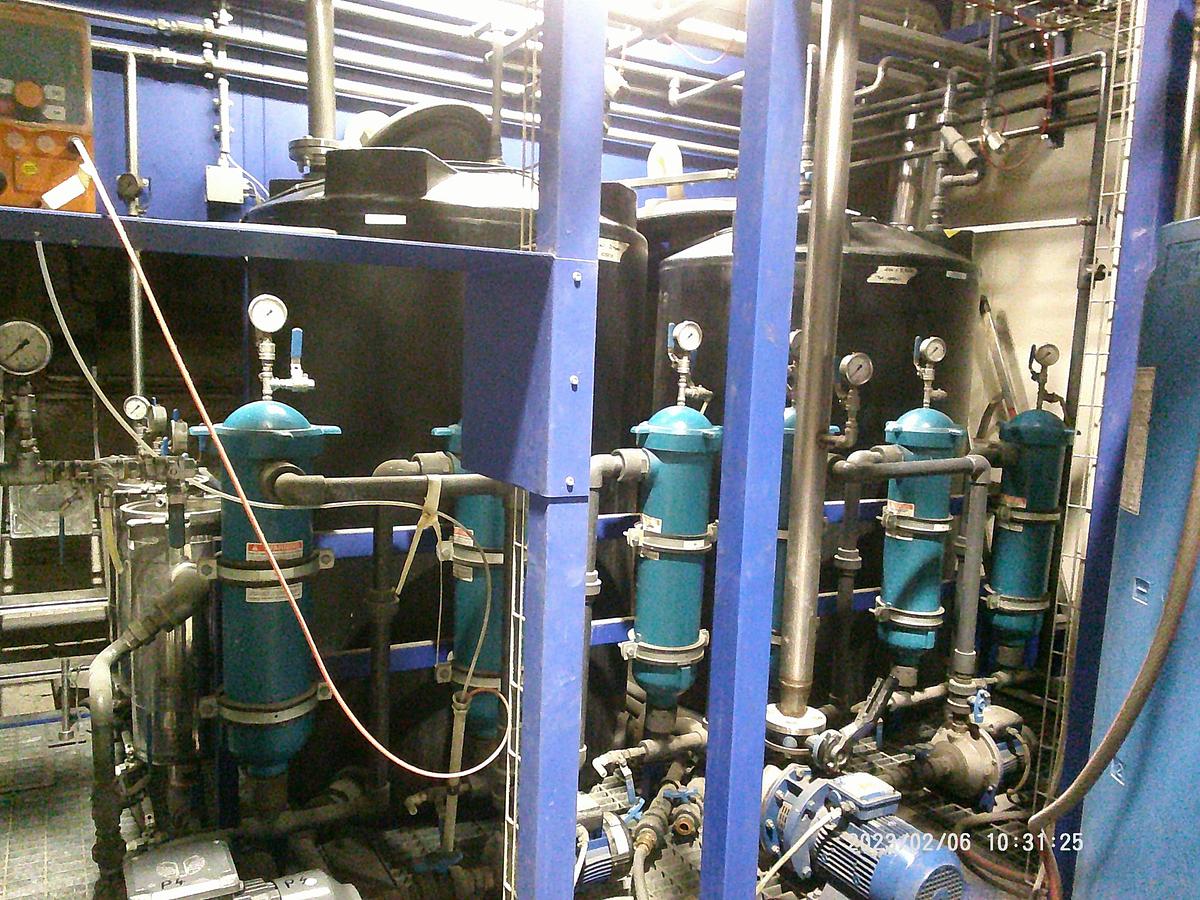

Tank Filter System

• Tank 1: Stainless steel AISI 304 (V2A), heated and insulated, gas burner heating
• Tanks 2, 3 and 4: Polyethylene
• Filter system: Yes
• Diaphragm pump: Yes
• Circulation pump: Yes
• Storage unit with collection tank: Yes

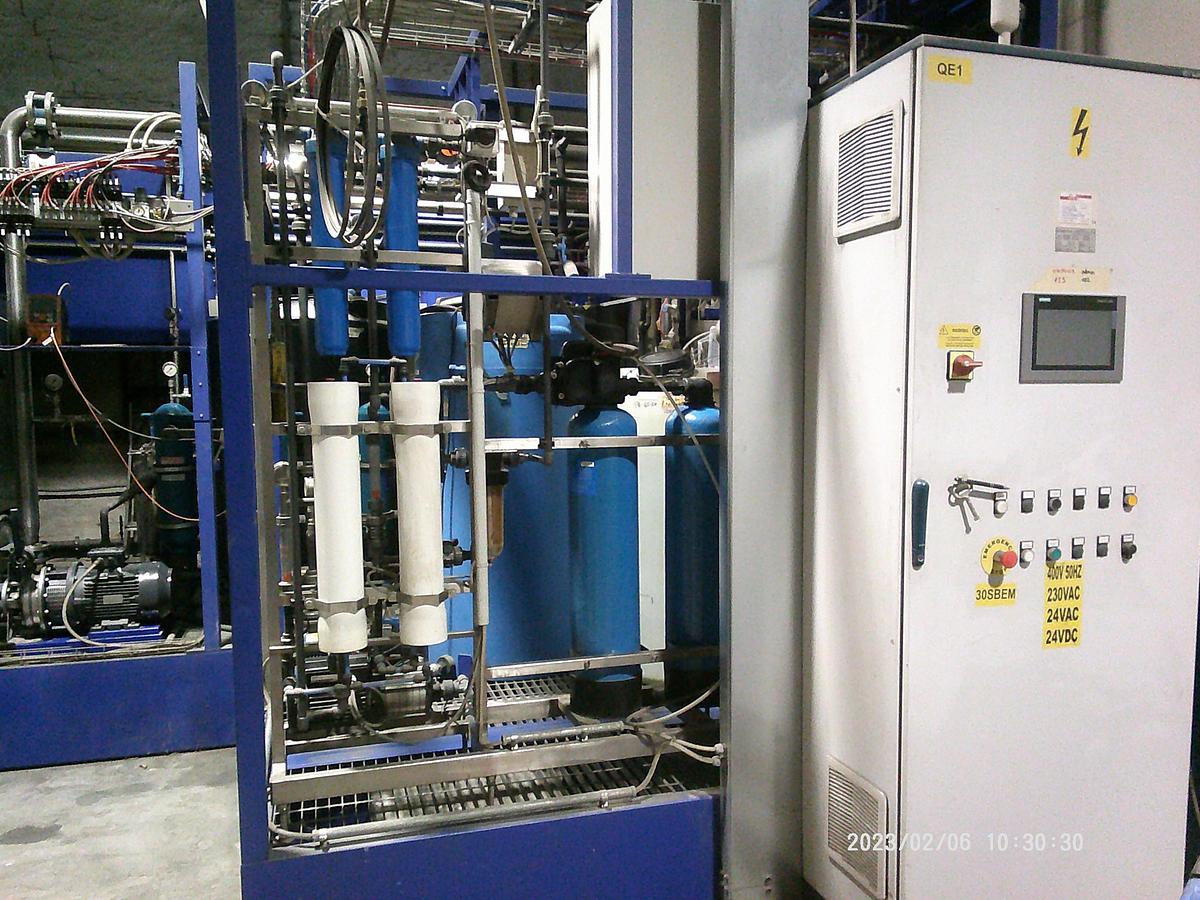

• Control cabinet: Yes
• Electrical circuit: Yes
• Hydraulic circuit: Yes
