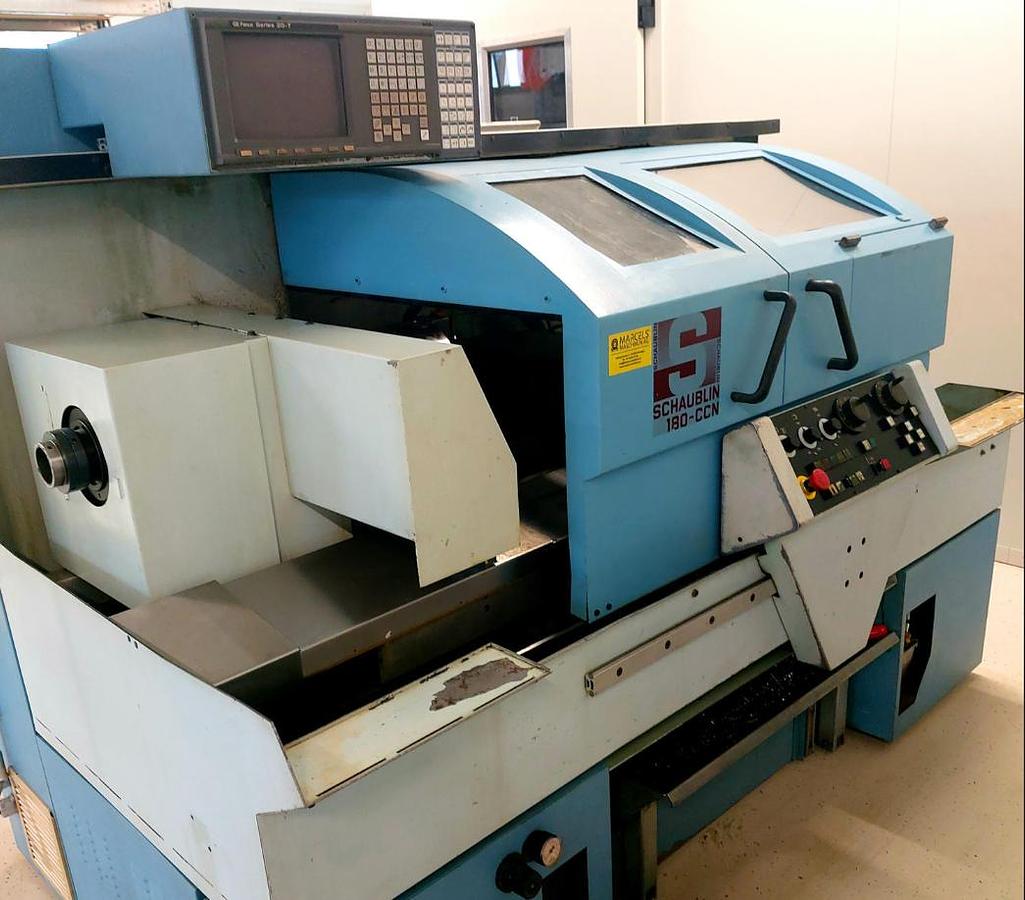

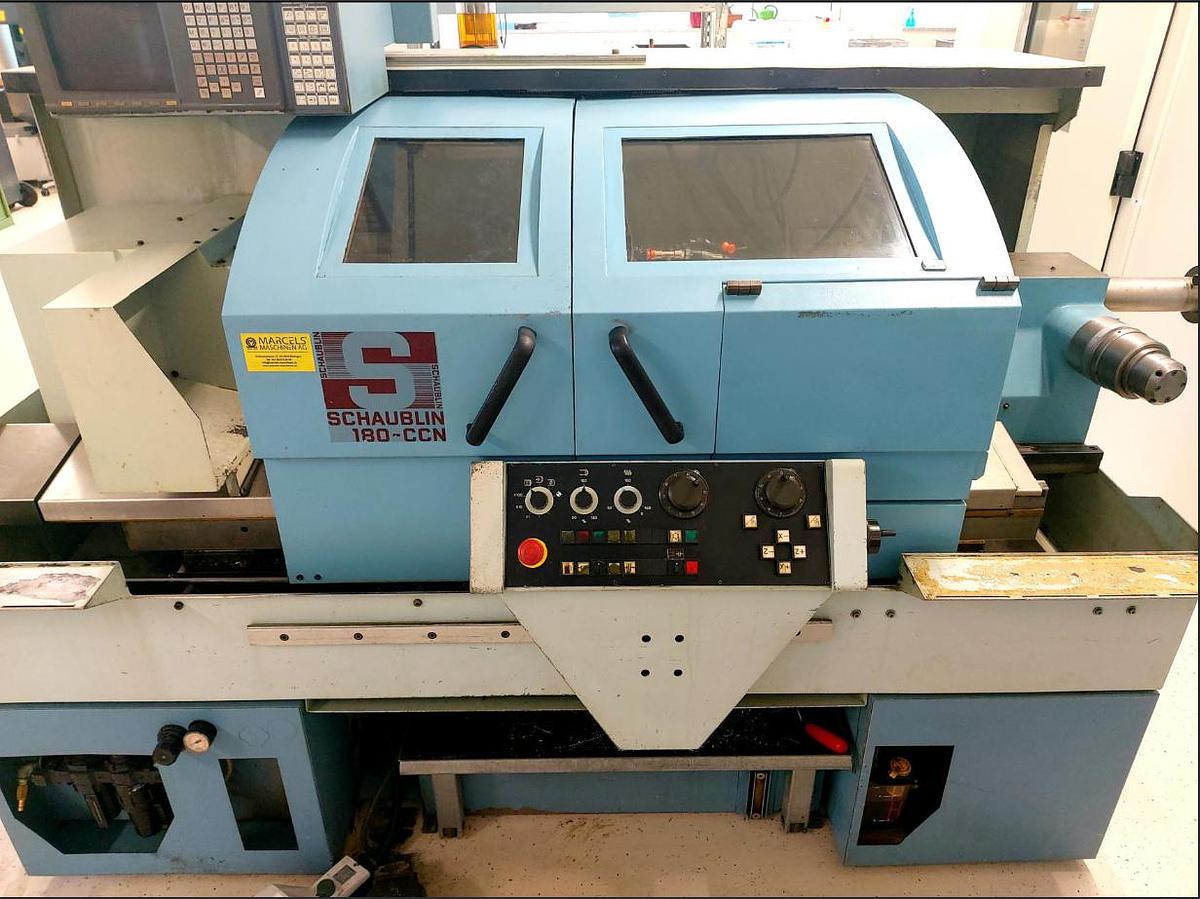

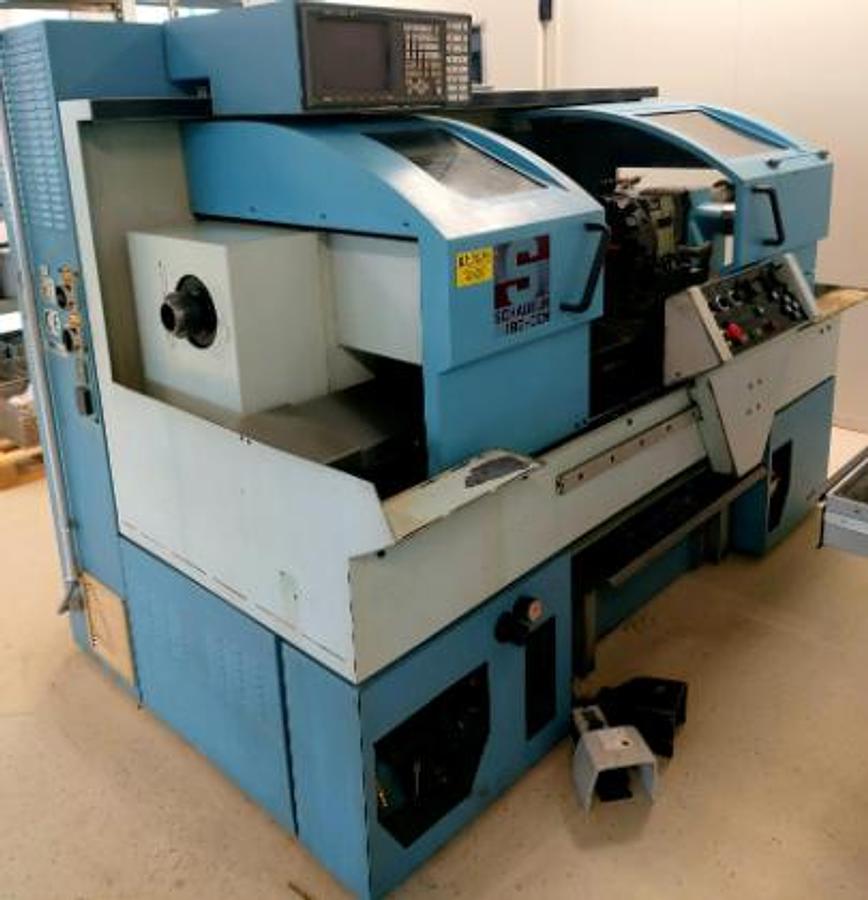

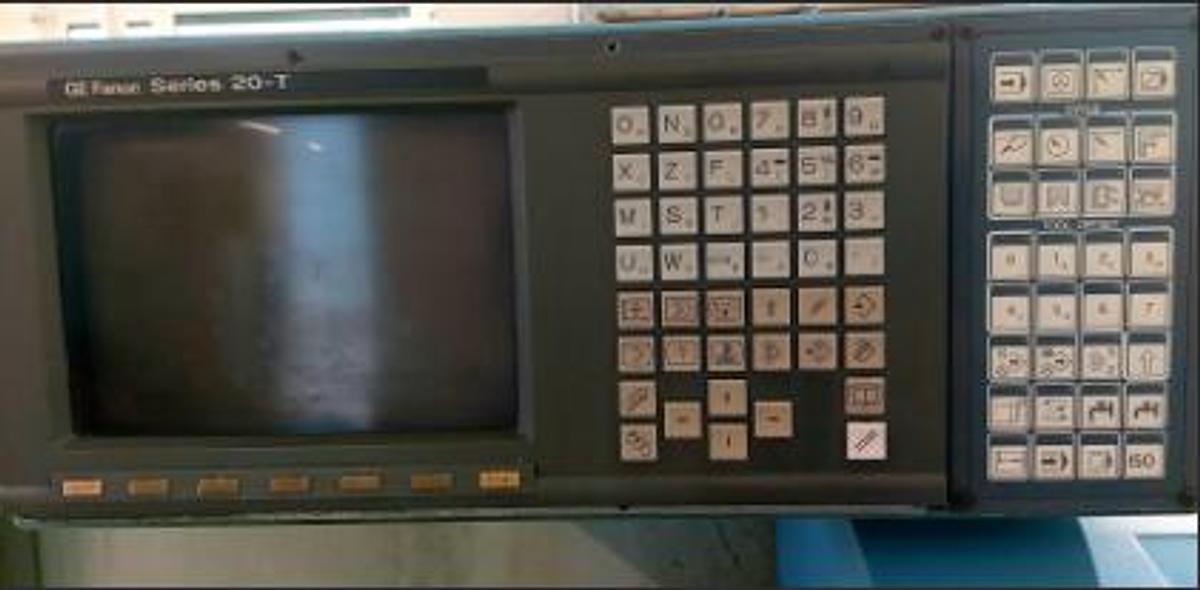

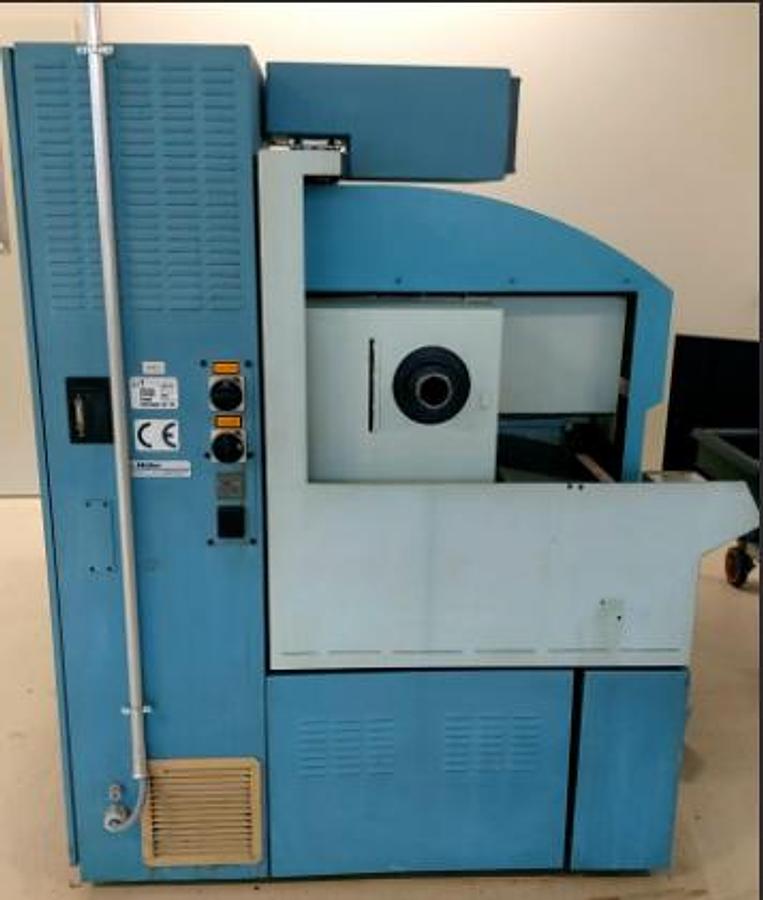

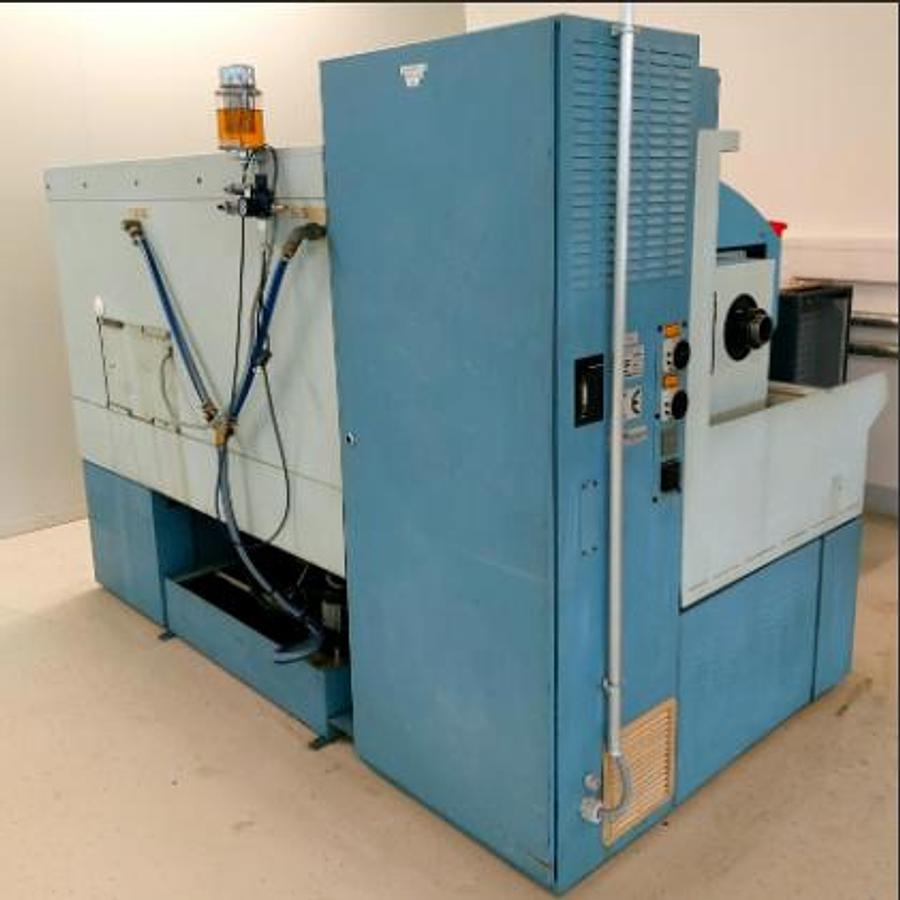

1997 Schaublin 180-CCN

Manufacturer:  Schaublin

Model: 180-CCN

Year of Manufacture: 1997

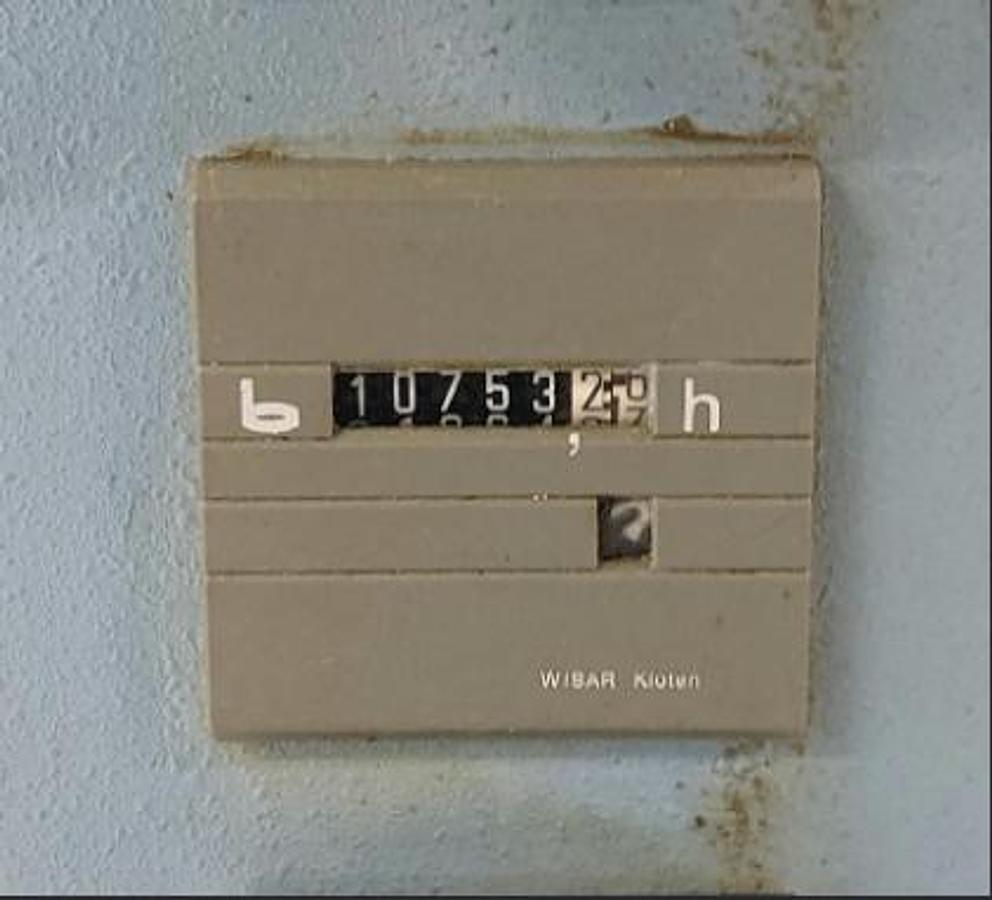

Spindle Hours: 10,753 h

Machining Capacities

• Max. turning diameter over the bed (with revolver only): 330 mm
• Max. turning diameter over the cross slide: 160 mm
• Max. admissible diameter over the bed: 430 mm
• Spindle centre height over cross slide: 83 mm
• Max. distance between centres: 650 mm
• Max. workpiece weight - with spindle A2-5: 25 kg
• Max. workpiece weight - with spindle A2-6: 35 kg

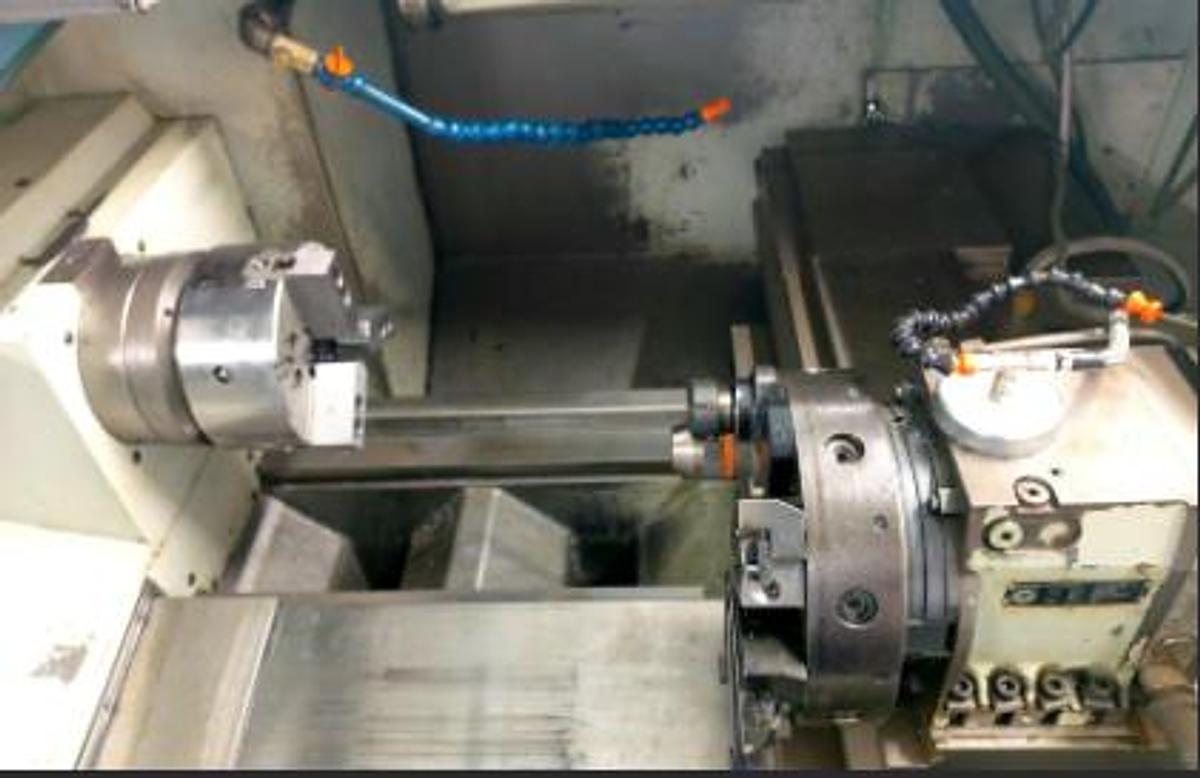

Spindle

• Spindle nose ISO: A2-5 or A2-6

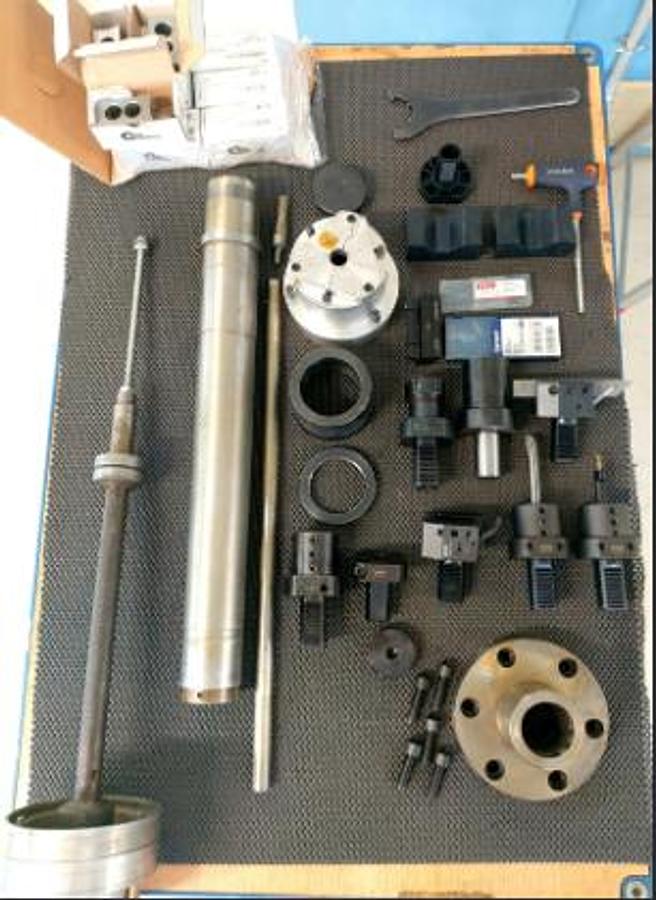

• Collet chuck compatibility (Schaublin): B45 / F48 (A2-5) | F66 (A2-6)
• Max. bar diameter with B45 collet: 36 mm
• Max. bar diameter with F48 collet: 42 mm
• Max. bar diameter with F66 collet: 60 mm
• Auto collet chuck through bore - A2-5: 170 mm | A2-6: 210 mm
• Collet clamping force at 5 bar - A2-5: 2700 daN | A2-6: 3400 daN
• AC motor drive: 15 / 18.5 kW (100% / 50% DE)
• Motor torque: 140 / 180 Nm
• Spindle speed range - A2-5: 30 to 5000 rpm
• Spindle speed range - A2-6: 30 to 4000 rpm

Cross Slide (X and Z Axes)

• X-axis travel: 220 mm
• X-axis resolution: 0.0005 mm (on radius)
• X-axis AC motor torque: 3 Nm
• X-axis ballscrew: 32 x 5 mm pitch
• Z-axis usable travel with revolver: 650 mm
• Z-axis resolution: 0.001 mm
• Z-axis AC motor torque: 6 Nm
• Z-axis ballscrew: 32 x 10 mm pitch

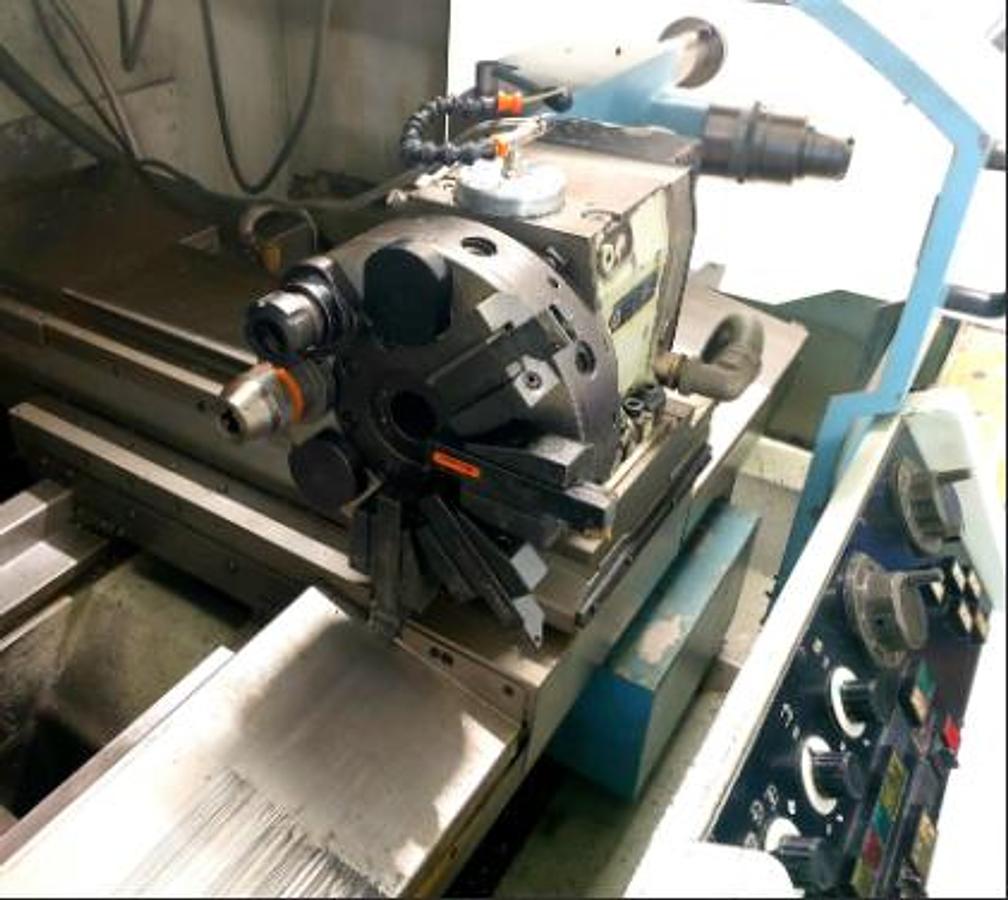

Turret / Tool System

• Turret type: Fixed-tool revolver
• Number of tool positions: 8
• Tool holder mounting: VDI 30 (normalised)
• Full VDI system usable without restriction
• Max. tool shank cross-section: 20 x 20 mm
• Integrated coolant supply, indexing in both directions of rotation

Feed Rates

• Working feed rates Z / X axes (stepless): 0 to 5000 mm/min
• Rapid traverse: 8 / 10 m/min
• Feed force at 100% DE - Z / X axes: 420 / 670 daN

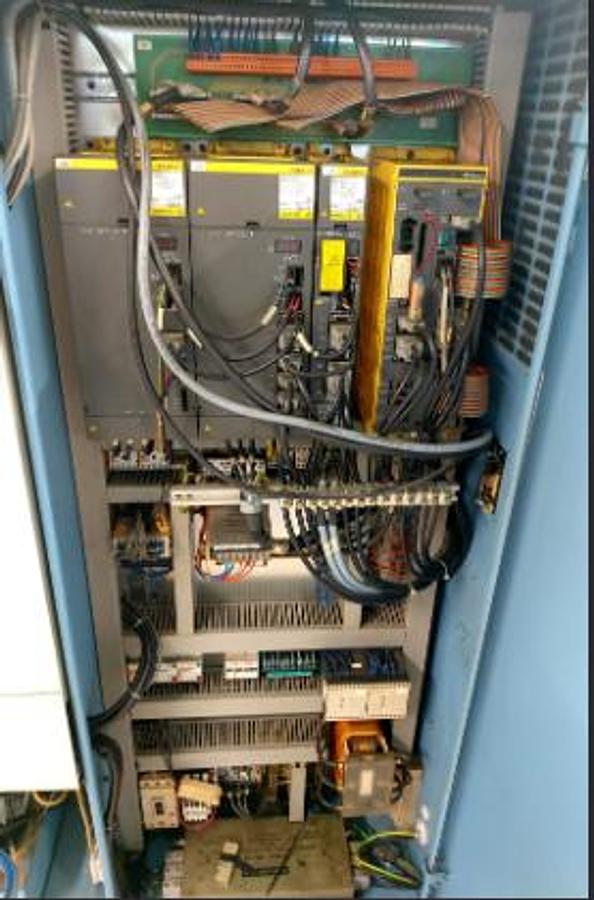

Electrical Data

• Mains supply: 3 x 400 V / 50 Hz (380 V indicated on nameplate)
• Rated current: 44 A
• Max. permissible variation: +/- 5%
• Input current: 63 A
• Installed capacity: 24 kVA / 24 kW
• Control voltage: 220 V

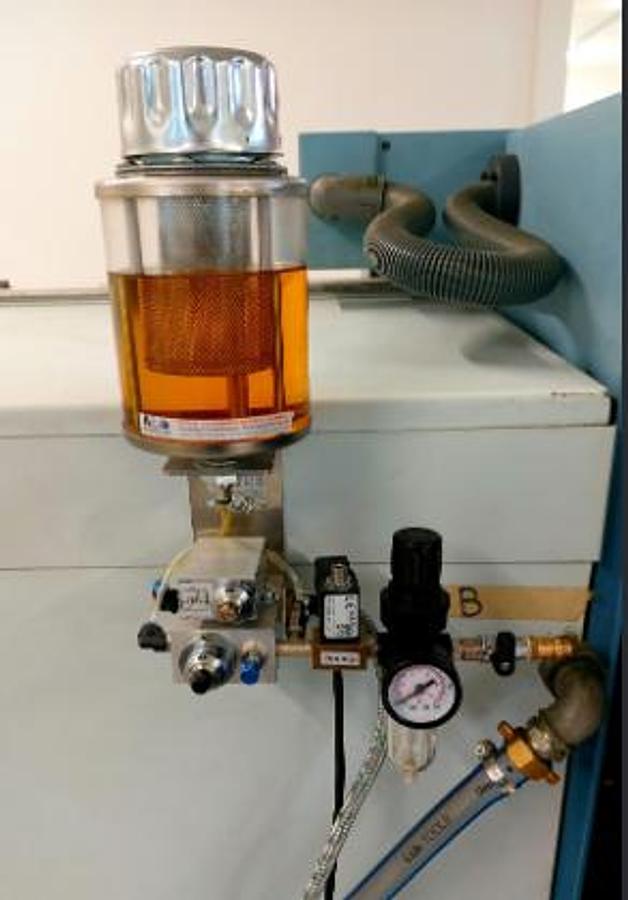

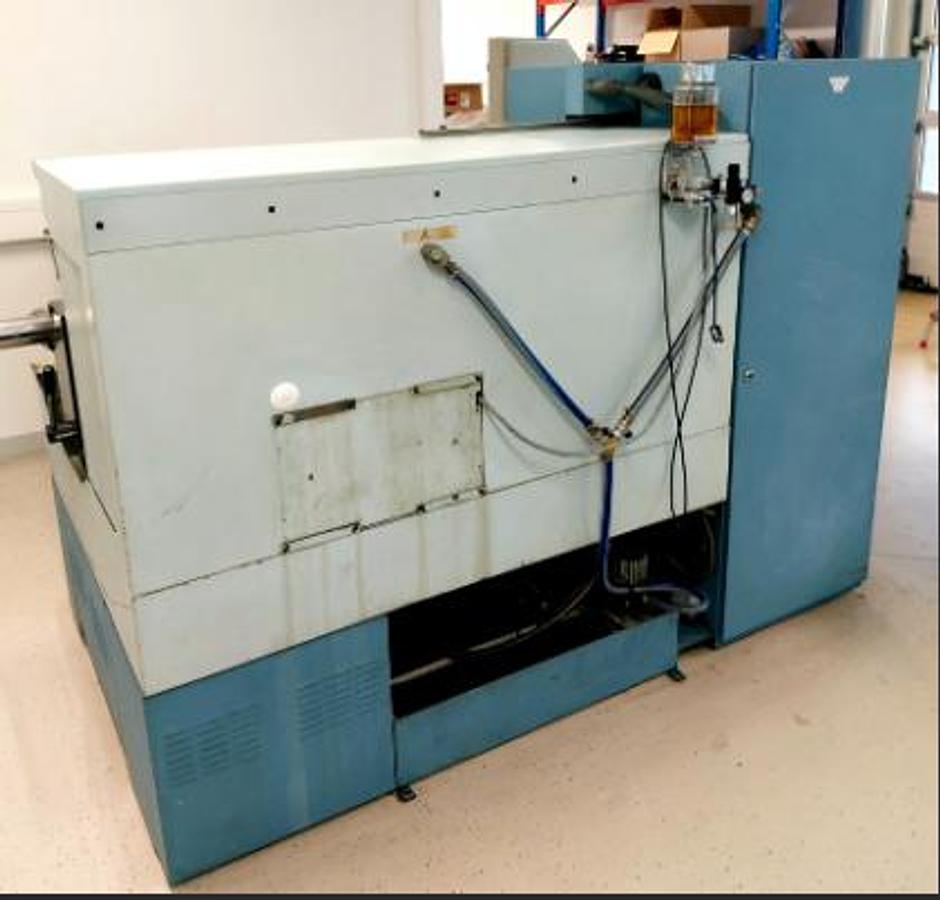

Pneumatic Requirements

• Air pressure: 5 to 7 bar
• Connection: 3/8 inch G
• Air quality: Clean and dry
• Average air consumption: 4 to 6 m3/h

Dimensions and Weight

• Machine dimensions (L x W x H): 2210 x 1290 x 1670 mm
• Approximate weight: 2400 kg
• Spindle centreline height from floor: 1080 mm
• Floor load: 950 kg/m2
