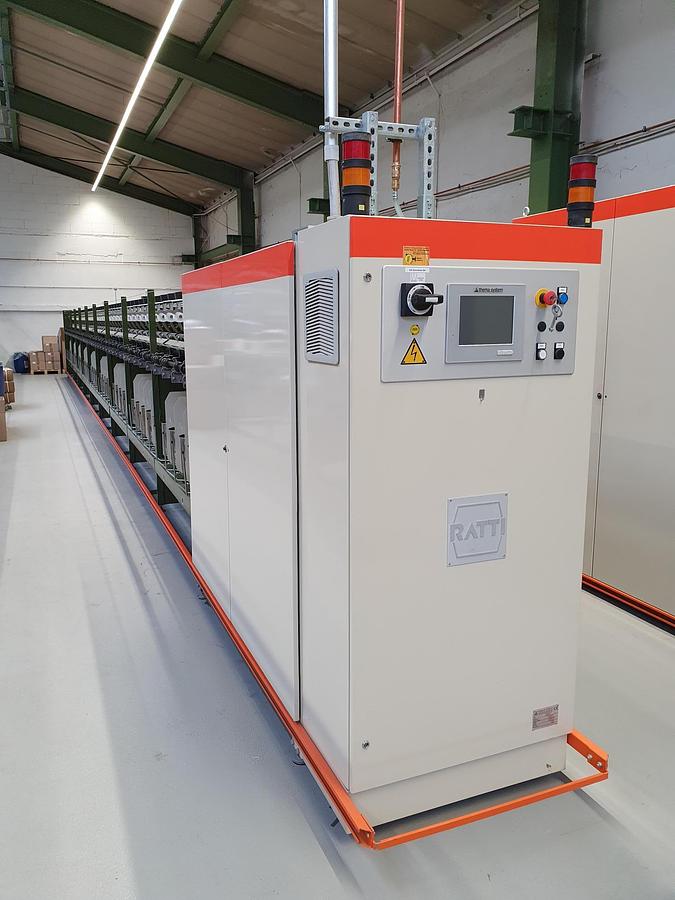

2008 Ratti R325N DT

Manufacturer: Ratti

Year of Manufacture: 2008

Model: R 325N DT

Number of spindles: 90

Number of sections: 10

Spindle type: Tangential belt drive

Max. mechanical spindle speed: 9,000 min-1

Max. technological spindle speed: 7,000 min-1

Spindle pitch: 366 mm

Whorl diameter: 52/64 mm

Twisting range: 40 to 1,869 / 32 to 1,519 tpm

Yarn count range: 167 to 560 dtex

Feed Package

• Type: Bobbin
• Max. length: 290 mm
• Max. diameter: 250 mm
• Volume (smooth yarn): 4,500 g

Winding

• Number of winding decks: 1
• Traverse gear: UDR
• Max. bobbin diameter: 250 mm
• Traverse stroke: 250 mm
• Tube diameter x length: 69 x 290 mm
• Max. mechanical winding speed: 200 m/min
• Max. technological winding speed: 170 m/min

Machine Frame Dimensions

• Number of sections: 10
• Length per section: 1,830 mm
• Total machine length: 19,000 mm
• Machine width: 860 mm
• Max. height: 1,756 mm
• Height to upper winding deck: 1,414 mm
• Machine weight: 4,140 kg
• Max. installed power: 18.5 kW

Standard Equipment

• Pneumatic lift
• Yarn break monitoring
• Centrally controlled yarn reserve
