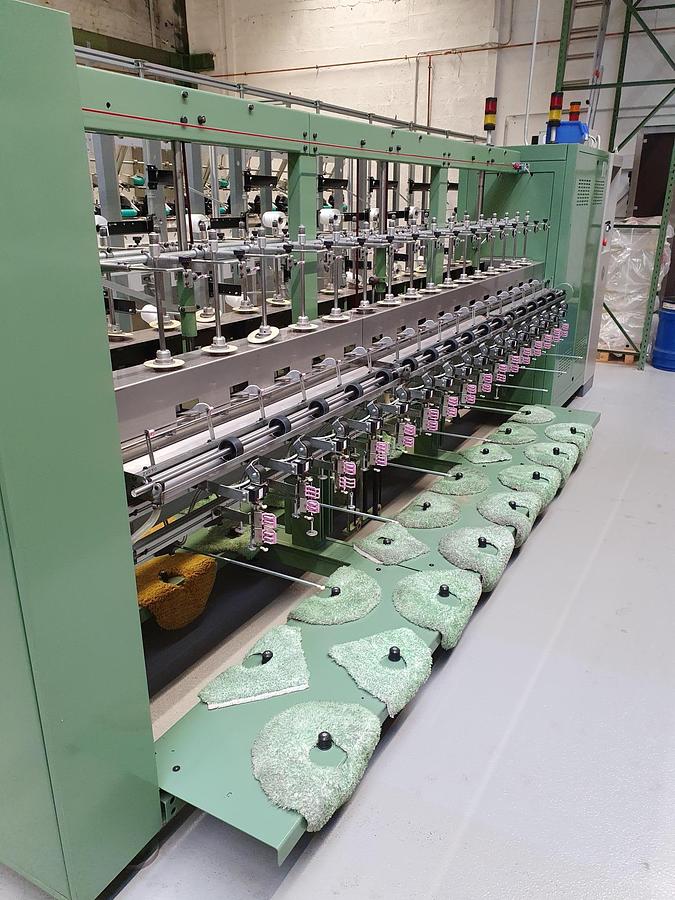

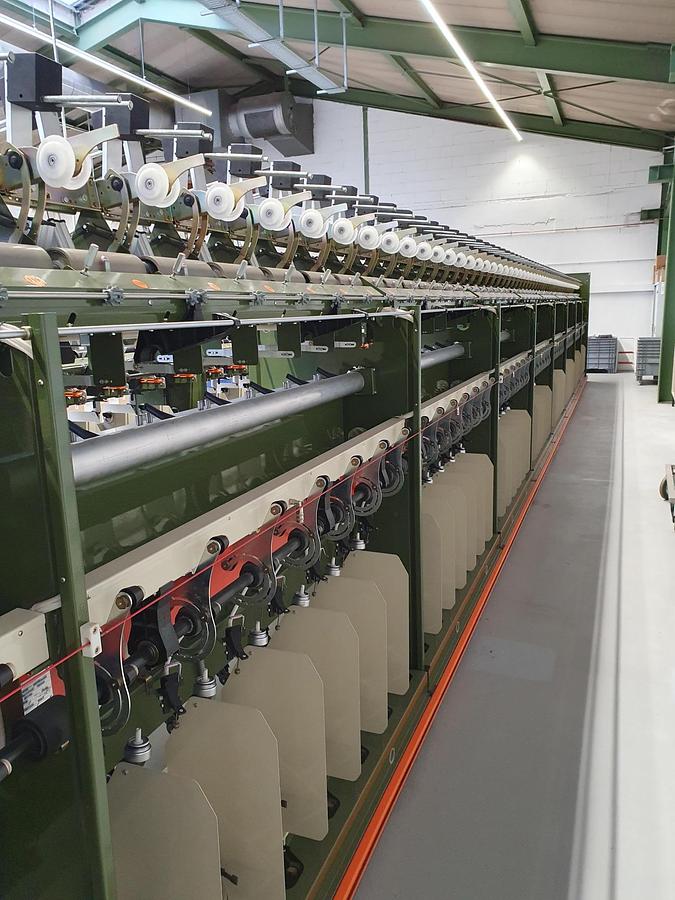

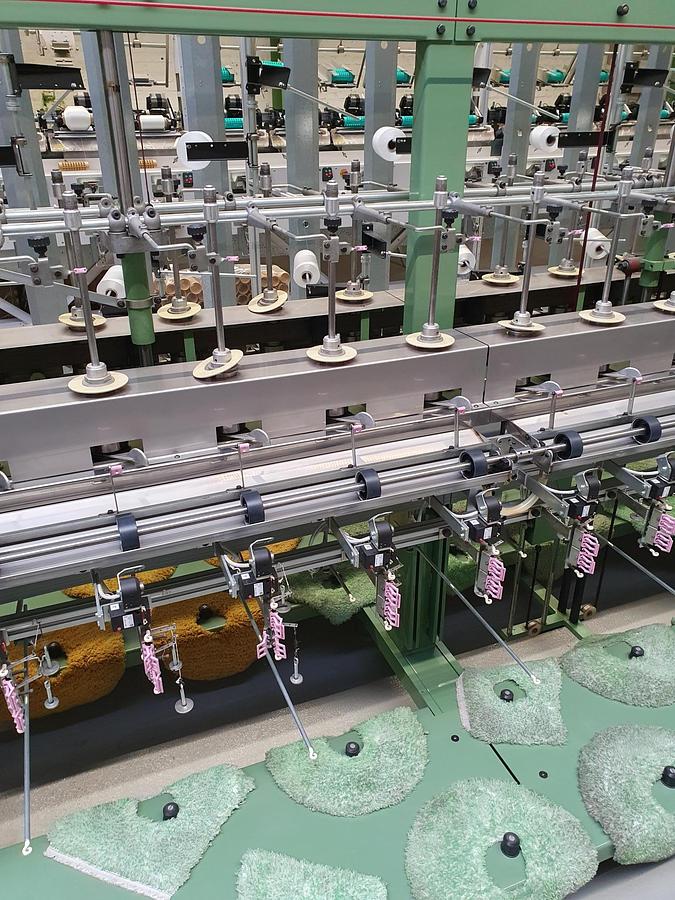

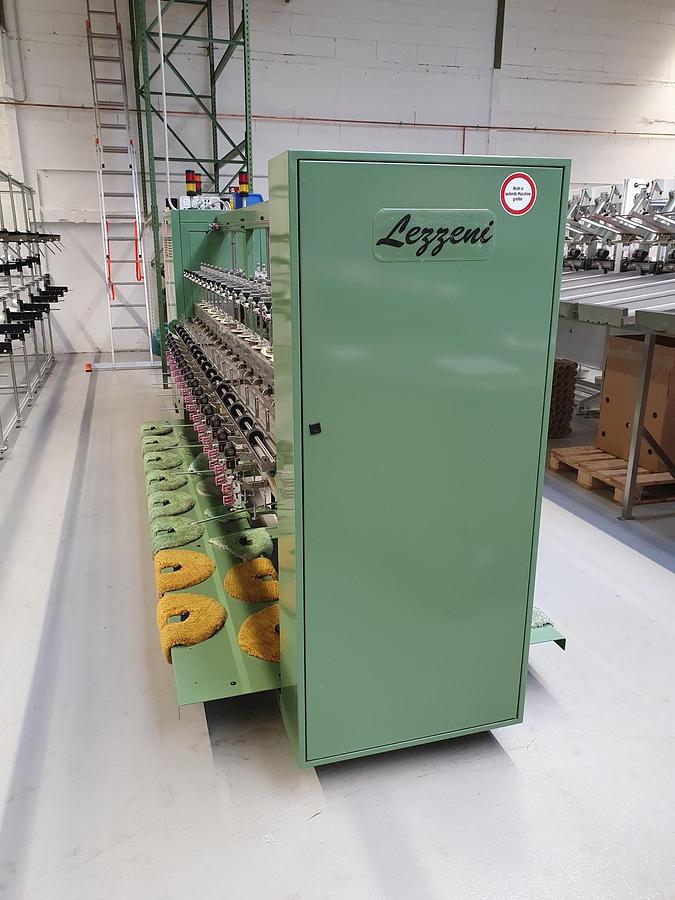

2008 Lezzeni CLV/C 200

Manufacturer:   Lezzeni

Model: CLV/C 200

Year of Manufacture: 2008

CE certified: Yes

Number of spindles: 32

Spindle pitch: 200 mm

Max. twisting spindle speed: 5,000 RPM

Max. stroke (hub): 420 mm

Spindle type: HZ 55/21

Electrical Data

• Mains supply: 400 V - 3 phase - 50 Hz
• Nominal current draw: 12 A
• Main motor current: 12 A

Motors and Drive

• Spindle drive motor: 4 kW - 4 pole - 230/400 V - 50 Hz
• Stroke control motor: 0.09 kW - 6 pole - 230/400 V - 50 Hz
• Spindle drive belt: TFL 7S 8460 x 40 mm
• Yarn brake type: 003353

Machine Dimensions

• Machine length: 5,405 mm
• Machine width: 1,800 mm
• Machine depth: 700 mm
