2014 Recuperma RECU 3 Scrap Baling Press

Manufacturer: Recuperma

Model: RECU 3

Year of Manufacture: 2014

Type of Machine : Scrap Baling Press

Technical Specifications

• Bale Size: approx. 400 x 400 mm
• Main Drive: 2 x 90 kW (400V, 50Hz)
• Overall Dimensions (L x W x H): 6950 x 8900 x 5500 mm
• Press Box (open): 2300 x 1500 x 1300 mm
• Total Weight: approx. 77.5 t (without oil)
• Color: Blue

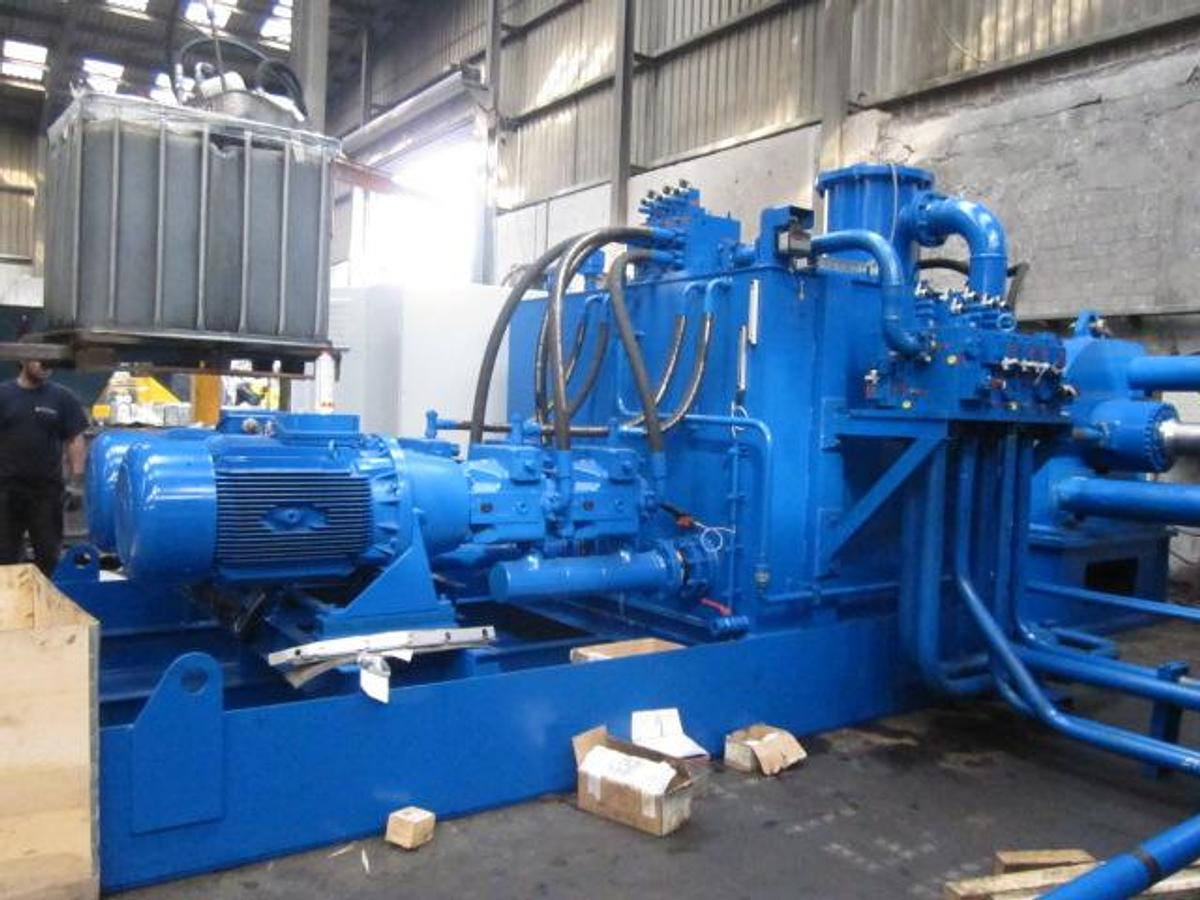

Hydraulic System

• Operating Pressure: 315 / 335 bar
• Hydraulic Power Unit: Recuperma
• Control Valves: Moog
• High-Pressure Pump: A4V Axial Piston Variable Pump
• Tank Volume: approx. 5000 litres hydraulic oil
• Oil Grade: HLP 46
• Auxiliary Drive: approx. 15 kW cooling and filtration

Cylinder Configuration

• Pre-compaction Cylinder: diameter 280/200 mm x 2400 mm stroke
• Intermediate Compaction Cylinder: diameter 320/250 mm x 955 mm stroke
• Final Compaction Cylinder: diameter 380/280 mm x 2325 mm stroke
• Door Cylinder: diameter 160/110 mm x 575 mm stroke

Additional Equipment

• Travel measurement sensors
• Radio remote control
• Central lubrication system
