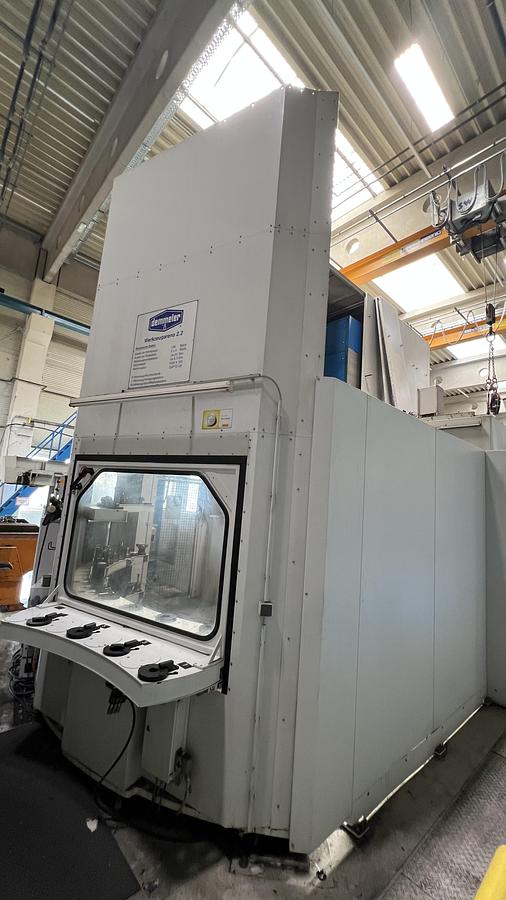

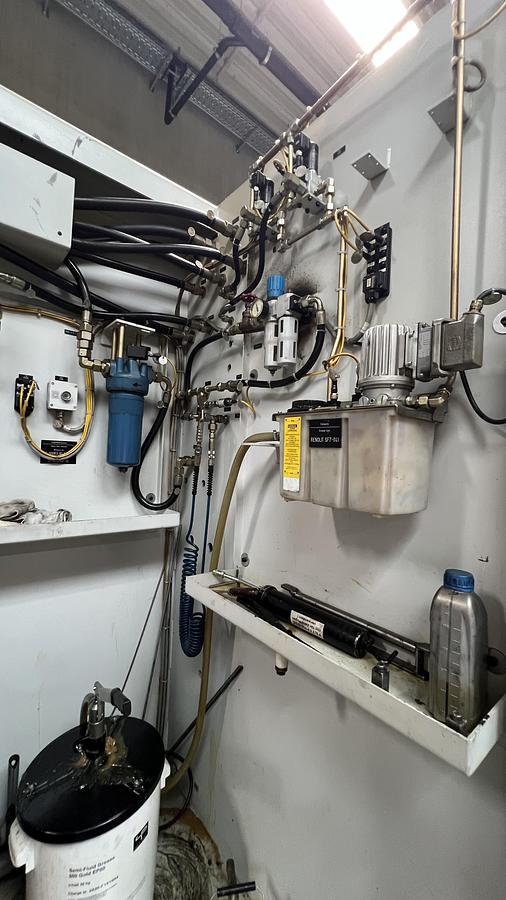

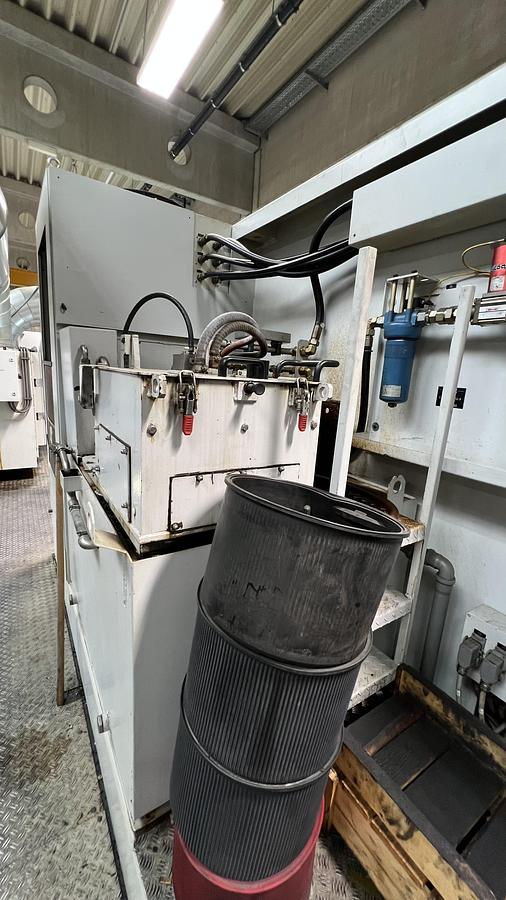

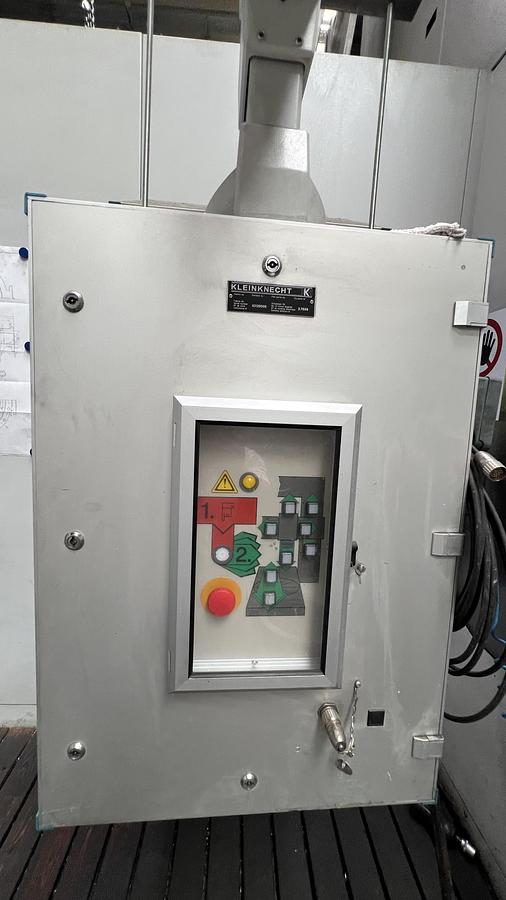

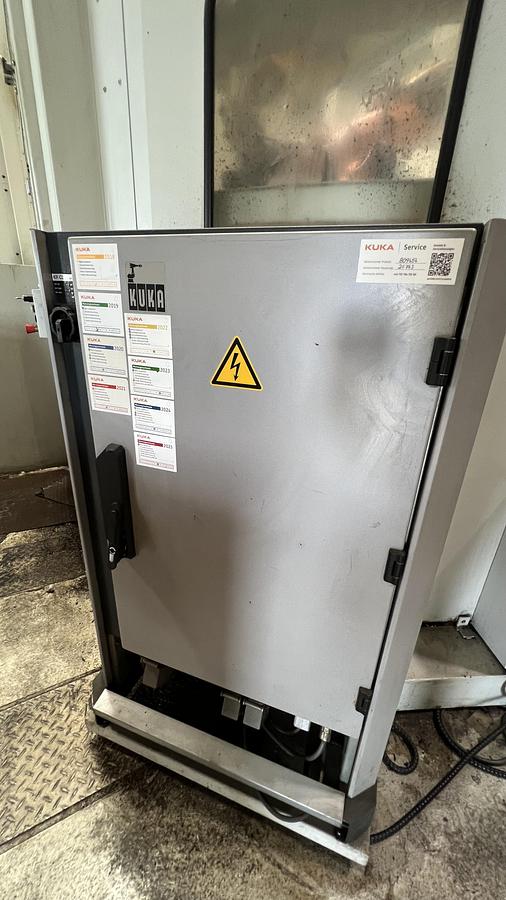

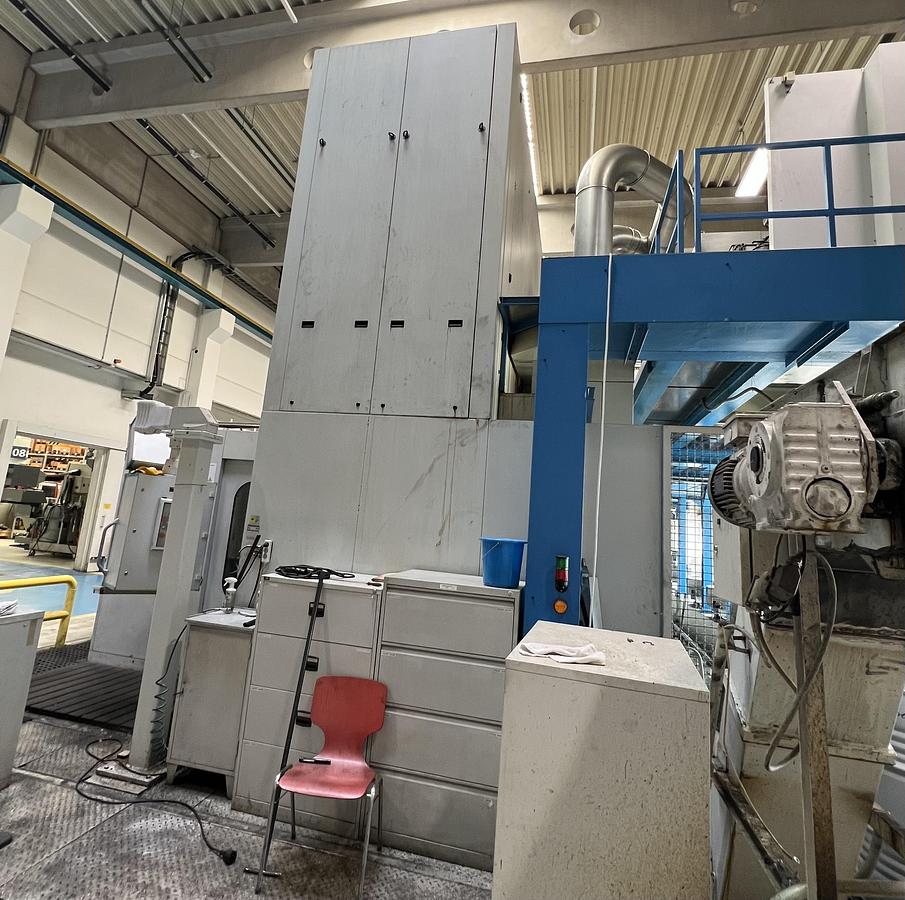

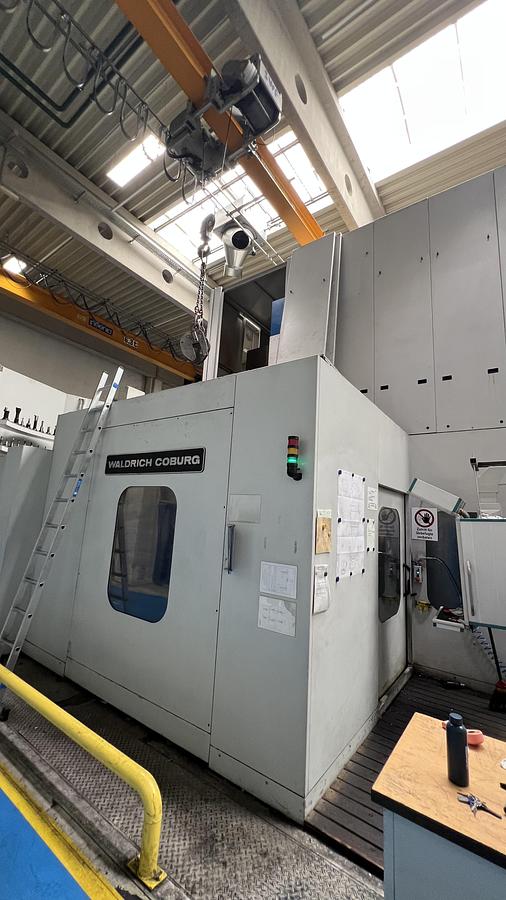

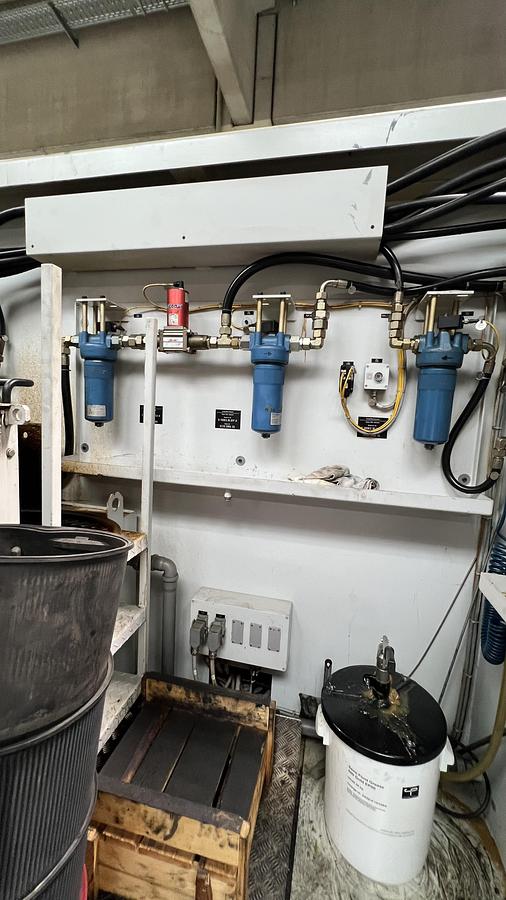

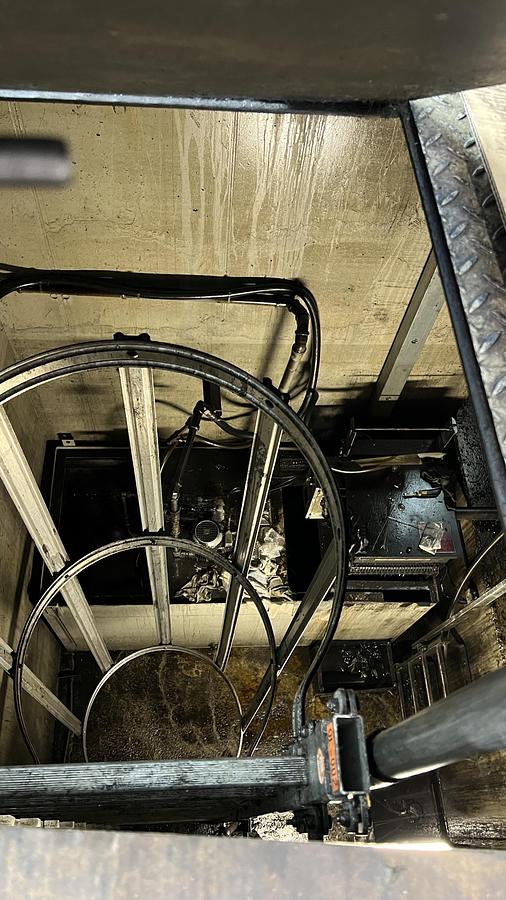

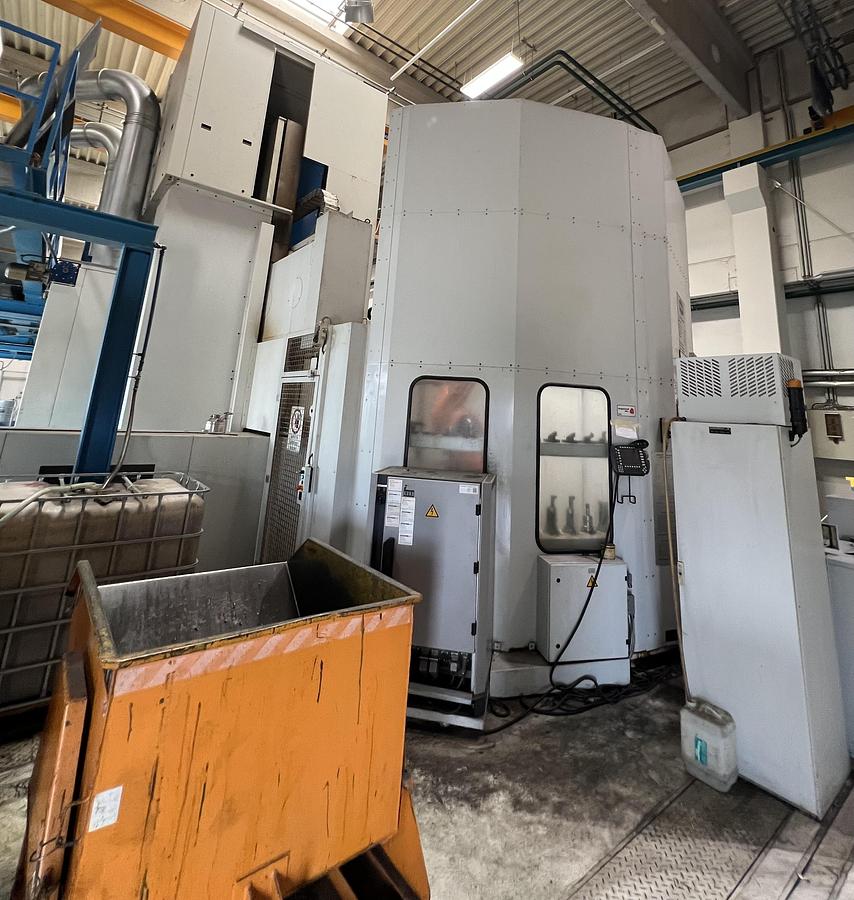

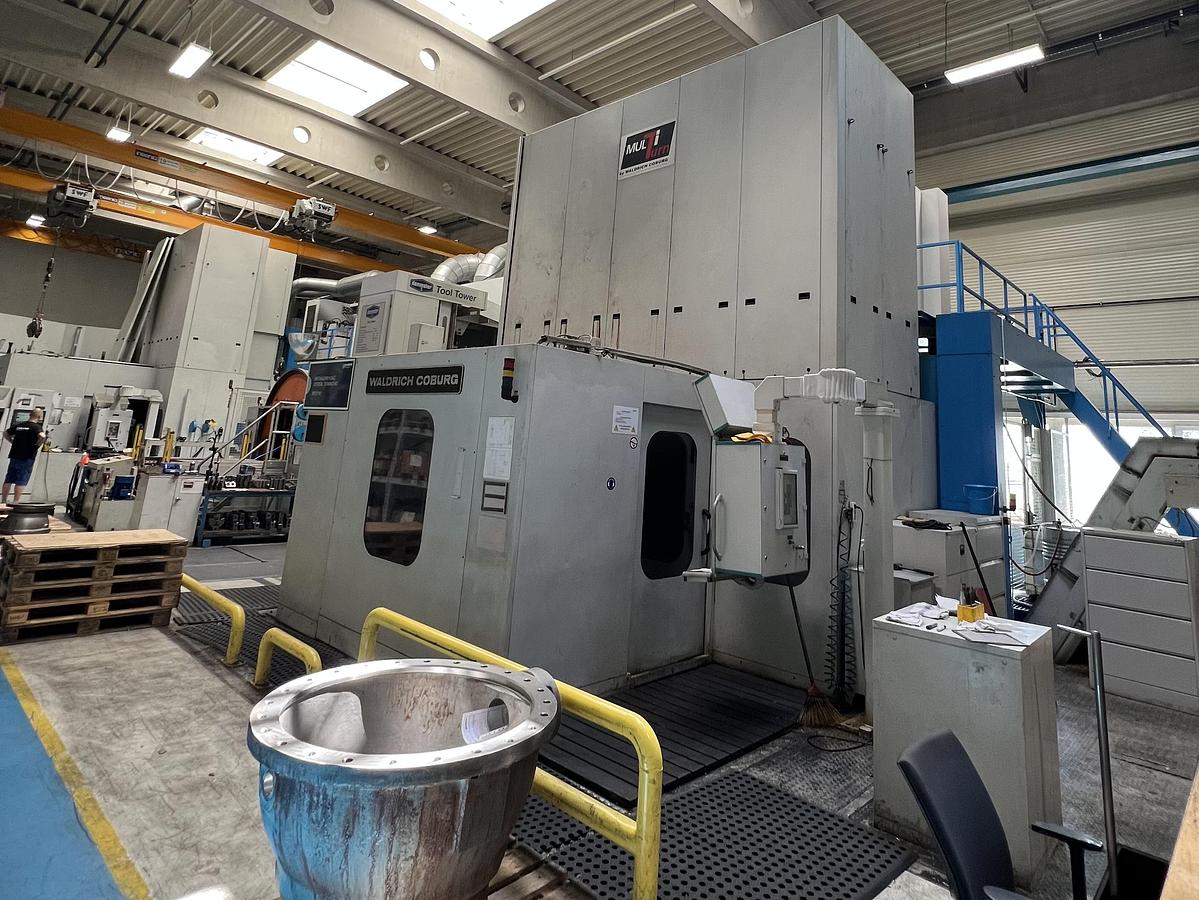

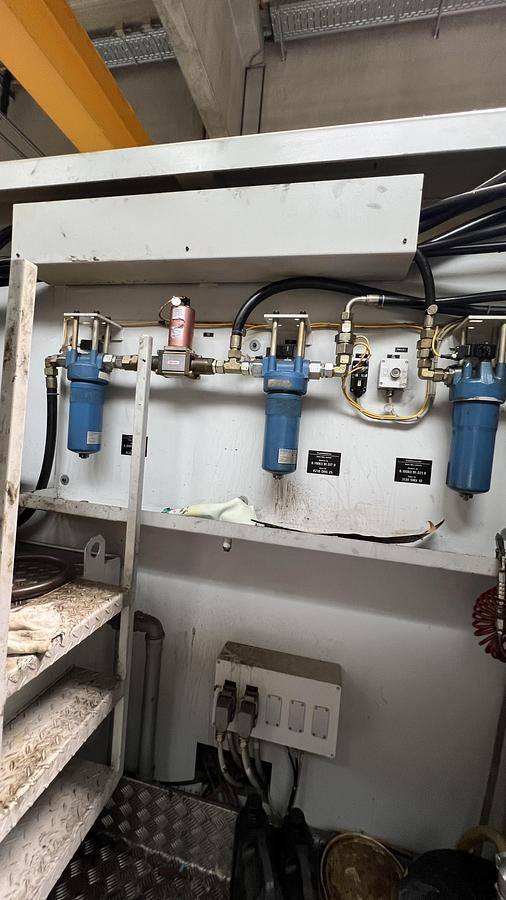

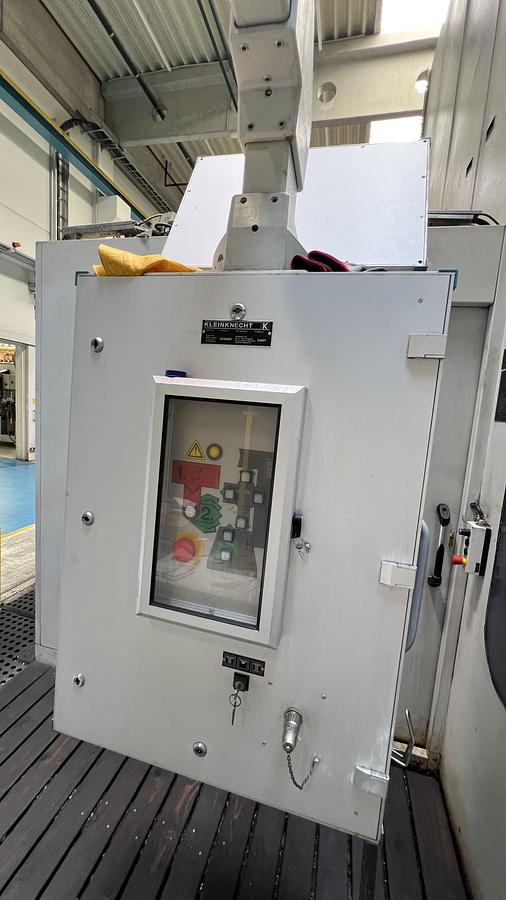

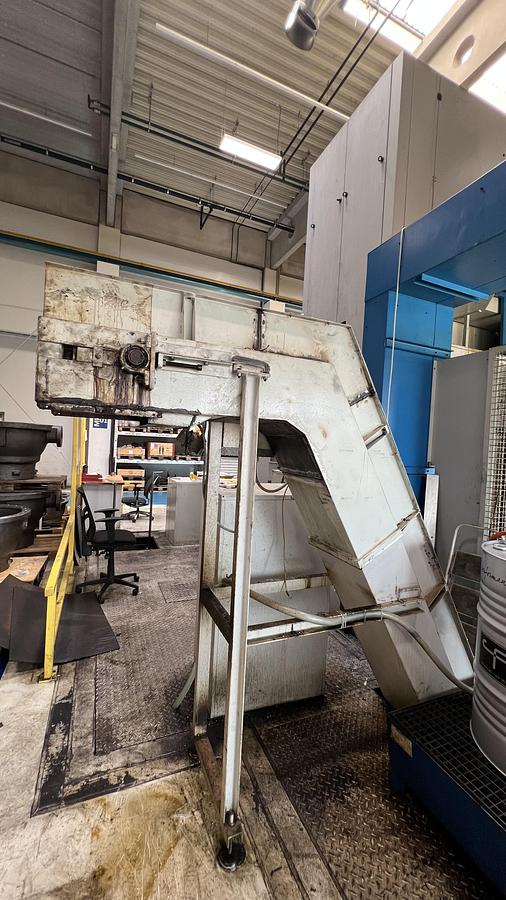

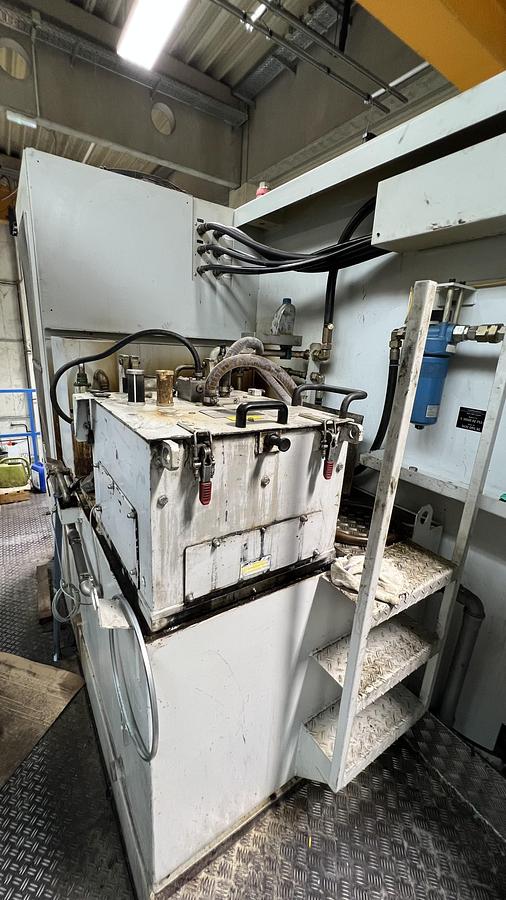

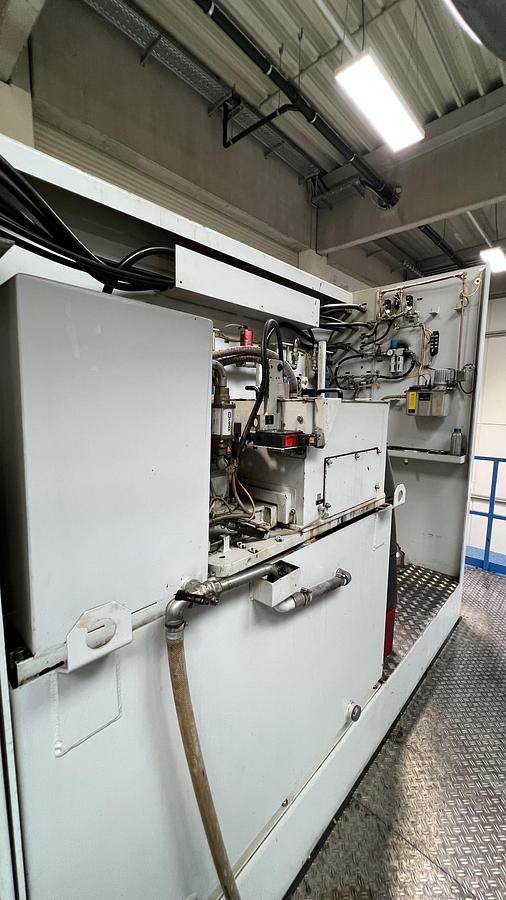

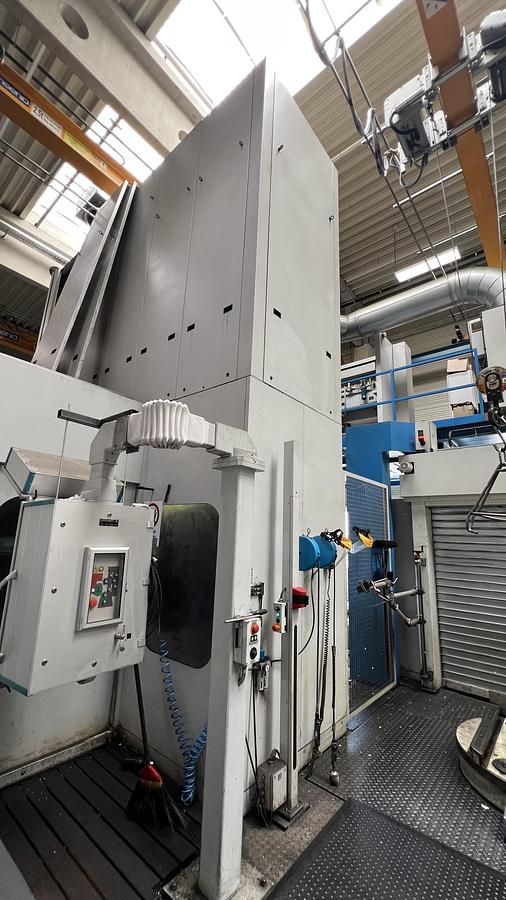

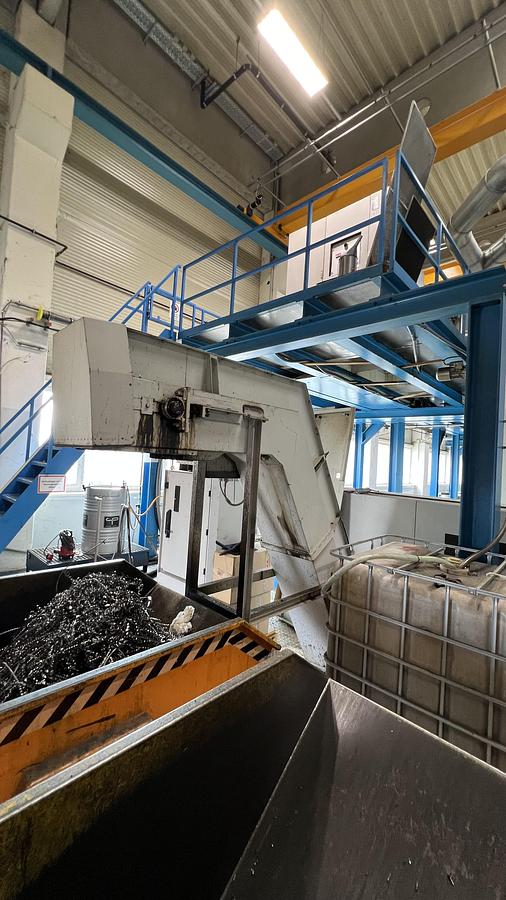

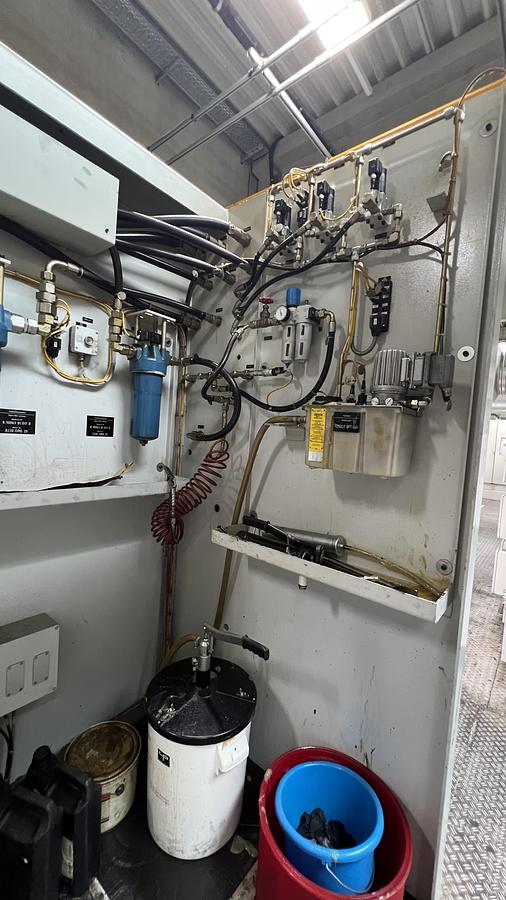

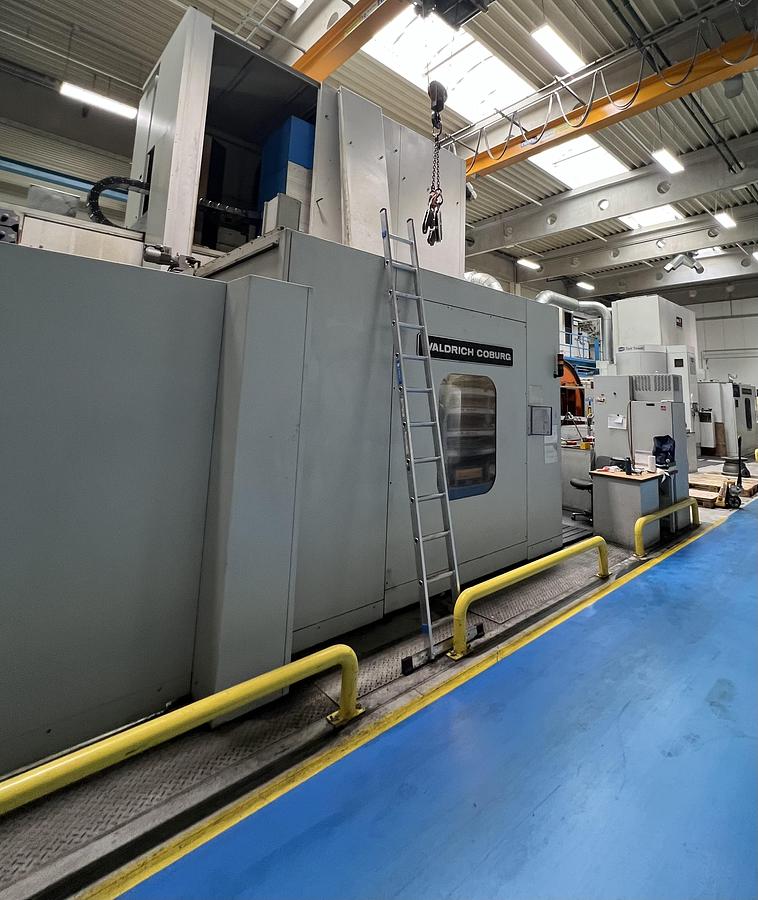

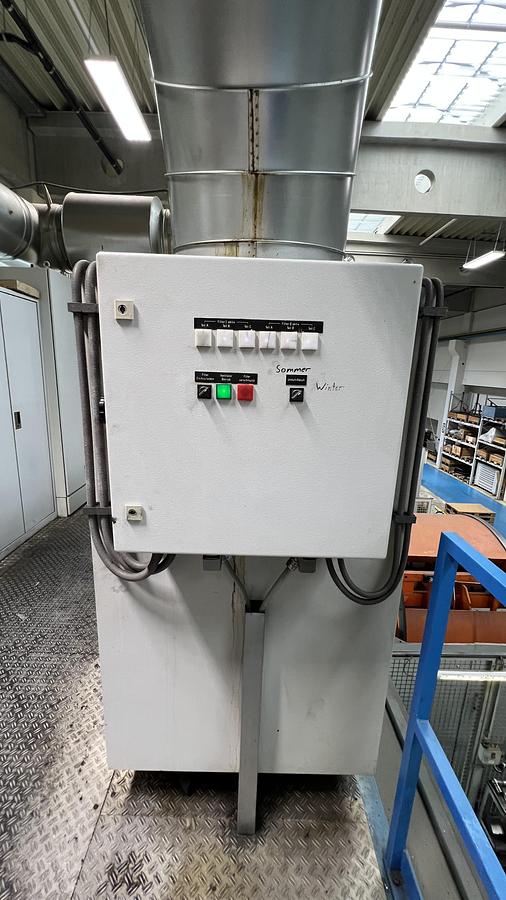

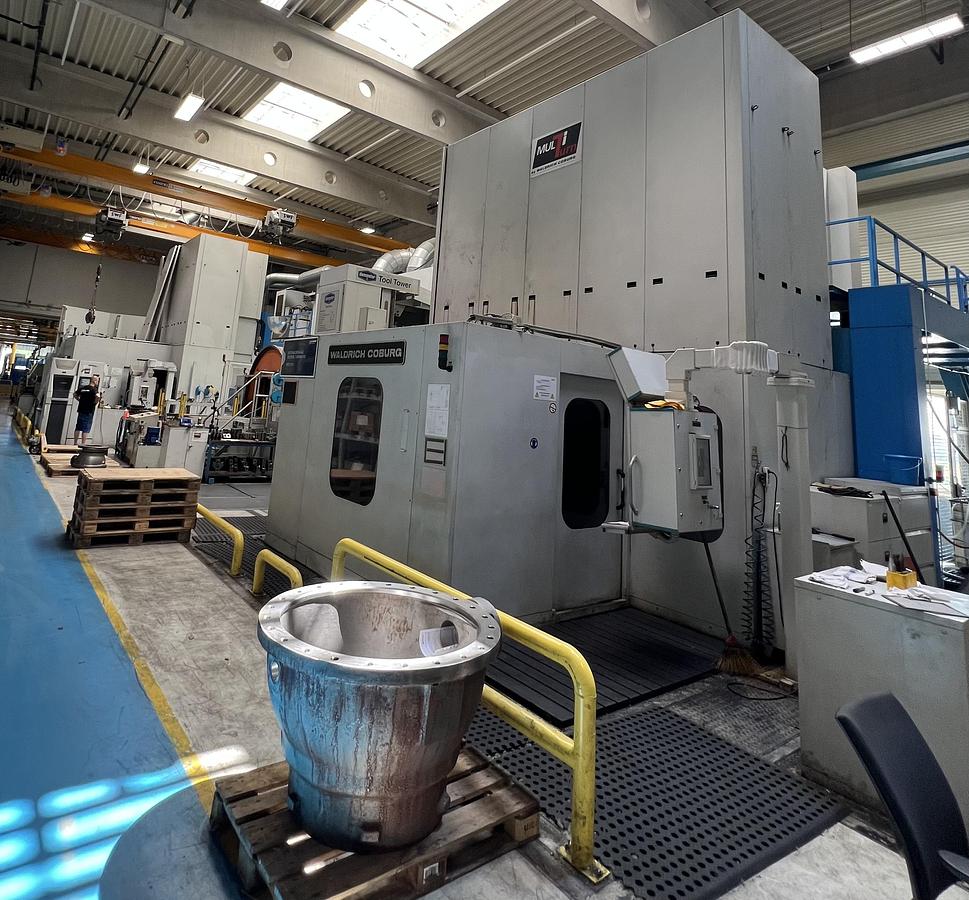

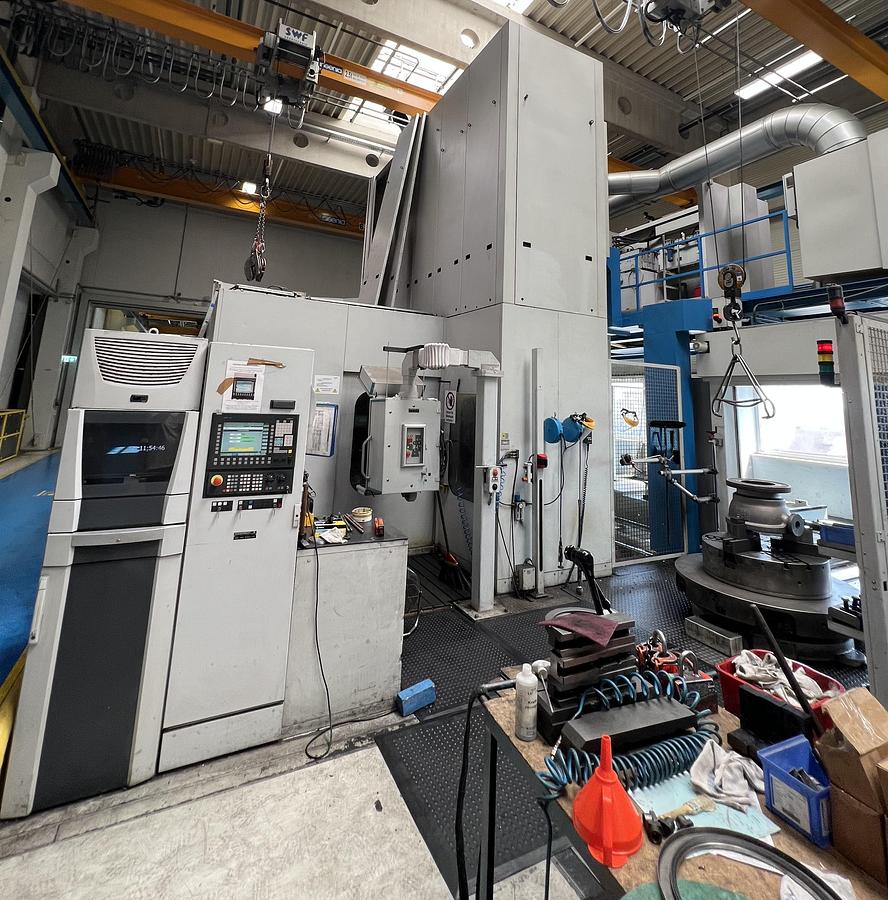

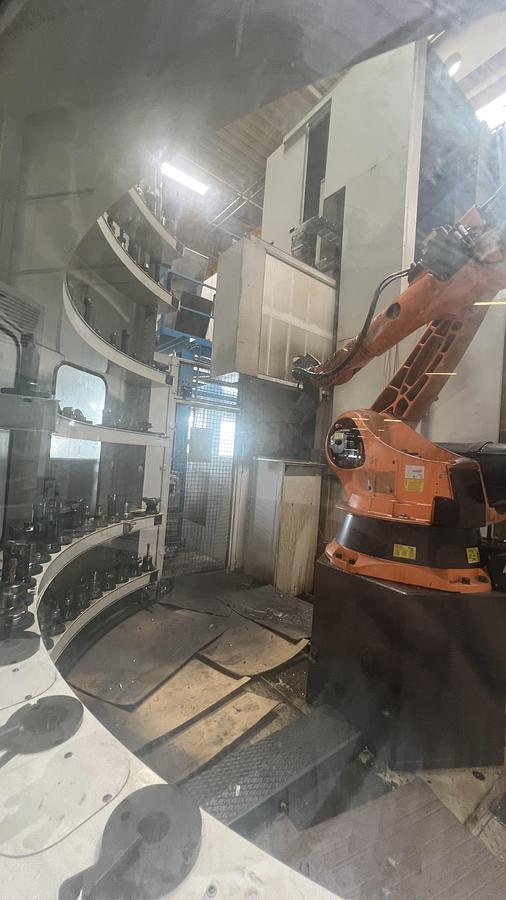

2005 Waldrich Coburg MultiTurn 1500 FM

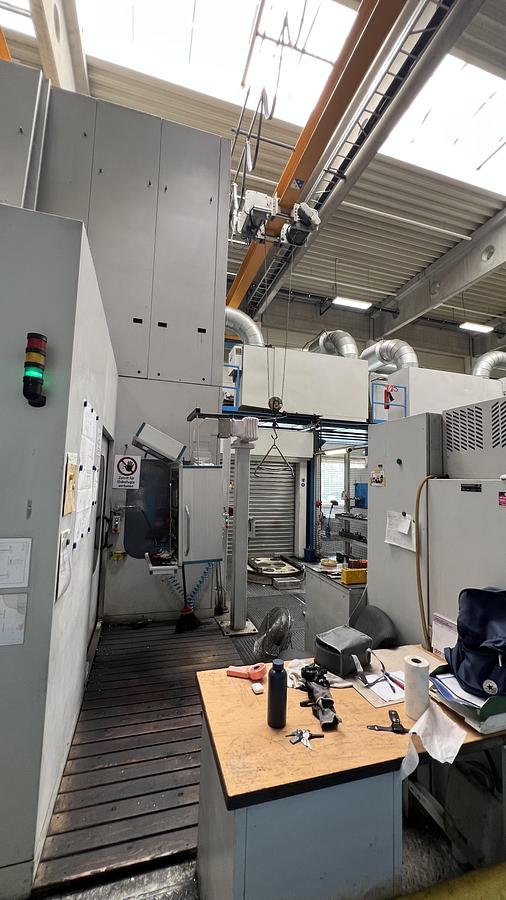

Carousel Turning and Milling Machining Center with 2 machines + 7-pallet storage + 2 setup stations

Each equipped with multiple turning and milling units (vertical/horizontal) Capto C6 or HSK100

Manufacturer: Waldrich Coburg

Year: 2005

1 x MultiTurn 1500 FM,

1 x Multitec 2000

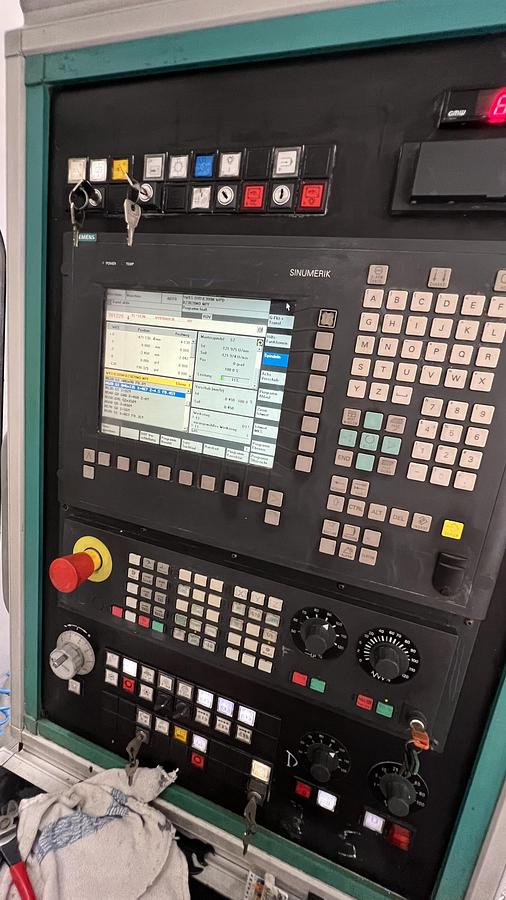

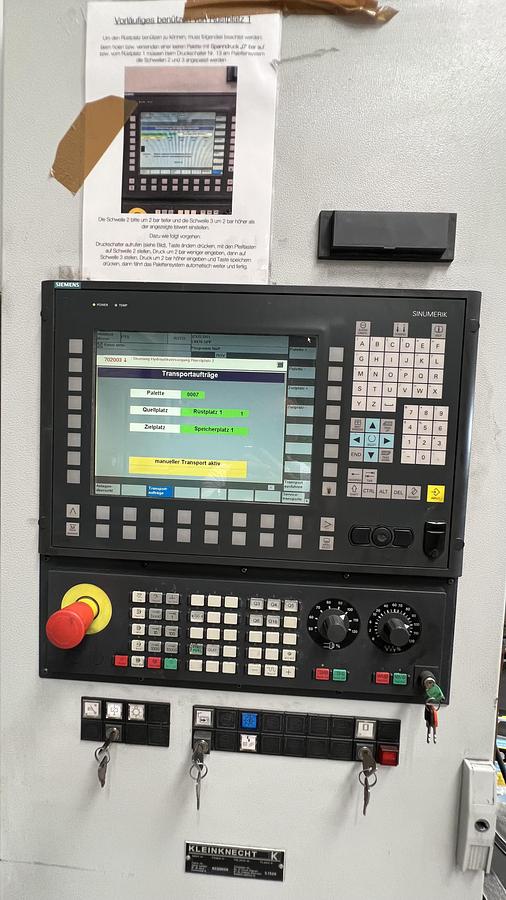

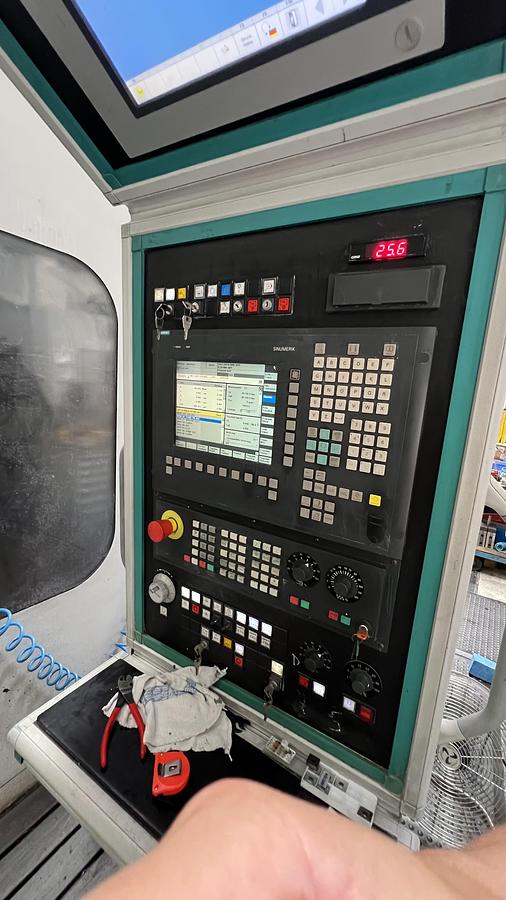

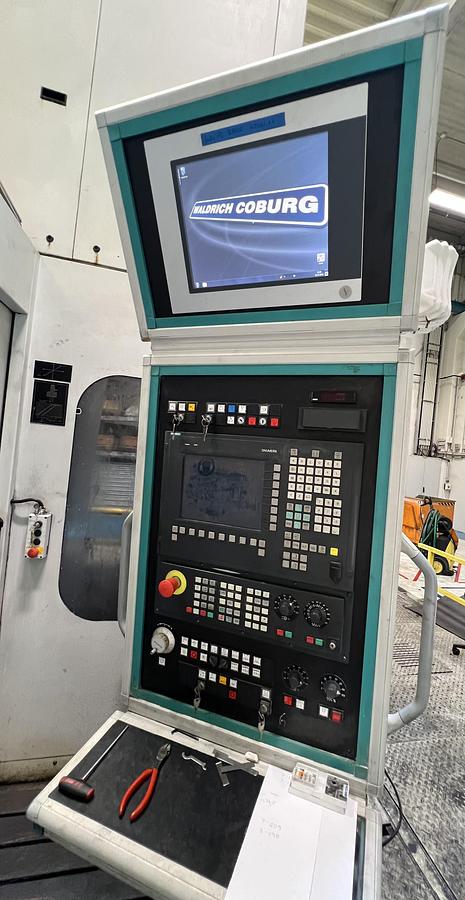

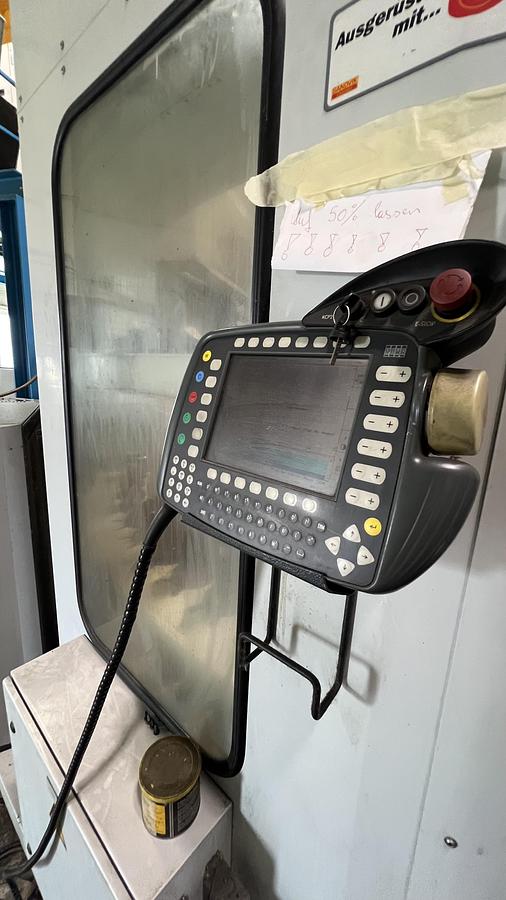

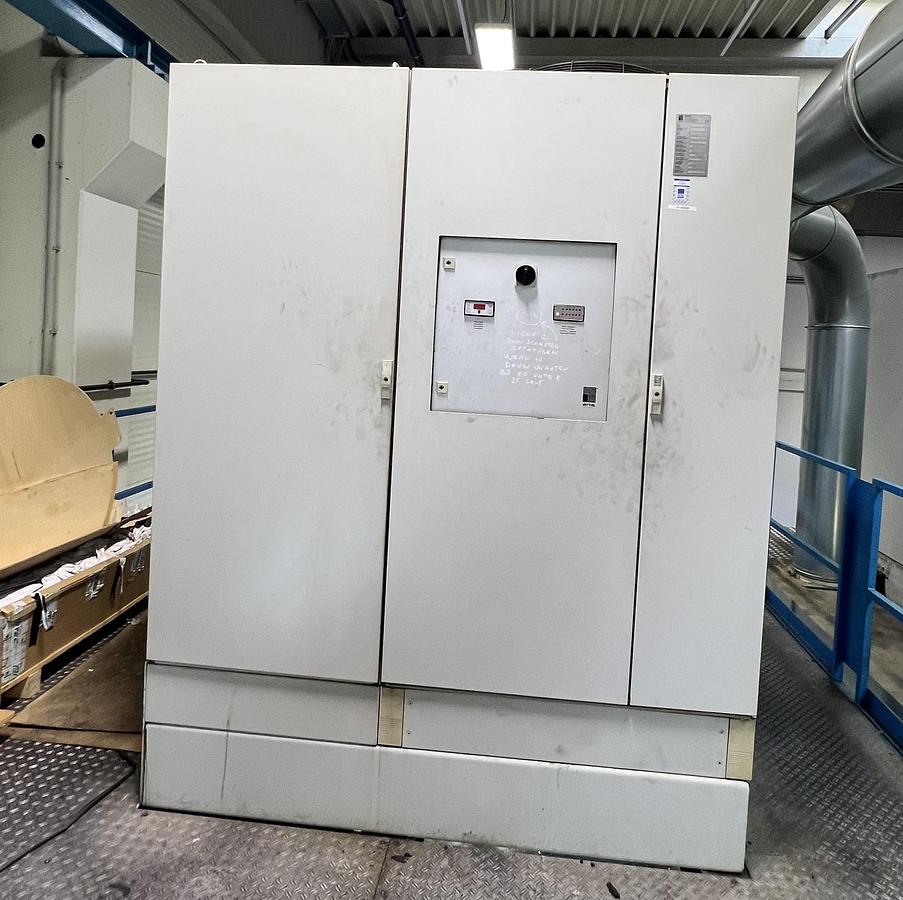

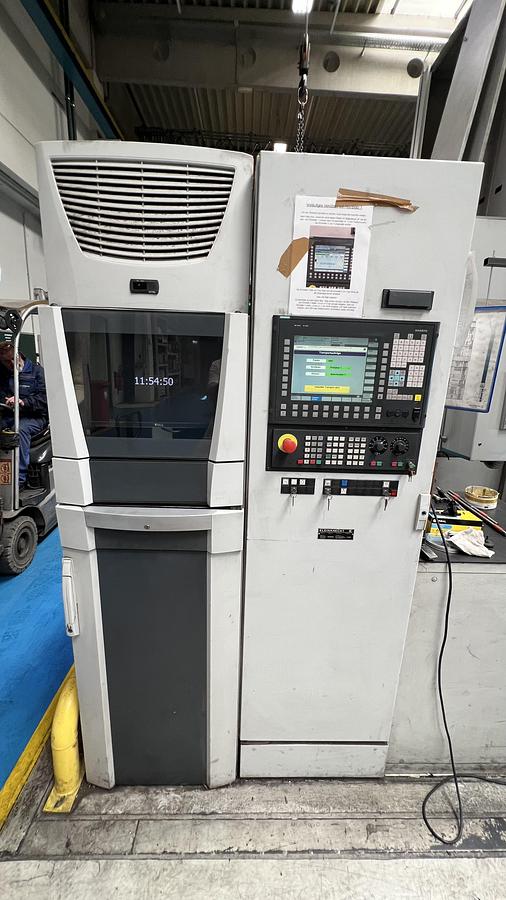

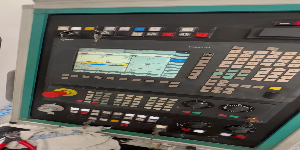

Control: Siemens

Multiturn

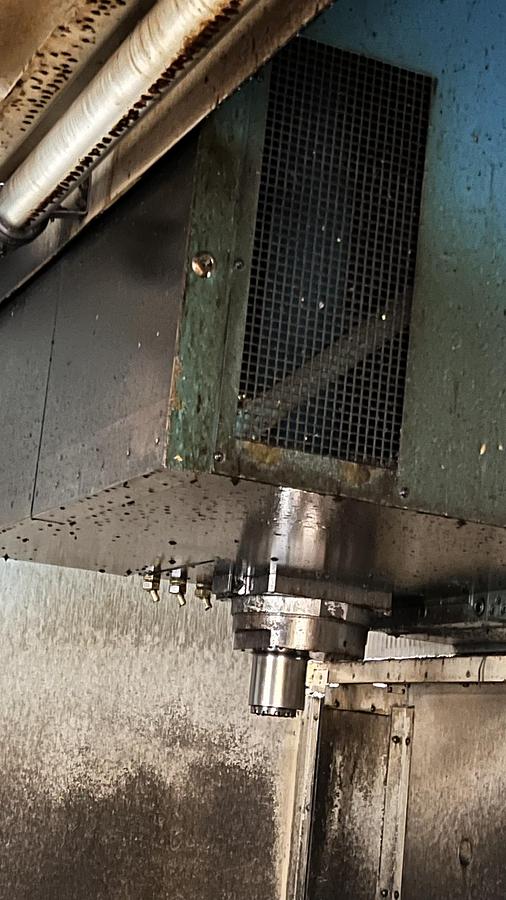

Spindle – milling spindle: 30 kW, 5–1,000 and 20–4,000 rpm

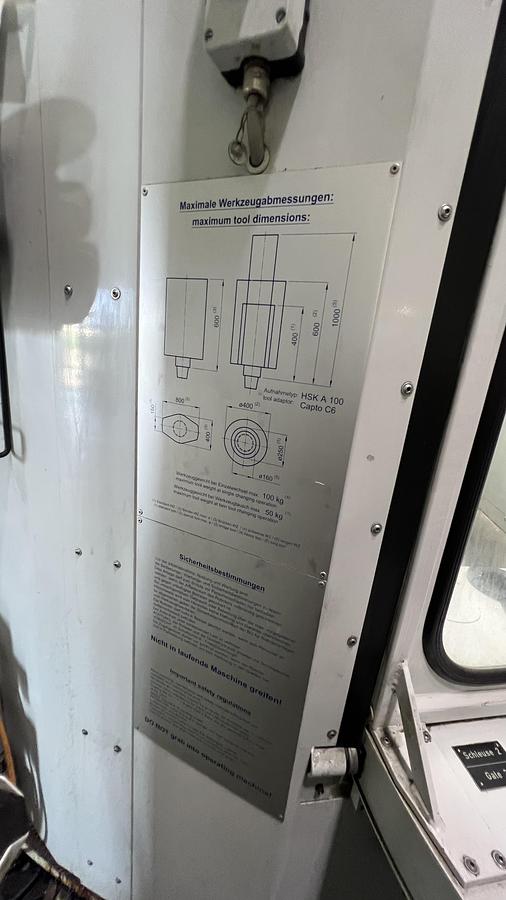

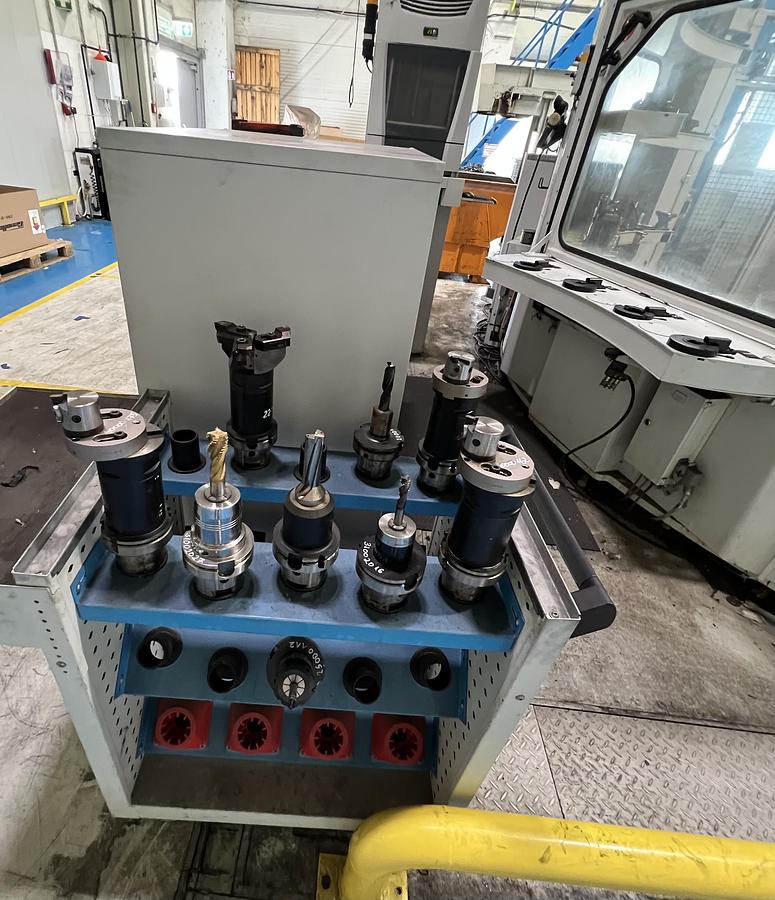

Tool interface: HSK 100-A for rotating tools; Capto C6 for turning tools

Spindle power – turning: 63 kW, 0.1–200 rpm and 0.4–800 rpm

Axis travels: X +1,150/−1,150 mm; Z 1,250 mm; Y +750/−750 mm; fixed crossrail

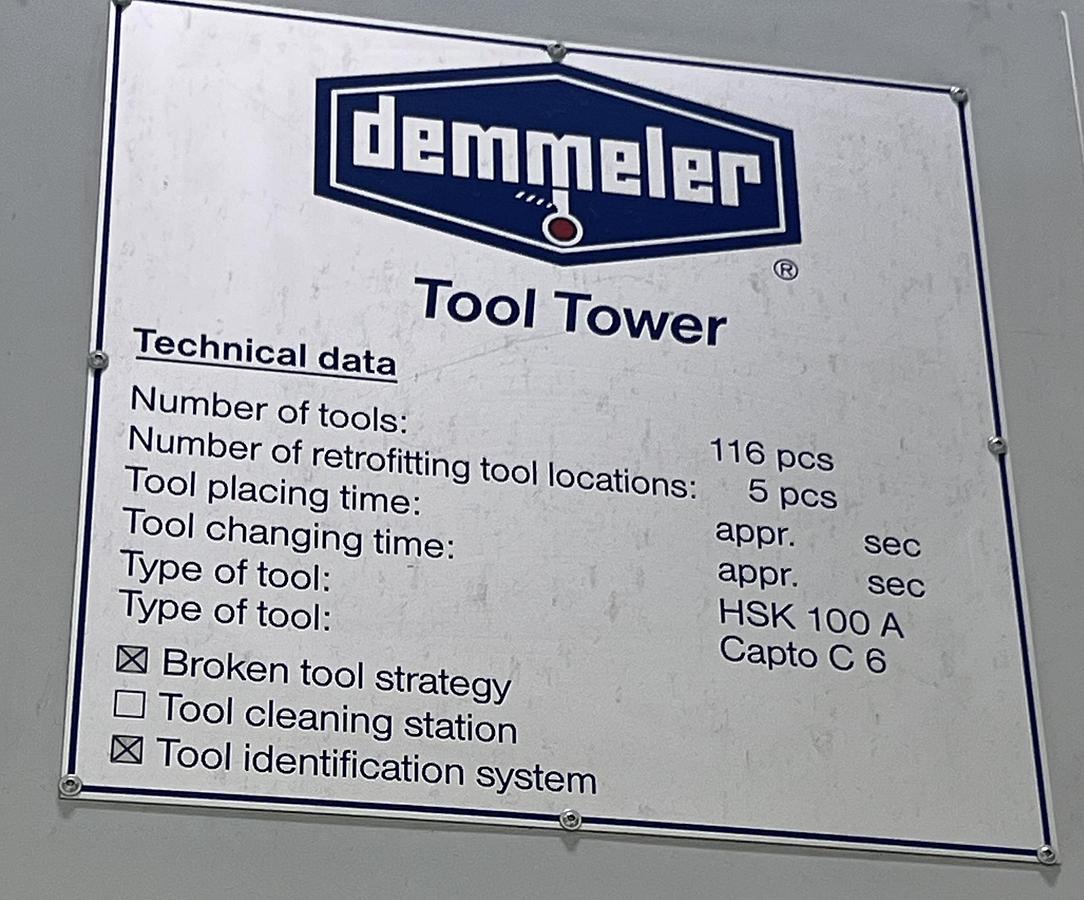

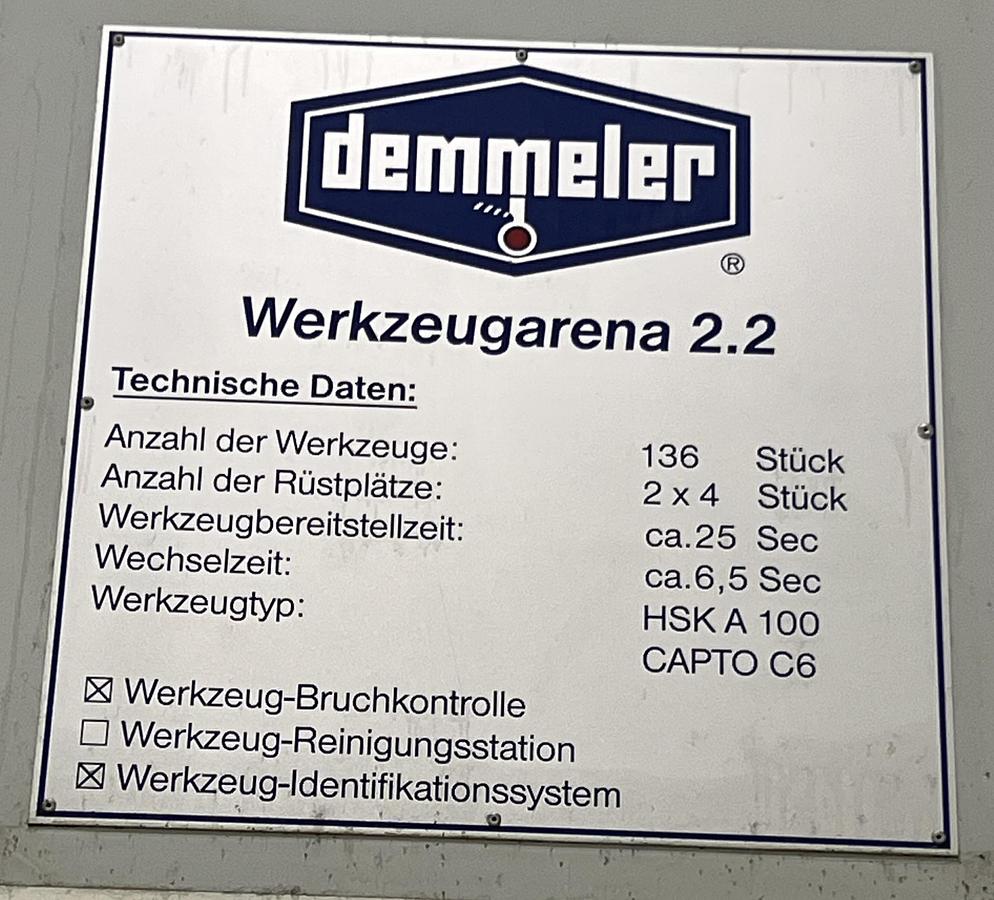

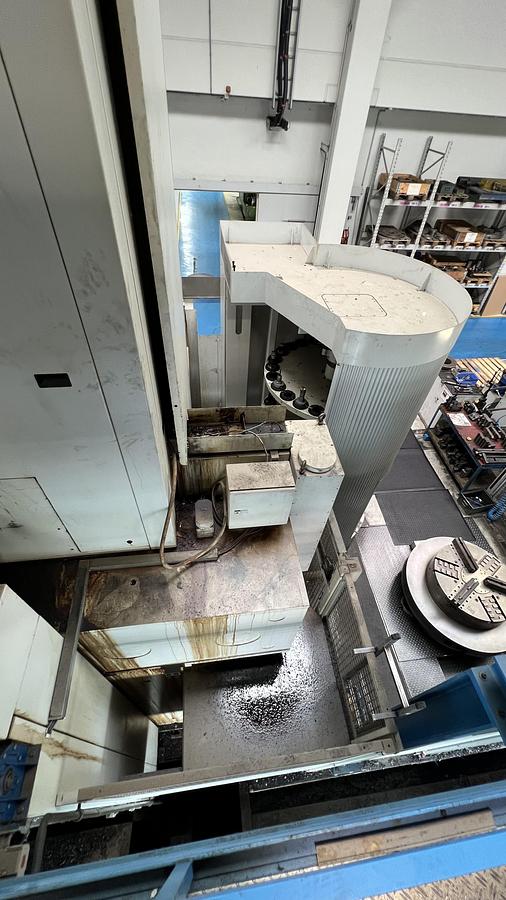

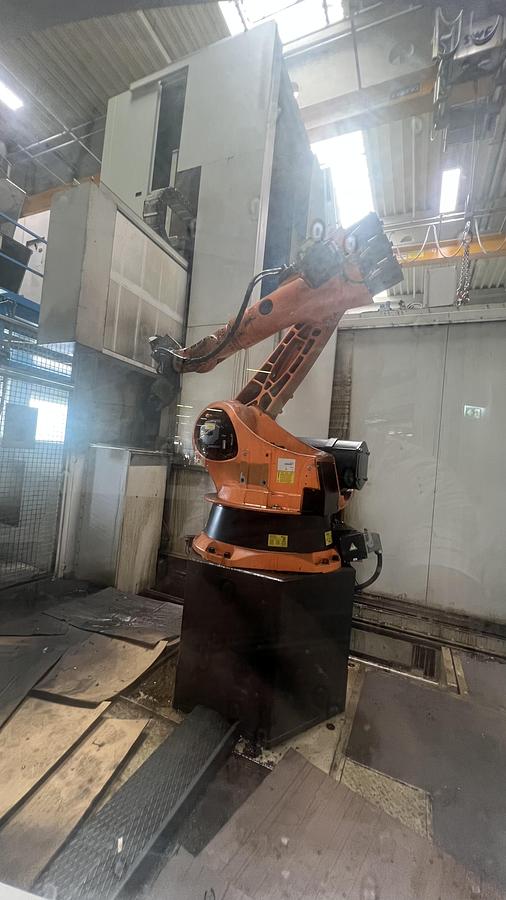

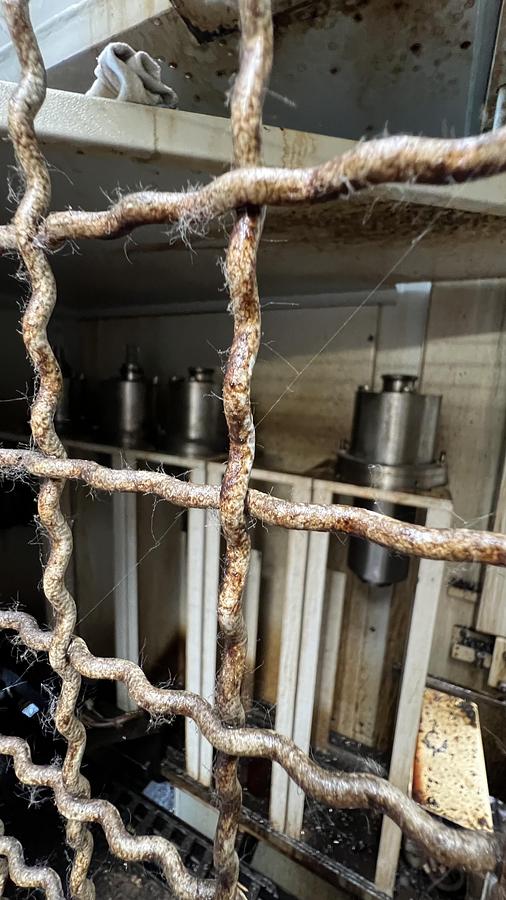

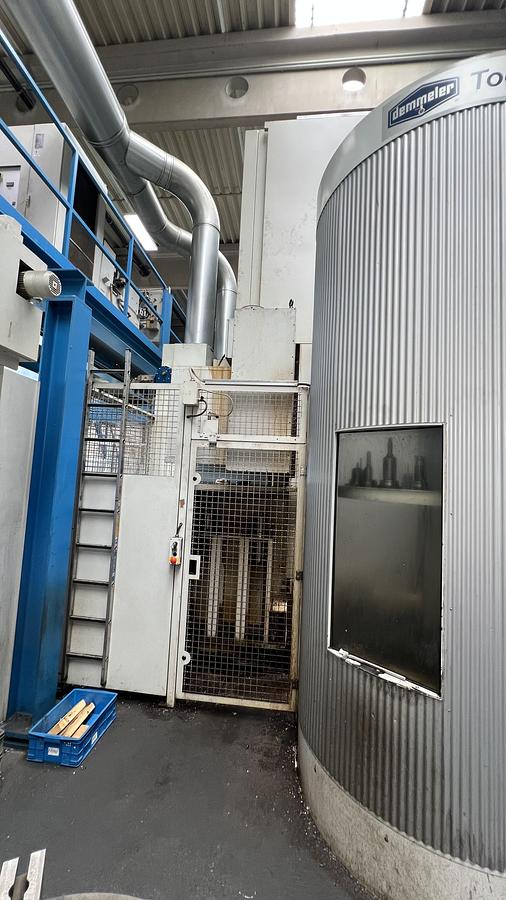

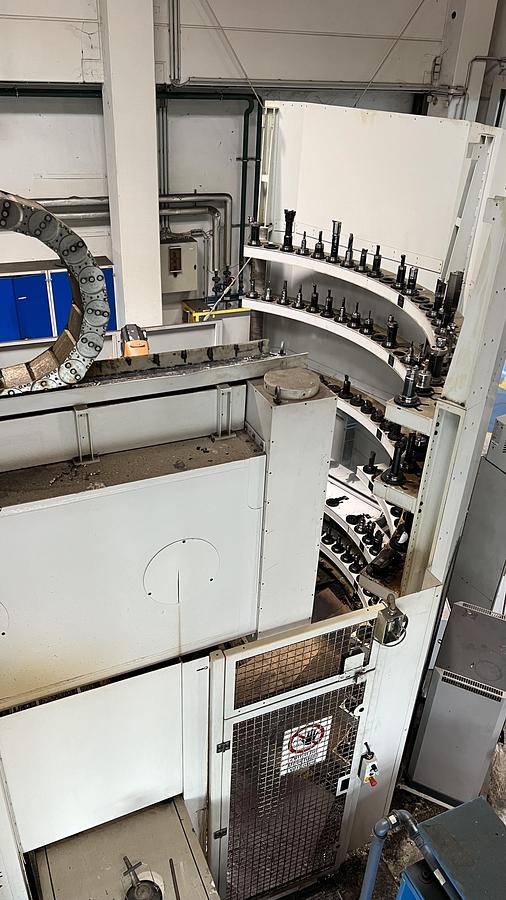

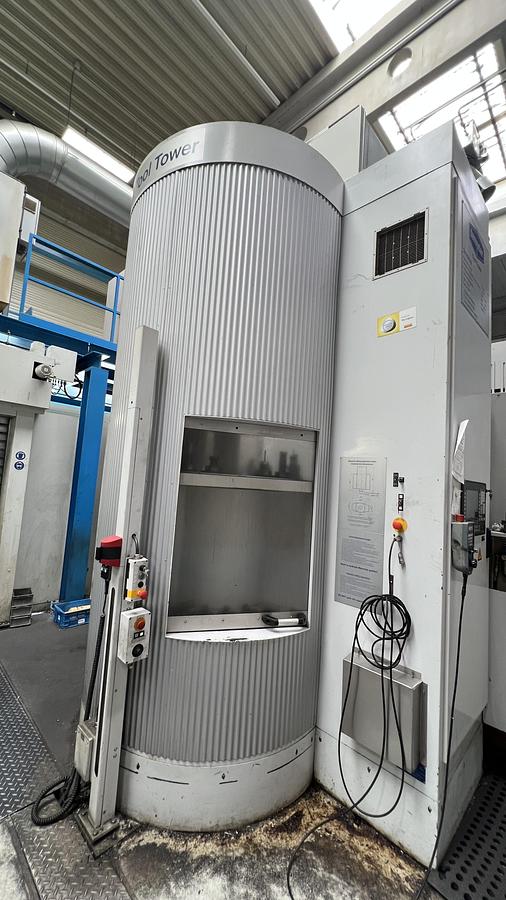

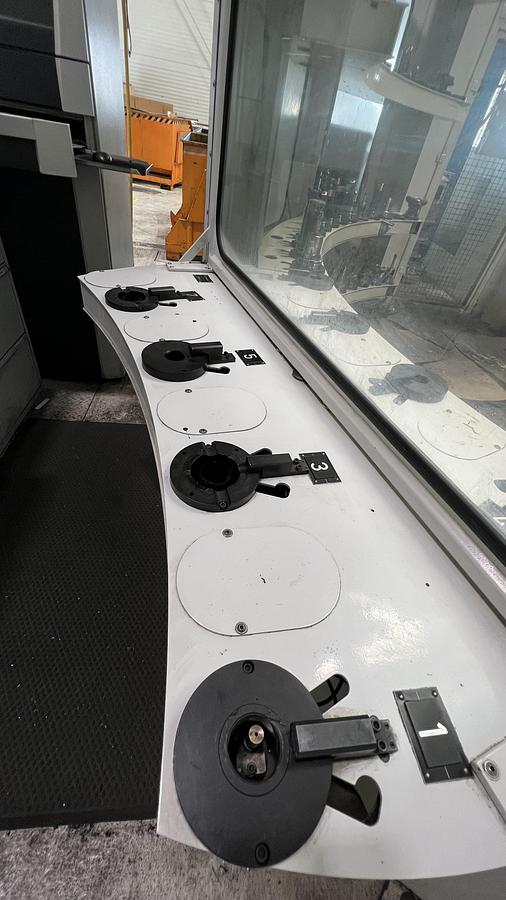

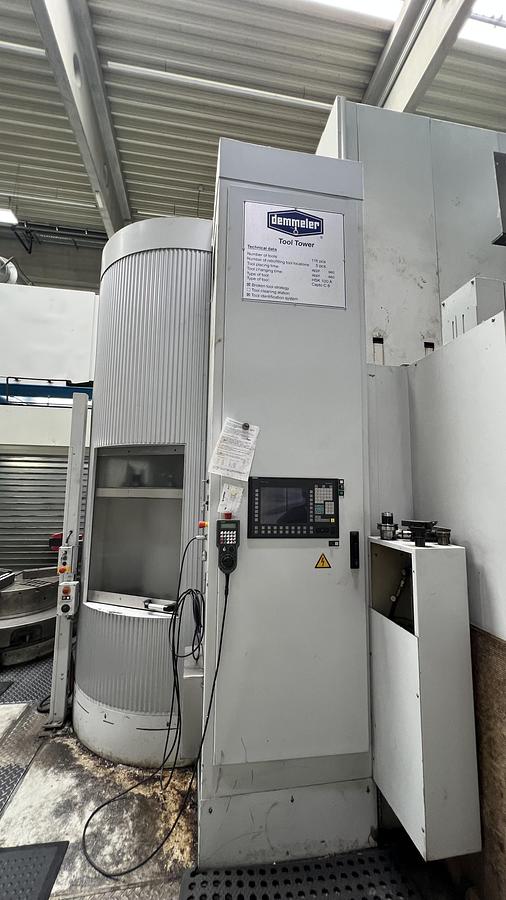

Number of tools: 116

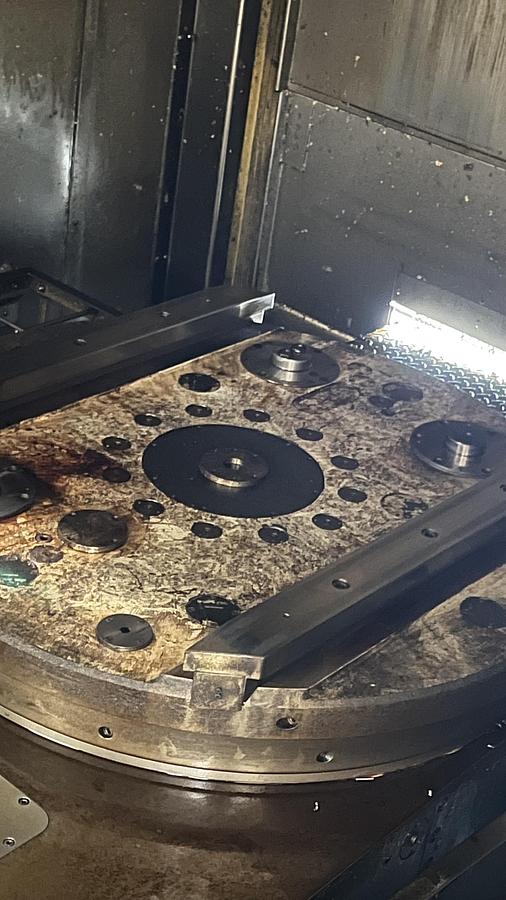

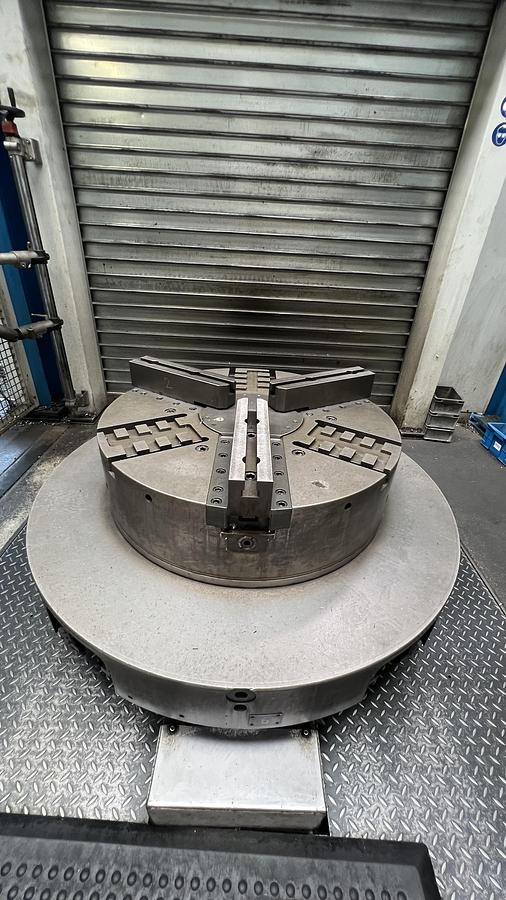

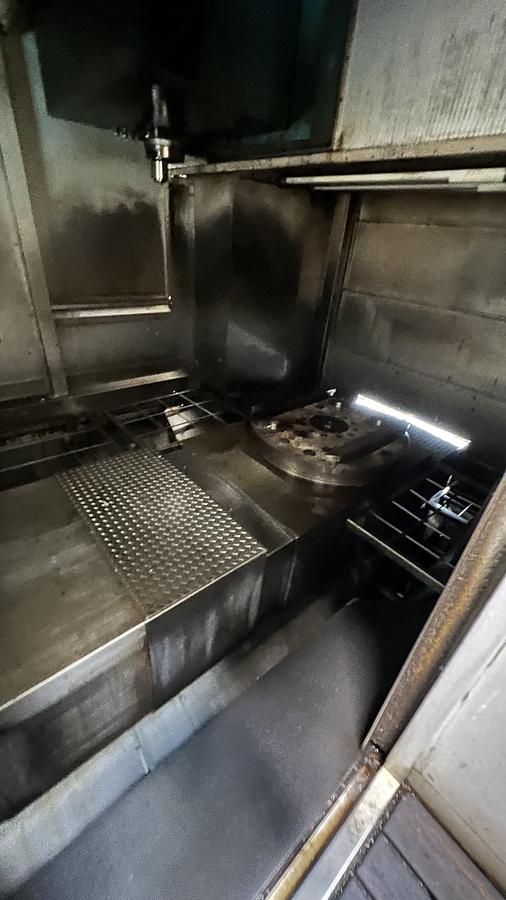

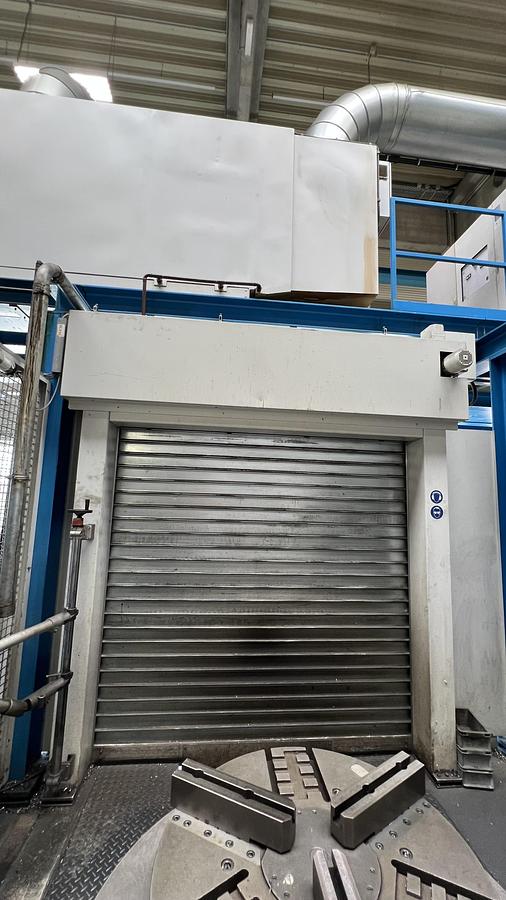

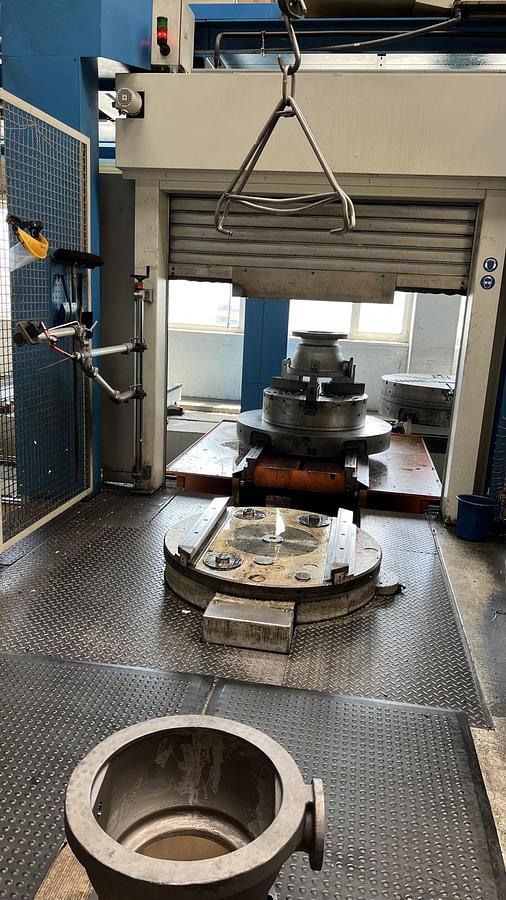

Table size: Pallet base Ø1,250 mm; faceplate with Röhm power chuck Ø1,000 mm

Rapid traverse speeds: X 30 m/min; Y/Z 20 m/min

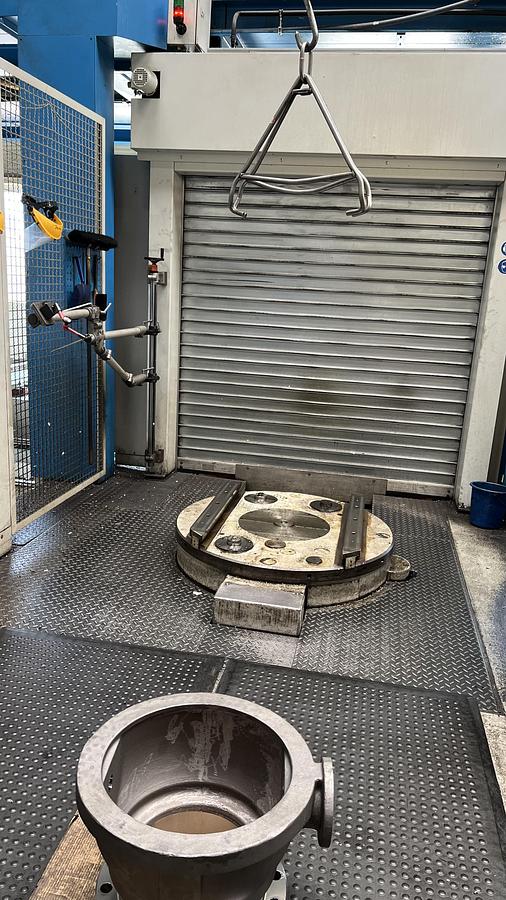

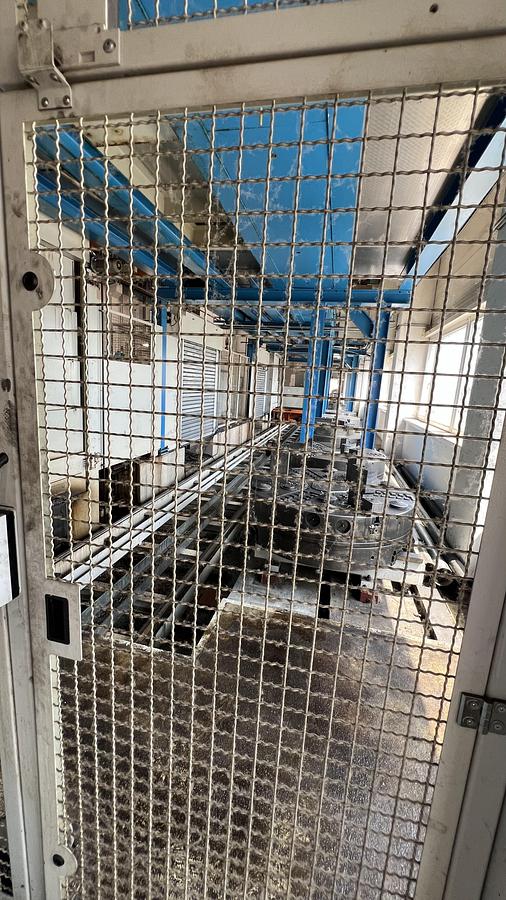

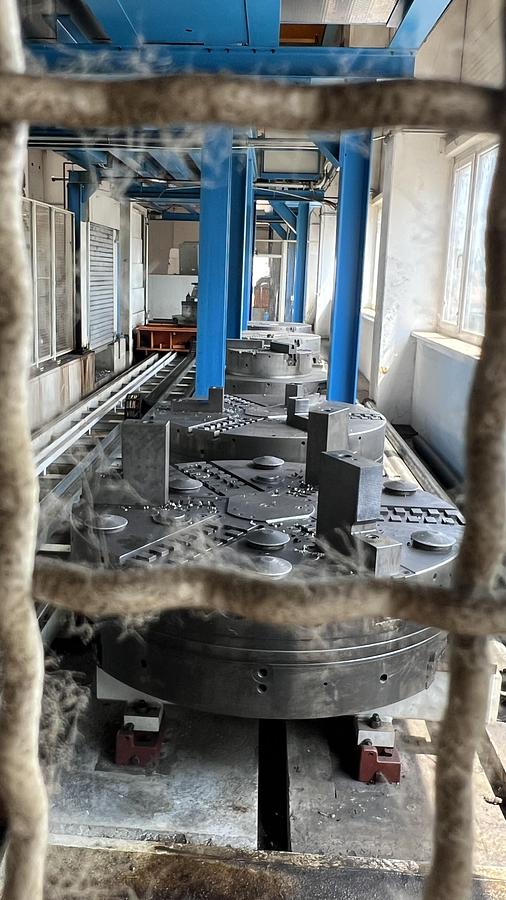

Number of pallets in the system: 4 per machine; each pallet can be used on both machines

Maximum load per pallet: 2,500 kg

Tool slide cross-section: 250 × 250 mm

Swing diameter: Ø1,500 mm

Clearance height: 2,050 mm

Machine units

1 × Vertical drilling/milling unit, HSK 100-A

1 × Horizontal drilling/milling unit, HSK 100-A

1 × Horizontal turning unit, Capto C6

1 × Long vertical turning unit, Capto C6

1 × Short vertical turning unit, Capto C6

Multitec

Spindle – milling spindle: 45 kW, 5–1,300 and 23–6,000 rpm

Tool interface: HSK 100-A for rotating tools; Capto C6 for turning tools

Spindle power – turning: 63 kW, 0–400 rpm

Axis travels: X +1,000/−1,500 mm; Z 1,500 mm; Y +1,500/−1,500 mm; W crossrail vertical travel (NC axis) 1,000 mm

Number of tools: 130

Table size: Pallet base Ø1,250 mm; faceplate with Röhm power chuck Ø1,500 mm

Rapid traverse speeds: X/Y/Z 60 m/min; W-axis 6 m/min

Number of pallets in the system: 4 per machine; each pallet can be used on both machines

Maximum load per pallet: 6,000 kg

Tool slide cross-section: 400 × 400 mm

Swing diameter: Ø2,000 mm

Clearance height: 2,050 mm

Machine units

1 × Vertical drilling/milling unit, HSK 100-A

1 × Horizontal drilling/milling unit, HSK 100-A

1 × Horizontal/combined vertical turning unit, Capto C6

1 × Long vertical turning unit, Capto C6

1 × Defective universal milling unit (swivel axis), HSK 100-A
