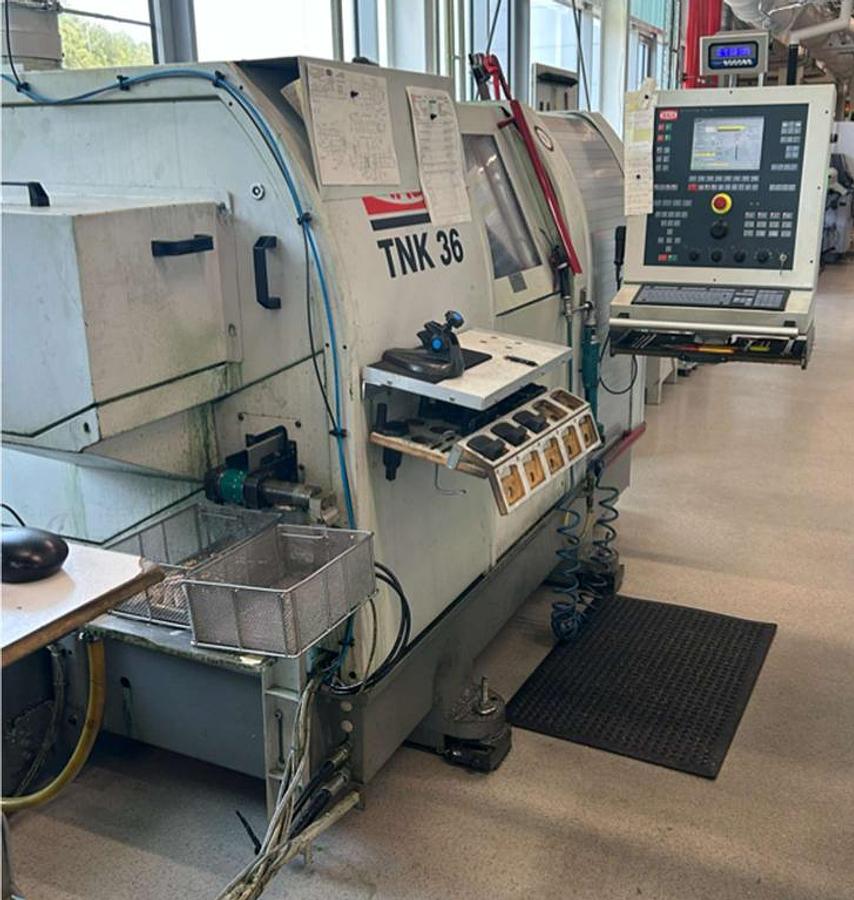

2002 Traub TNK 36 CNC Automatic Lathe

Manufacturer: Traub

Year of Manufacture: 2002, factory overhaul completed 2018

Model: TNK 36

Type of Machine: CNC automatic lathe

Operating Hours: approximately 147,007 hours, as of June 2026

CONTROL SYSTEM

• Control: TX8i (64 bit), 14 inch flat screen
• Additional V24 RS232 interface in the control cabinet
• MDE interface in control cabinet, machine running and piece counter
• Thread cutting without compensating chuck
• Polyform function for C-axis
• Tool monitoring

MAIN SPINDLE

• Spindle bore: 36 mm
• Maximum speed: 6,300 rpm
• Drive power: AC 6.7 / 10.7 kW
• C-axis
• Change parts: Hainbuch
• Mounting aid base body
• Manual Hainbuch change device

COUNTER SPINDLE

• Counter spindle as motor spindle
• Spindle bore: 32 mm
• Maximum speed: 6,300 rpm
• Travel Z4: 250 mm
• Rapid traverse Z4: 30 m/min
• C-axis
• Device for counter clamping pressure
• Workpiece ejector device
• Increased feed force
• Axial fixed chuck: Hainbuch

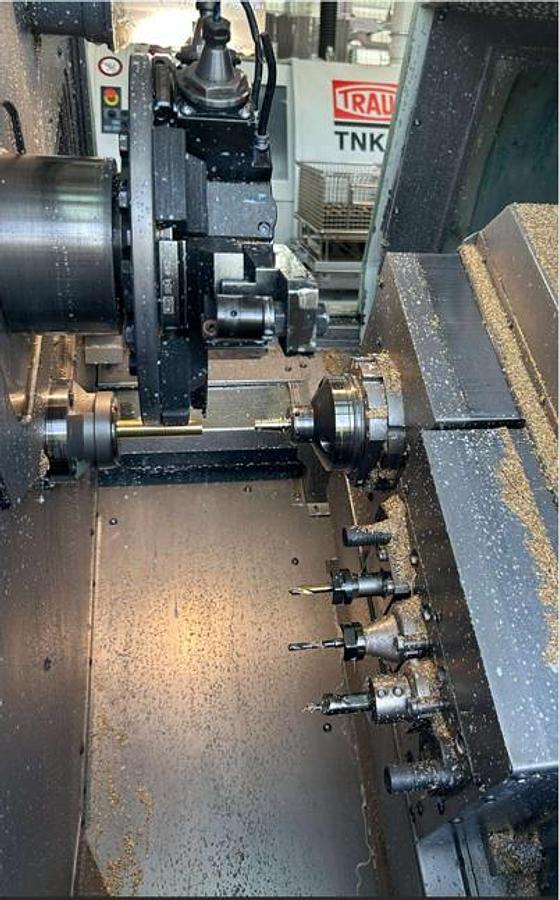

UPPER TOOL CARRIER

• Travel: X2 = 50 mm, Y2 = +/- 20 mm, Z2 = 100 mm
• Rapid traverse: X2 = 15 m/min, Y2 = 15 m/min, Z2 = 15 m/min
• Driven tools: 12 pieces, via total drive
• Maximum speed: 6,000 rpm
• Electronic gearbox

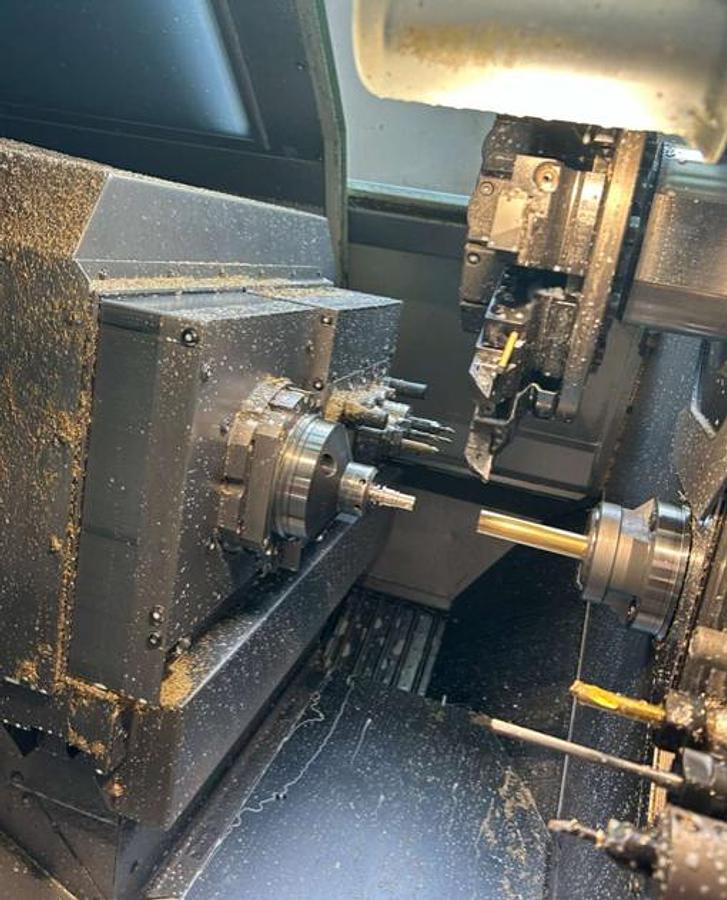

FRONT ATTACHMENT, 5-FOLD

• X3 cross axis for front attachment
• Travel: X3 = 370 mm, Z3 = 250 mm
• Rapid traverse: X3 = 30 to 60 m/min, Z3 = 30 m/min
• Driven tools: 5 pieces
• Tool holder diameter: 40 mm
• Maximum speed: 6,000 rpm
• Increased feed force

REAR ATTACHMENT

• Travel: X4 = 73 mm, Y4 = +/- 50 mm
• Rapid traverse: X4 = 15 m/min, Y4 = 15 m/min
• Driven tools: 5 pieces
• Tool holder diameter: 40 mm
• Maximum speed: 6,000 rpm

WORKPIECE REMOVAL DEVICE

• Conveyor belt to the left
• Pneumatic workpiece gripper
• Gripper jaws: D5-8, D8-20, D20-36
• Workpiece range: length maximum 200 mm, diameter maximum 32 mm

COOLANT LUBRICATION SYSTEM

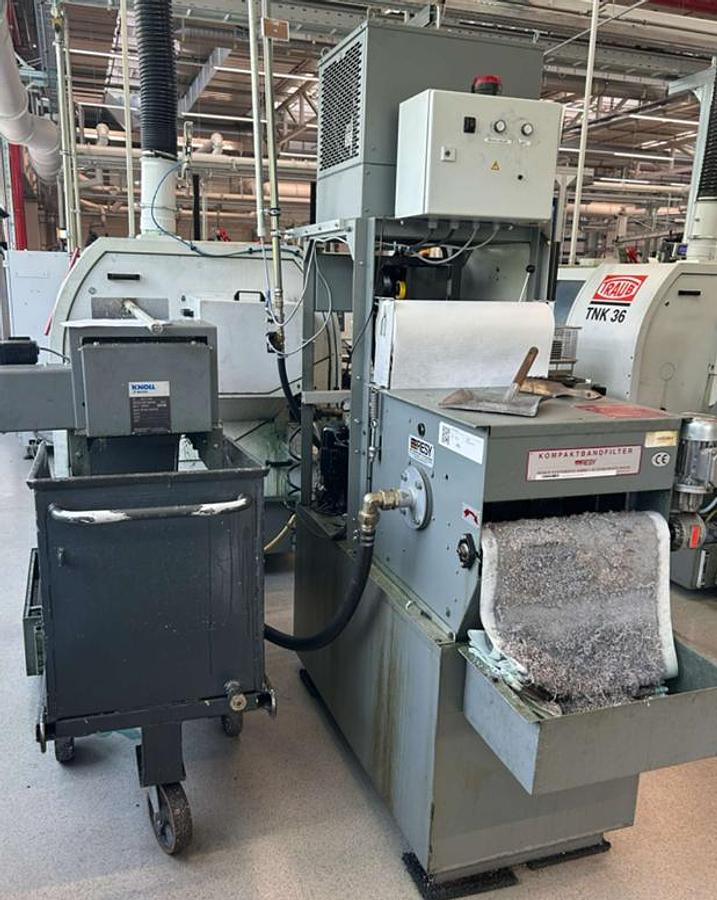

• Compact belt filter: RESY
• Cooling unit
• Tank capacity: approximately 360 liters, 7 bar, 50 liters per minute
• Internal coolant supply: 30 bar
• Rinse gun

OTHER SPECIFICATIONS

• Machine and control cabinet color: RAL 7037, dust grey
• Covers and bar loader color: RAL 7035, light grey
• Connection load: 22 kW

ADDITIONAL EQUIPMENT INCLUDED

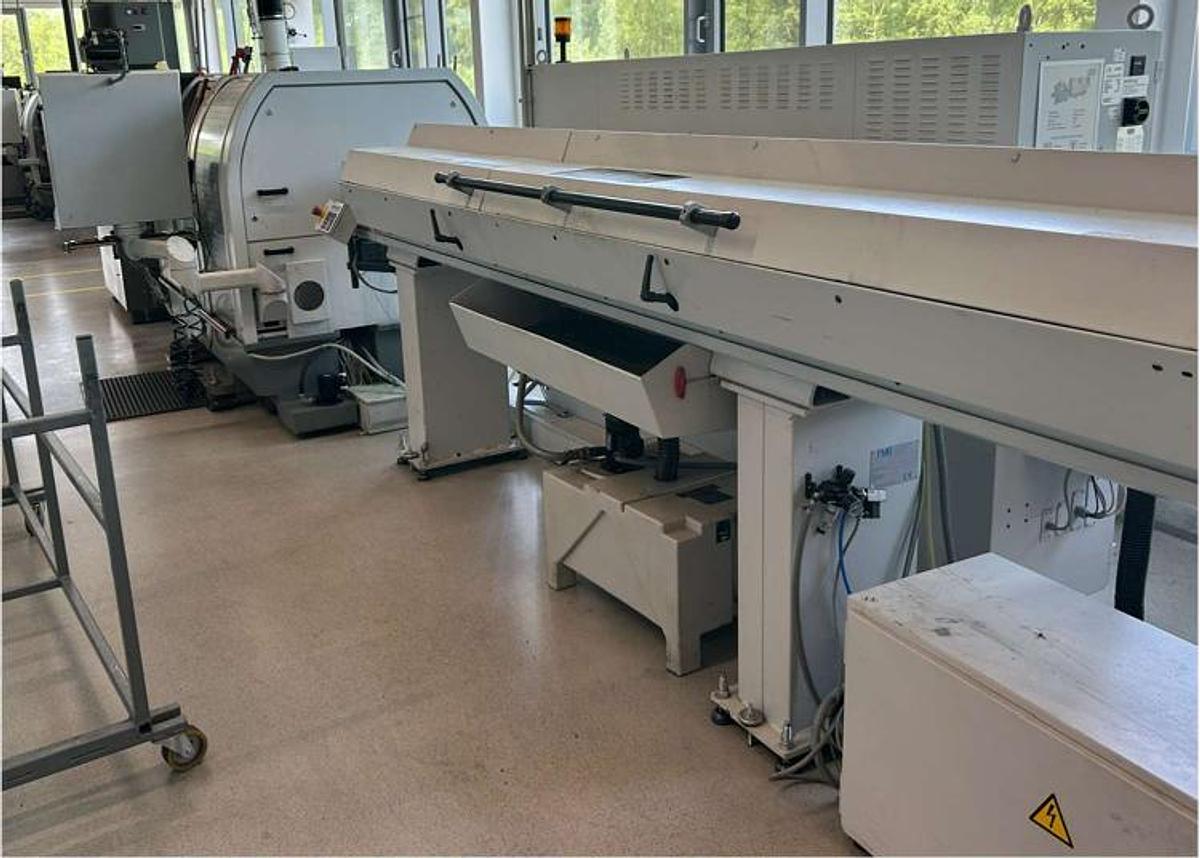

• Bar loading magazine: FMB turbo 5-42 XT / 3200 C
• Bar loading magazine manufacturer: FMB Maschinenbau GmbH
• Bar loading magazine year of manufacture: 2002
• Bar loading magazine machine number: 52-111 342
• The machine is supplied with a basic set of fixed and driven tool holders
