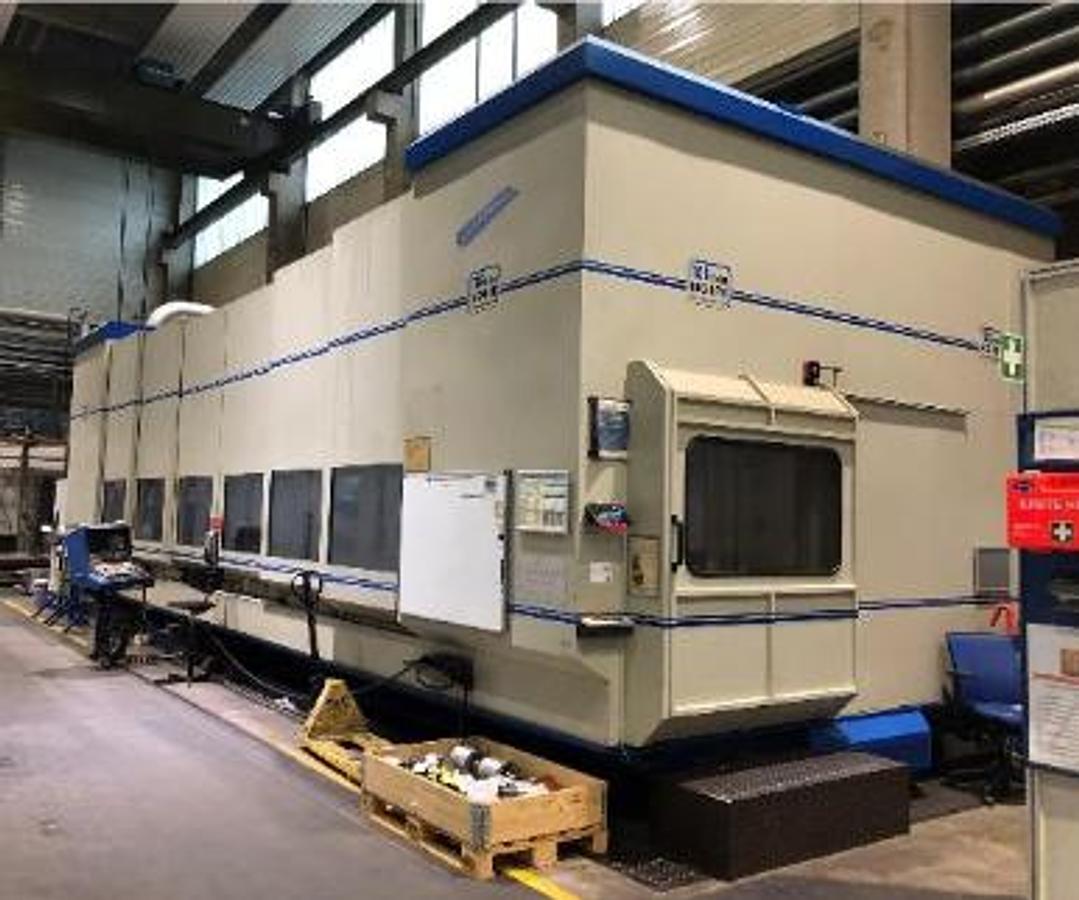

2002 Norte VS 1000 Milling Machining Center

Manufacturer: NORTE

Year of manufacture: 2002

Model: VS 1000

Type of machine:Milling Machining Center

Technical Details :

• Machine weight: approximately 28,000 kg
• Transport width: approximately 12,000 mm
• Transport depth: approximately 4,800 mm
• Transport height: approximately 4,500 mm
• Working area, X axis travel: 8,000 mm, with pendulum machining at vertical spindle, 2 working areas of 2 x 3,765 mm
• Working area, Y axis travel: 1,000 mm
• Working area, Z axis travel: 1,000 mm
• Feed range for X and Y axis: 1 to 20,000 mm per minute
• Feed range for Z axis: 1 to 20,000 mm per minute
• Maximum feed force X, Y, Z axis: 15,000 N
• Rapid traverse X and Y axis: 20,000 mm
• Rapid traverse Z axis: 20,000 mm
• Protection class of feed drives: IP 64
• Voltage: three phase current 400 / 240 V, 3 phases / MP / 50 Hz
• Control voltage with transformer: 24 V DC
• Supply cable: minimum 4 x 35 mm2
• Main fuse: maximum 200 A
• Connected load: approximately 130 kVA
• Control system: Siemens SINUMERIK 840 D
• Drive system: Siemens SIMODRIVE 611 D
• Axis drives AC: digital control
• Spindle drive AC: digital control
• Clamping table, total clamping surface left: 8,120 mm x 1,050 mm
• Clamping table, working area with 2 working areas: pendulum machining
• Clamping table, working area per working area at vertical spindle: 3,725 mm x 1,000 mm
• T-slots: 7, according to DIN 650
• Clamping slots: 6, width 22 mm H12
• Alignment slot (center slot): width 22 mm H7
• Slot spacing: 150 mm
• Permissible table load: 8,000 kg
• Working spindle, inner bearing diameter: 100 mm
• Spindle bearing lubrication: oil / air
• Tool holder: HSK-A 100
• Tool clamping force: 45,000 N
• Spindle speed range: 0 to 8,000 min-1
• Automatic tool changer type: chain magazine
• Chain drive: regulated AC digital servo motor
• Mounting position viewed from front: centered in the column
• Tool change point: variable in the X, Y and Z axis
• Tool loading: from the front via the working spindle, alternatively via pick-up station
• Number of magazine positions: 90
• Tool shank: HSK-A 100
• Coding: variable position coding
• Maximum tool diameter with 1 magazine position occupied: 110 mm
• Maximum tool diameter with 3 magazine positions occupied: 180 mm
• Maximum tool length: 400 mm

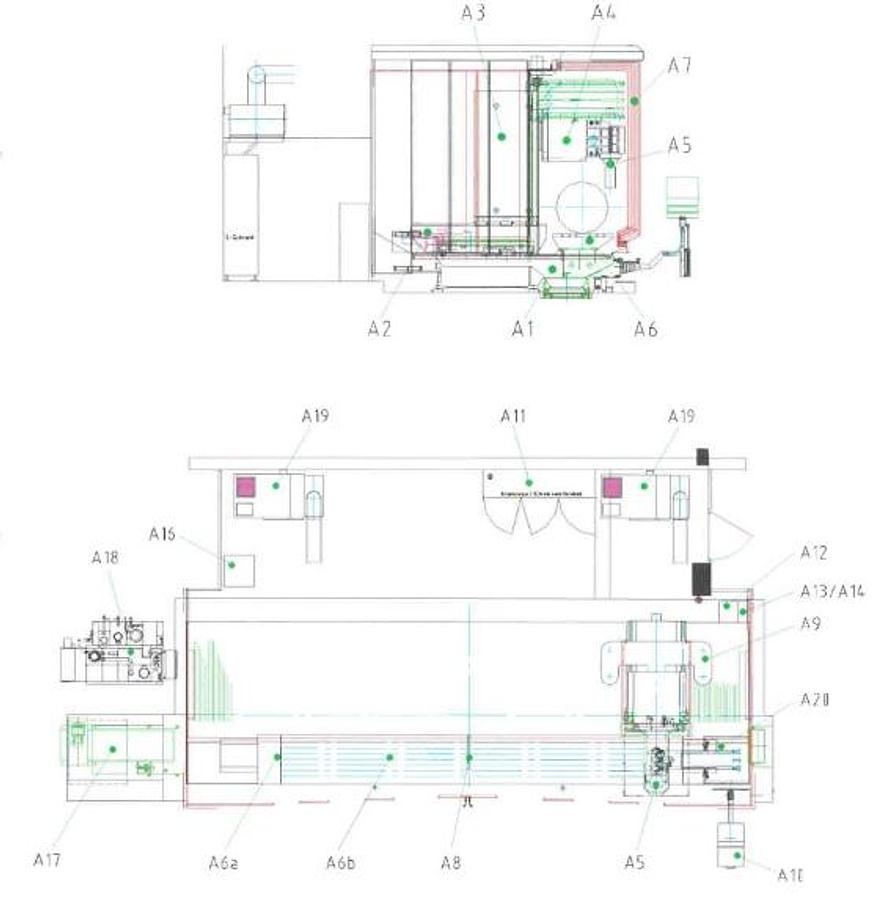

• Main components: machine bed, which forms the base structure of the machine
• Cross slide, which carries and positions the working assemblies
• Machine column, which supports the spindle housing
• Spindle housing, which houses the working spindle drive
• Drilling and milling spindle, which performs the drilling and milling operations
• Table, including rotary table and tailstock, which holds the workpiece
• Complete cabin, which encloses the working area
• Working area, where machining takes place
• Tool magazine, which stores tools for automatic tool change
• Main control panel, used to operate the machine
• Electrical cabinet, which houses the electrical control components
• Hydraulic unit, which supplies hydraulic power to the machine
• Pneumatic unit, which supplies pneumatic power to the machine
• Central lubrication system, which lubricates the machine components
• Cooling unit for the main spindle, which cools the spindle during operation
• Chip conveyor, which removes chips from the working area
• Coolant system, which supplies coolant during machining
• Extraction system, which removes dust and particles from the working area
• Pick-up tool magazine, used for alternative tool loading
