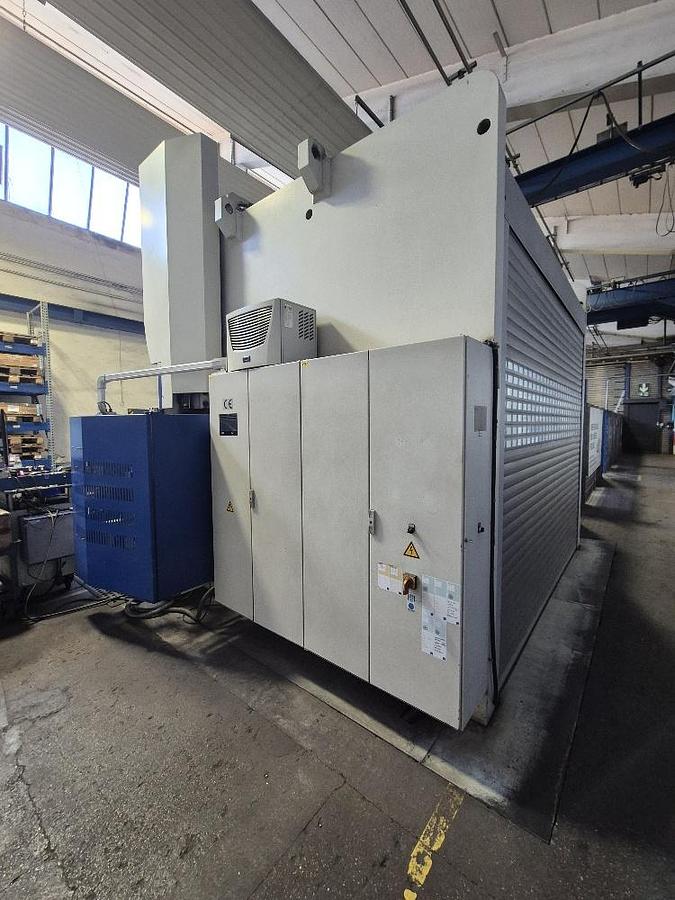

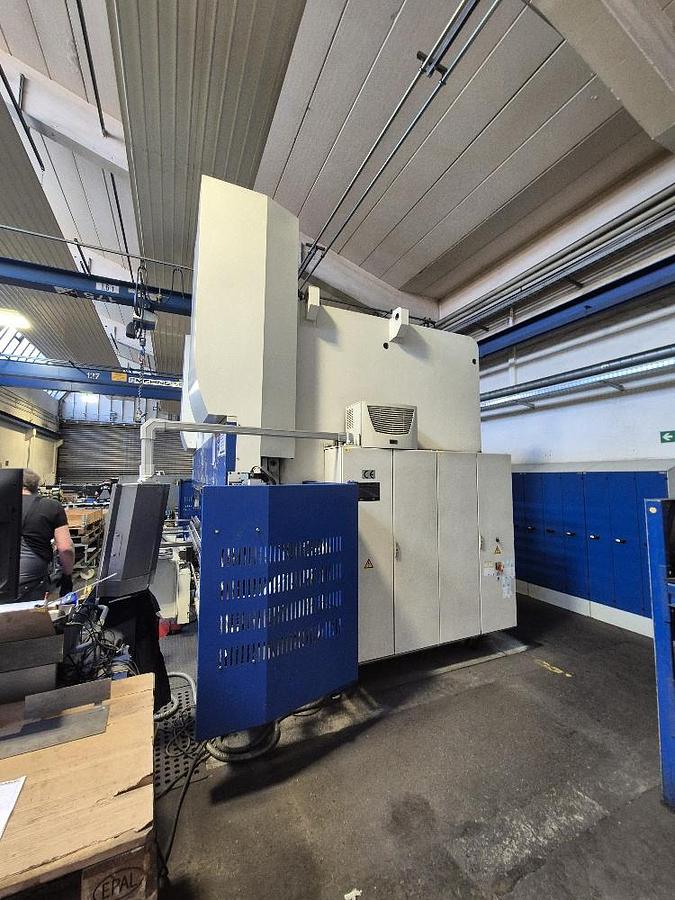

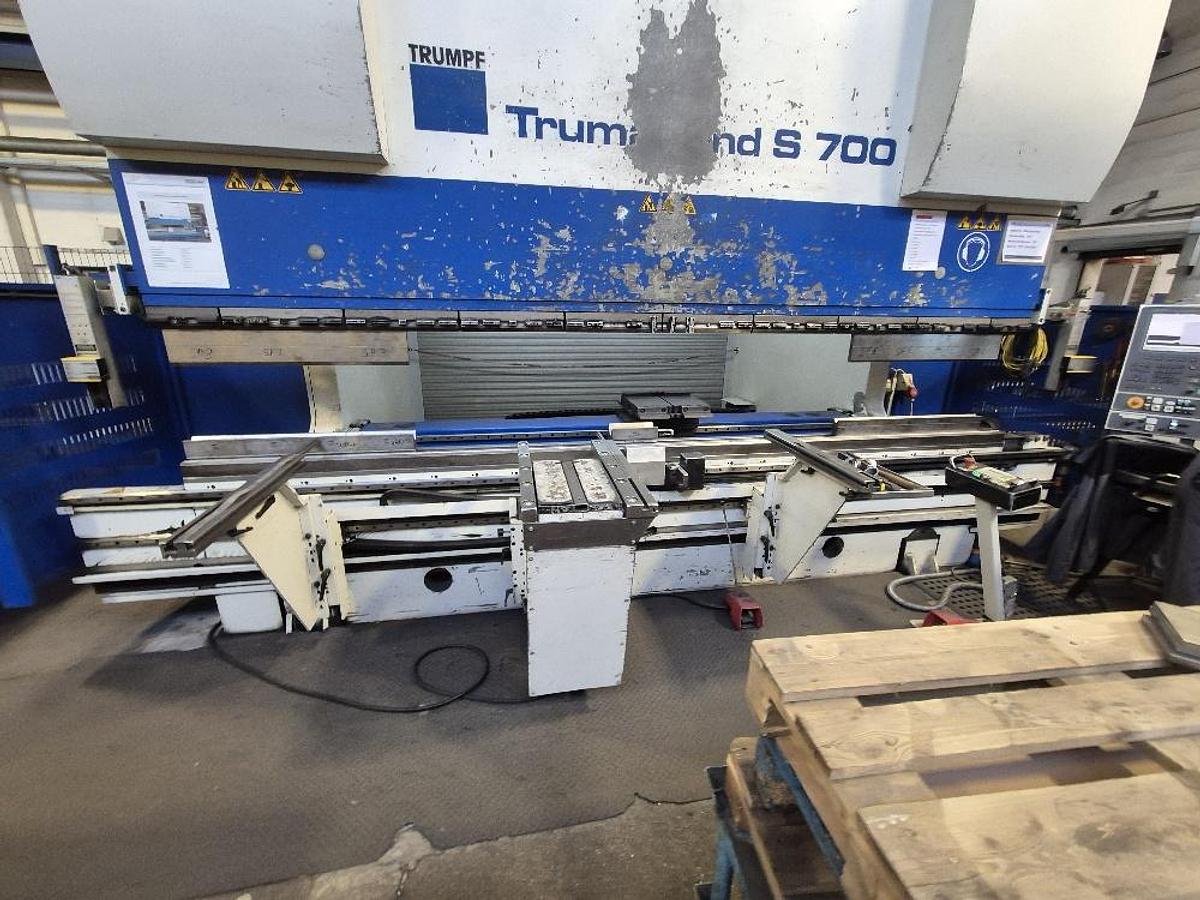

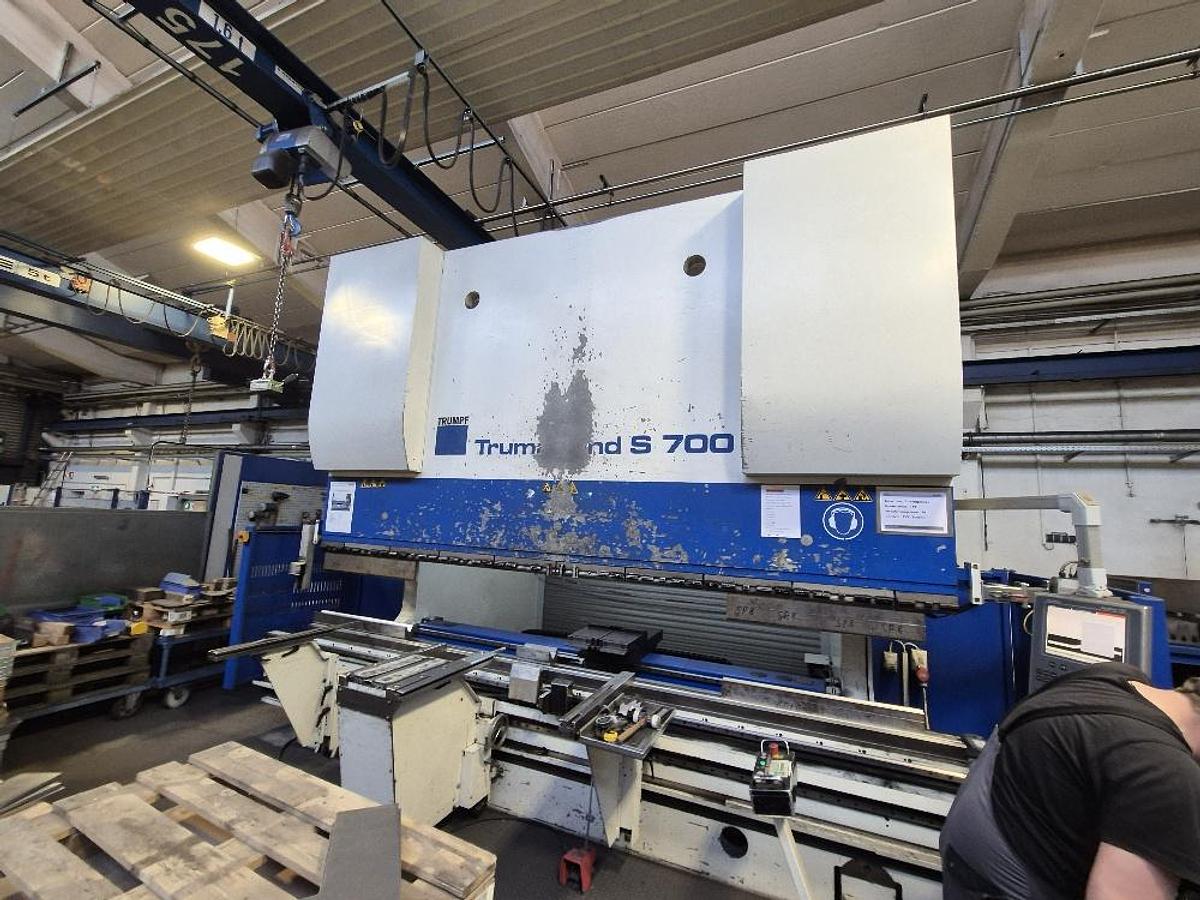

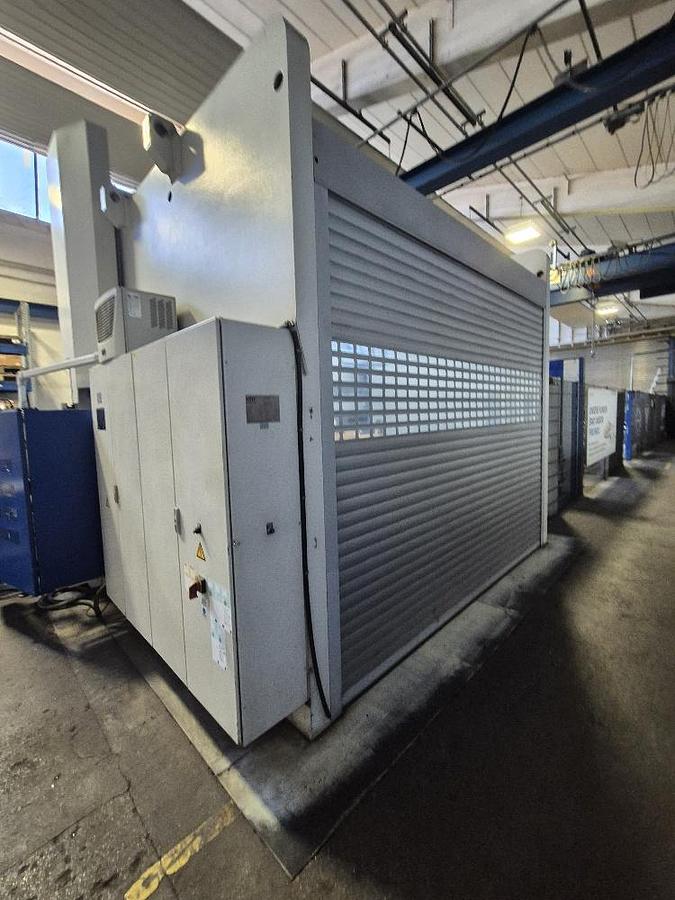

2005 Trumpf TrumaBend S 700-45

Manufacturer: Trumpf

Year of Manufacture: 2005

Model: TrumaBend S 700-45

Type of Machine: CNC Hydraulic Press Brake

Technical Specifications:

• Working Length: 4,550mm
• Pressing Force: 7,000 kN (approximately 700 tonnes)
• Weight: 49,000 kg
• Oil Quantity: 700 liters
• Operating Voltage: 3 x 400V AC, 50Hz
• Control Voltage: 24V

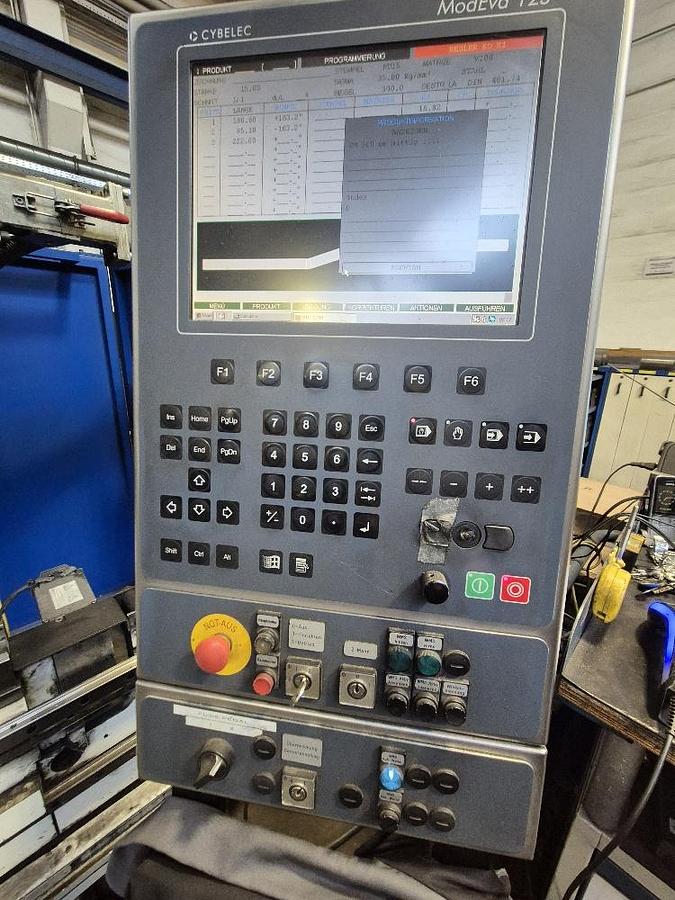

• Control Type: ModEva 12S (Cybelec)
• Main Fuse Nominal Current: 200A
• Connected Load: 69 kW
• Distance Between Machine Frames: 3,500mm
• Maximum Bending Length: 4,550mm at a bending depth of 590mm
• Bending Arm (without tool): 490mm. Obstruction edge protrudes 300mm from the bending arm.
• Maximum Bending Depth at 3,500mm Length: 1,750mm for single bends, 1,250mm for Z-bends
•
