Scheugenpflug Casting Plant Line

Manufacturer: Scheugenpflug

Type of machine: Casting and potting plant line

Year of manufacture: Individual components dated 2022 and 2023.

Operating history: The system was in operation from approximately August 2022 until the end of 2023 and ran without problems until the line was shut down

The line is composed of the following main components.

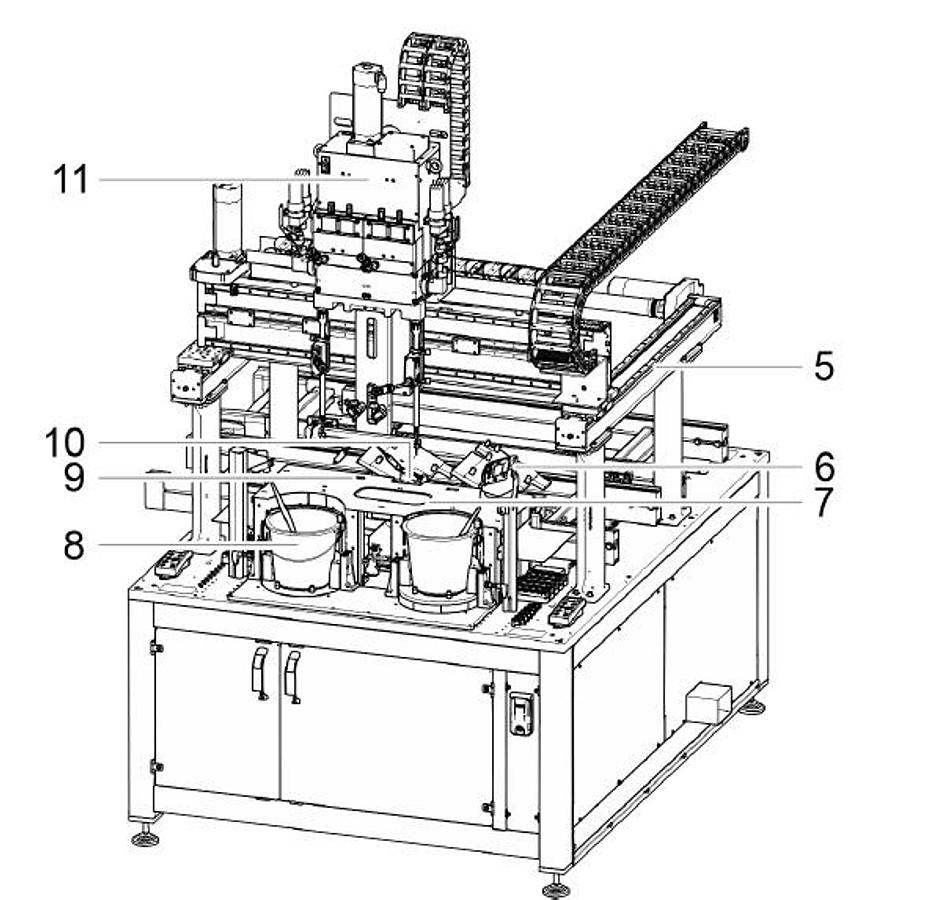

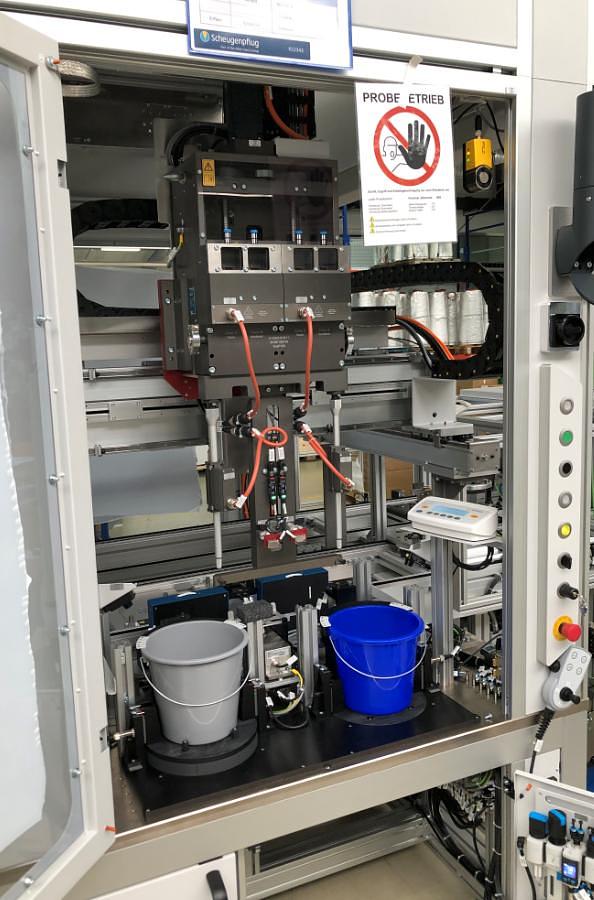

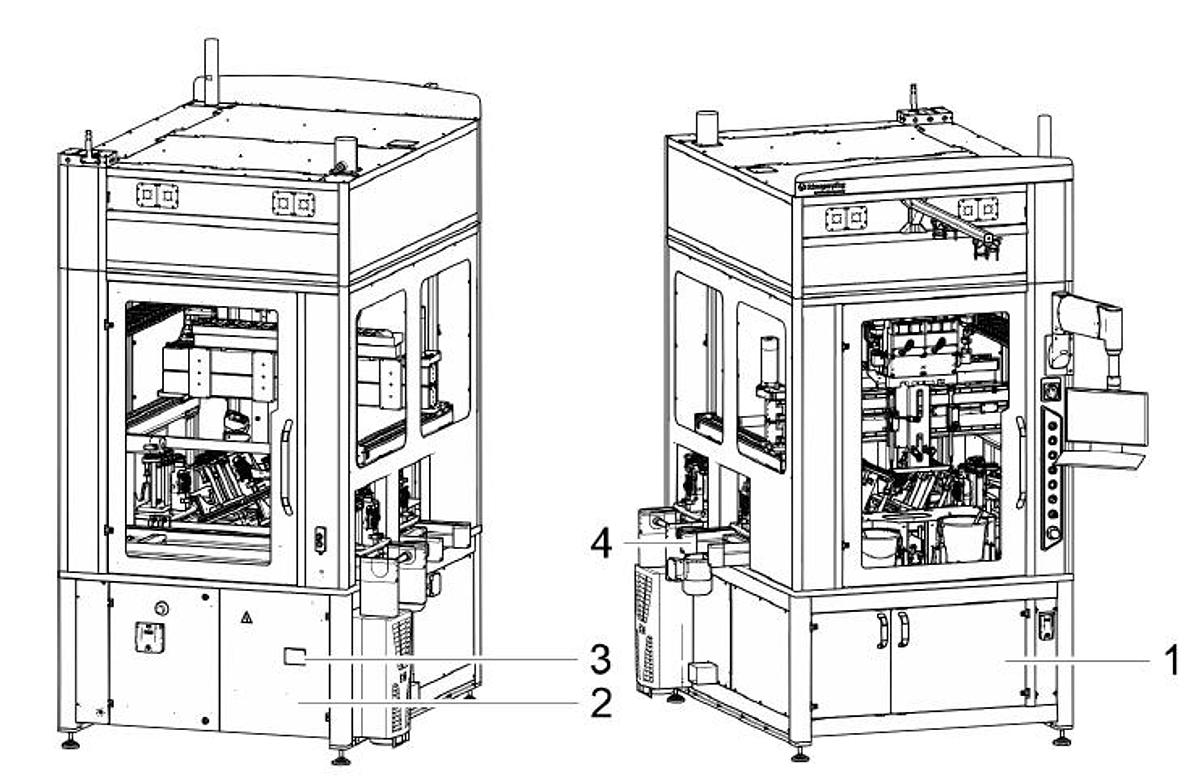

1. Potting cell with axle system

• Type: CNCell
• Built in 2022
• Air pressure: 6 bar
• Power supply: 400V 3~/N/PE.
• Power frequency: 50/60 Hz
• Power input: 8.6 kVA
• Rated current: 13.8 A
• Control voltage: 24 V DC

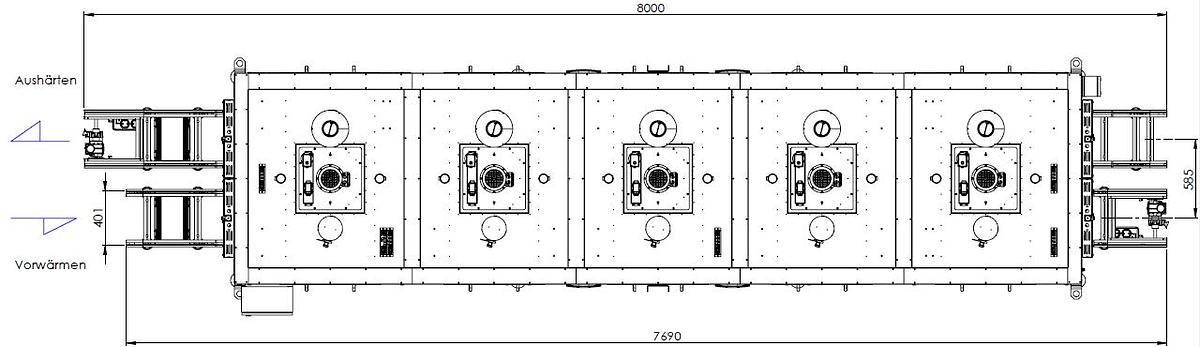

2. PTS preheating oven

• two lanes
• Type: FC Curing Oven FC-5Z-57-P-2S-6050-100
• Year of construction: 2022.
• Nominal temperature: 100 degrees Celsius
• Throughput time can be individually adjusted.

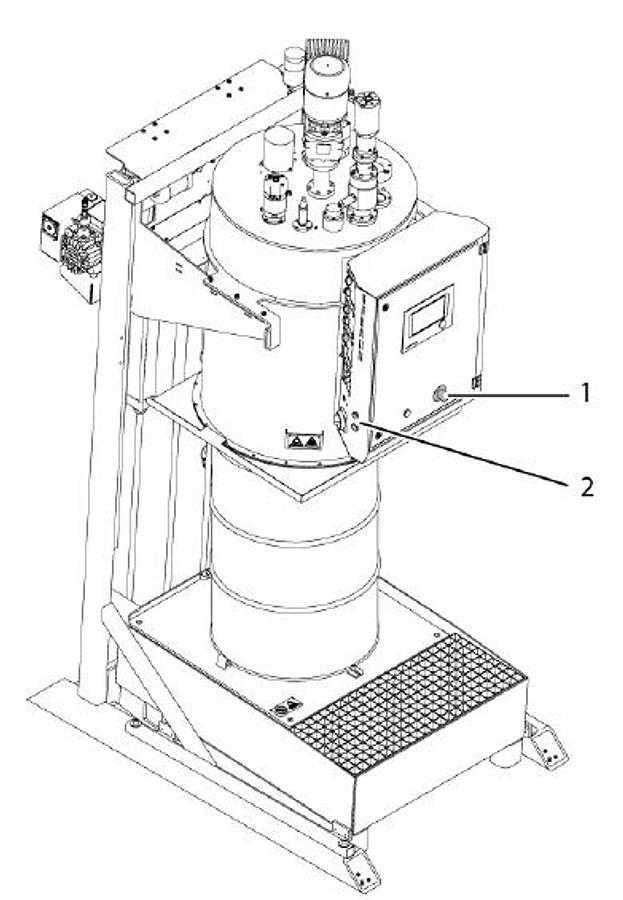

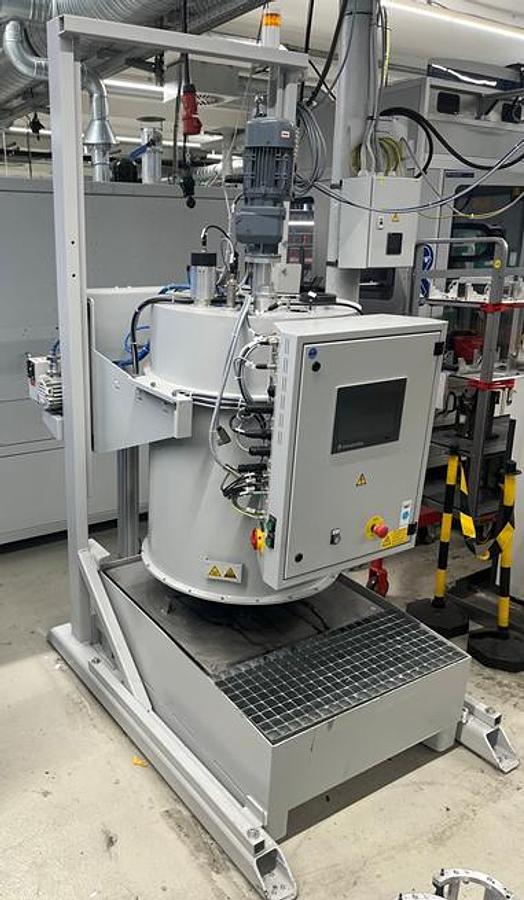

3. Barrel stirring station

• Type: Barrel Agitator Station
• Built in 2023
• Weight: 800 kg
• Air pressure: 6 bar
• Power supply: 400V 3~/N/PE
• Power frequency: 50/60 Hz
• Power input: 6.2 kVA
• Rated current: 12.6 A
• Control voltage: 24 V DC

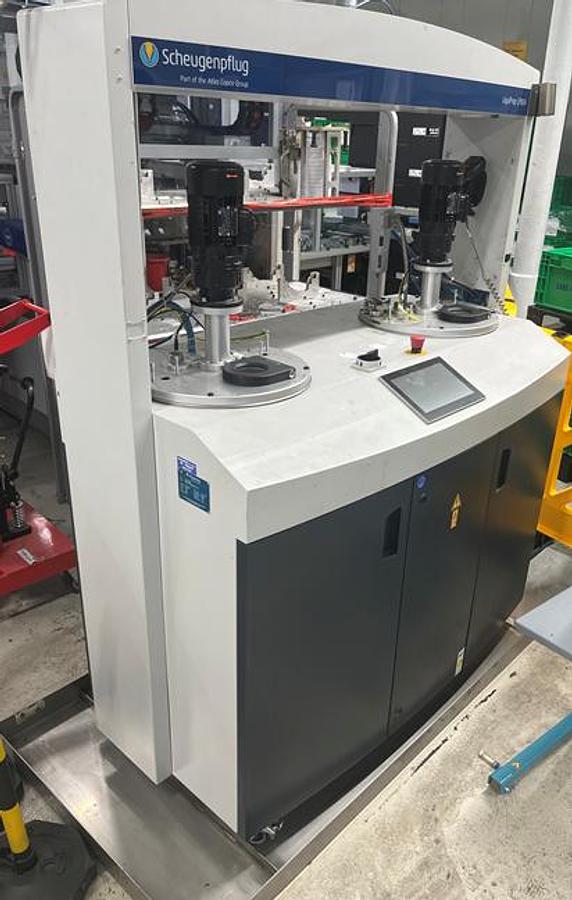

.4. Material preparation

• Type: LP804 50/20
• Product: Material Feeding System
• Built in 2022
• Weight: 430 kg
• Air pressure: 6 bar
• Power supply: 400V 3~/N/PE.
• Power frequency: 50/60 Hz
• Power input: 5.4 kVA
• Rated current: 8.3 A. Control
• Voltage: 24 V DC.
