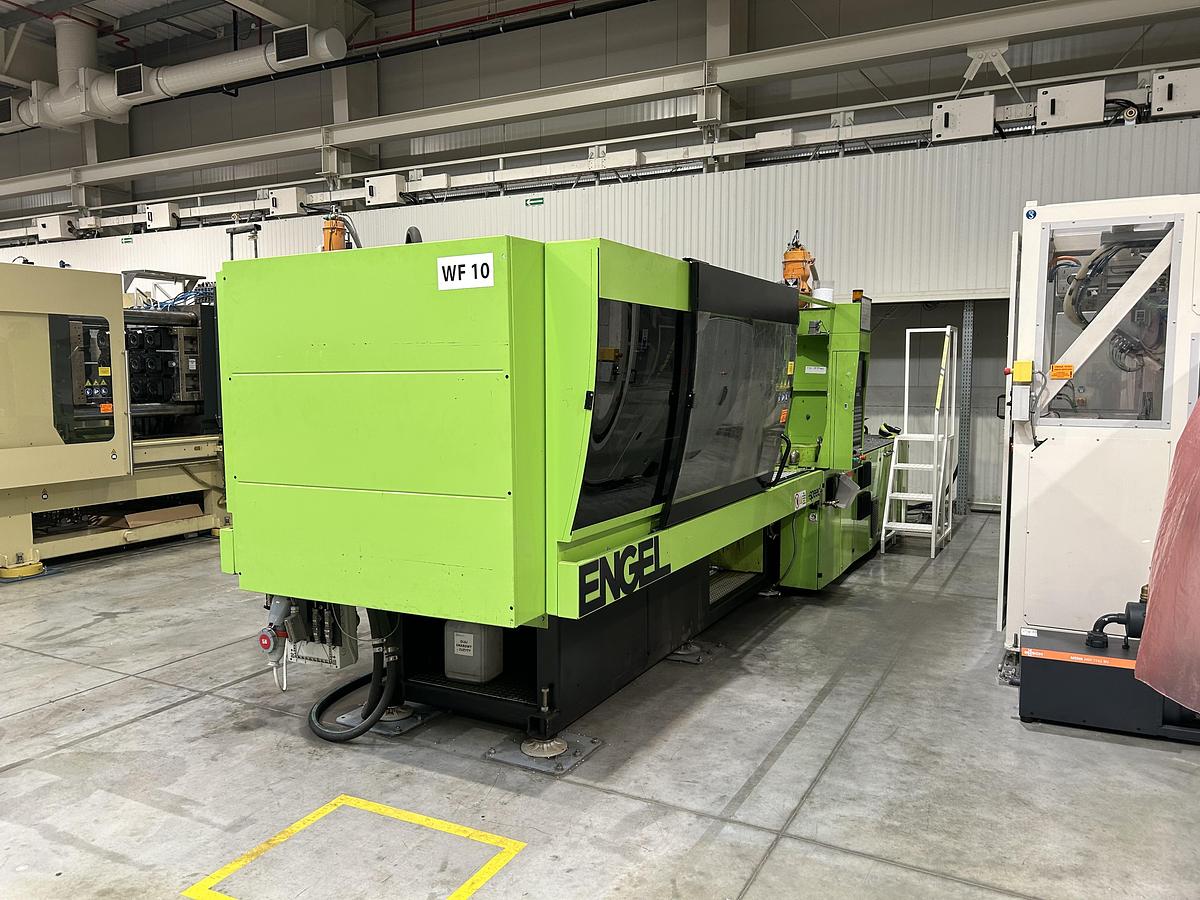

2006 ENGEL Speed 280/70 Injection Molding Machine
2006 ENGEL Speed 280/70 Injection Molding Machine
Contact us for price
Location:Bydgoszcz, Poland
Available quantity:1
Specifications
| Manufacturer | ENGEL |
| Model | Speed 280/70 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 758743 |
| Year of Manufacture | 2006 |
| Operating Hours | 76,177 h |
| Clamping Force | 2,800 kN |
| Opening Stroke | 610 mm |
| Ejector Stroke | 200 mm |
| Ejector Force | 220 kN |
| Screw Diameter | 70 mm |
| Max Swept Volume | 847 cm³ |
| Max Screw Speed | 273 rpm |
| Injection Rate | 3,079 cm³/s |
| Specific Injection Pressure | 1,397 bar |
| Specific Injection Pressure Increased | 2,066 bar |
| Nozzle Stroke | 537 mm |
| Nozzle Contact Pressure | 82.9 kN |
| Locating Ring Diameter | 160 mm H7 |
| Air Valves | 2 |
| Weight | 14,500 kg |
