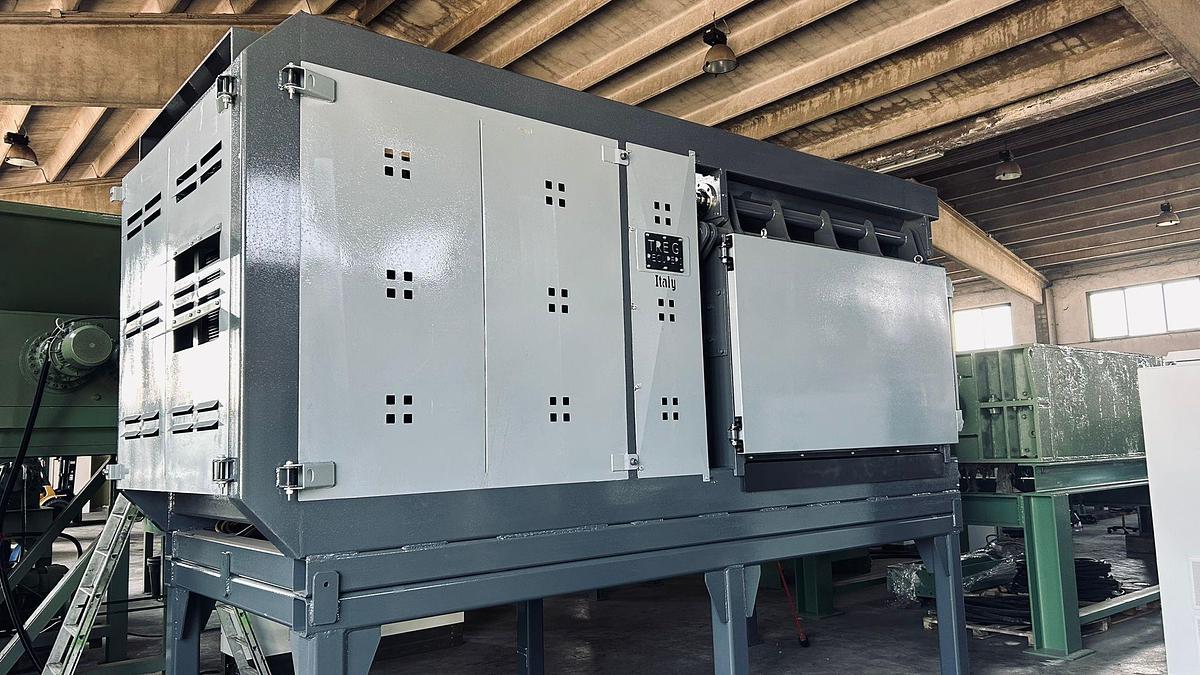

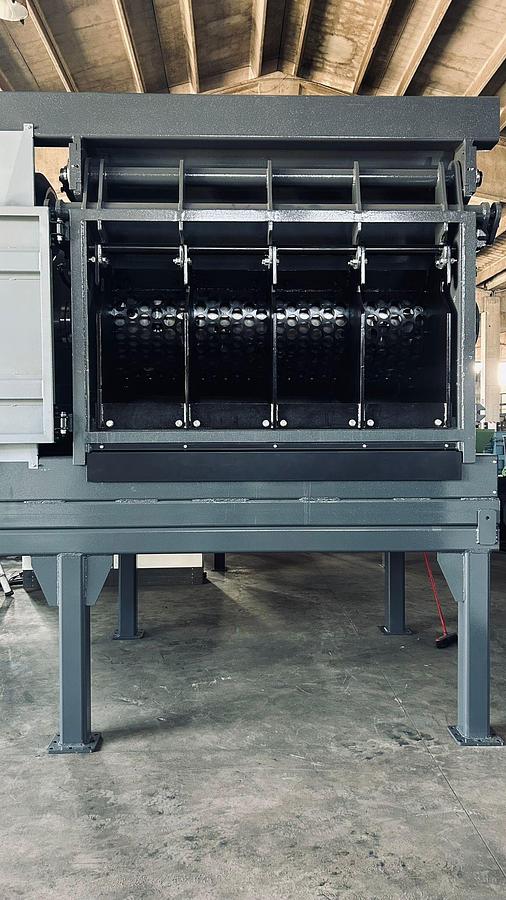

Treg Recuperi 200 kW PRE-SHREDDER 2000

Manufacturer: Treg Recuperi

Model:  200 kW PRE-SHREDDER 2000

Type of machine: Pre-Shredder

Technical Details:

• Installed motor power: 200 kW
• Total length: 5400 mm
• Total width: 2350 mm
• Total height: 2550 mm
• Total weight: 21,000 kg

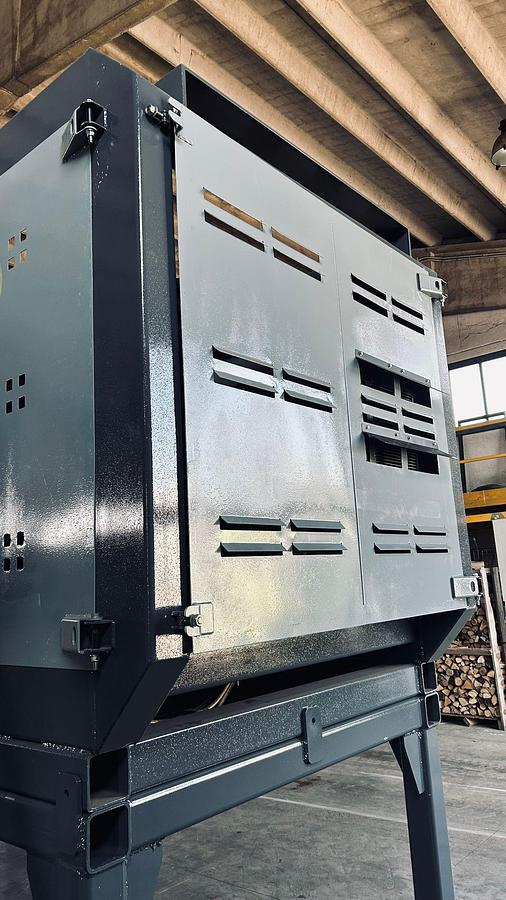

• Structure: Steel profiles and thick steel sheet

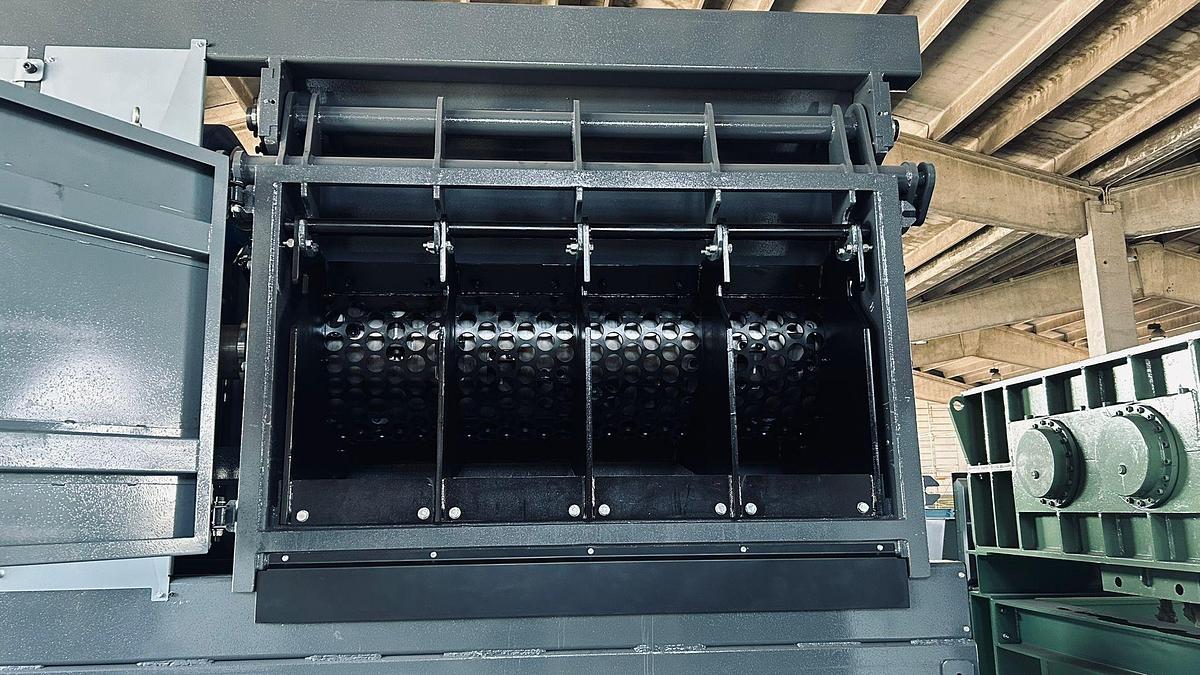

• Push box: Tilting

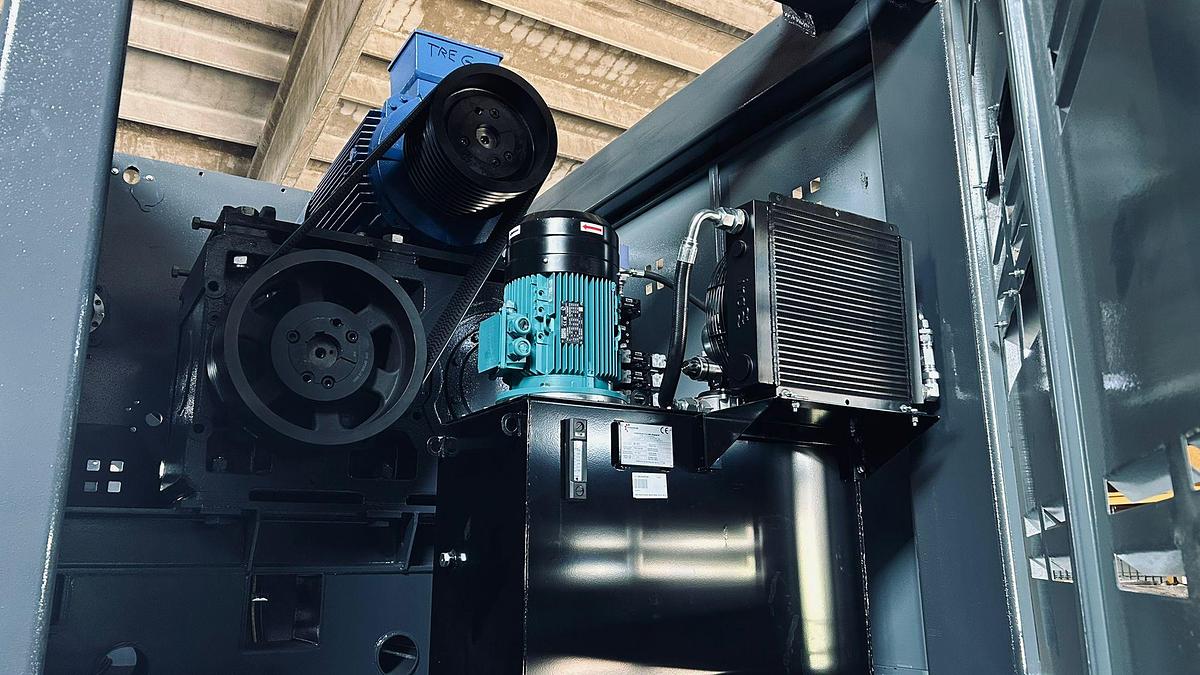

• Transmission: Mechanical transmission with 4-pole B3 electric motor
• Belts and pulleys: Series of SPC type belts and pulleys
• Gearbox: Parallel shaft gearbox with minimum service factor 1/2
• Coupling: Mechanical coupling joint between gearbox and rotor shaft
• Hydraulic unit: 11 kW hydraulic unit controlling the opening and closing of the push box, grid and latch, complete with oil and cooling system
• Supports and plates: Bolted supports and plates type PL 100
• Plates: 85x85x40 mm or, alternatively, reinforced triangular model

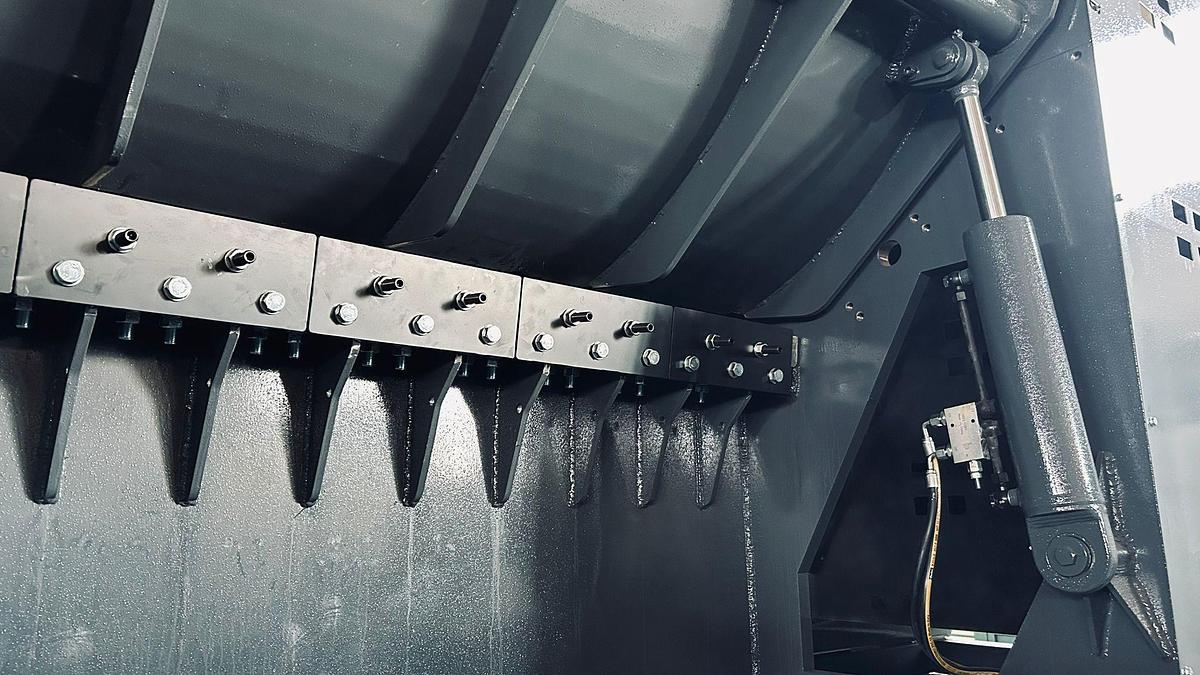

• Counter-blade: 1 fixed counter-blade of the reversible type

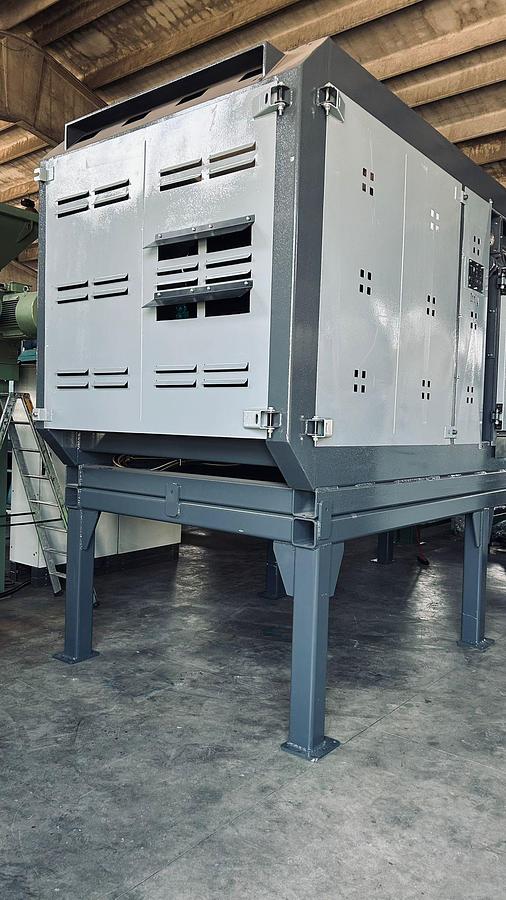

• Support legs: Height 1000 mm, complete with plates and bolts
• Documentation: Use and maintenance manuals
