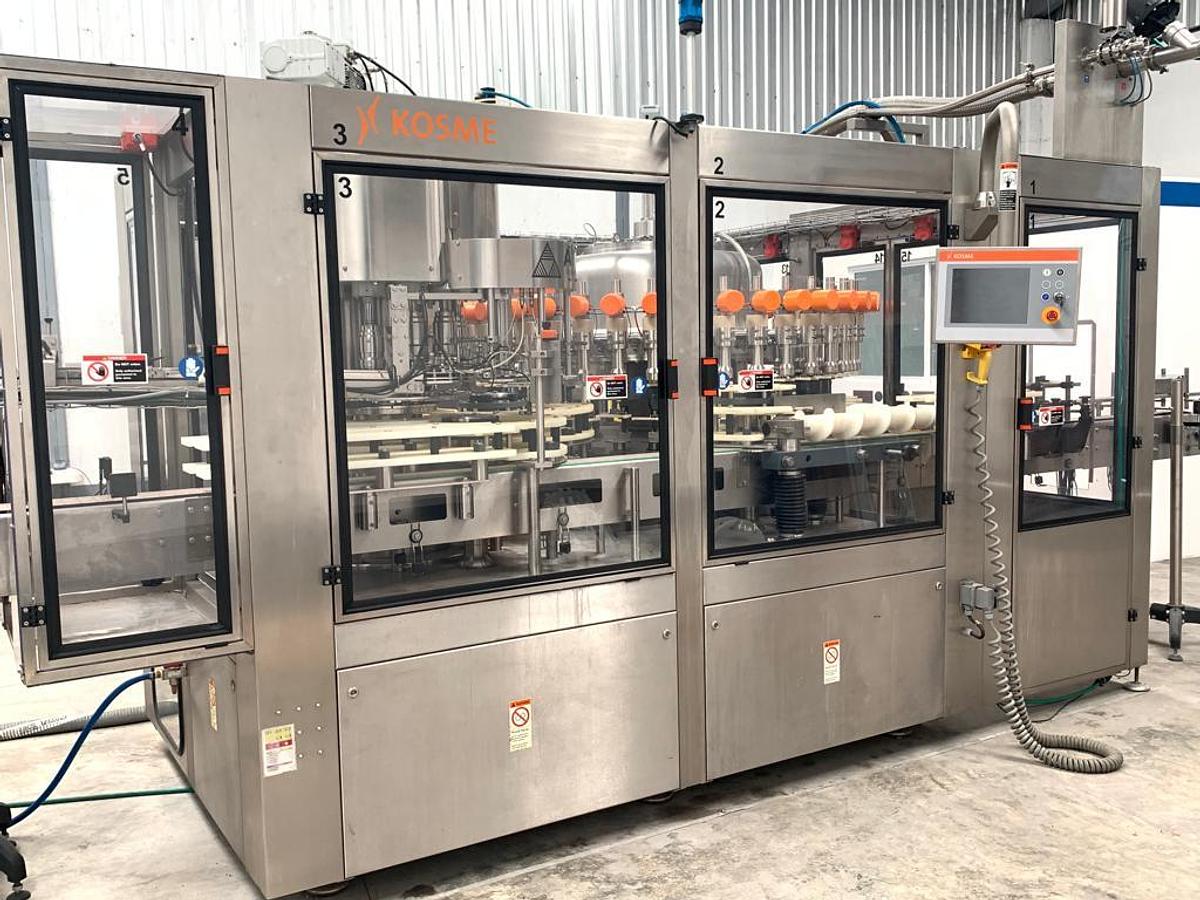

2015 Kosme Weighfill FC

Manufacturer: Kosme

Model:Weighfill FC

Year of Manufacture: 2015

System Description:

Rotary filling and capping system designed for glass and plastic bottles.

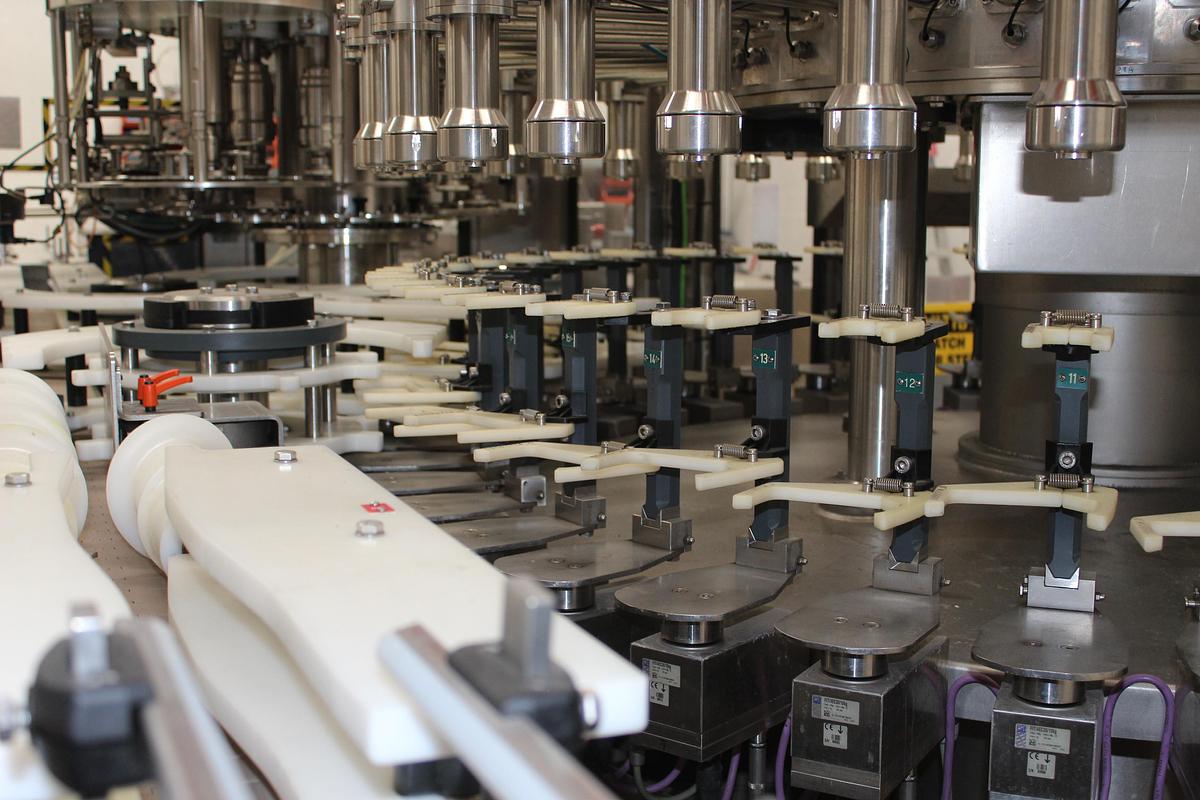

The system includes a 1,800 mm diameter weighing filling carousel with 40 filling valves and a 540 mm diameter capping tower with 12 capping heads.

Both units are mounted on a common base.

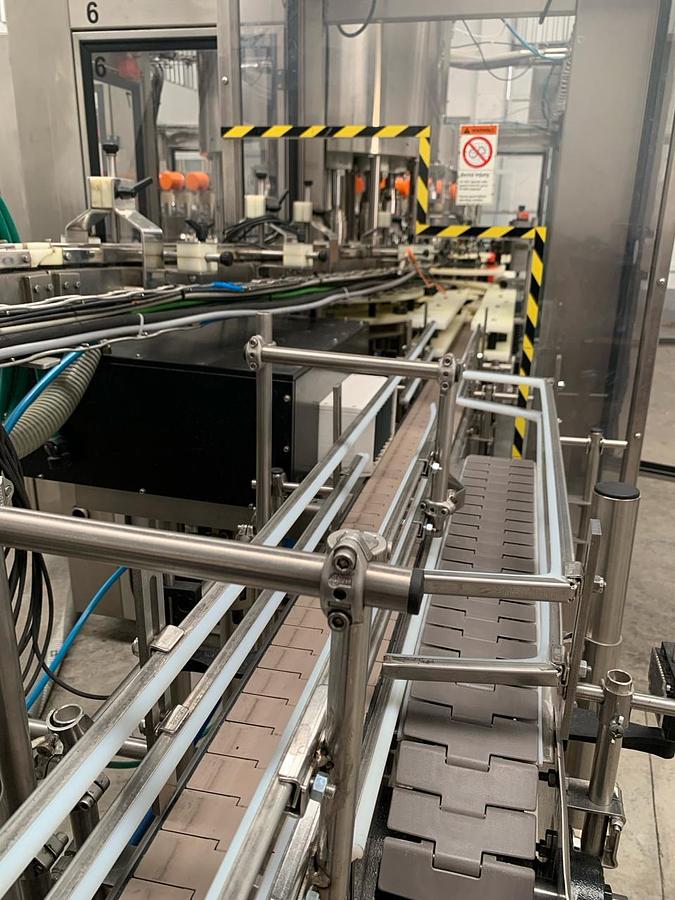

Container transfer between units is performed via transfer star wheels.

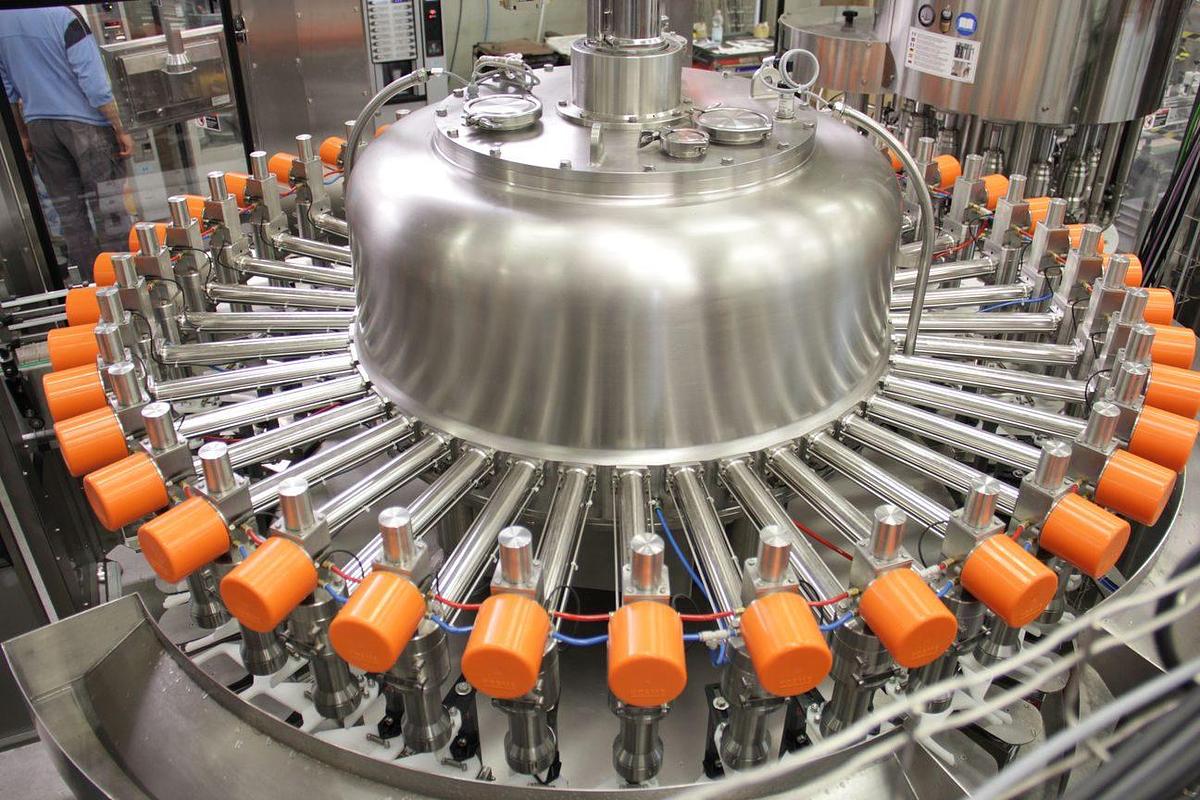

Filling Section

Filling principle: Rotary

Max speed: 24,000 bph (depends on product type)

Current format: 3 different formats (all 1000 ml)

Container material: Plastic and glass

Neck finish types: 28 mm uni-lok single thread / 38 mm special design

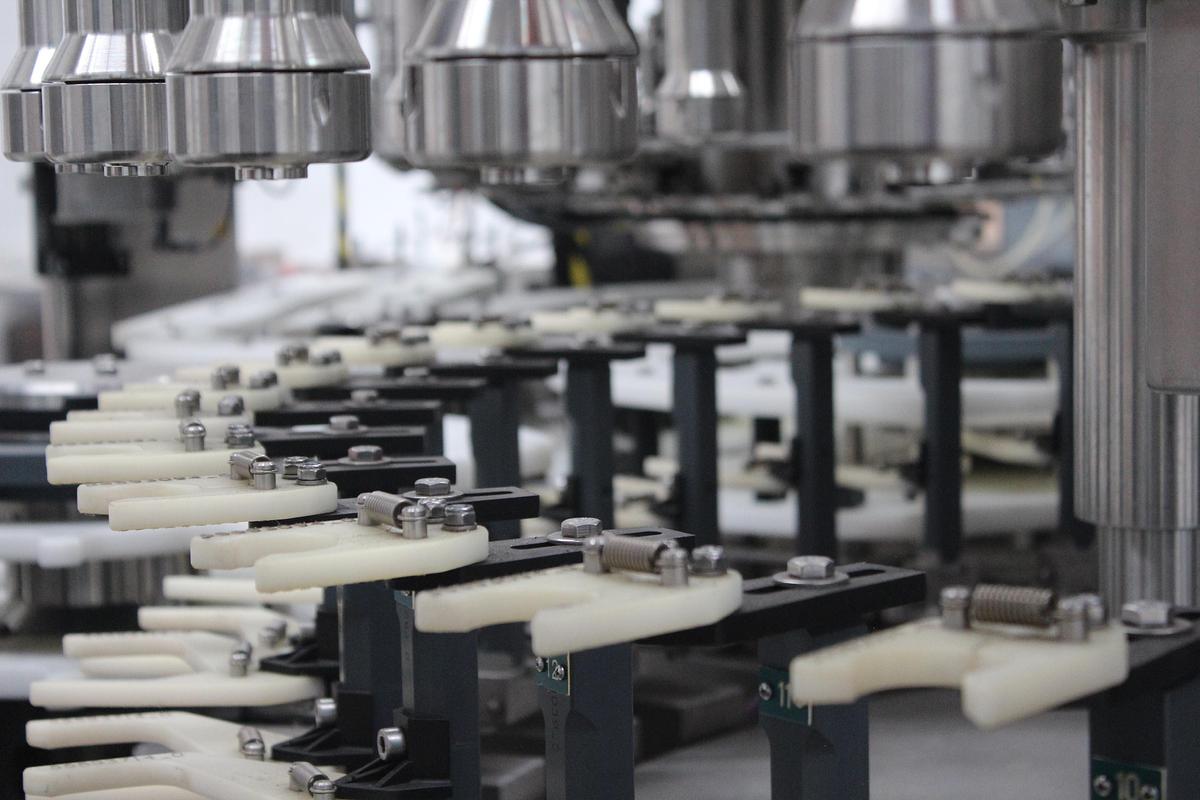

Number of grippers: 40

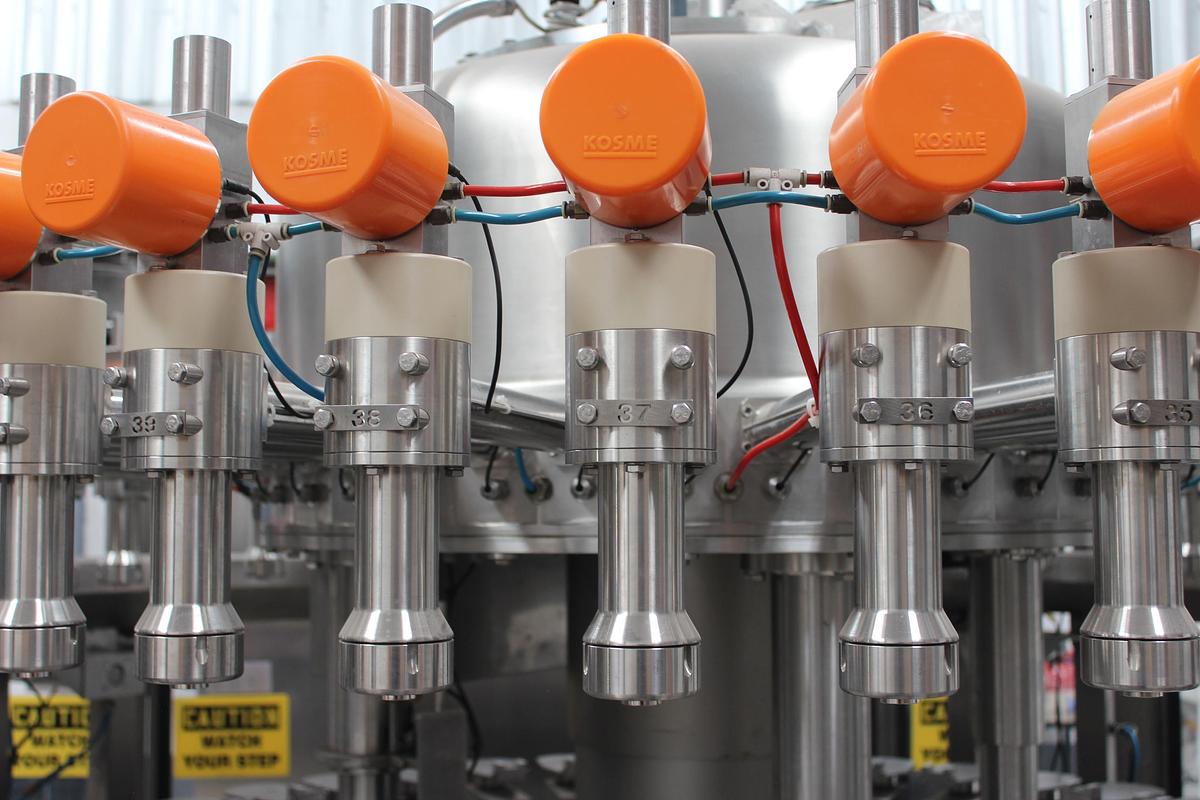

Number of valves: 40

Hot fill: No

Transfer type: Transfer star wheels

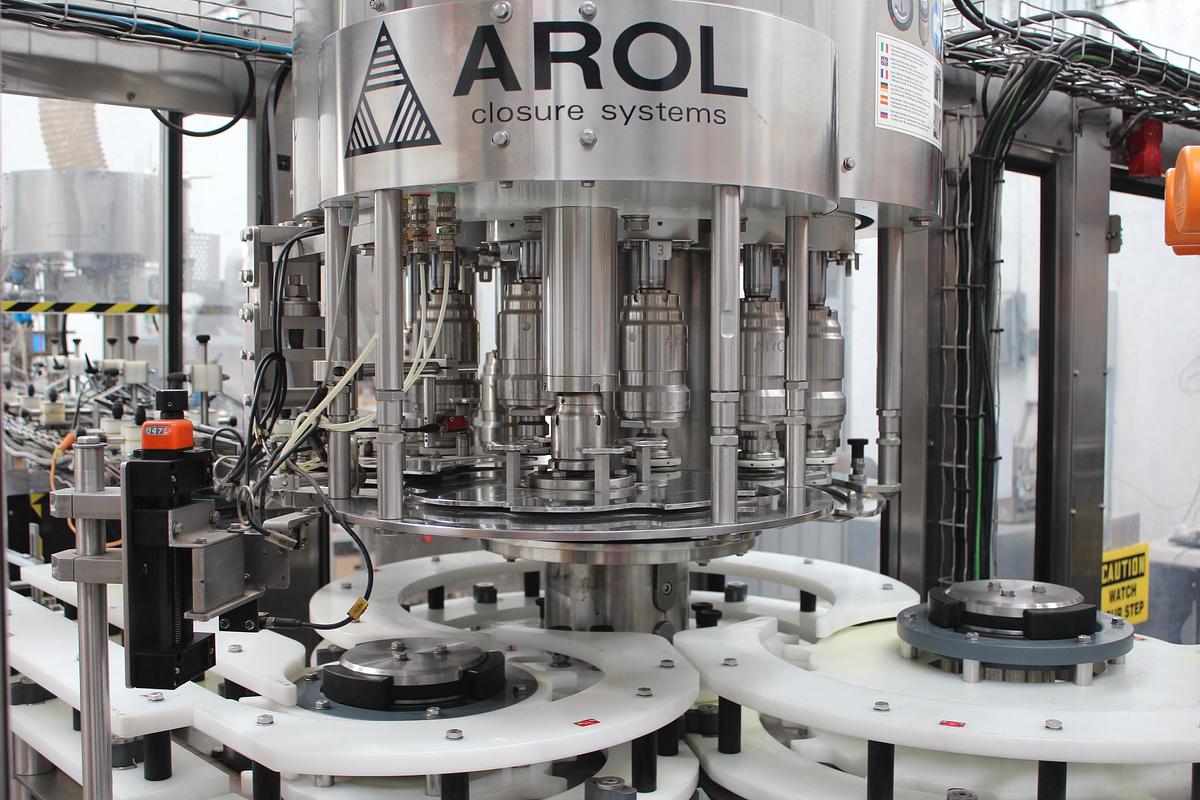

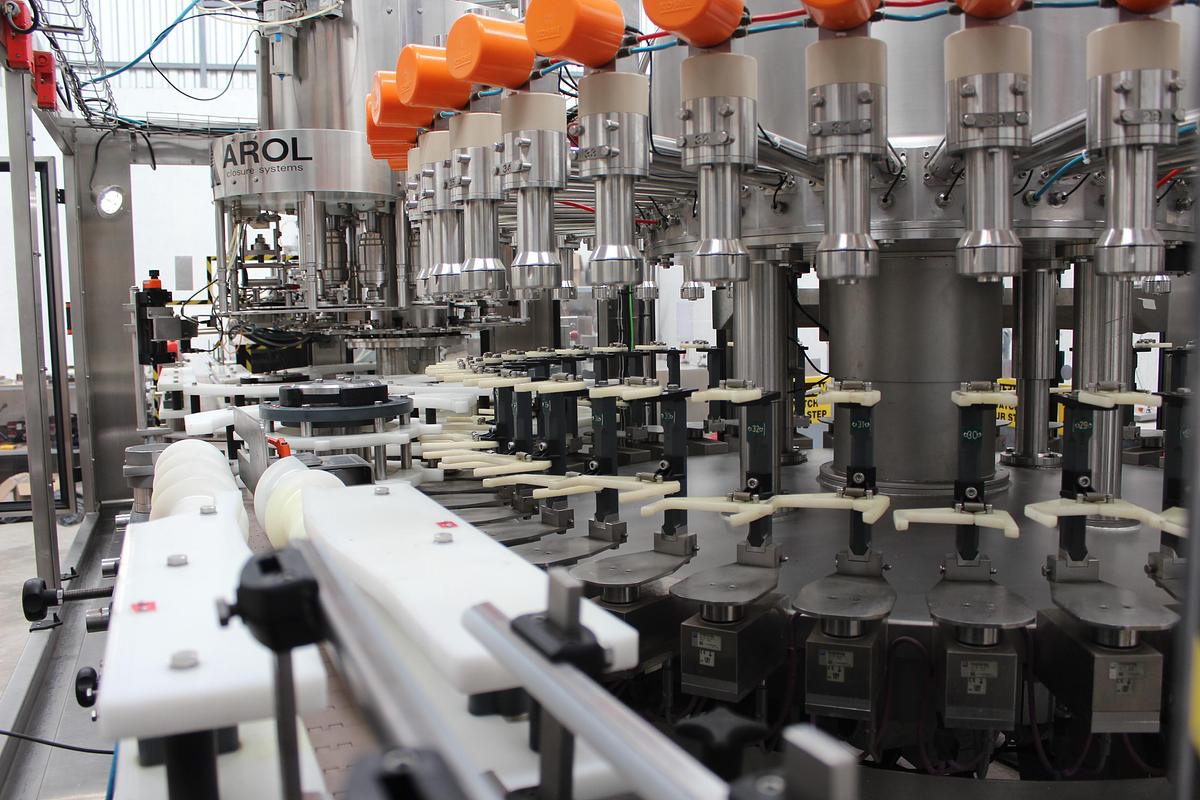

Capping Section

Capper brand: Arol

Capper type: Rotary

Working direction: Counterclockwise

Machine pitch: 141 mm

Max container height: 350 mm

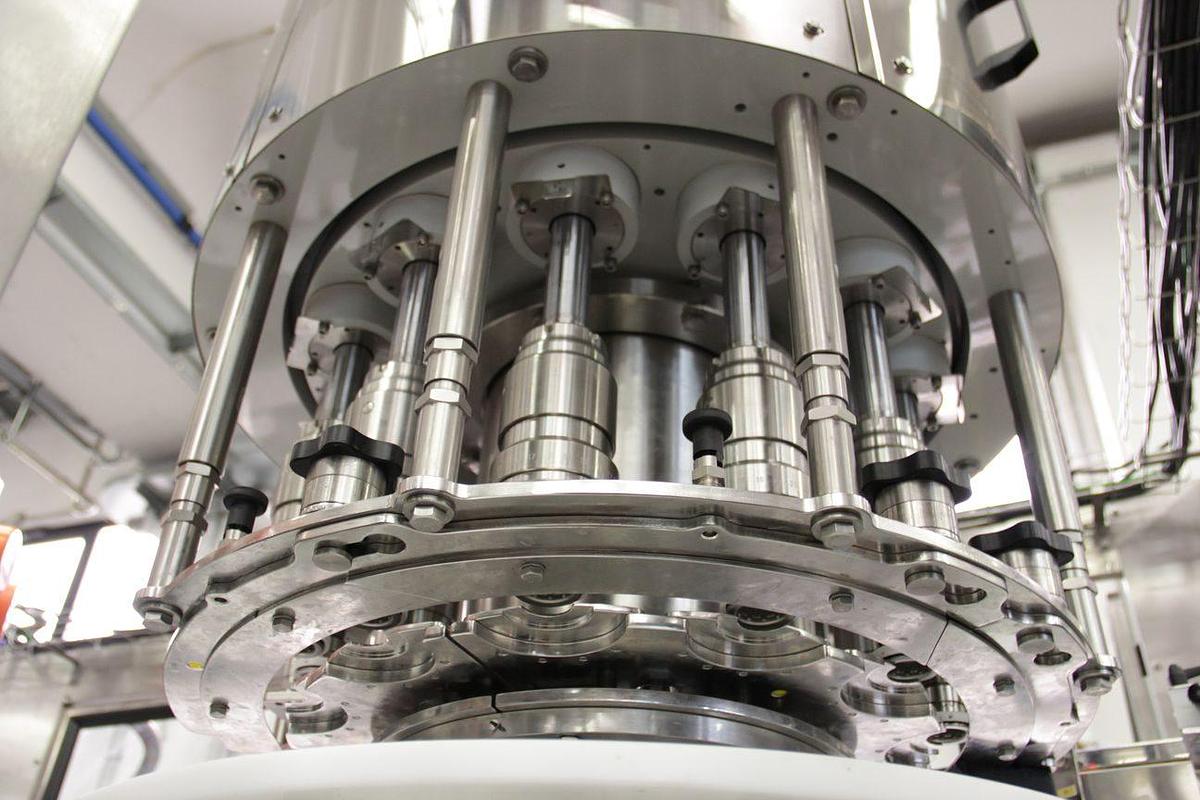

Number of capping heads: 12

Capper height: 3343 mm

Technical Data

Machine size (L x W x H): 3170 x 4617 x 2616 mm

Worktop height: 1100 mm

Power supply: 460 V – 265 V, 3-phase, 60 Hz

Pressure requirement: 6 bar

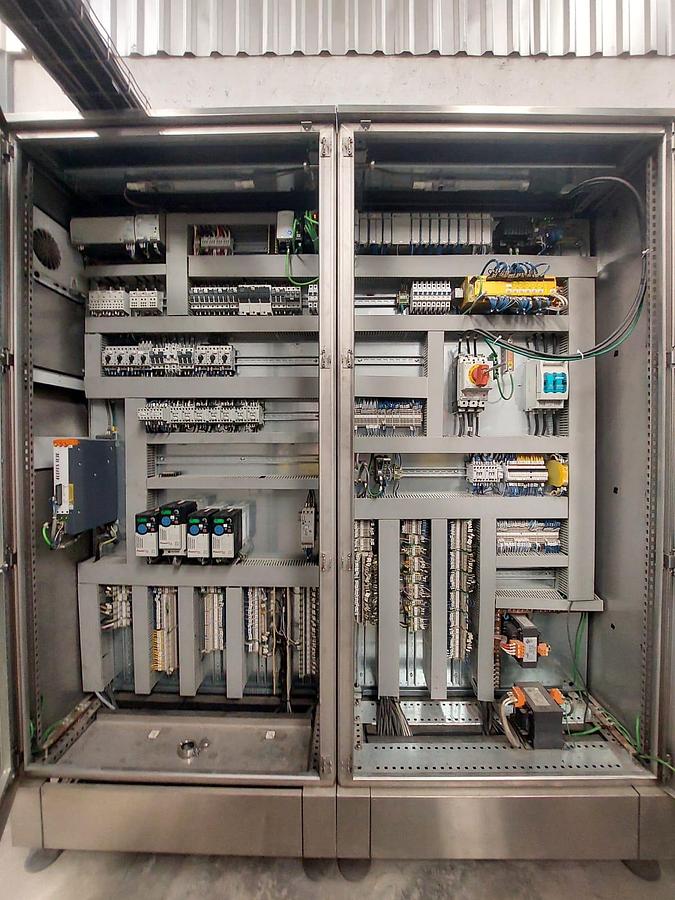

PLC: Allen Bradley / B&R

HMI: B&R / Movición

Machine complete with: Marmoinox lid lifter
