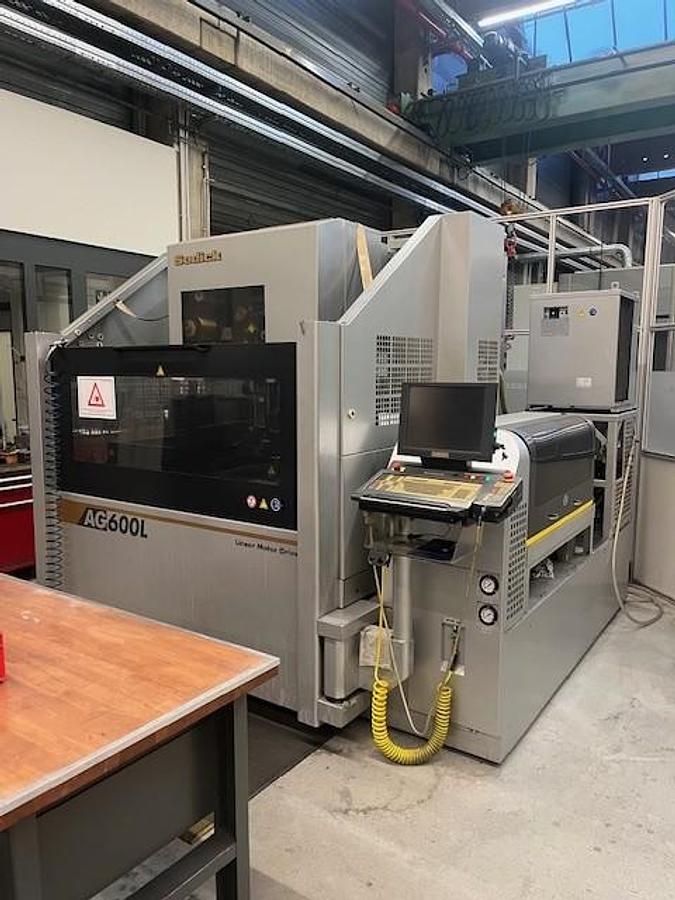

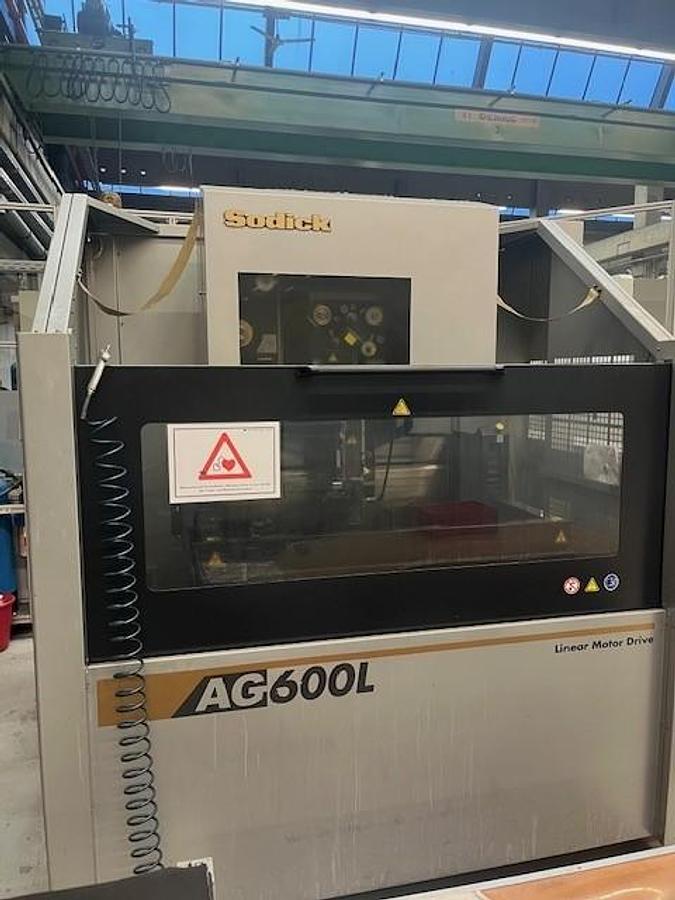

2013 Sodick AG 600L Wire EDM Machine

Manufacturer: Sodick

Model: AG 600L

Year of Manufacture: 2013

Type of Machine: Wire EDM Machine

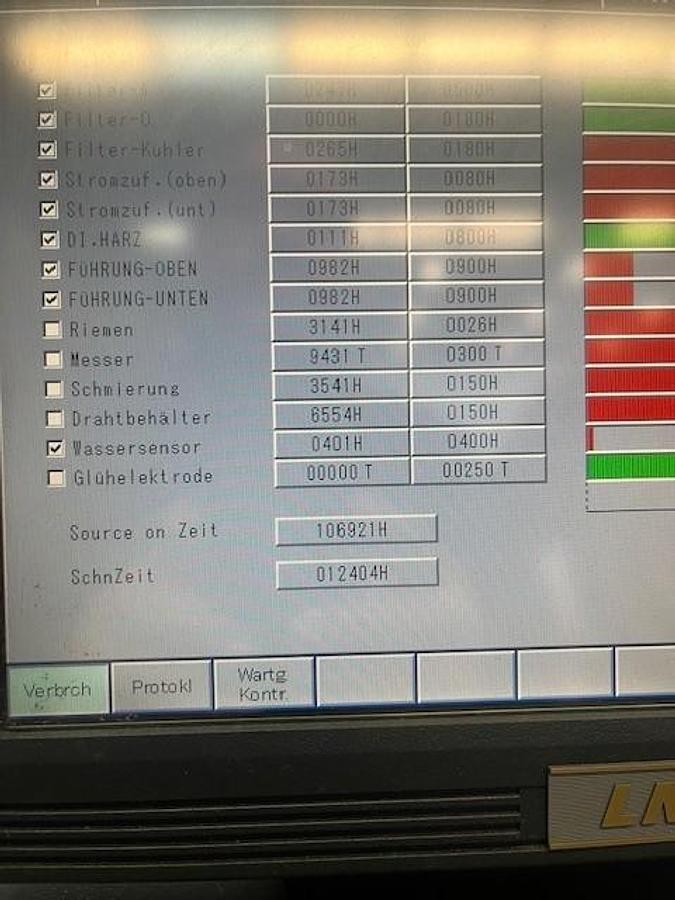

Operating Hours: approx. over 12000

CNC Control: LP2W

Serial Number: 1021

Software Version: 6.50 X8

Number of Axes: 3

Maximum Workpiece Size: 800 x 570 x 340 mm

X / Y / Z Travel: 600 x 380 x 350 mm

Max. Part Size (table): 836 x 573 mm

Max. Part Weight: 1000 kg

Wire Diameter: 0.10 to 0.30 mm

Connected Load: 13 kW

Table Type: Fixed milling table

Supplier (when new): Sodick Deutschland GmbH

Standard Equipment and Options

- Linear drives on X, Y, U and V axes

- Glass scales on X, Y, U and V axes

- 40A power generator

- Remote control

- LAN port

- Special corner control strategy

- Flash memory

- Automatic high-speed wire threading (AWT)

- 10-year positioning accuracy guarantee

- Wire chopper unit (compatible with AG 400L and AG 600L)

Clamping and Workholding Package

The machine is offered with a comprehensive workholding package (Basis-Set Plus AG600L, ref. BSP.SO20, 475 mm pitch), including:

- Pneumatic control unit

- Pneumatic P-clamp

- 3D adjustment palettes (x2)

- Screw vice

- Universal holder

- Clamping set

• - Pre-setting station with trolley
