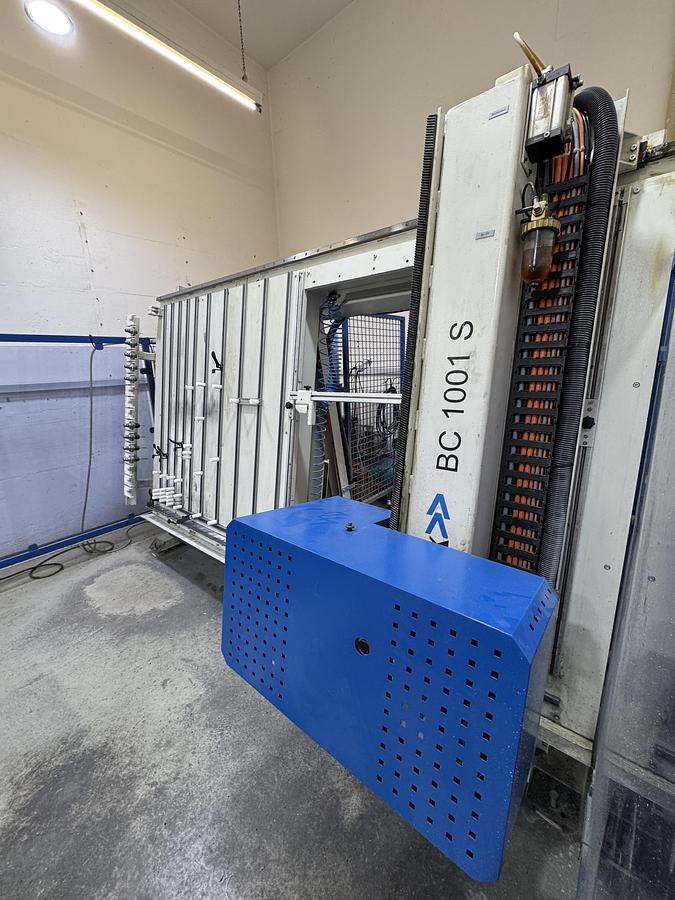

2006 Perforex BC 1001 HS

Manufacturer: Perforex

Model:  BC 1001 HS

Year of Manufacture: 2006

Condition: Excellent

Machining center for drilling, tapping, and milling

control cabinet panels, doors, sheet metal, enclosures (stainless steel, plastic, Pertinax, copper,

aluminum, and many more), as well as power and copper busbars.

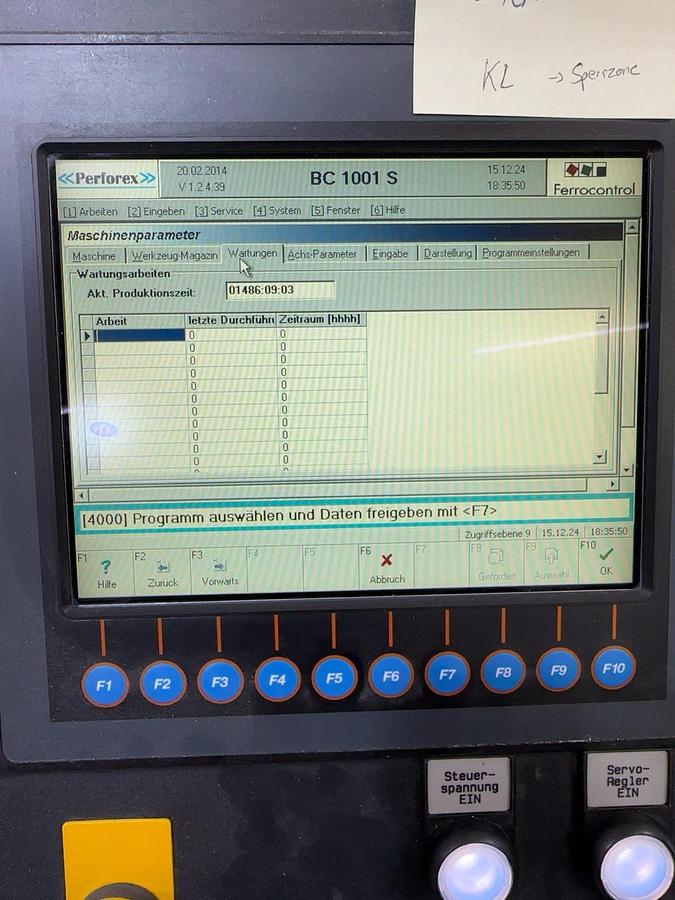

Features a 4-axis CNC control with 2 1⁄2-D interpolation and an industrial PC with a Windows 32-bit

operating system.

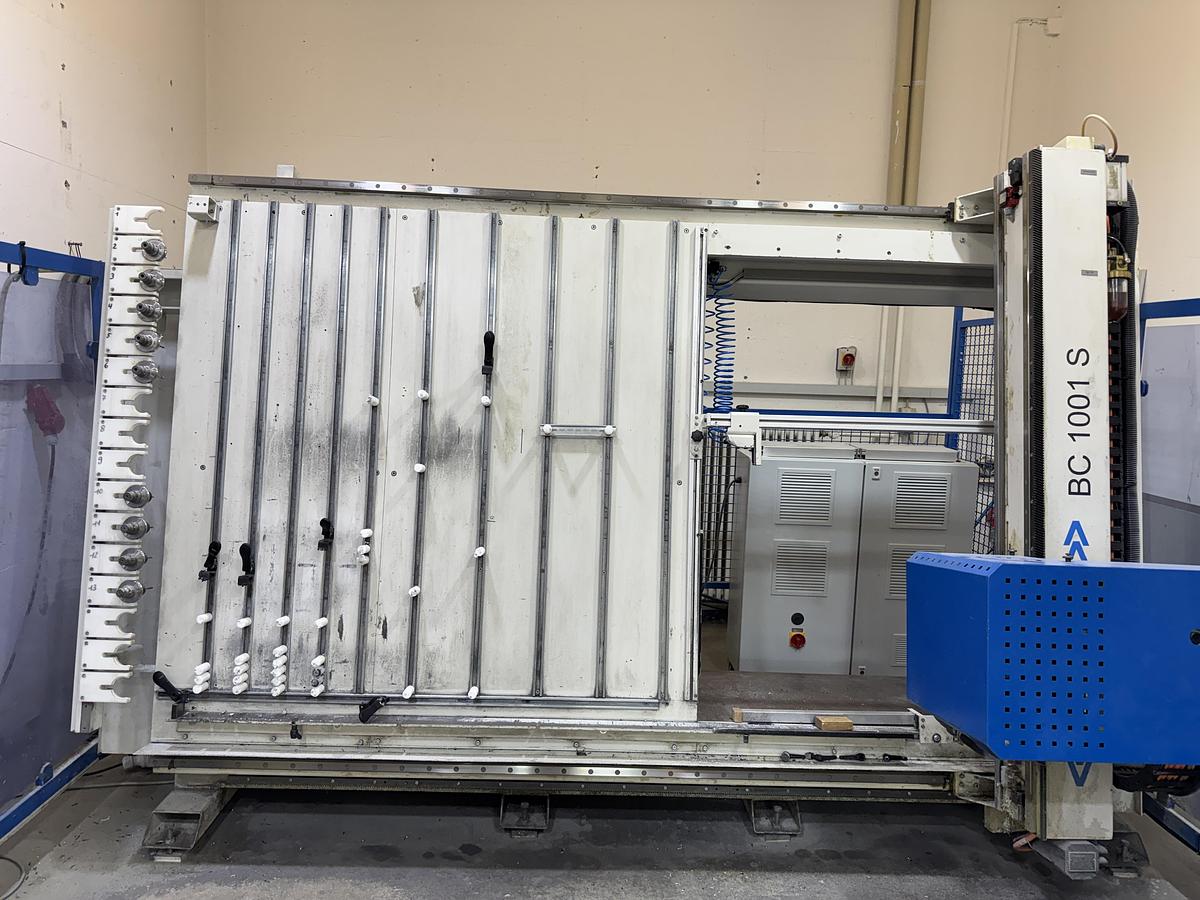

Includes a workpiece table tilted vertically at 10°, integrated into the machine frame.

Designed for control cabinet panels with maximum dimensions of 2200x1500 mm and for

machining non-disassemblable enclosures when the

enclosure machining option is selected: maximum clamping dimensions: W / H / D 1200x1400x1200 mm

All material thicknesses commonly used in control cabinet construction are

supported.

The following materials can be machined:

Steel, including coated or painted steel, V2A, V4A, plastic, Pertinax, copper, aluminum,

and many more.

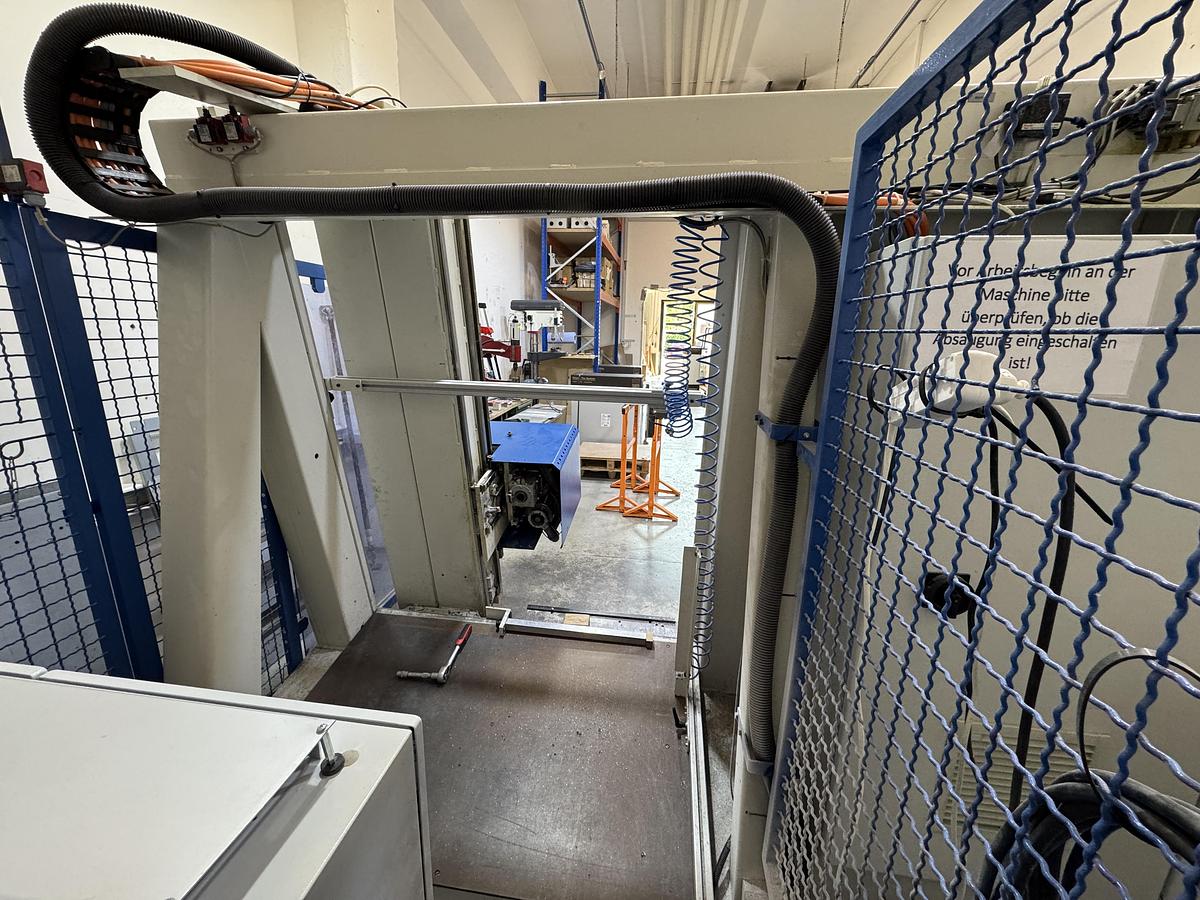

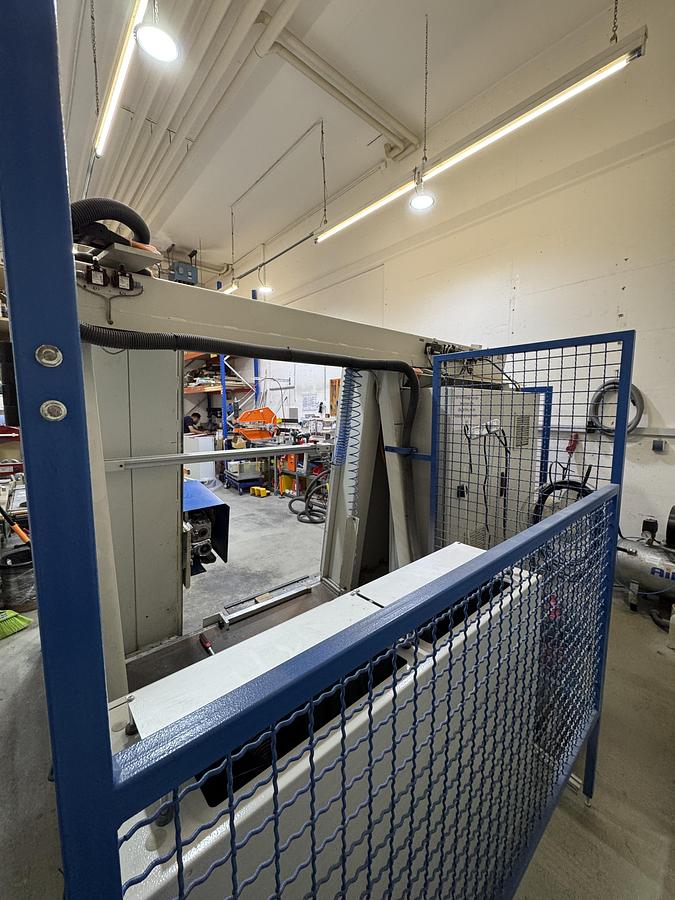

2 safety guards with optical safety devices, as well as a rear safety fence around the

enclosure machining area.

Servo drives on the main axes X, Y, and Z, as well as a position sensor for the C-axis.

Smooth machine table with 60 spacer bolts that can be positioned in rails.

Clamping device on C-rails.

Reference stop for panel machining:

Angle at the lower left and support ruler in the Y-direction at the bottom.

Plates are clamped manually (pneumatic clamping optional).

Rapid traverse speed for X and Y axes: max. 60 m/min; Z axis: 12 m/min.

Automatic tool changer: pick-up system, 17 tool holders, fixed on the left.

Standard tooling: 10 tool holders, including tools

5 for drill bits: 3.3 / 4.2 / 5.0 / 6.0 / 6.8 mm

4 for taps: M4 / M5 / M6 / M8

1 for end mills (standard 6 mm)

Automatic tool breakage detector

Tool life logging

Integrated compressed air monitoring
