2007 ByVention 3015

Year of manufacture 2007

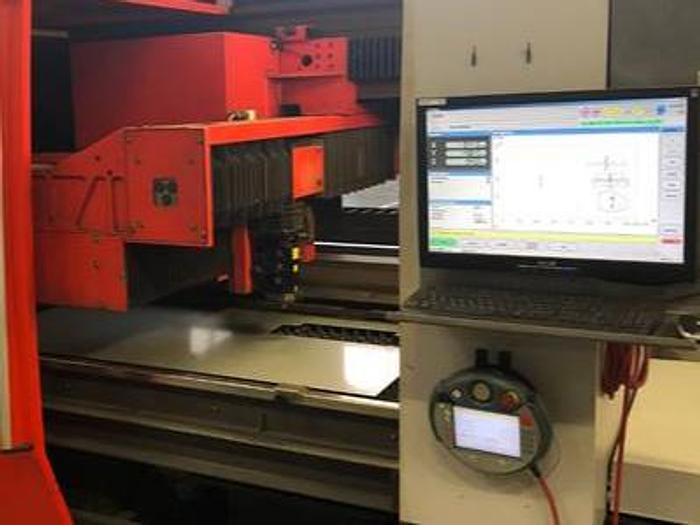

 Laser cutting machine ByVention

2D-Laser cutting machine Typ ByVention 3015 2,2kW

Gas laser 2,2kW laser power

Two cutting heads,

with combined cooling and filter unit.

Sheet thickness mild steel max. 8mm, stainless steel max. 6mm (1.4301), aluminum max. 4mm (AlMg3)

Sheet sizes: 1000x2000mm, 1250x2500mm, 1500x3000mm

Maximum cutting area: 772x1562mm

Operation by manual control unit with touch screen Handling operation by foot pedal

Interfaces

USB 1.1 / RJ45 10/100Mbit/s

Electrical connection 3 x 400V TN mains 50Hz back-up fuse 80AT Connected load 23,5 kVA Nominal power 21 kW

Dimensions laser cutting machine: length/width/height: 6,25 x 6,00 x 2,15m-weight 13500kg

dimensions cooling/filter unit: length/width/height: 2,20 x 1,55 x 2,15m - weight 1380kg
