2009 Datron M7

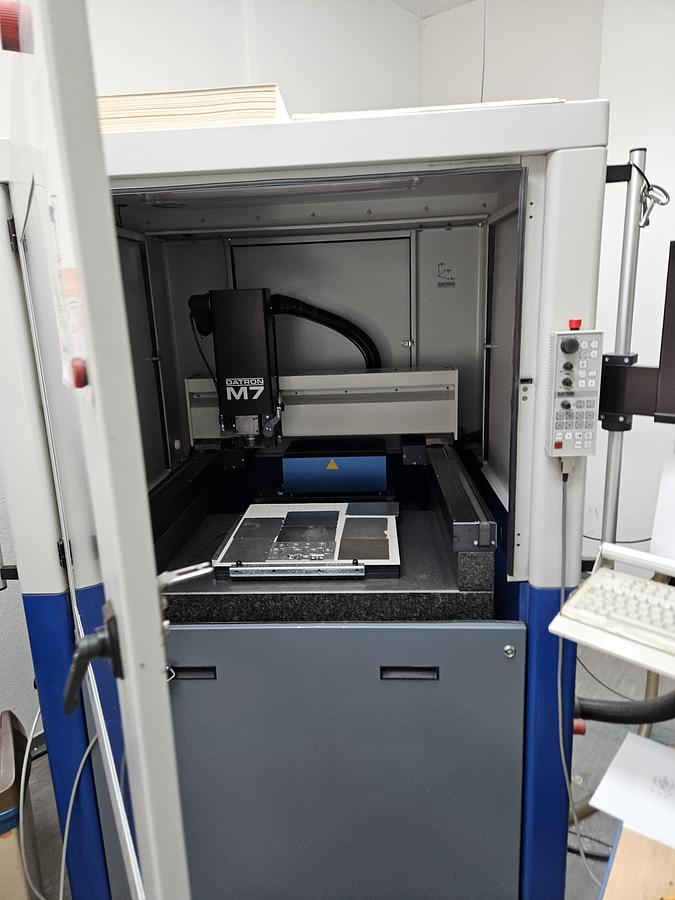

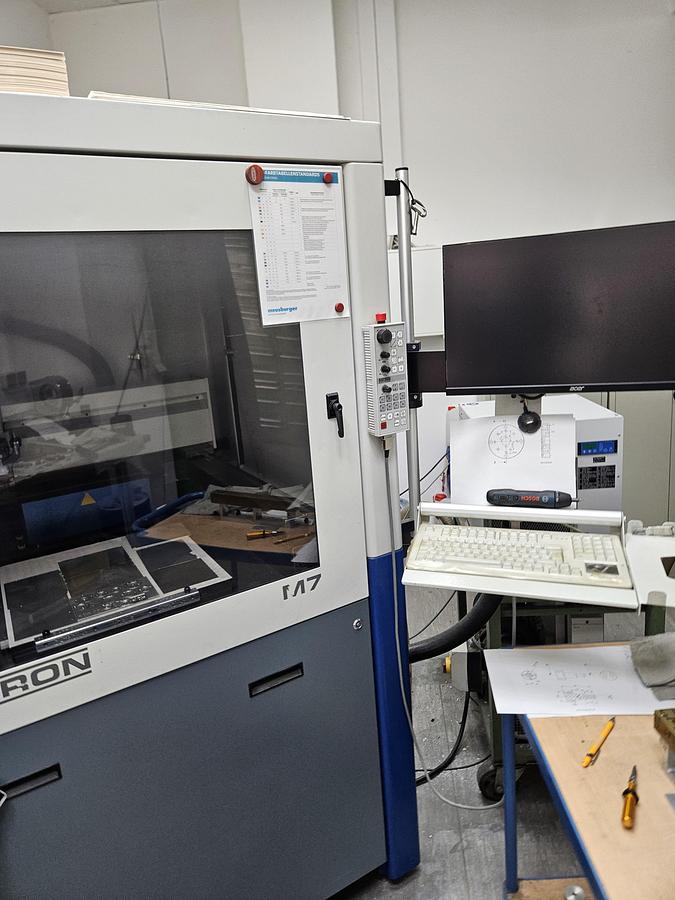

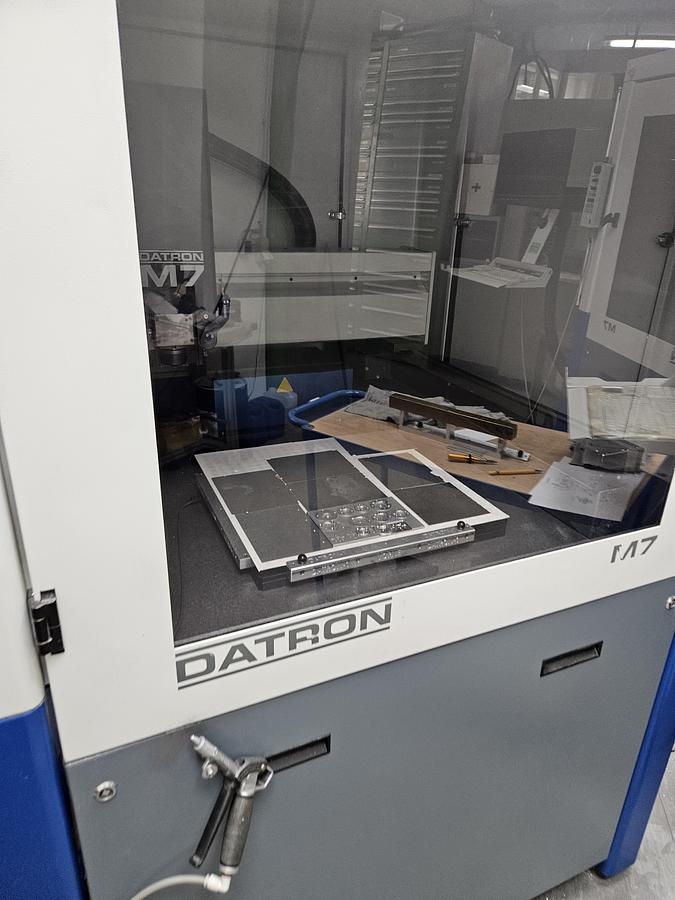

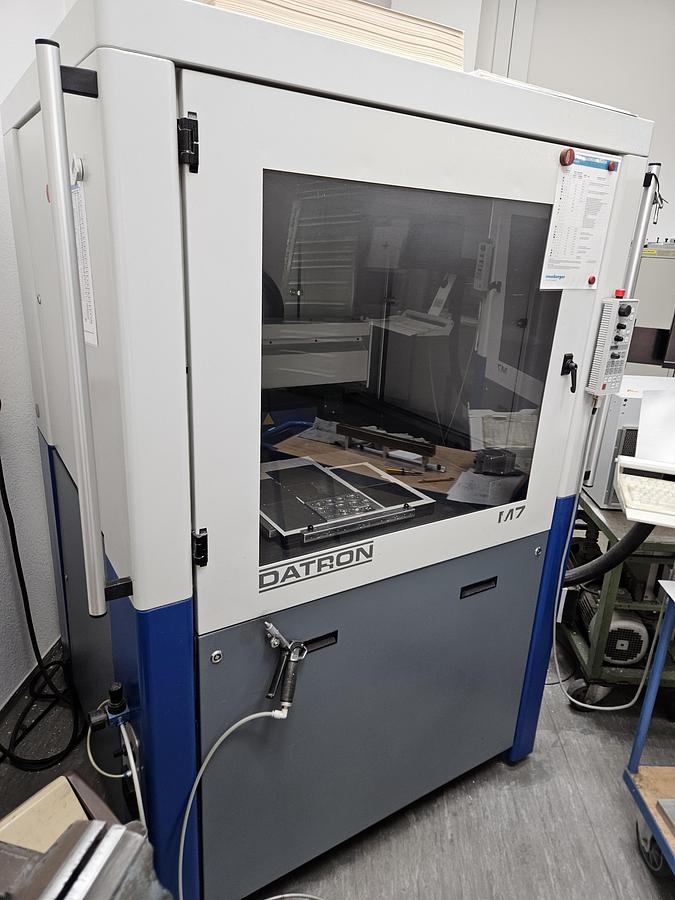

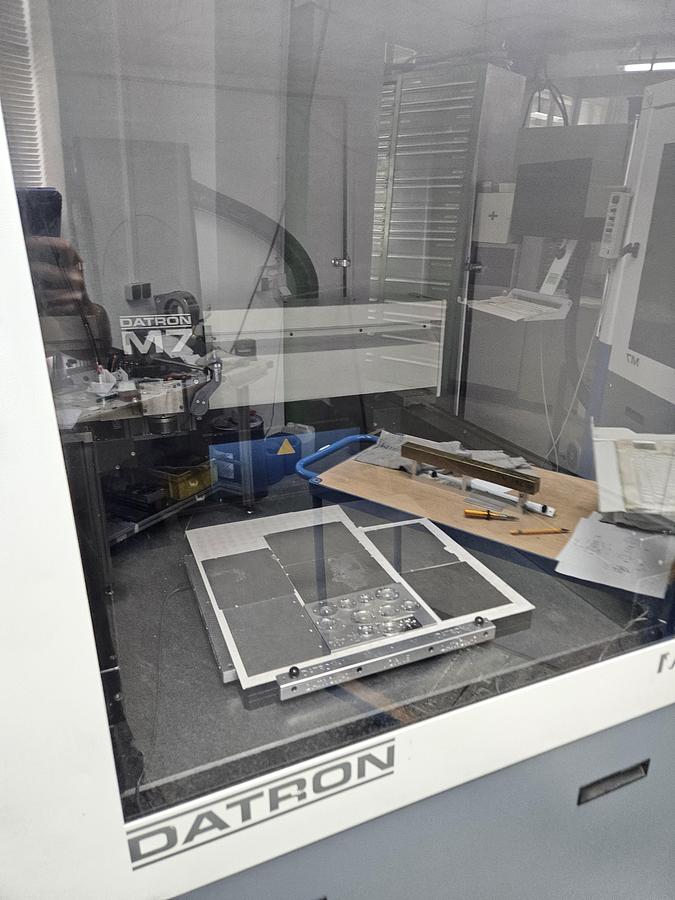

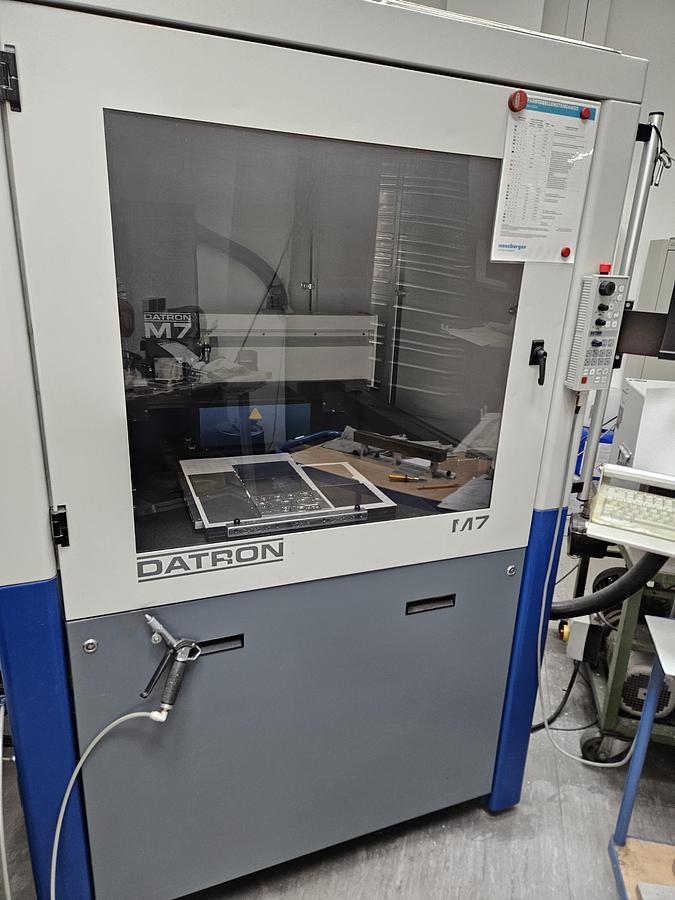

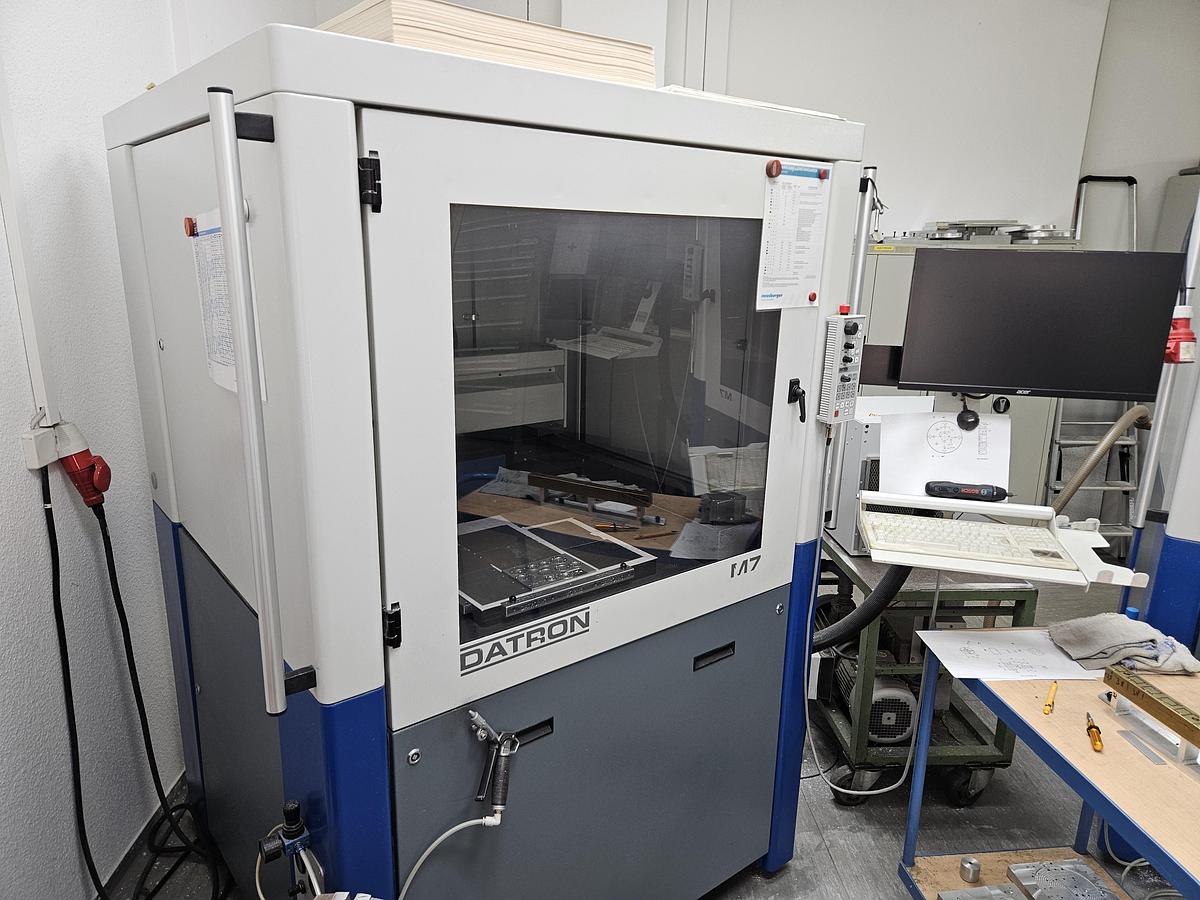

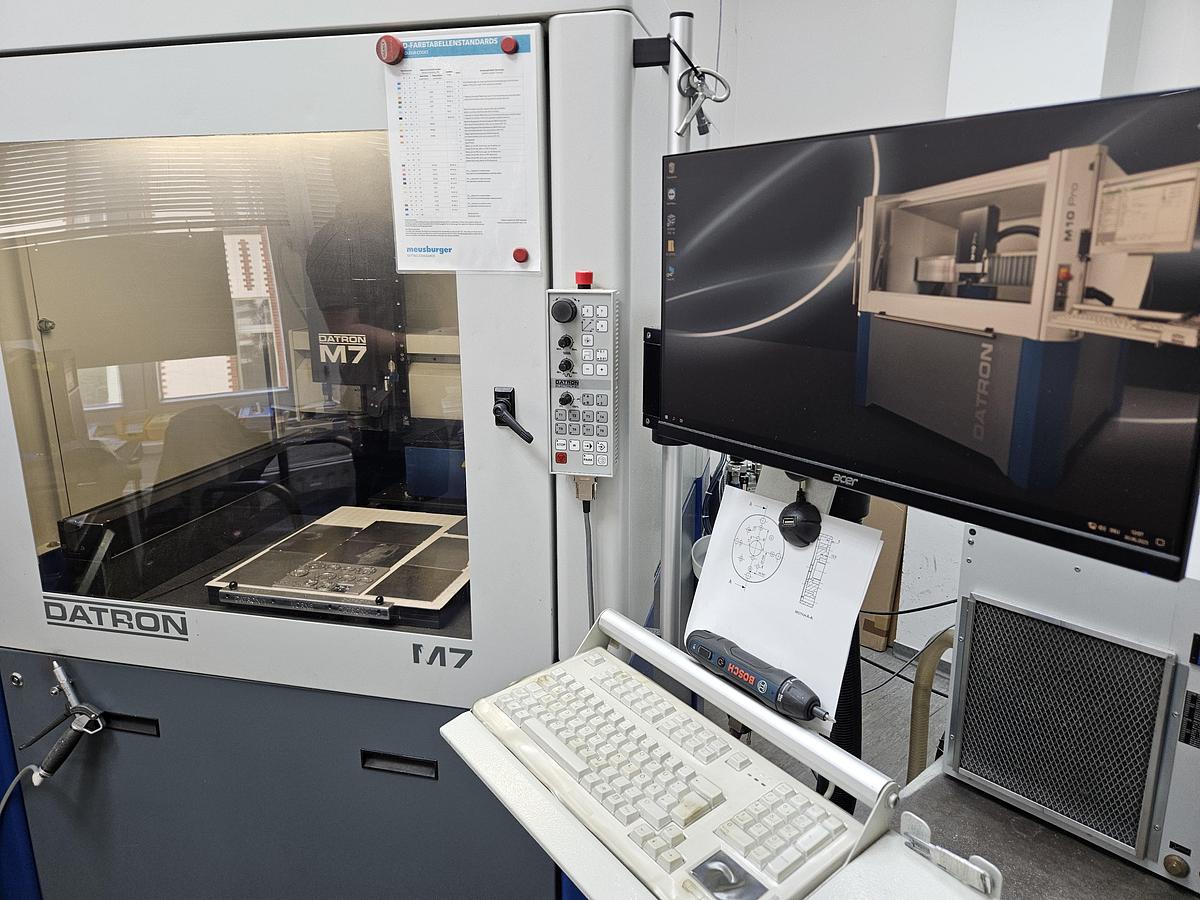

2009 Datron M7 – Precision CNC Milling Center

Technical Specifications

• Machine Type: 3-axis CNC vertical milling center (optional 4th axis)
• Travel Axes (X × Y × Z): 520 × 650 × 240 mm
• Table Size: Approx. 600 × 600 mm (23.6″ × 23.6″)
• Max Table Load: 120 kg
• Footprint (W × D × H): 1,300 × 1,300 × 1,950 mm (without control); with control ≈1,910 × 1,700 × 1,950 mm
• Weight: Approx. 800 kg

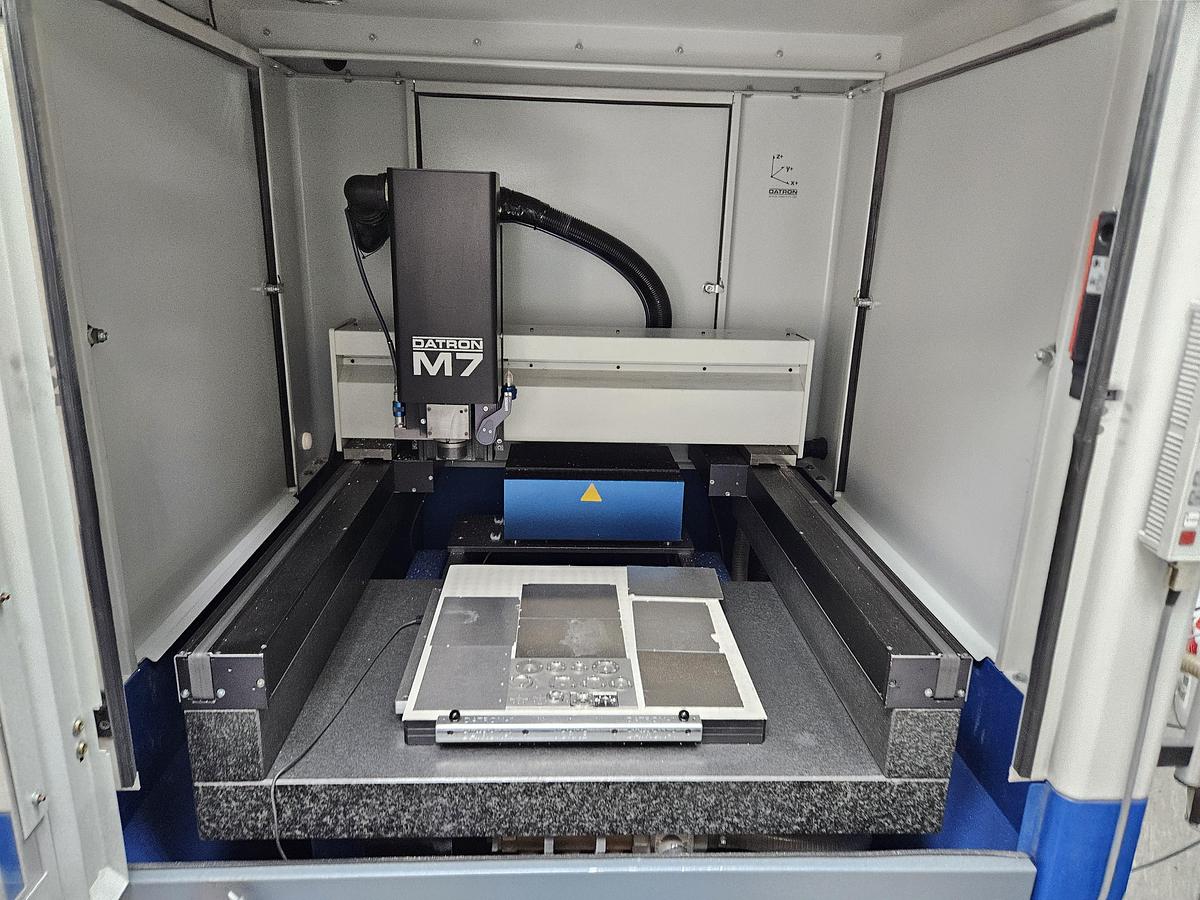

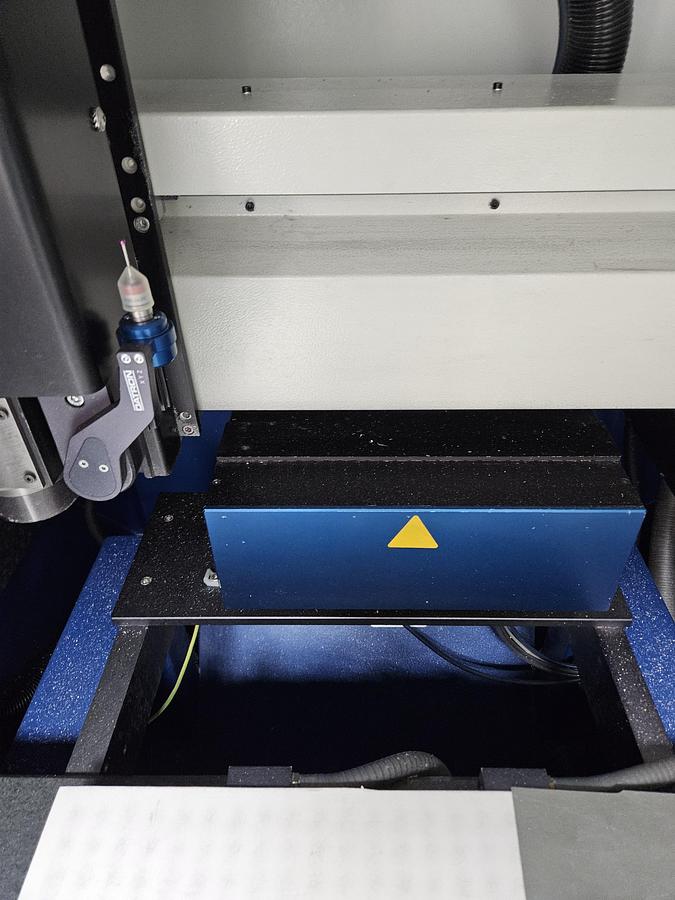

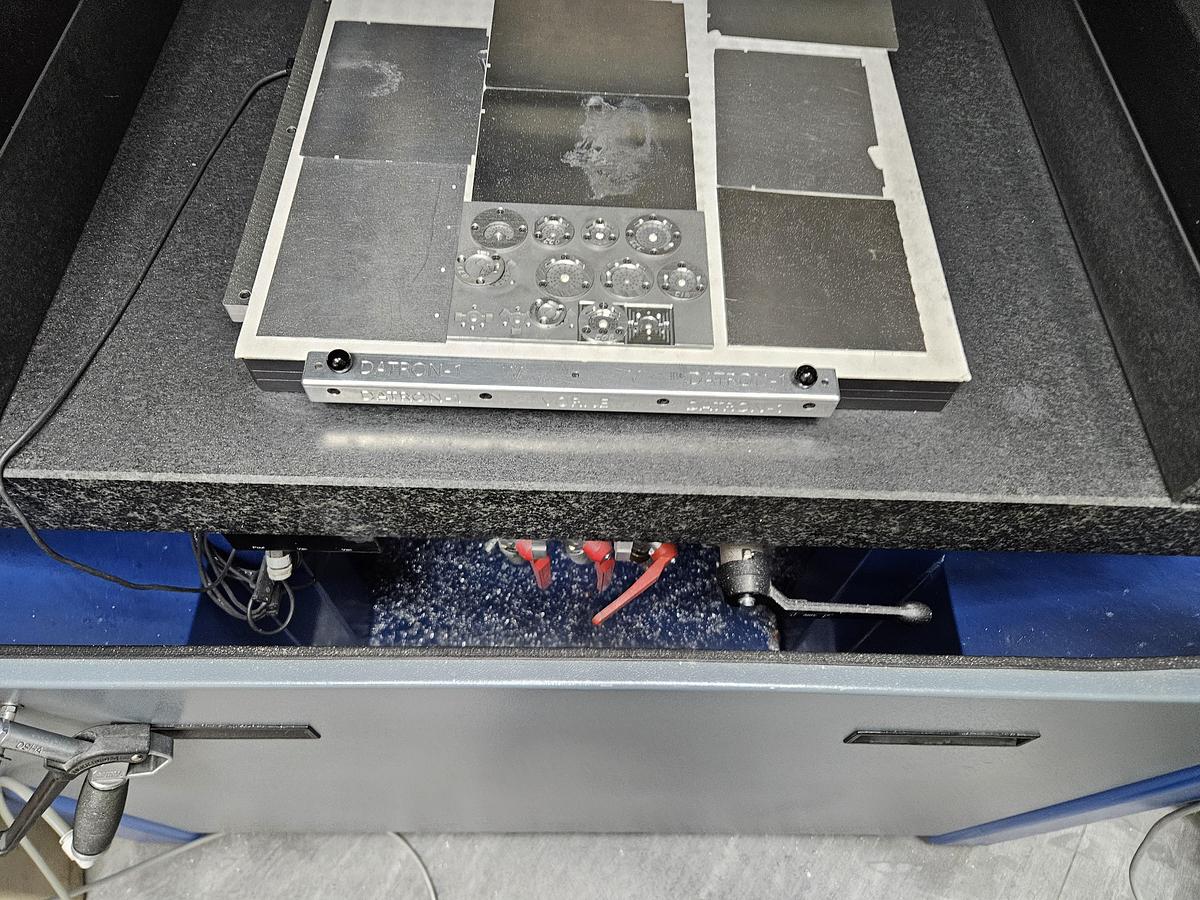

• Construction: Granite table on steel portal

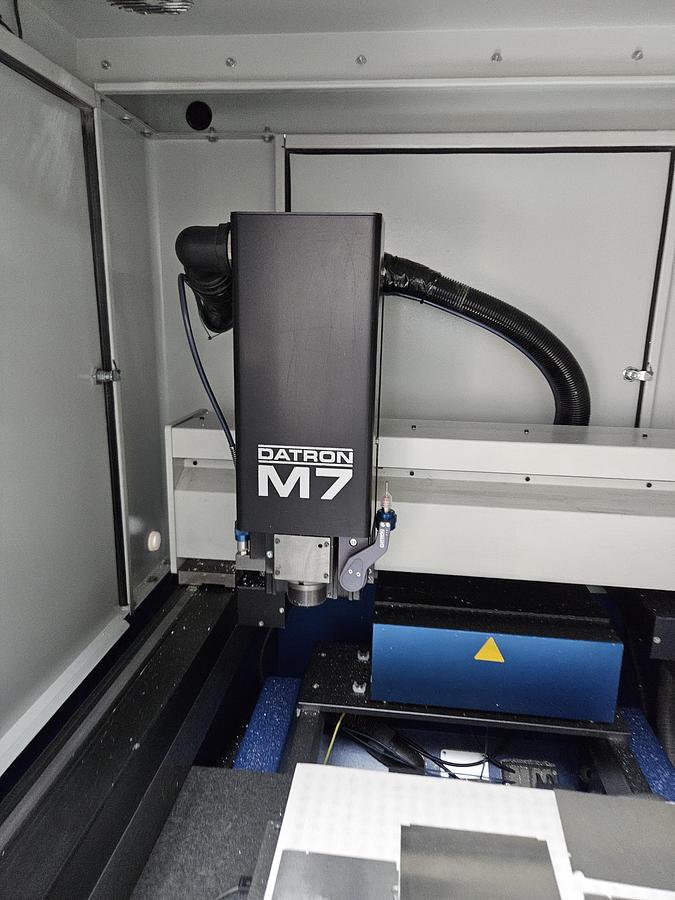

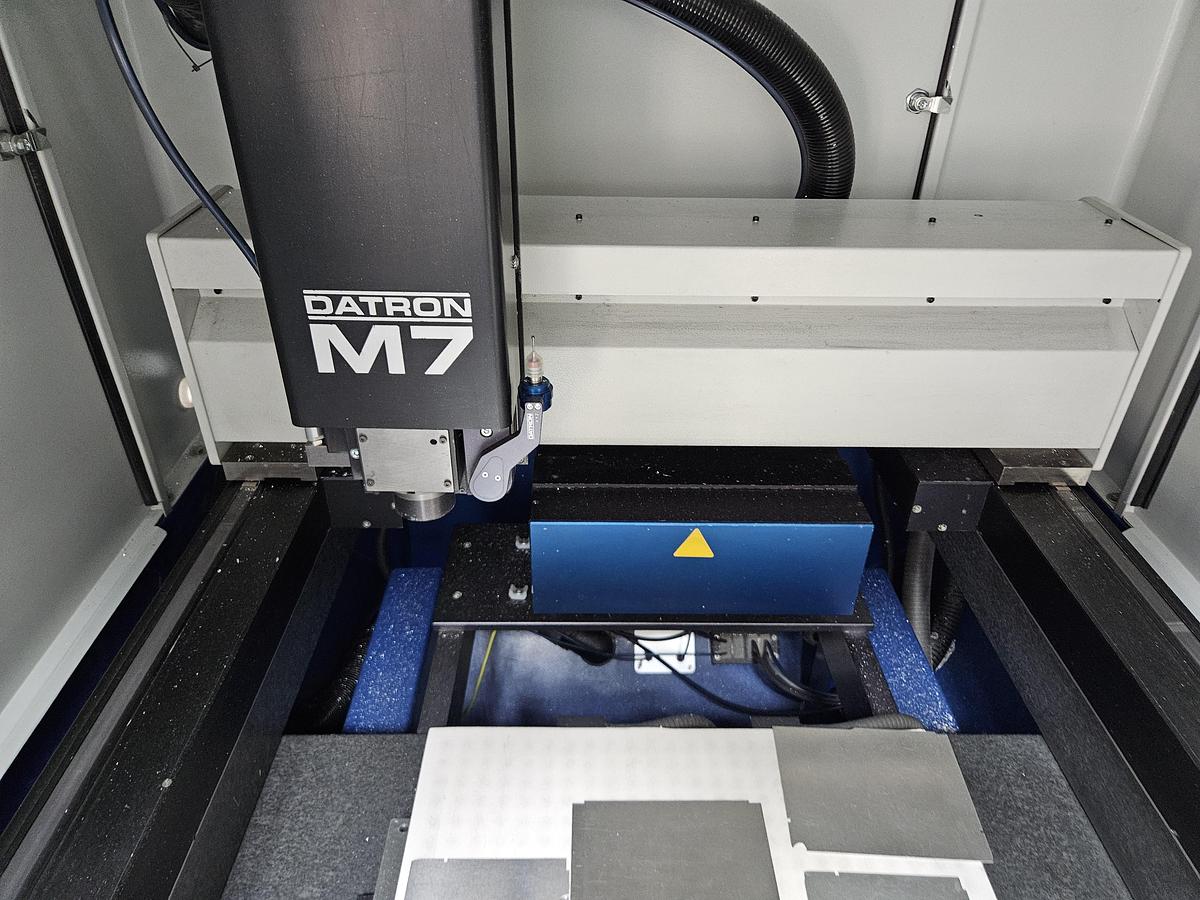

• Spindle(s): HSK-E25 (HSK-25E) spindle, 1.8 kW (standard) or up to 3 kW, with speeds from 50,000 rpm (option up to 60,000 rpm)
• Drive System: Digital servo drives; positioning feeds – X/Y: 16 m/min, Z: 8 m/min

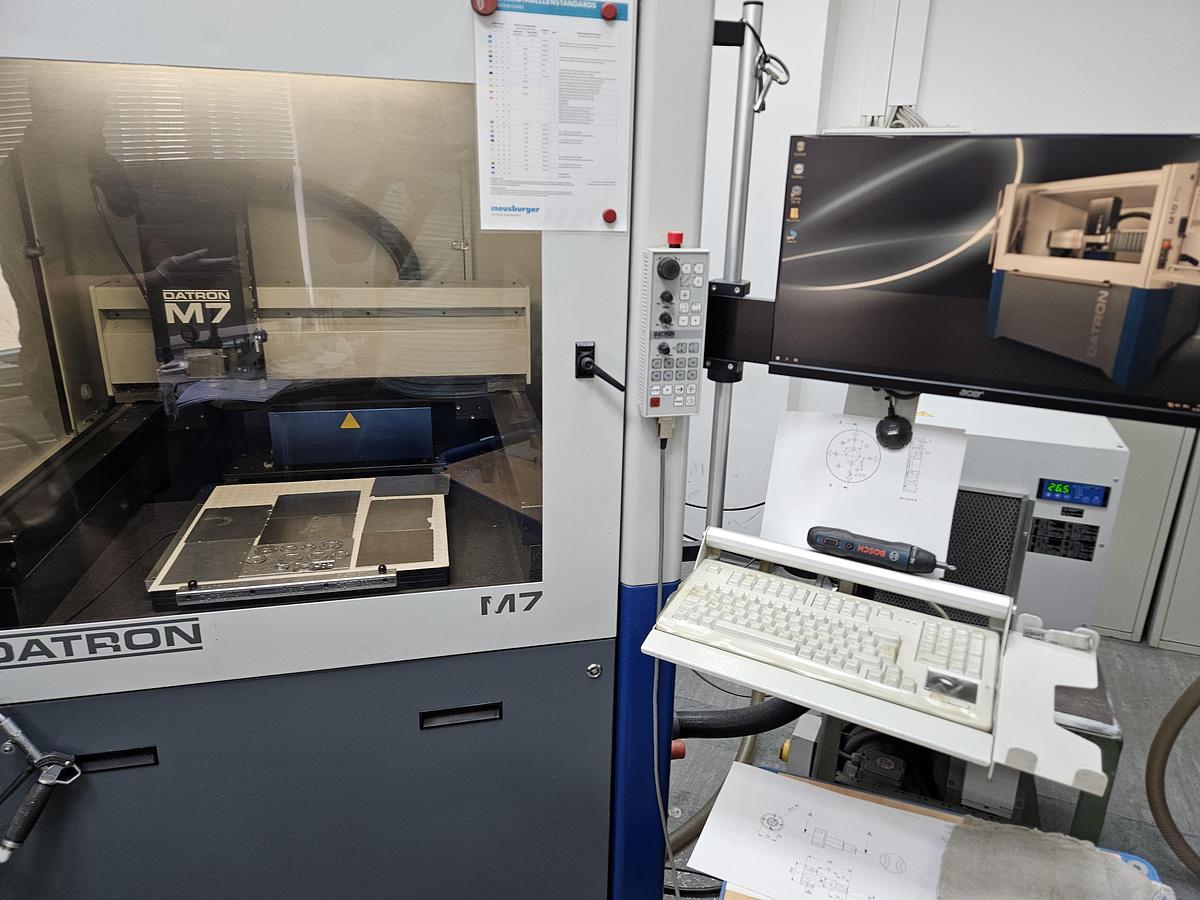

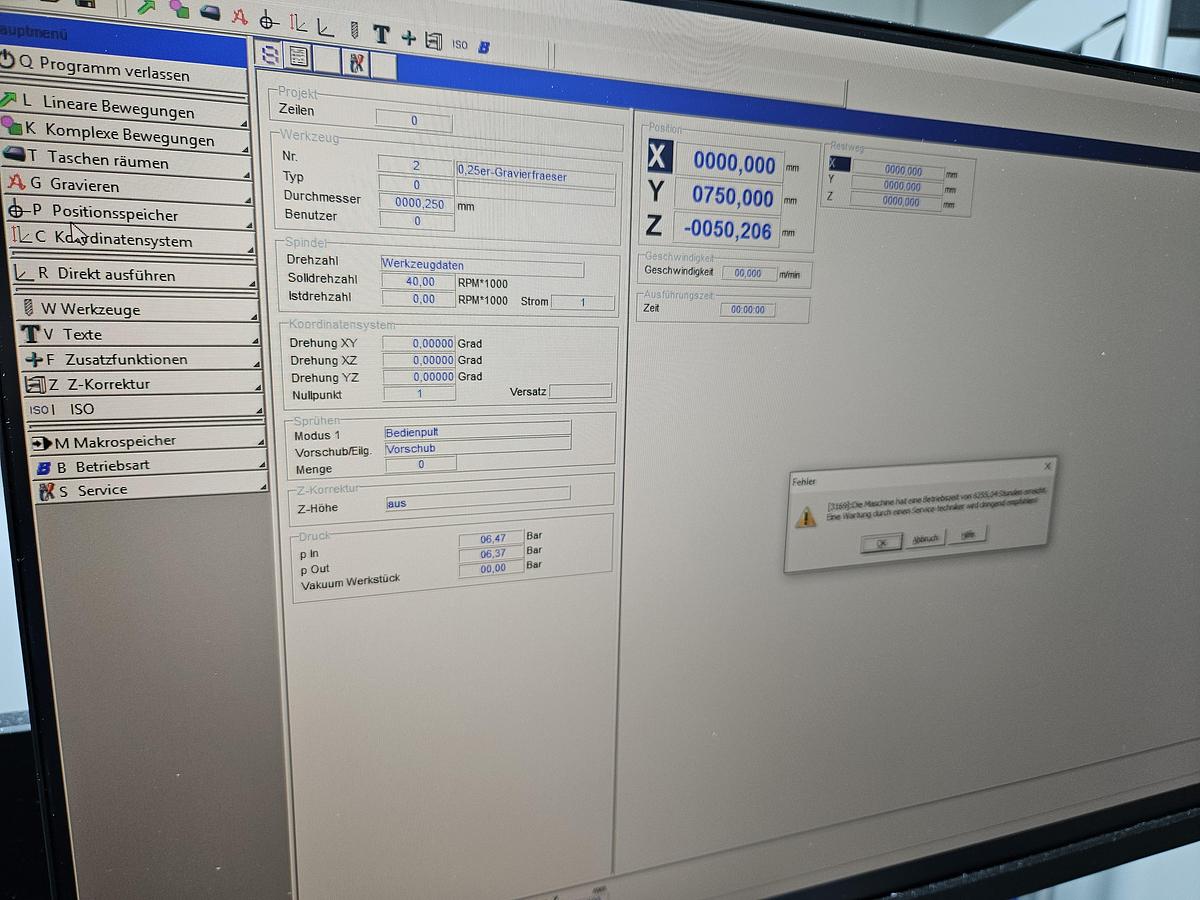

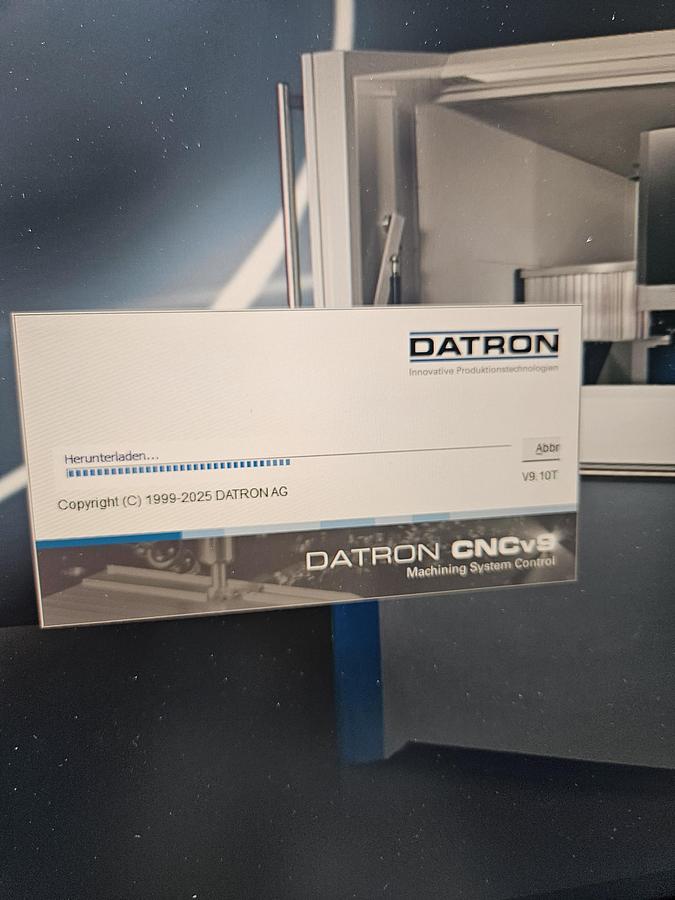

• Control: Windows-based CNC control with digital servo feedback

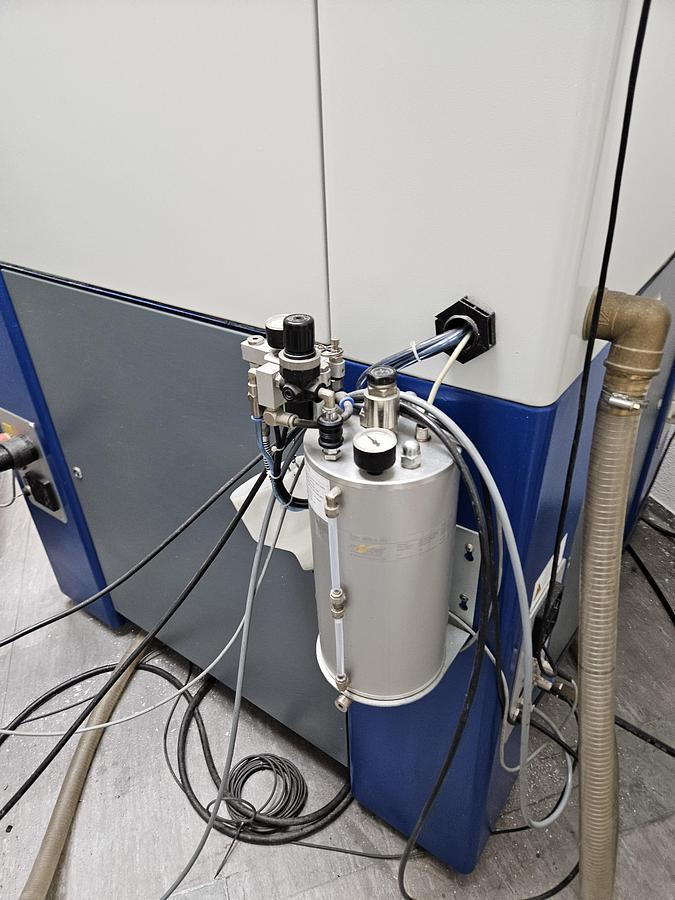

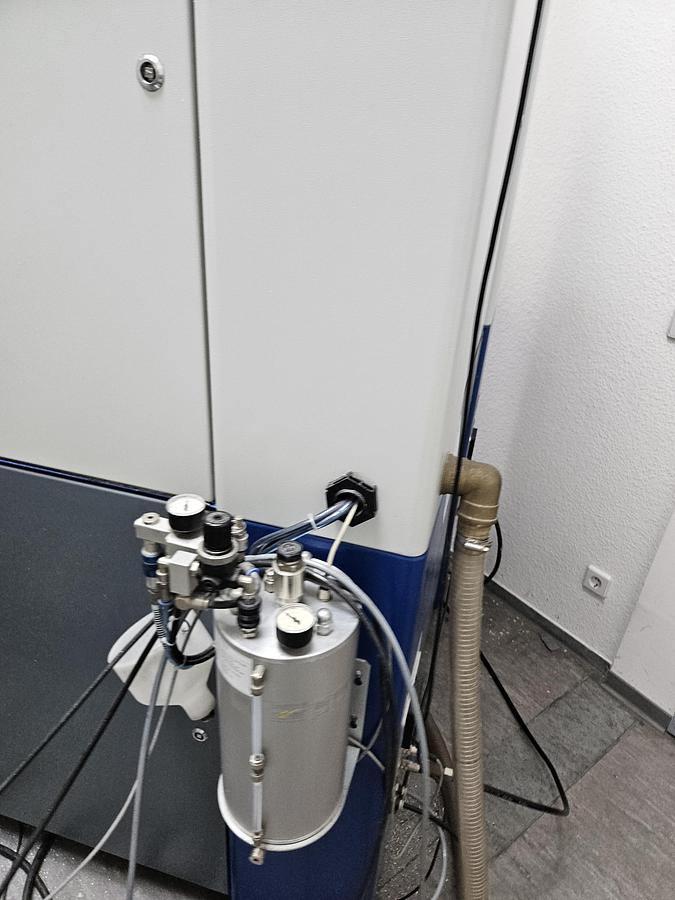

• Lubrication: Minimal quantity, electronically adjustable
• Power Supply: 230 V (with 2 kW spindle) or 3×400 V (with 3 kW spindle)
