2012 KUHNE EXTREX 45GP K60E-33D

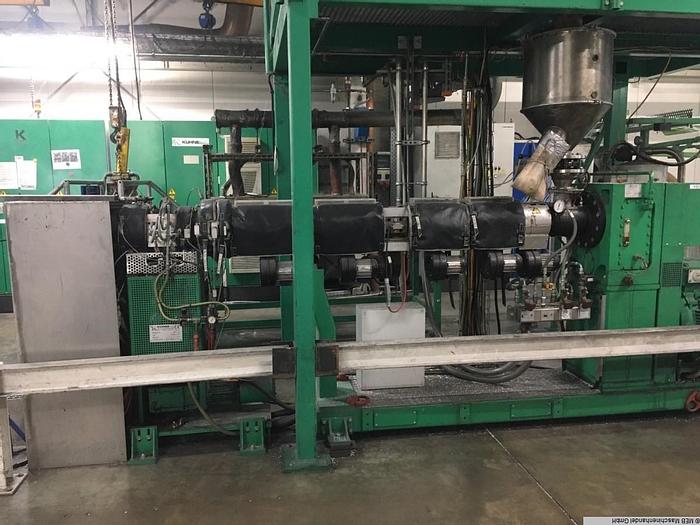

Specification: Plastic extruder type EXTREX 45GP K60E-33D

with melt pump make MAAG

for compounding of plastics

- with Maag melting pump type EX 45-5 GP E

- screw extension: to the rear

- Screw diameter: 60 mm

- Screw length: 33D

- Degassing opening: 13D from the front

- Screw design: Type f, for PP, EMFS 6

- Processing of PP and PA products without sensing elements

- heating power: 8,4 kW

- Flange heating: 1,6 kW

- heating zones: 5 pieces

- cooling zones: 5 pieces

- motor power: 55 kW

- Extruder capacity approx.: min. 150 Kg,

- Material: PP-MVI70

MAAG melting pump:

- Type: EX 45-5 GP E

- Specific delivery volume: 46.3 cm³/rev.

Wide slot die:

- Slot width: 600 mm

Visualization: KEC-PC

- in connection with Siemens control S7-300

and multi-temperature controllers

- Operations Panel Simatic with 19" display

Technical details:

Value Size Unit

Screw ø: 60 mm

Screw length: 33D

screw speed: -- rpm

Drive power: 55 kW
