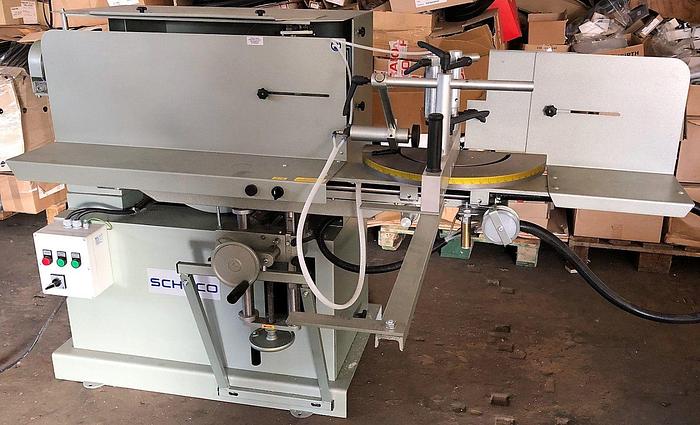

The notching saws AS 450 are proven machines for structural engineering with aluminum and PVC profiles.

By means of two independently arranged sawing units, the most diverse notches at the end of the profile can be

at the end of the profile bar can be carried out.

Technical description:

The vertical saw blade can be tilted up to 45° by means of a worm gear with hand crank. There are adjustable fixed stops at 90° and at 45°, intermediate miters according to scale.

The horizontal saw blade can be adjusted both in height and in its distance to the vertical saw blade via column guides. This also allows contours to be notched.

The sliding table runs in an adjustable ball-bush guide on hardened and ground steel shafts.

It can be adjusted by handwheels both in height and transversely to the saw blades. The material stop shoulder can be swiveled on both sides up to acute angles. The angle is set via an easy-to-read scale on the table, with the 90° position fixed via a stop.

The material to be processed is securely clamped with a horizontal and a vertical cylinder.

Both saw blades work in counter-rotation so that the material to be cut is not pulled in.

The two saw motors can be switched individually. This gives the possibility to use only one saw unit of the notching saw. For example, the vertical saw blade can be used to cut extremely sharp miters, or the machine can be used for double miter cuts in two planes (shear cuts).

(jack rafter cuts).

The sawdust and the material cuttings are fed into the machine stand.

The standard equipment of the machine includes saw blade spraying devices for both units.

The AS 450 notching saw has reinforced saw blade shaft bearings for both saw blades. The machine can be easily transported with a lift truck via a recess in the machine stand.

Technical data for notching saw AS 350

Drive: ........................................................ 2 three-phase brake motors 400 V, 3 kW

motors individually switchable with undervoltage release and

overload protection

speed: ...................................................... 2800 rpm, direct drive

tool diameter: ............................... vertical aggregate: 450 mm

horizontal aggregate: 350 mm

tool holder: .................................... vertical aggregate: 40 mm ø,

horizontal aggregate: 40 mm ø,

working range: .......................................... cutting height: 153 mm

notching depth: 110 mm

Notching width 250 mm

air connection: ............................................... 6 bar

Machine weight: ...................................... approx. 400 kg

Adjustment possibilities: .................................. - sliding carriage adjustable in height and depth via hand wheels

- fixed material stop adjustable

- vertical saw unit swivels from 90° to 45

- horizontal saw unit adjustable in height and depth

- adjustable fixed stops for each axis

Scope of delivery: notching saw AS 450 with integrated machine base, with pneumatic material clamping,

with saw blade spraying devices for each saw blade, without saw blades.

Special accessories: HM circular saw blade 450 x 4.5 x 40 mm 100 FZ neg.

HM circular saw blade 350 x 3.5 x 40 mm 180 FZ pos.

Rolling block for support of long profiles

Digital angle display for both axes
