Breitner MDL 2105
Breitner MDL 2105
Augsburg, Germany
Description

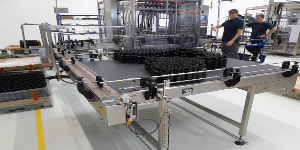

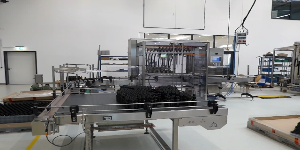

FILLING MACHINE WITH LOADING TABLE FOR
Oils in glass bottles
The equipment has never been used and is originally packed.
TECHNICAL DATA OF THE FILLING MACHINE
Machine type MDL 2105
Filling parameters
Dosing method Mass flow rate measurement (Dosimass)
Number of filling stations 10
Filling tubes 1st set of standard filling tubes
Dosing range 50 - 1000 g
Stop slide Standard design for the intended containers
Parts in contact with product
Tubes and containers stainless steel V4A
Hose
Material/Fixing Tuflon/Clamping V2A
Screw connection aseptic/triclamp free of dead space acc. to DIN 11864-3-a
Seals EPDM
Container
Design tank with dome lid and sloping bottom
Volume approx. 100 l
Pressure 3 bar
Product connection DN 50 Milk pipe screw connection according to DIN 11864
CIP cleaning BREITNER standard
Spray head in product tank
Collecting tray Linear filling machine
Structure
Frame welded, V2A (AISI 304)
Running direction from left to right
working height 900 mm
Machine width 1450 mm (max. distance between first and last filling tube)
Machine protection Polycarbonate glazing
Protective cover
Flat cover type
Material acrylic glass
Control cabinet integrated
Control/software
Control panel Switch panel and 12.5" touch screen, in switching cabinet
Control computer B&R industrial computer
User administration standard
Filling process control Software for optimizing numerous parameters for an optimal filling process
Machine setup Software for managing 100 formats/recipes
Safety functions Detection of process faults with plain text display
Single container query
Remote maintenance as master
Power supply
Electrical power 3 x 400 V, N, PE, 4 kW
(Due to the frequency inverters installed in the machine, fuse protection is
fuse protection is only possible with an all-current sensitive FI circuit breaker).
Compressed air 150 Nl/min at 6 bar
Compressed air preparation Pressure reducer with water separator and pre-filter
Performance data
The table gives an overview of the performance data of the machine with different containers.
Format No. Product Quantity Container Performance [1/min]
01 Cooking oil 100ml glass bottle 80
02 Edible oil 750ml glass bottle 60
Container dimensions
The maximum permissible container dimensions depend heavily on the geometry.
Diameter/ width max. 100 mm
length max. 100 mm
Height max. 350 mm
In addition, significantly larger dimensions are also possible. You will receive binding information on request,
based on our many years of experience with several thousand container shapes and dimensions.
THE FILLING PROCESS - FAST AND CLEAN
Fast feeding and precise centering: The empty containers (or transport forms with bottles) run on a conveyor belt into the filling machine.
on a conveyor belt into the filling machine. The stop pusher positions the packs under the filling tubes.
To ensure that the filling tube can enter the bottle opening precisely, the bottle neck centering device aligns the neck centrally under the filling tube.
centered under the filling tube.
Orientation to the liquid level: during the filling process, the filling tube tip moves upwards with the
upwards with the rising fill level. Depending on the product, the filling tube is immersed in the liquid.
(below level filling; particularly with foaming products) or always moves just above the liquid level (particularly with
level (especially with viscous products) to avoid contamination of the filling tube.
The control system determines the target position of the filling tube at any time from the quantity already filled and the contour of the container.
target position of the filling tube. The servo-motor drive of the filling bridge moves all filling tubes together this
position. This control ensures that perfect lower level filling is achieved even with changed
process parameters (filling speed) remains unchanged.
Clean completion of the filling process: when the filling quantity is reached, the sealing cone, which is located at the very front of the filling pipe
at the tip of the filling tube closes the tube. This prevents any dripping from inside the tube.
In order to catch dripping from the outside of the filling tube (in the case of below-mirror filling), a
is inserted between the filling tube and the neck of the bottle.
Fast transport: When the block with the filled containers is transported away, the
conveyor (adjustable speed profile)
