2003 Siemens ST3 V50A

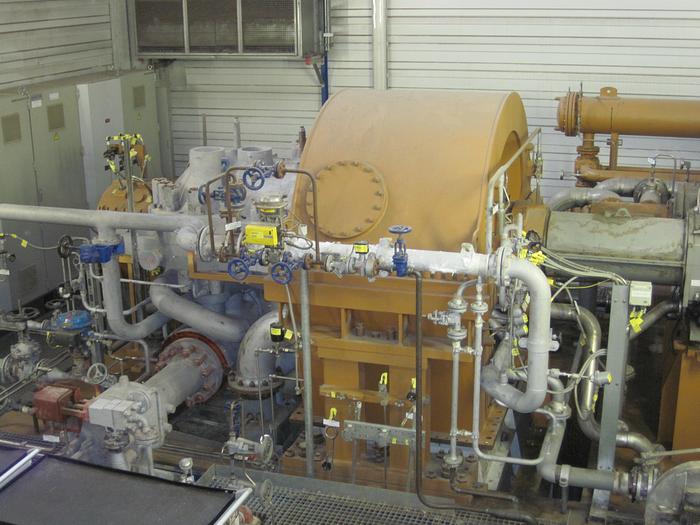

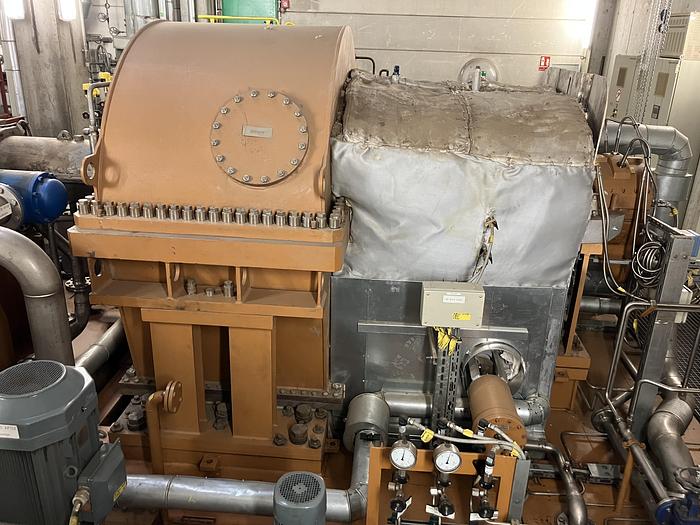

a Siemens Steam Turbine ST3 V50A from 2003. It is only the turbine without main frame, pumps , Gearbox and Generator. Also not included is the Emergency Stop Vlave.

Further more we have some spare parts for the machine in stock which can also be offert.

The disassembly will be in April 2024

Turbo set coupling power max. 23910* kW

* at 105% turbine output

Speeds

- turbine 6804 min-1

- Generator 1500 min-1

Fast closing speeds

- Turbine 7484 min-1

- corresponds to generator 1650 min-1

- 1. critical speed 3700 min-1

- 2. critical speed 7600 min-1

- Turning speed 160 min-1

Direction of rotation (view direction turbine-gearbox-generator)

left counterclockwise

clockwise

Live steam-

- Pressure, max 64.0 bar a

- Temperature, max 448 °C

- Quantity, max 78.25 / 5.00* t/h

* idle

Tapping 1

- Pressure, max 4.50 / 0.34* bar a

- Temperature, max 147.8 / 129.9* °C

- Quantity, max. 5.04 t/h

* idling

Tapping 2

- Pressure, max. 1.20 / 0.24* bar a

- Temperature, max. 104.0 / 113.4* °C

- Quantity, max. 6.80 t/h

* at idle

Exhaust steam-

- Pressure, max. 0.43 / 0.25* bar a

- Temperature, max. 77.6 / 209.7* °C

- Quantity, max. 71.37 / 5.00* t/h
