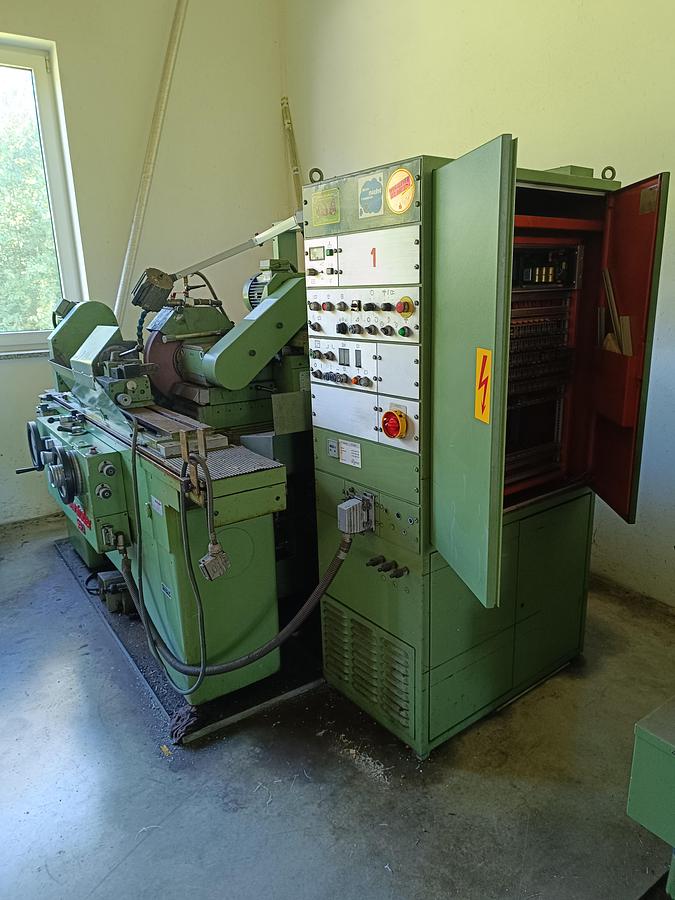

Studer S30 RHU 650 Cylindrical Grinding Machine
Studer S30 RHU 650 Cylindrical Grinding Machine
Contact us for price
Location:Regensburg, Germany
Description
Specifications
| Manufacturer | Studer |
| Model | S30 RHU 650 |
| Condition | Used |
| Stock Number | 758908 |

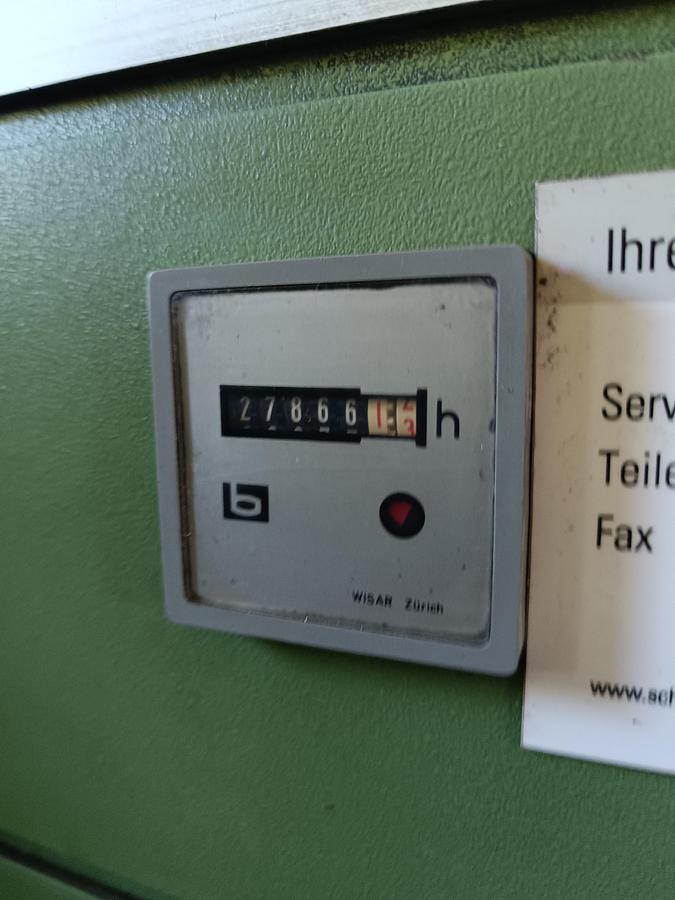

| Operating Hours | 27,866 h |
| Centre Height | 125 mm |
| Distance Between Centres / Grinding Length | 615 mm |
| Table Speed | 0.05 - 5.5 m/min, infinitely variable |
| Table Reversal Delay | 0 - 6 s |
| Table Swivel (max.) | 10° |
| Manual Table Travel per Handwheel Turn | 25 mm |
| Workhead Swivel | 0 - 90° |
| Workhead Speed | 20 - 640 rpm, infinitely variable |
| Workhead Spindle Internal Taper | Morse 5 |
| Collet Body Diameter | 25 mm |
| Grinding Wheel Diameter | 400 mm |
| Grinding Wheel Width (max.) | 50 mm |
| Grinding Wheel Bore | 127 mm |
| Grinding Spindle Speeds | 1,500 / 1,625 / 1,800 rpm |
| Grinding Wheel Head Motor | 4 CV |
| Hydraulic Infeed and Retraction | 40 mm |
| Additional Travel by Hand Lever | 210 mm |
| Floor Space (L x W) | 3,150 x 1,350 mm |
| Net Weight | approx. 2,200 kg |
| Condition | Used; little used, prototype production only; still connected and can be tested under power |
