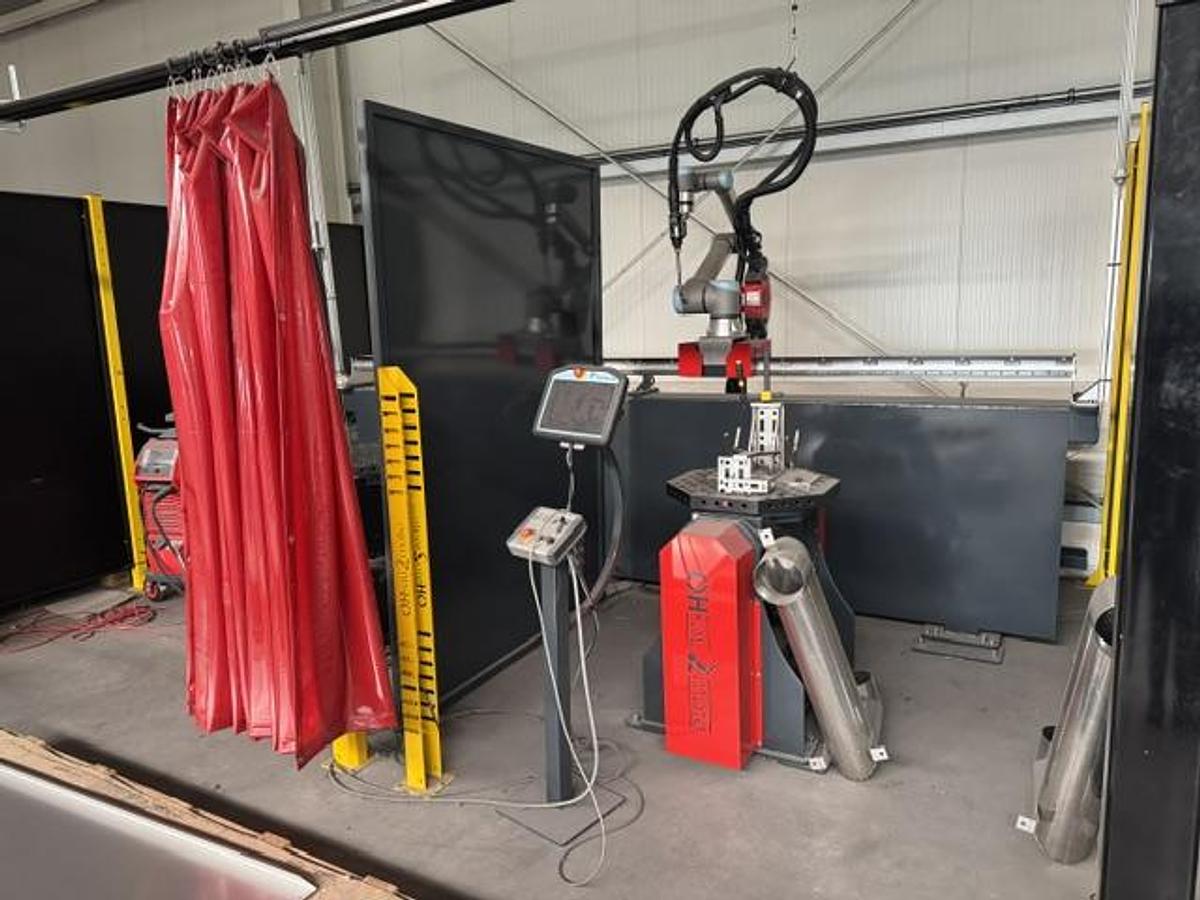

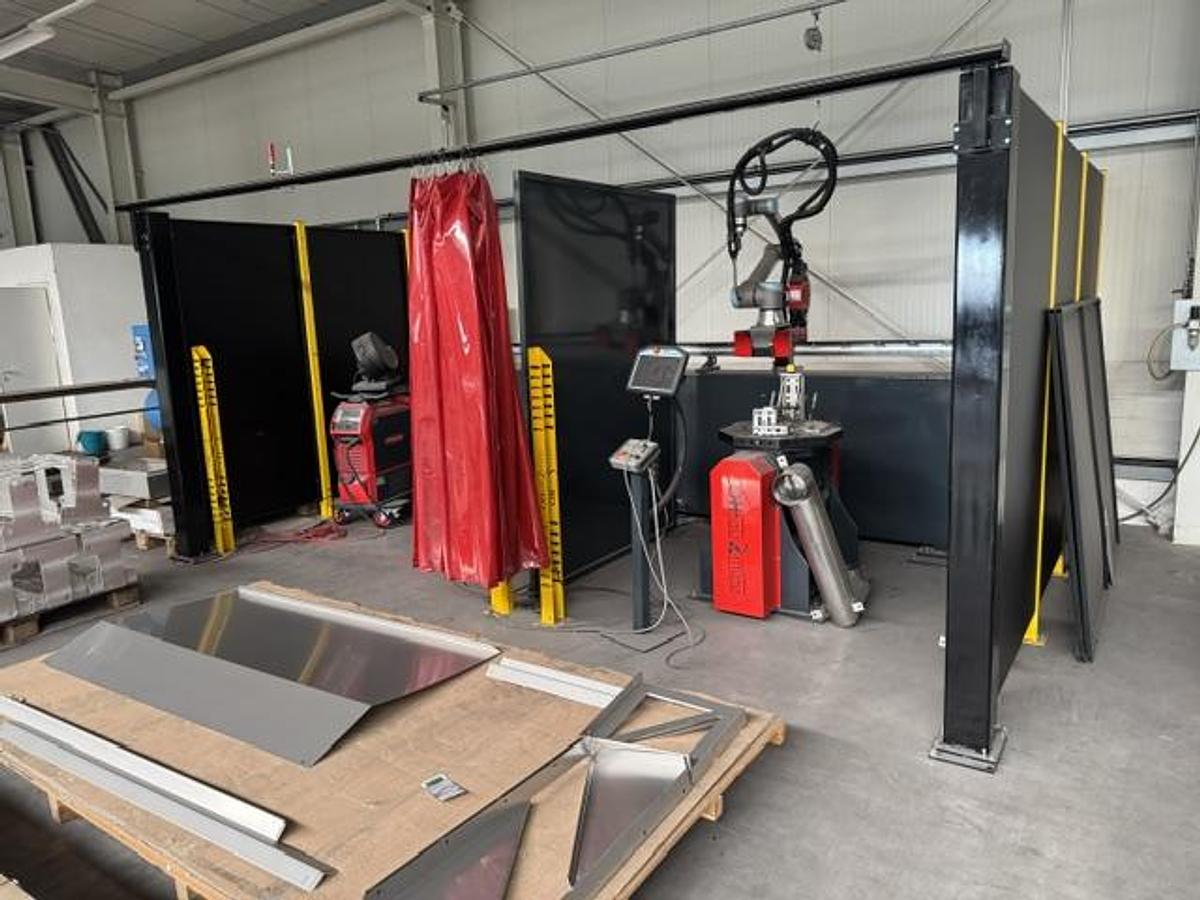

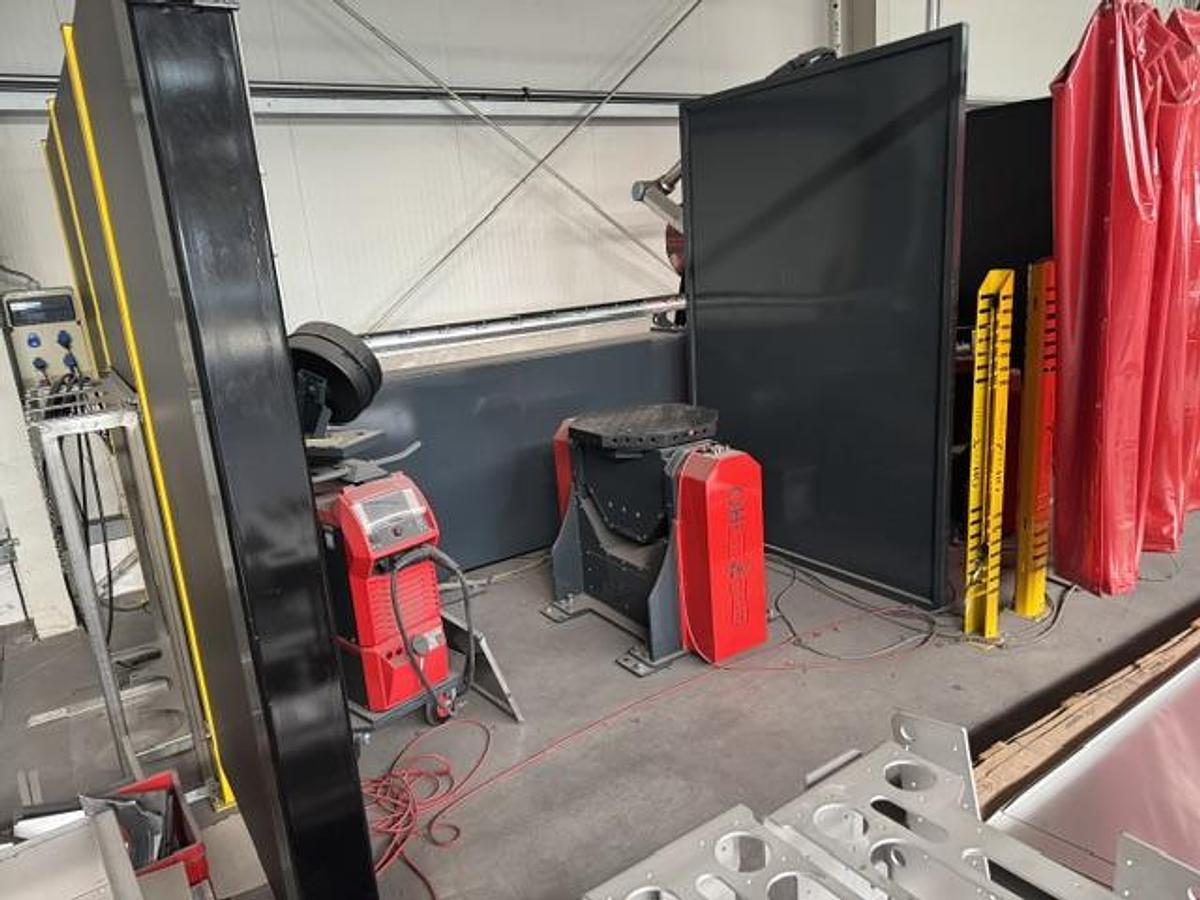

2023 Fronius / OH-au2mate Robotic Welding Cell
2023 Fronius / OH-au2mate Robotic Welding Cell
Contact us for price
Location:Leipzig, Germany
Available quantity:1
Description
Specifications
| Manufacturer | Fronius / OH-au2mate |
| Year | 2023 |
| Condition | Used |
| Stock Number | 759018 |
| Year of Manufacture | 2023 |
| Type of Machine | Robotic welding cell with collaborative robot |

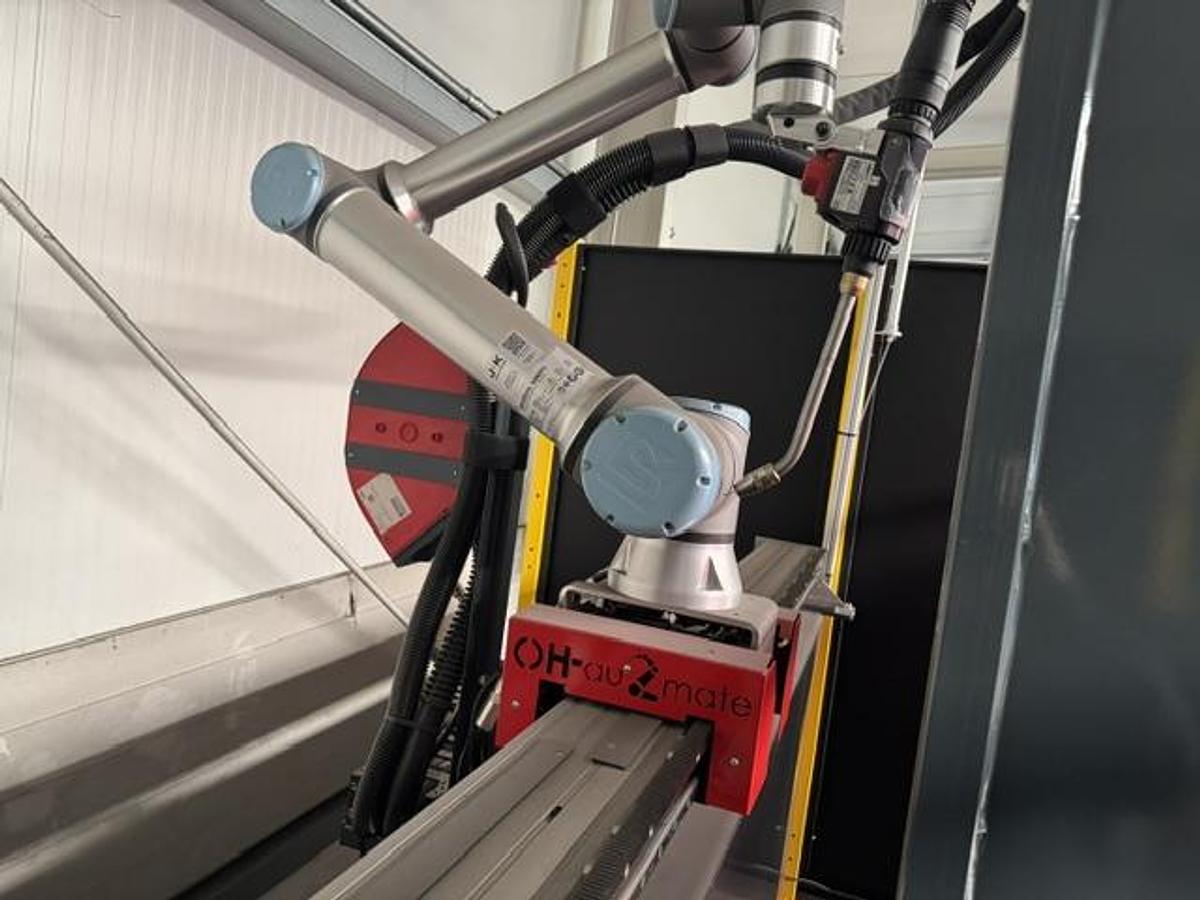

| Robot | Universal Robots UR10e |
| Number of Robot Axes | 6 |
| Robot Max. Payload | 12.5 kg |
| Robot Reach | 1,300 mm |
| Robot Weight | 33.5 kg |
| Robot Protection Class | IP54 |
| Robot Functional Safety | PLd (ISO 13849-1) |
| Robot Mounting | On linear axis (track) |

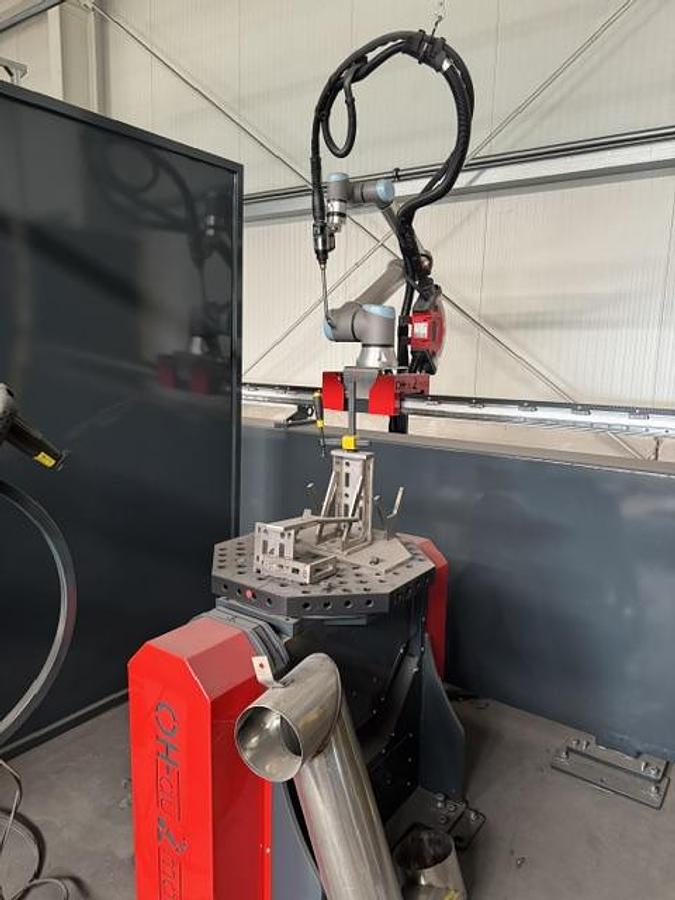

| Workpiece Positioners | 2 rotary-tilt tables for alternating two-station welding |
| Positioner Model | OH-au2mate RotateTWO 250 |
| Positioner Load Capacity | 250 kg (each) |
| Positioner Table | Siegmund octagonal plate, 16 mm hole system |

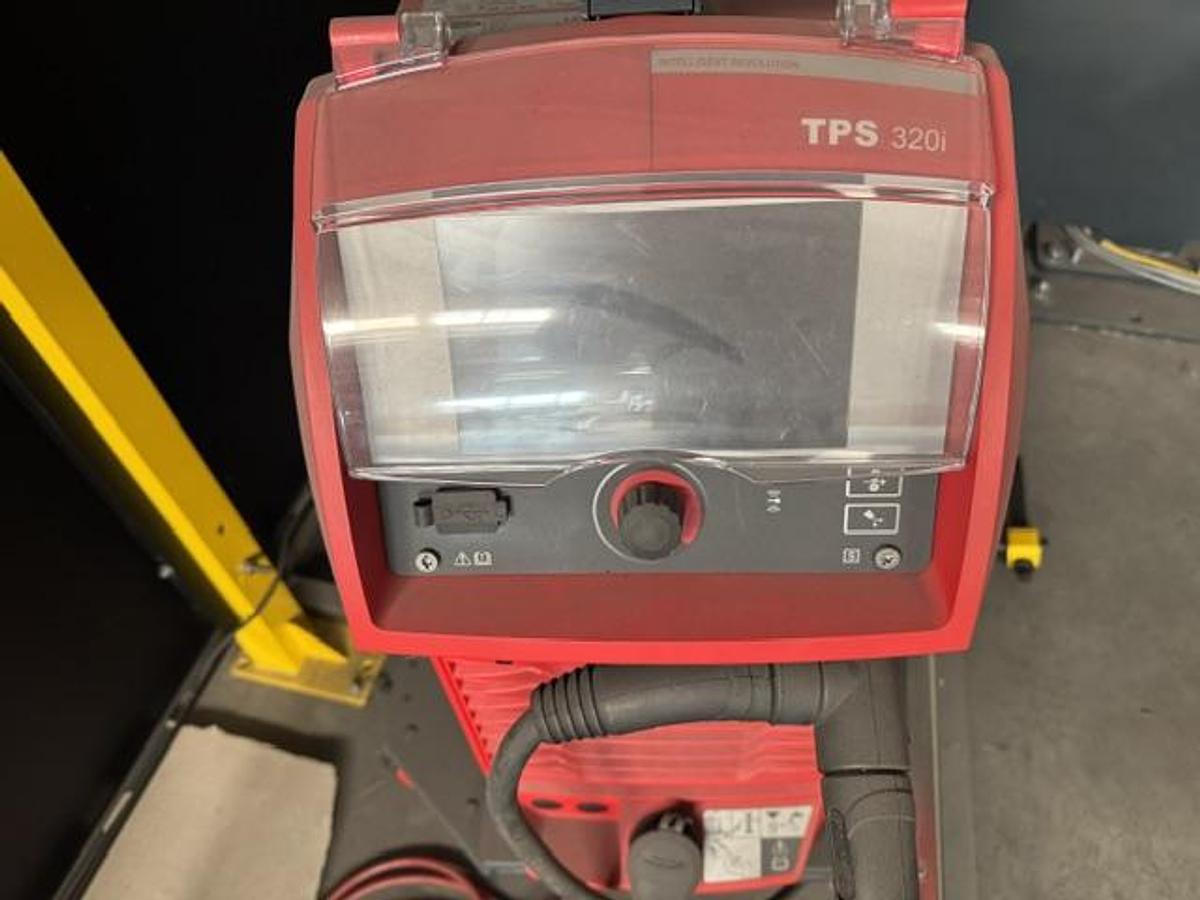

| Welding Power Source | Fronius TPS 320i |
| Welding Processes | Standard, Pulse, PMC, CMT, CMT Cycle Step |
| Welding Current Range | 3 - 320 A |
| Welding Current at 40% Duty Cycle (40 °C) | 320 A |
| Welding Current at 60% Duty Cycle (40 °C) | 260 A |
| Welding Current at 100% Duty Cycle (40 °C) | 240 A |
| Open-Circuit Voltage | 73 V |
| Mains Voltage | 400 V, 3~, 50-60 Hz |
| Mains Fuse | 35 A |
| Power Source Protection Class | IP23 |
| Cooling Unit | Fronius CU 1400i Pro/MC |
| Wire Feeder | Fronius WF 60i Robacta Drive CMT/W |
| Wire Spool Unwinder | Fronius WF 25i REEL R /4R/G/W |
| Robot Hose Pack | Fronius MHP 500i RD/W/FSC |
| Torch Neck | Fronius MTB 400i W R/22° |
| Welding Control Unit | Fronius SB 60i R /G/W/FSC |
| Fieldbus Interface | Fronius RI MOD/i CC ModBus TCP-2P |

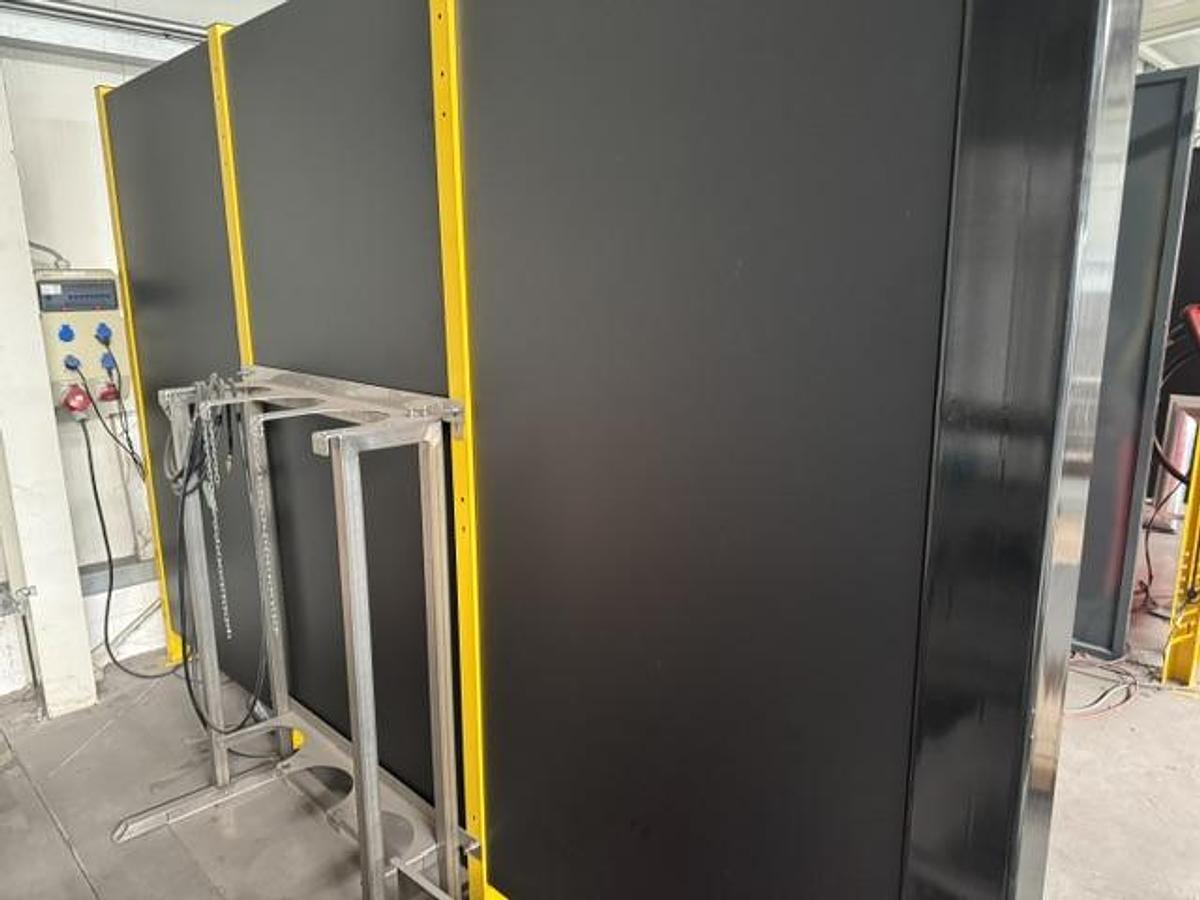

| Enclosure | Complete enclosure with sliding curtains |
| Safety Equipment | Laser light curtains |

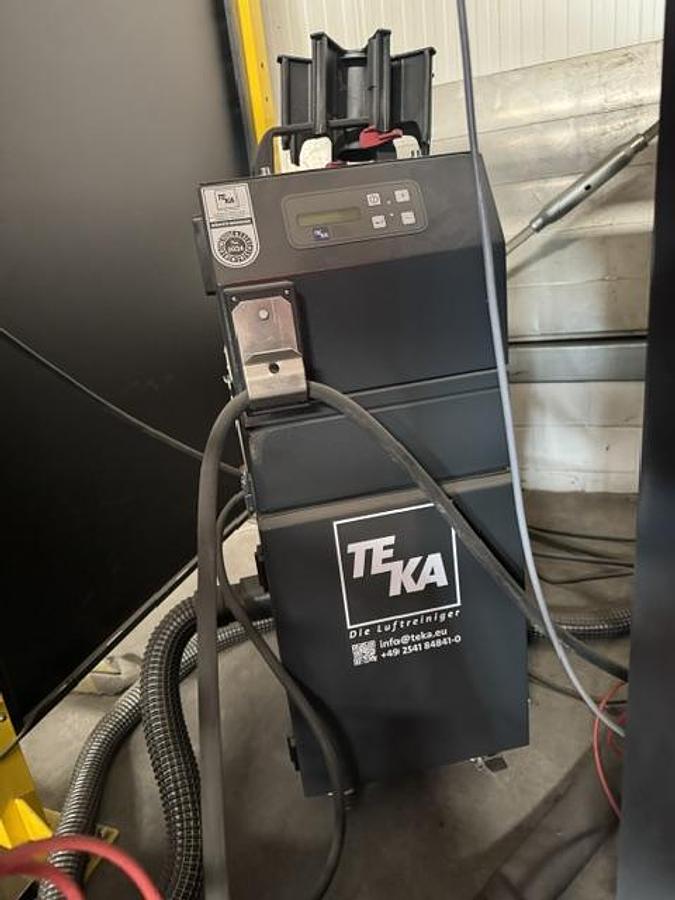

| Fume Extraction | TEKA air cleaner |
| Programming | Freely programmable |
| Condition | Largely unused, only used for a few samples |
