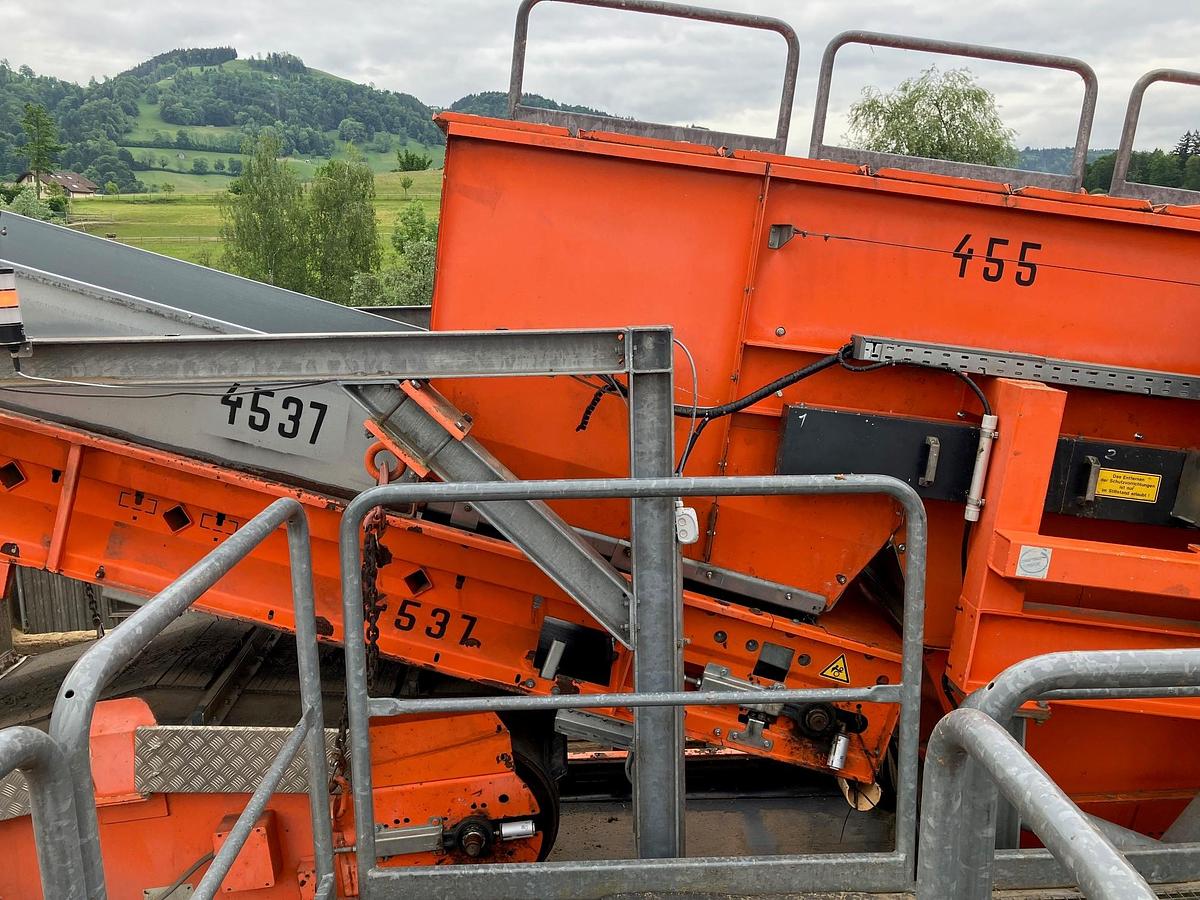

2012 Komptech Multistar 2-SE Stationary Star Screen – Complete Screening Plant with Conveyors, Walkways and Steinert Magnet

Manufacturer: Komptech

Model: Multistar 2-SE (MS 2-SE)

Type: Stationary 2-fraction star screen

Built: May 2012 (extended in 2018)

Operating hours: approx. 21,200

Condition: Used, working until it was dismantled (May 2026)

Application: Pre-shredded waste wood and reject material (previously fed by a shredder)

Throughput: approx. 25 – 30 t/h (at approx. 350 kg/m³)

Screen cut: 90 – 120 mm (oversize > 90–120 mm, fines 0 – 90/120 mm)

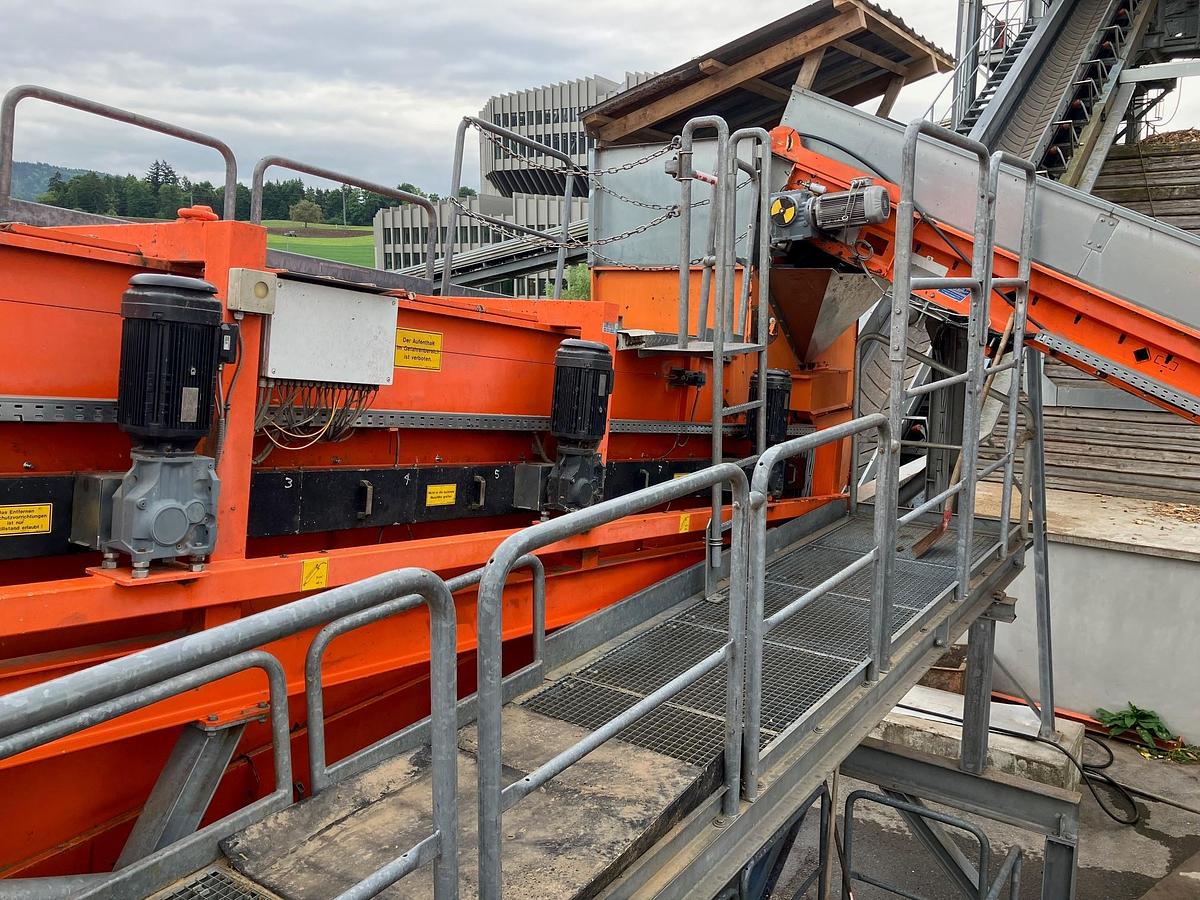

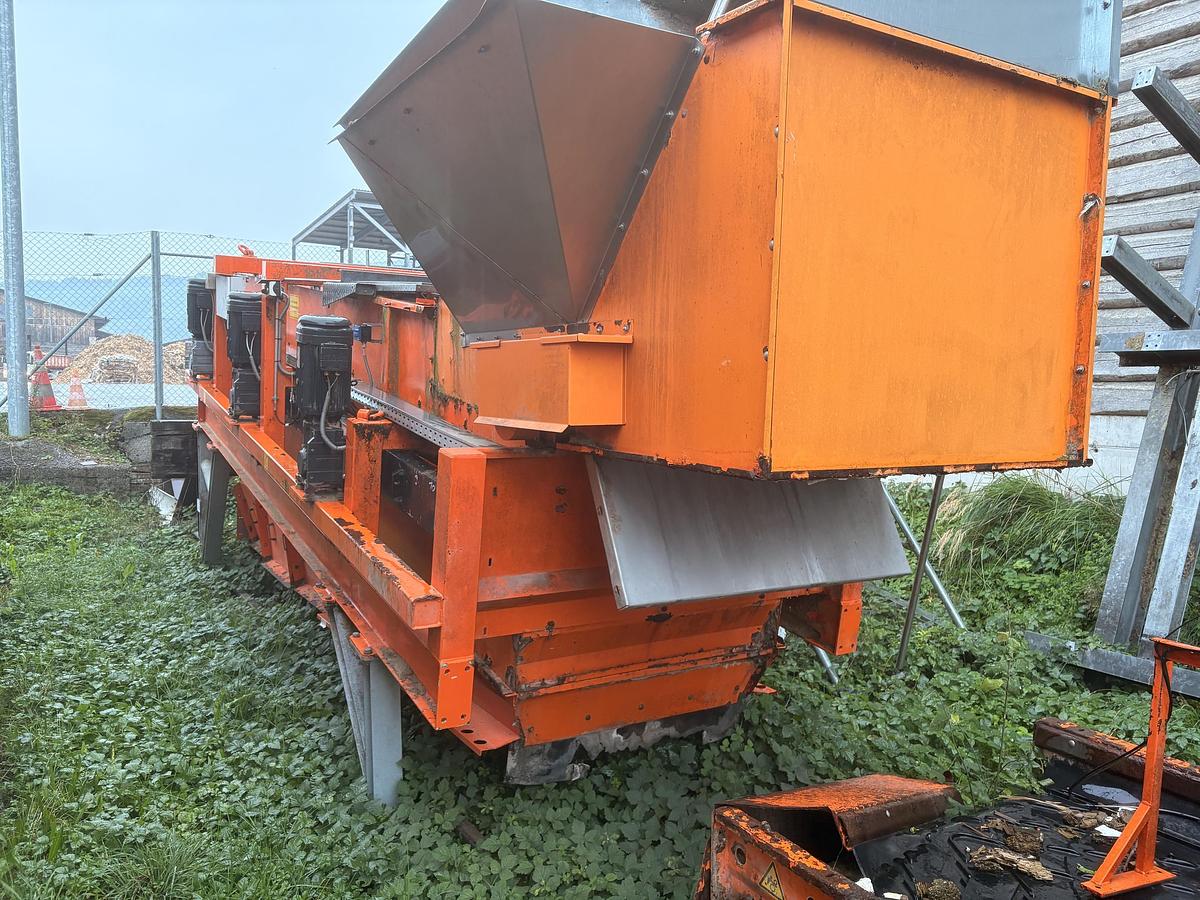

Star screen deck

• Screen deck length: 6,000 mm
• Screen deck width: 1,200 mm
• 23 star shafts in 3 sections (6 + 8 + 9 shafts)
• Stars: 8-finger, Ø 340 mm, width 84 mm
• Shaft spacing: 266.5 mm

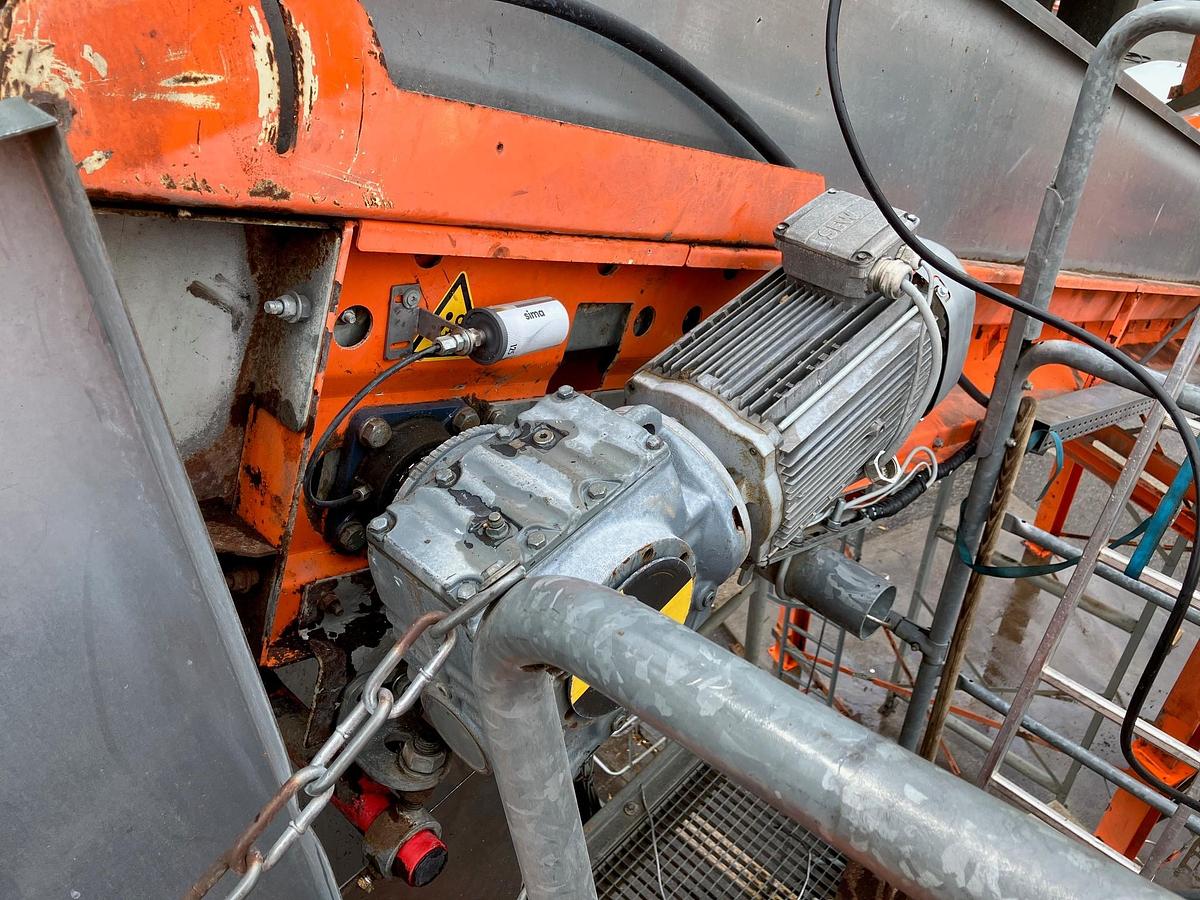

• Drive: 3 × 5.5 kW (SEW motors), chain drive
• Star configuration revised in 2021
• Dimensions: approx. 6,500 × 2,100 × 1,450 mm
• Weight: approx. 4,500 kg

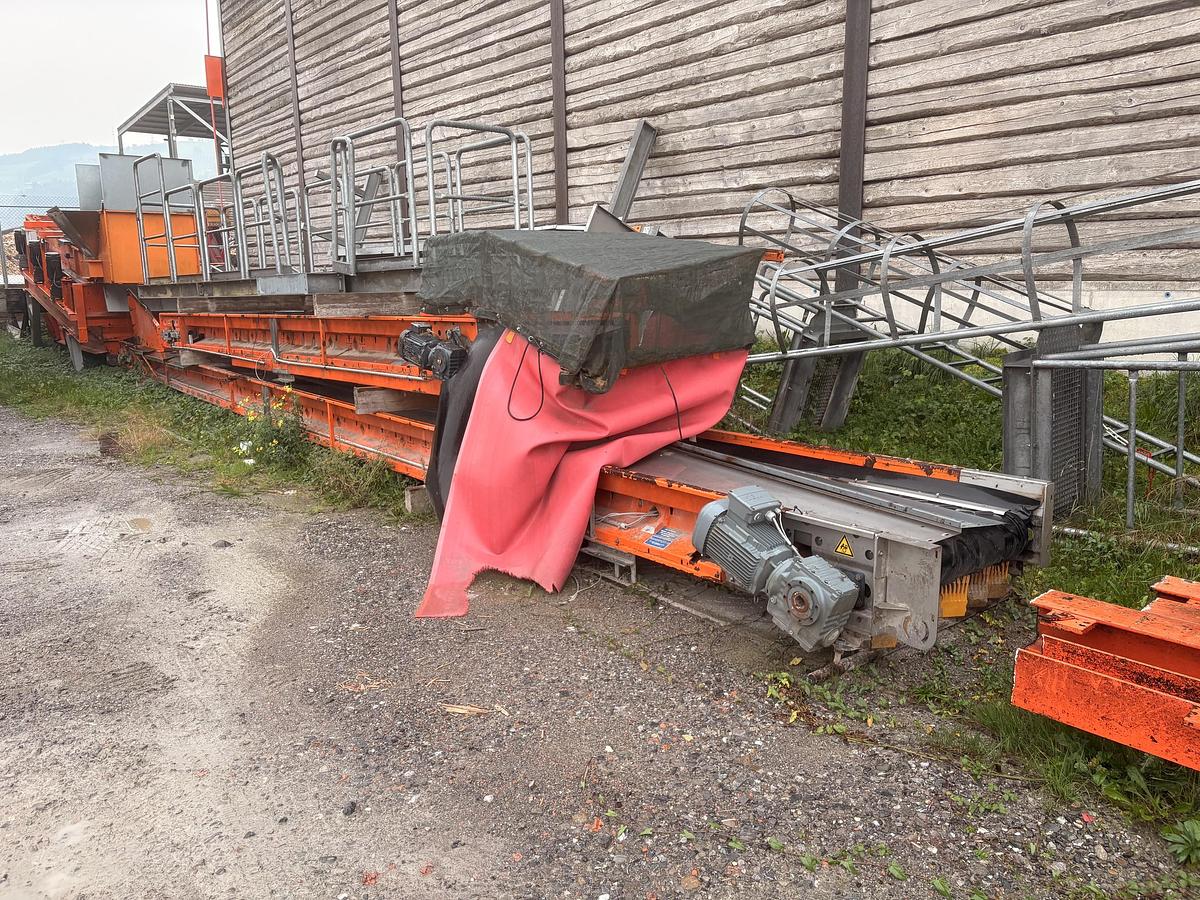

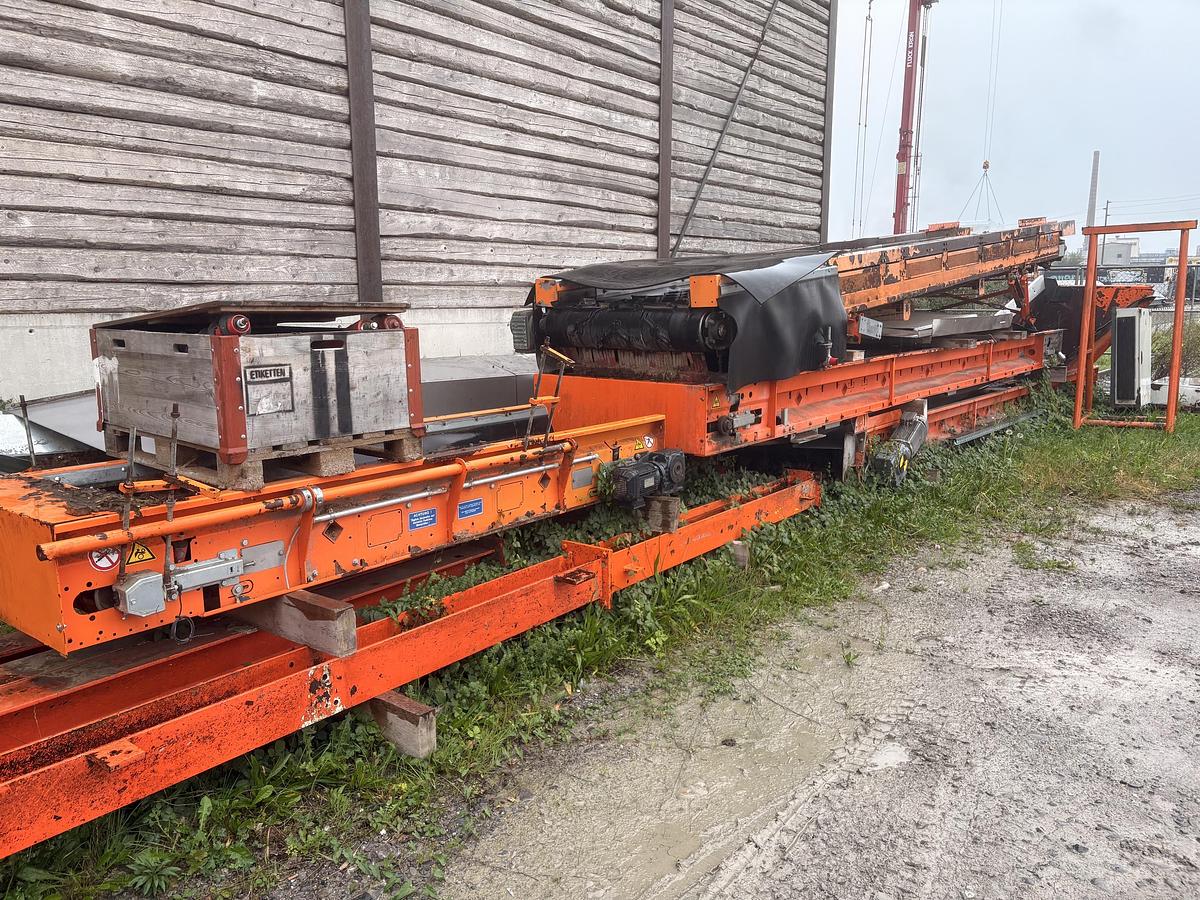

Conveyor belts

• Feed conveyor from shredder: 13,350 mm long, 1,200 mm belt, 7.5 kW, approx. 2,050 kg
• Feed conveyor to screen: 7,850 mm long, 1,200 mm belt, 5.5 kW, approx. 1,400 kg
• Oversize discharge conveyor: 7,100 mm long, 1,200 mm belt, 4 kW, approx. 1,350 kg
• Fines collecting conveyor: 7,600 mm long, 1,200 mm belt, 4 kW, approx. 1,350 kg
• Ferrous discharge conveyor: 2,850 mm long, 800 mm belt, 1.5 kW, approx. 550 kg

Magnet

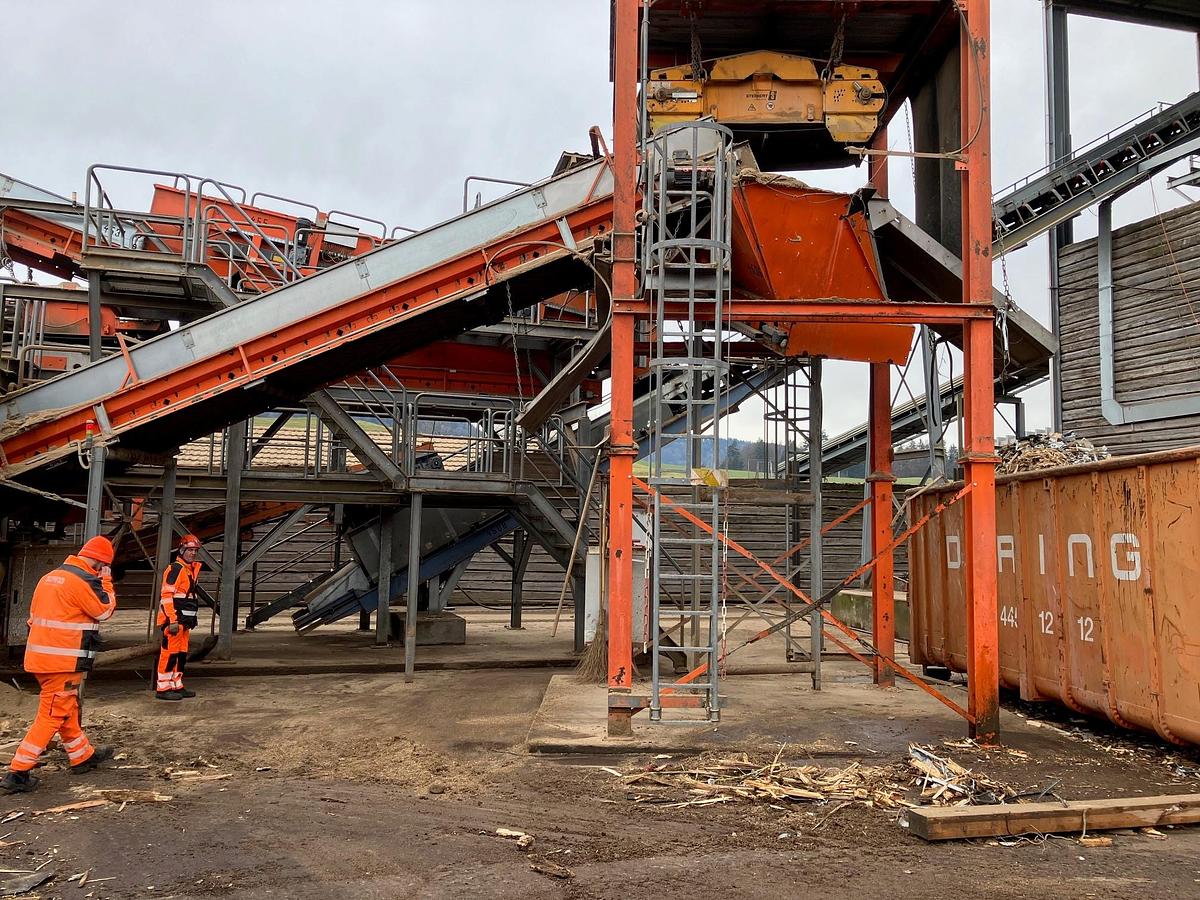

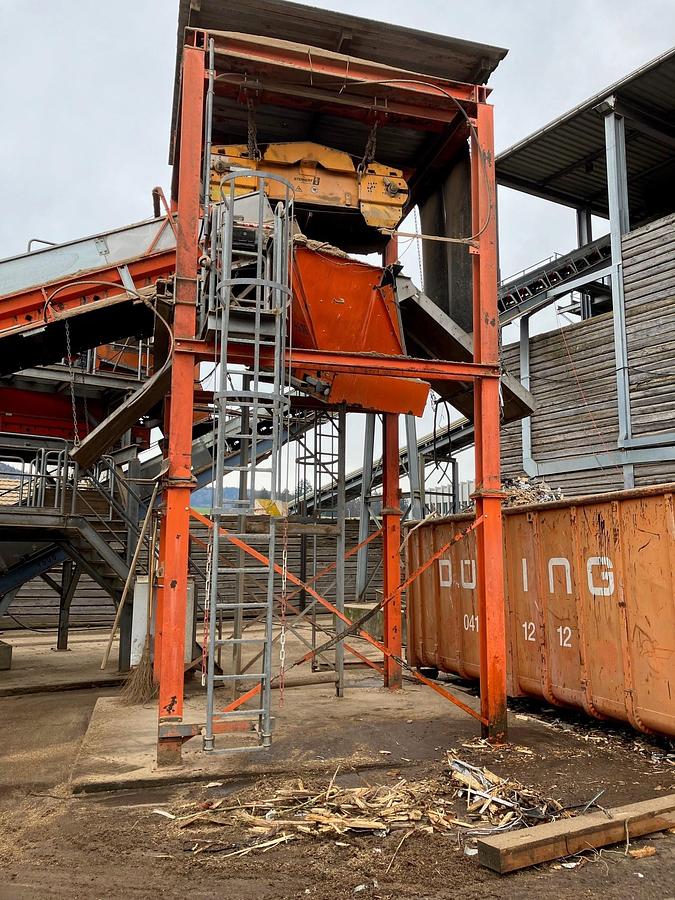

• Steinert overband magnet for separating ferrous metals

Walkways

• Walkways and access platforms

Electrical

• Connected load: 57 kW
• 400 V / 3-phase / 50 Hz
• Protection class: IP 54
• KEB frequency inverters

Overall plant dimensions (as installed)

• Approx. 21.8 m × 11.5 m × 7.8 m (L × W × H)
