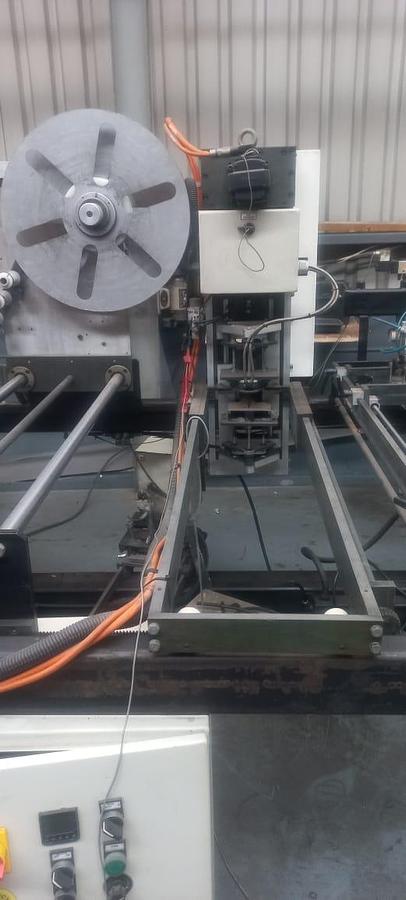

2010 Limax Side Weld Bag Making Machine

Manufacturer:  Limax

Year of Manufacture: 2010

Machine Type : Side Weld Bag Making Machine

Condition: Good working condition, currently in production

Materials and Film Specifications

Film types: LDPE, HDPE, recycled film extracts

Production Specifications

• Sealing width (bag length): 70 mm to 700 mm
• Draw length (bag width): 100 mm to 900 mm
• Linear speed: up to 150 m/min
• Output: up to 130 bags per minute

Bag Types Produced

• Patch handle bags with handle cut-off
• Safety bags
• Side weld bags, various types
• Open and closed lip bags
• Header seal bags
• Bottom gusset bags
• Round bottom bags

Drive and Control System

• Control: PLC with operator interface terminal
• Drive: servo motor driven input nip rollers and dual sealing bars
• Print registration: photocell print registration control included

Attachments and Accessories Included

• Driven unwinder: 1600 mm wide
• Web guide unit: 1600 mm
• Gusseters
• Handle insertion unit
• Handle cut-out unit
• Patch handle unit
• Banana-hole puncher
• Handle punch unit
• Longitudinal sealer
• Presealers
• Angle sealers
• Cross sealers
• String and flanged zipper attachment
• G-folding unit
• V-fold station
• Automatic one-step index conveyor
• Anti-static bars
