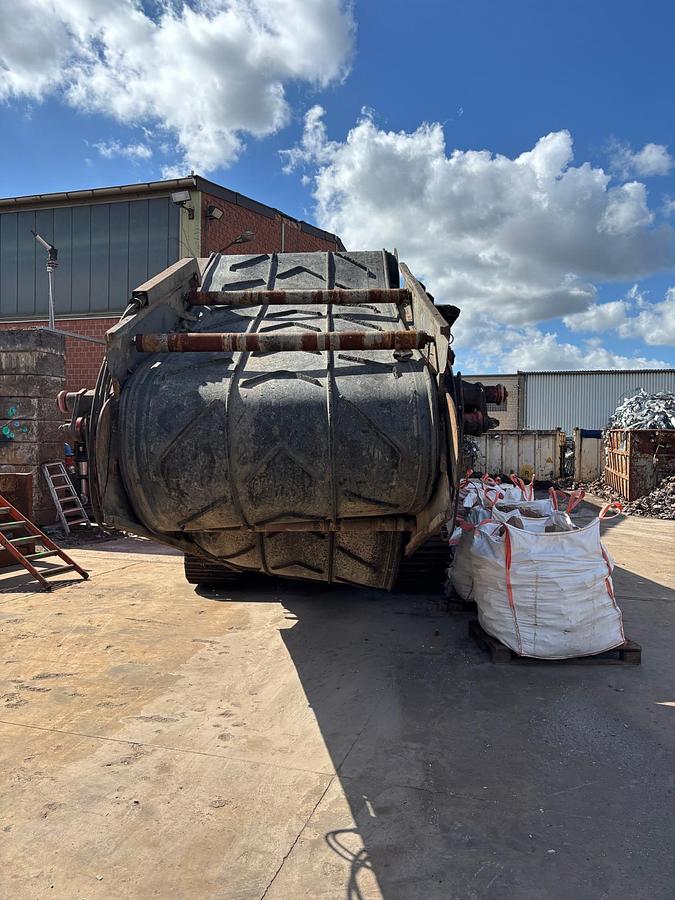

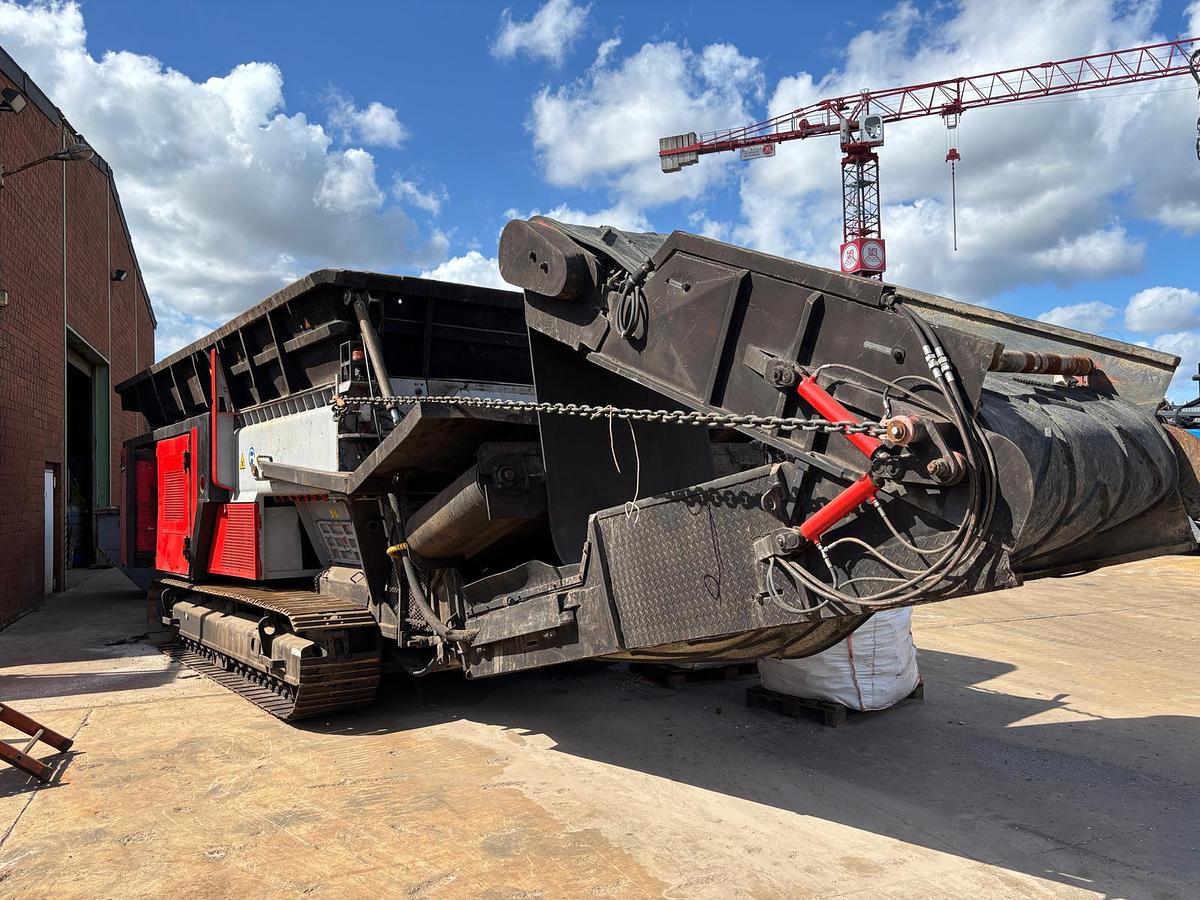

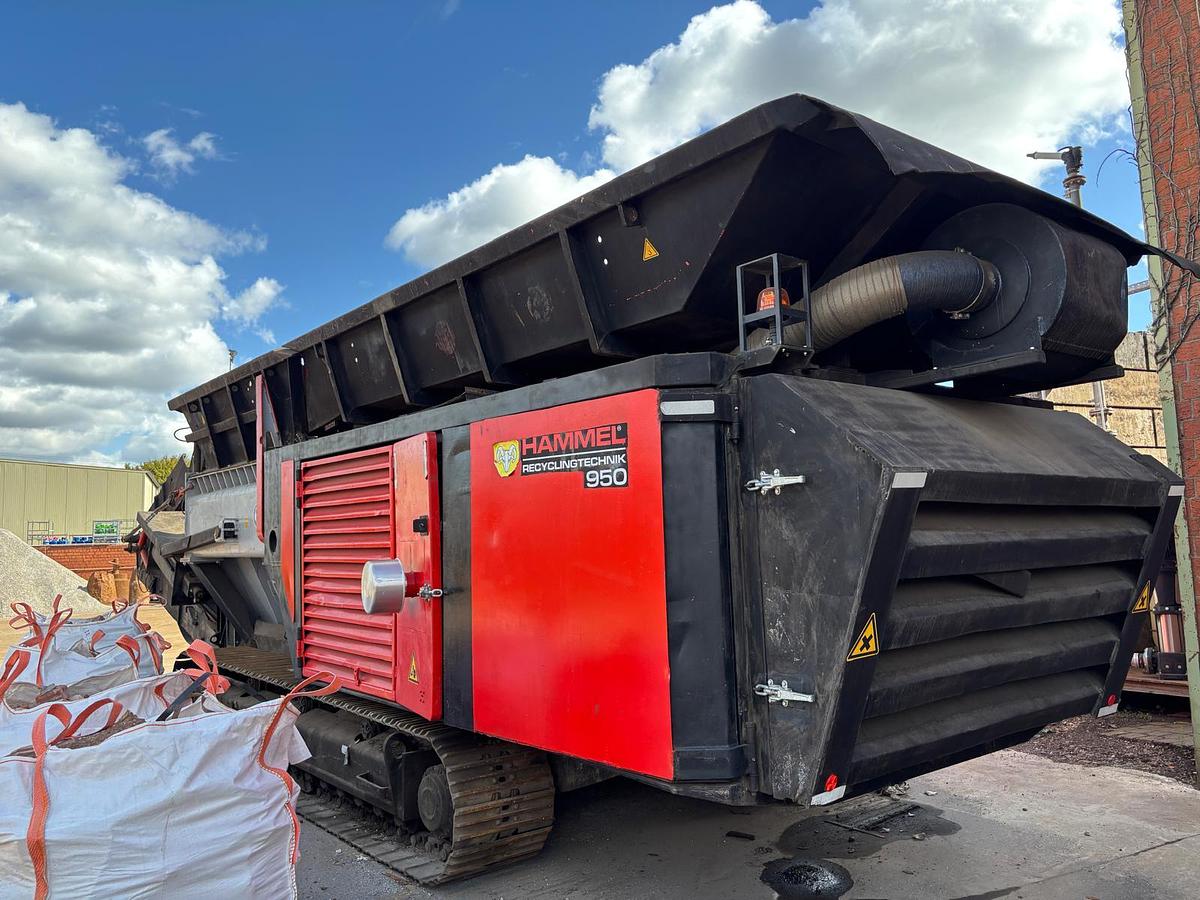

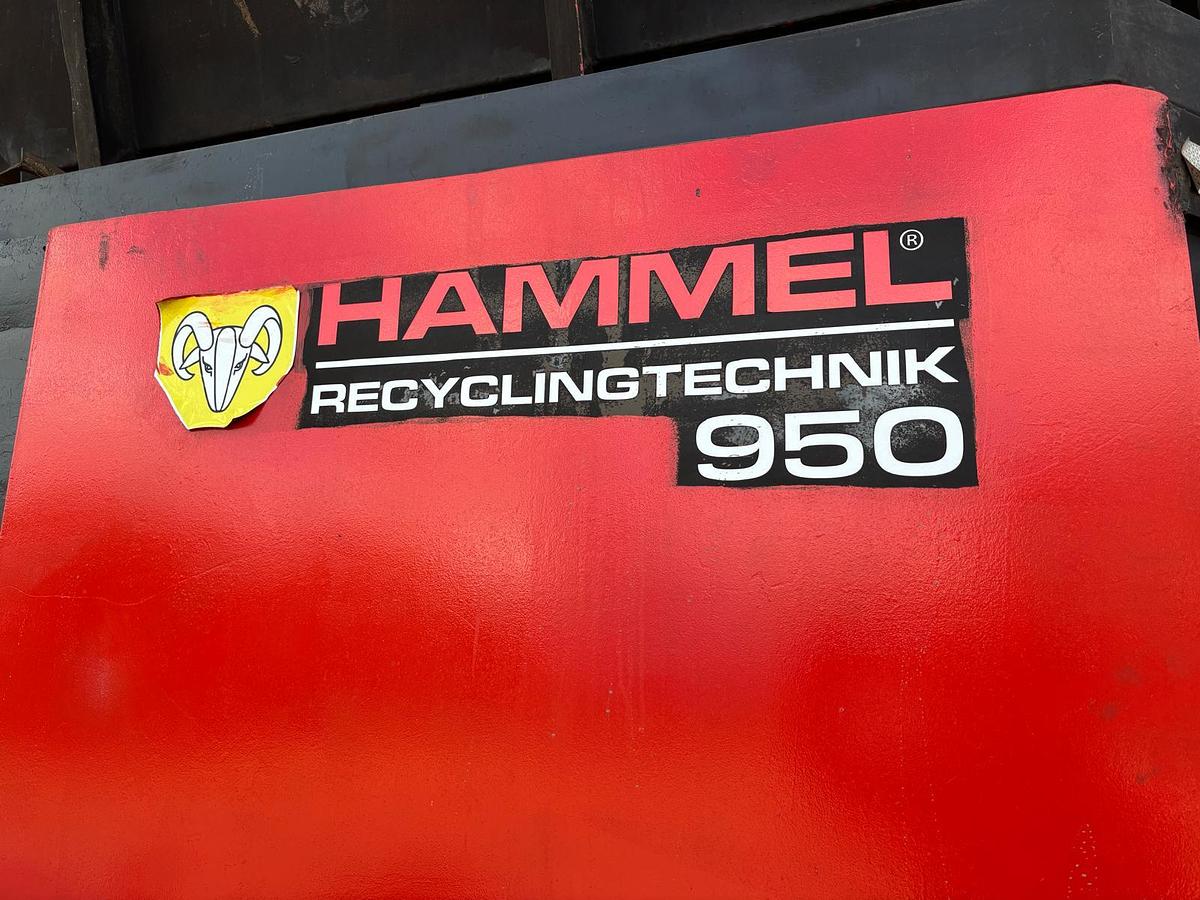

2008 Hammel VB 950 DK NR 60

Manufacturer: Hammel

Model: VB 950 DK NR 60

Year of Manufacture: June 2008

Weight: approx. 42 tons

Operating Hours: approx. 6,000 hours

Configuration: Mobile on crawler undercarriage

Paint Finish: RAL 3020 (red)

Refurbished: 2025

Refurbishment Work Carried Out in 2025

• New main gearbox installed
• Hydraulics replaced (except main pumps)
• Full hydraulic system flush completed
• Tank cleaned and all oils changed
• Fuel filter replaced
• Partially repainted

Drive / Engine

• Engine: Caterpillar C-18
• Power Output: 522 kW / 710 PS
• Idle Speed: approx. 700 min-1
• Working Speed: approx. 1,900 min-1
• On-Board Voltage: 24 V

Shredding Shafts

• Rotor Diameter: approx. 870 mm
• Shaft Configuration: 6-part, 8/8 discs (waste/bulk)
• Working Width: 2,445 mm
• Shaft Speed (automatic mode, no load): approx. 36 min-1

Discharge Conveyor

• Belt Width: 1,400 mm
• Belt Type: Cleat belt, steel-reinforced
• Discharge Height Adjustment: Hydraulic

Controls and Undercarriage

• Remote Control: Hetronic GA610
• Crawler Undercarriage: IVA B4, U-C-4-1-163

Dimensions

• Overall Height (without conveyor and hopper extension): approx. 3,200 mm
• Overall Width: approx. 3,000 mm
• Overall Length - conveyor extended: approx. 14,600 mm
• Overall Length - conveyor folded: approx. 12,600 mm
• Total Height with raised tipping hopper (without extension): approx. 6,600 mm
• Optional Overband Magnet Weight: approx. 2,900 kg
