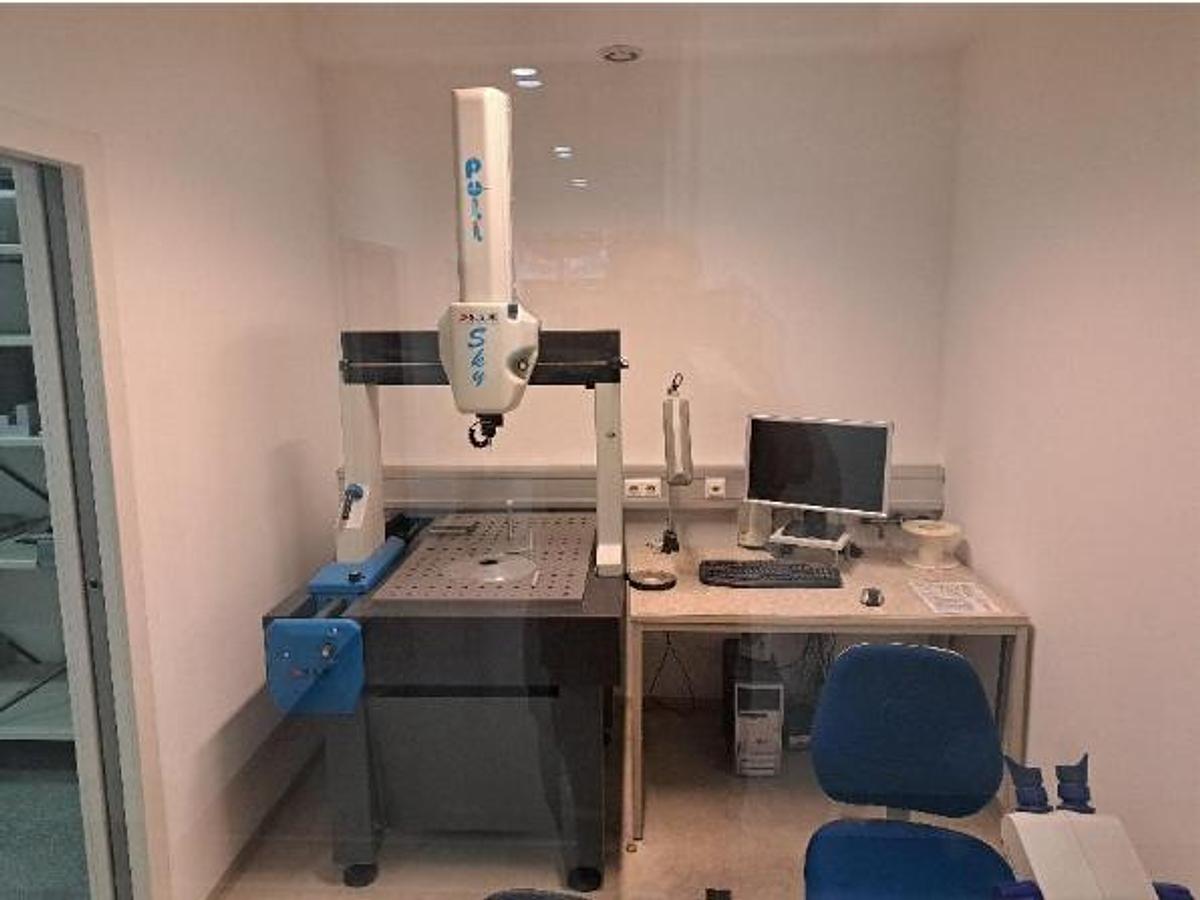

2003 Poli Sky 2 3D Coordinate Measuring Machine

Manufacturer: Poli

Model: Sky 2

Type of machine: 3D coordinate measuring machine, bridge-type, manual

Year of manufacture: 2003

• Code: SKY2manuell
• Measuring range (X/Y/Z): 650 / 500 / 400 mm
• Accuracy: plus/minus (4 + 3L) micrometers
• Resolution: 1 micrometer

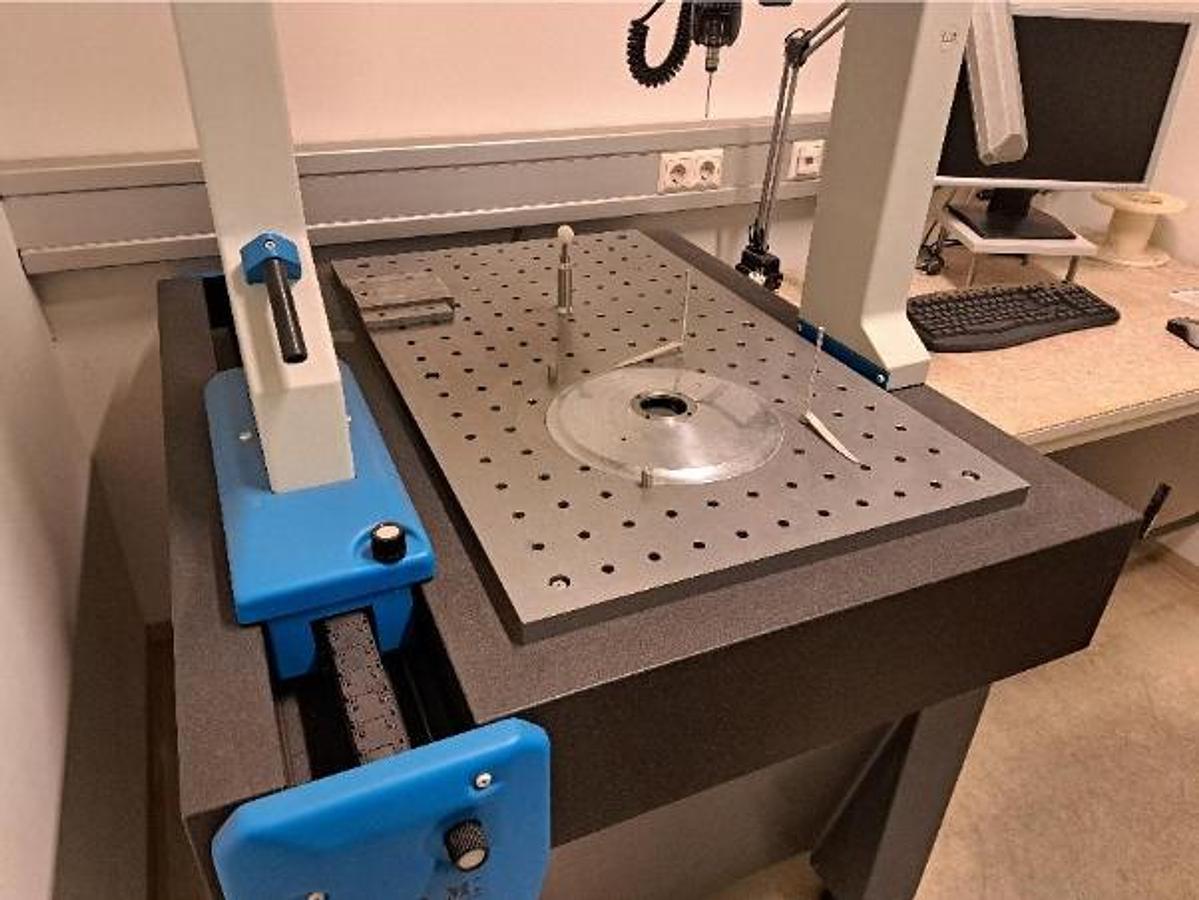

• Construction: granite axes and granite measuring table with threaded holes
• Bearings: wear-free, static air bearings on all axes
• Weight compensation: pneumatic (Z-axis)

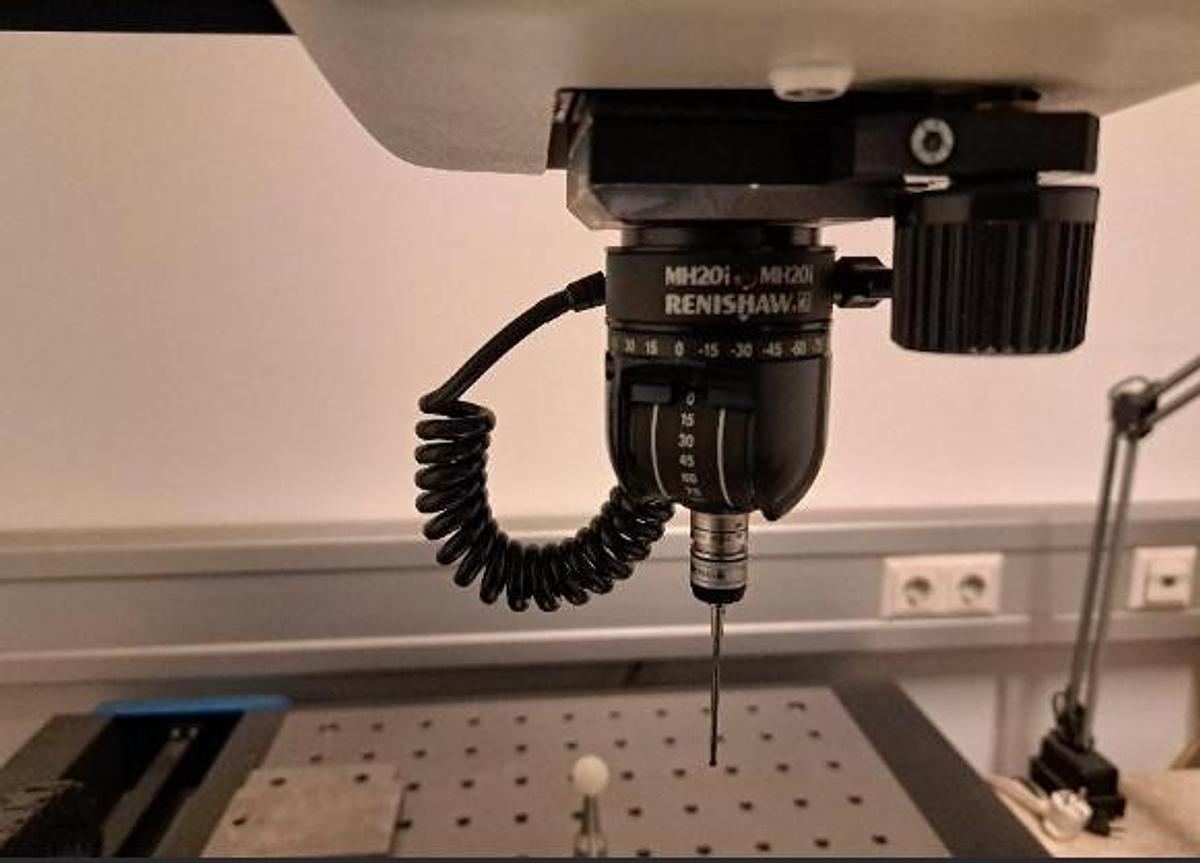

• Measuring head: Renishaw MH20i, manually rotatable/swiveling, with PS2R star stylus
• Accessory: ceramic calibration sphere, diameter 25 mm
• Connections: 230 VAC, compressed air minimum 5.5 bar (160 l/min)
• Measuring software: PowerINSPECT Manual PLUS (extended version)
• Functions: stylus calibration, nominal-actual comparison against CAD, GD&T; (form and position tolerances), point cloud digitization (2D/3D), tabular and graphical reports
• Interfaces: IGES data import/export and PRO-E direct translator
• PC system: original PC from 2003, Pentium II, 128 MB RAM, 20 GB HDD, 17 inch monitor, inkjet printer
