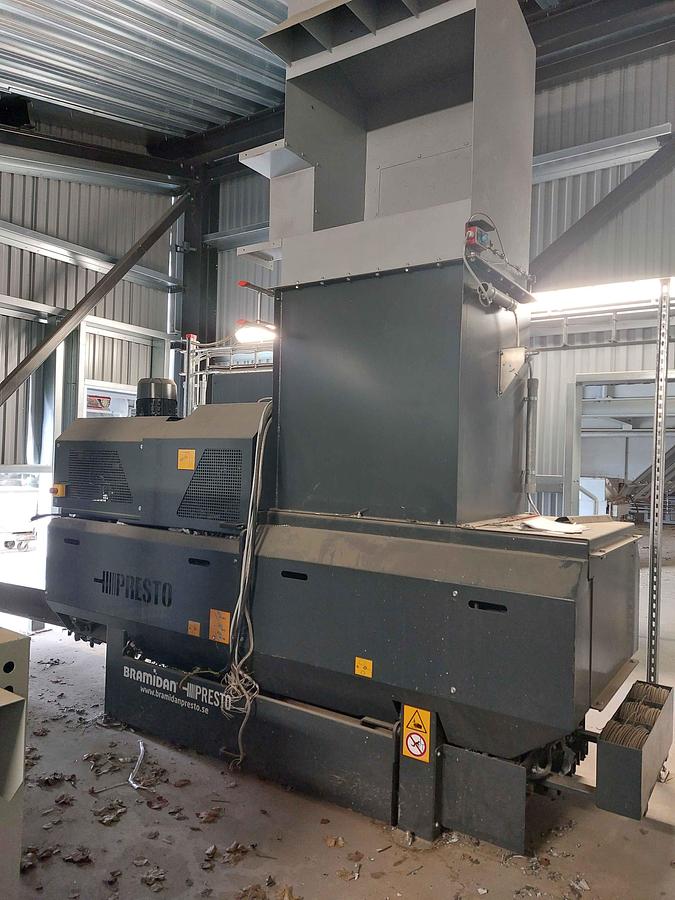

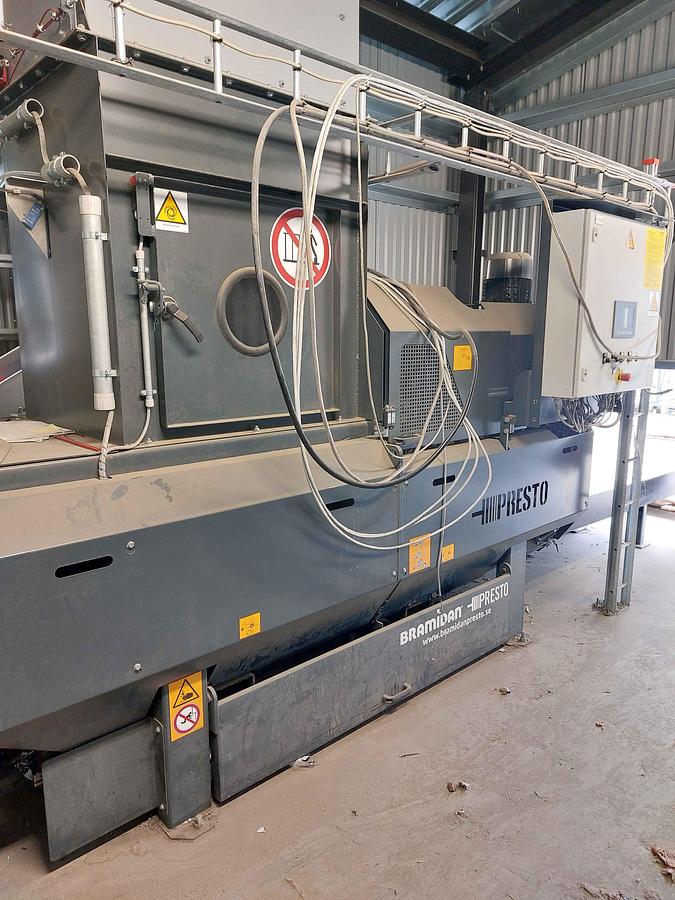

2022 Presto CC 20V Baler

Manufacturer: PRESTO

Model: CC 20 V

Type of Machine: Horizontal Baler

Year of Manufacture: 2022

Technical Data:

• Weight approximately 2800 kg

• Maximum press pressure 200 bar

• Press force 200 kN

• Specific press force 381 kN per square meter

• Safety system IP 55

• Rated current 15.5 A

• Rated voltage 400 V, 50 Hz

• Motor power 7.5 kW

• Connection fuse K 32 A

• Power supply 3 L / N / PE, 400 V, 50 Hz

Dimensions:

• Length 3390 mm

• Width 1235 mm

• Space requirement 4900 x 2550 mm

• Height 2130 mm

• Loading height 1245 mm

Baling Chamber:

• Feed opening 1000 x 750 mm

• Chamber dimensions 700 x 750 mm

• Maximum filling volume 0.53 cubic meters

• Cycle time 24 seconds

• Number of ties/straps 3

Throughput Capacity:

• 35 kg per cubic meter (department store waste): 2.2

• 60 kg per cubic meter (mixed goods): 3.4

• 100 kg per cubic meter (collected goods): 4.8

Bale Weight:

• 35 kg per cubic meter (department store waste): 62

• Bale weight: 300 kg

Main Components and Function:

• Horizontally mounted compaction plate driven by an electro-hydraulic motor, compacting material into stable, high-density bales

• Continuous feeding system integrated into the production process

• Manual or fully automated adjustable baling channel

• Centrally programmable control unit for efficient compacting of material

Operation: Semi- or fully automatic operation. Suitable for producing stable, high-density bales from recyclables such as paper, cardboard, and plastics where only limited space is available.
