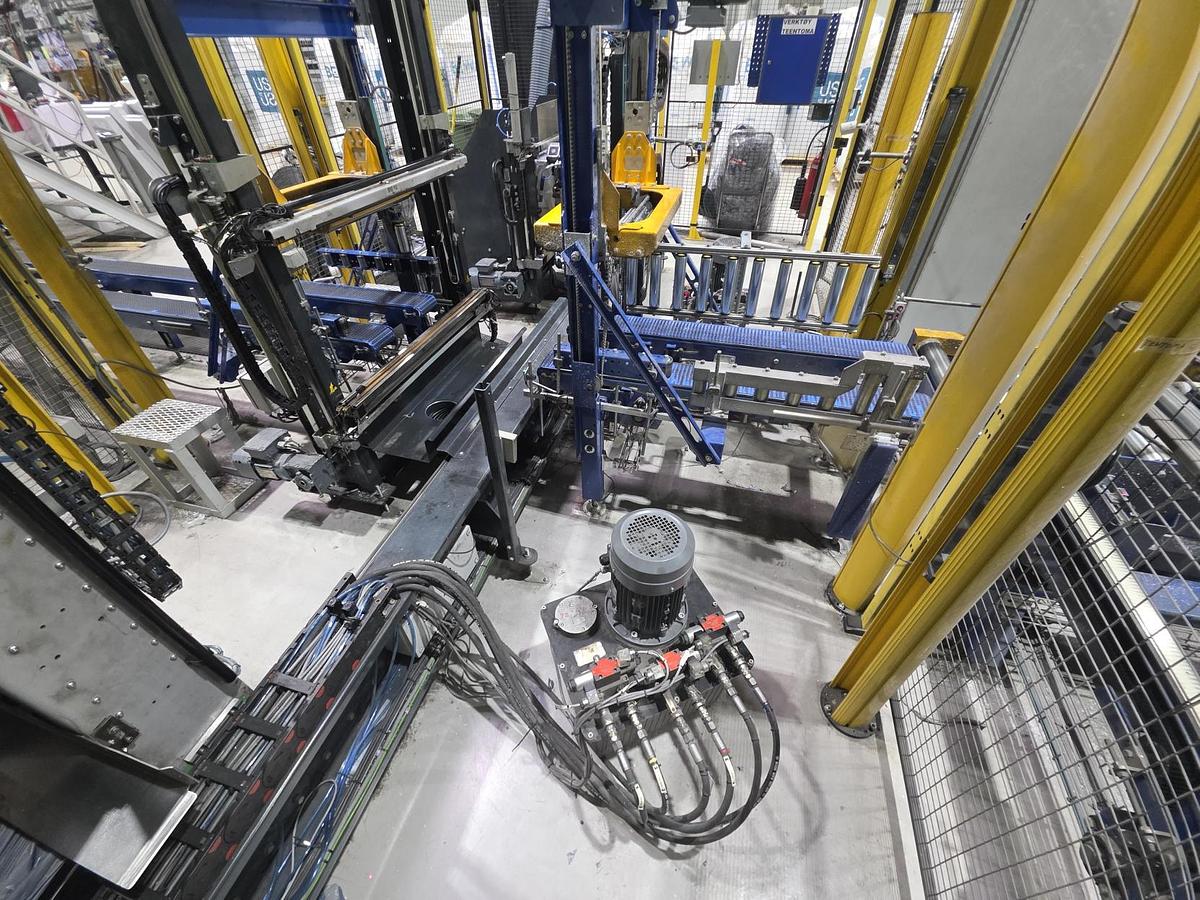

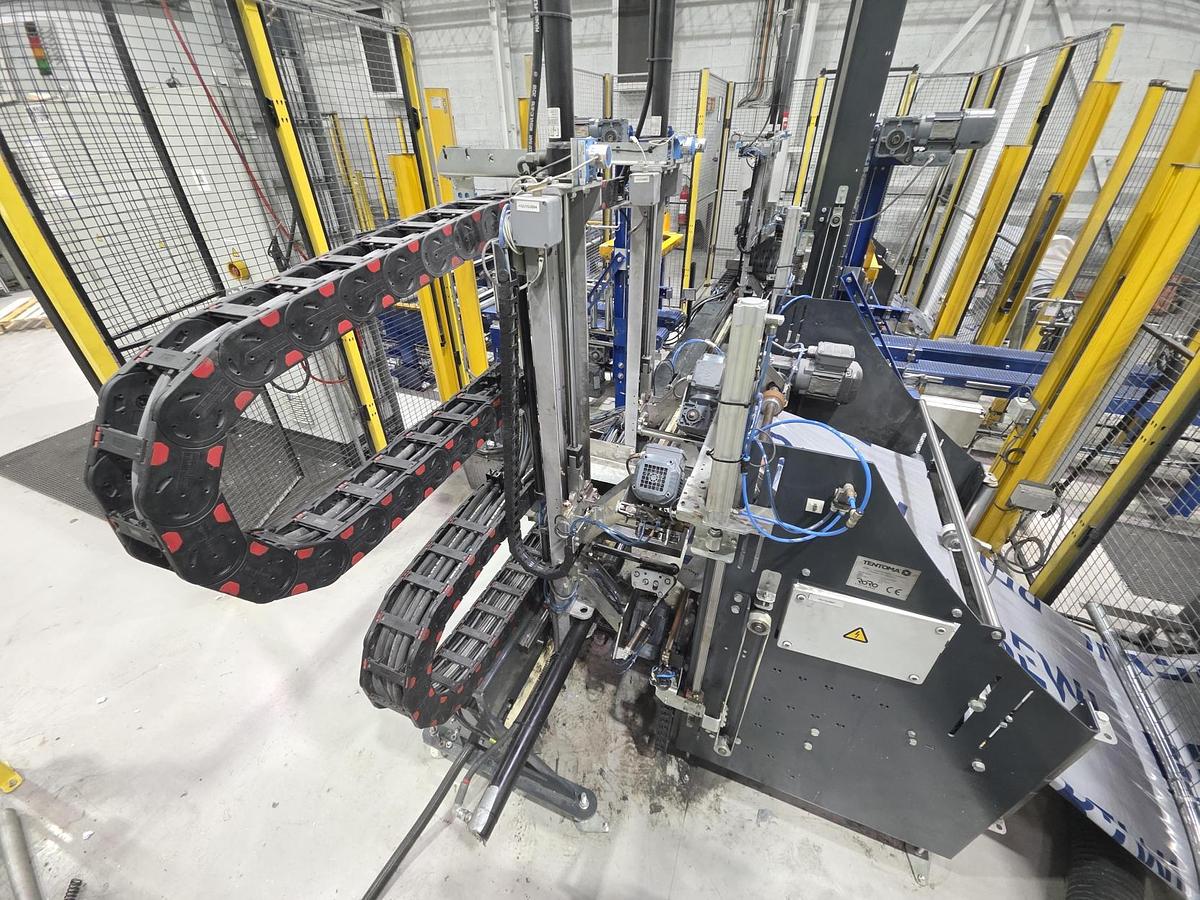

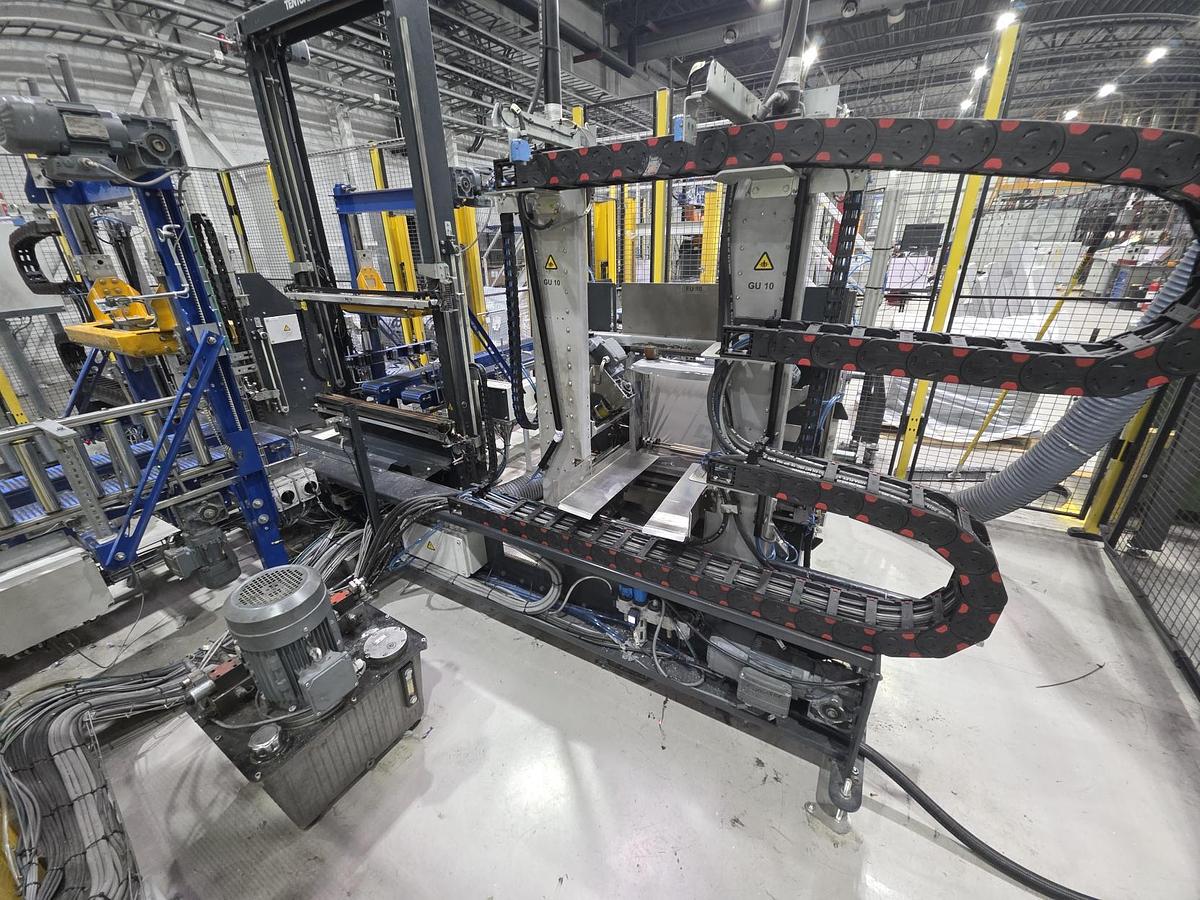

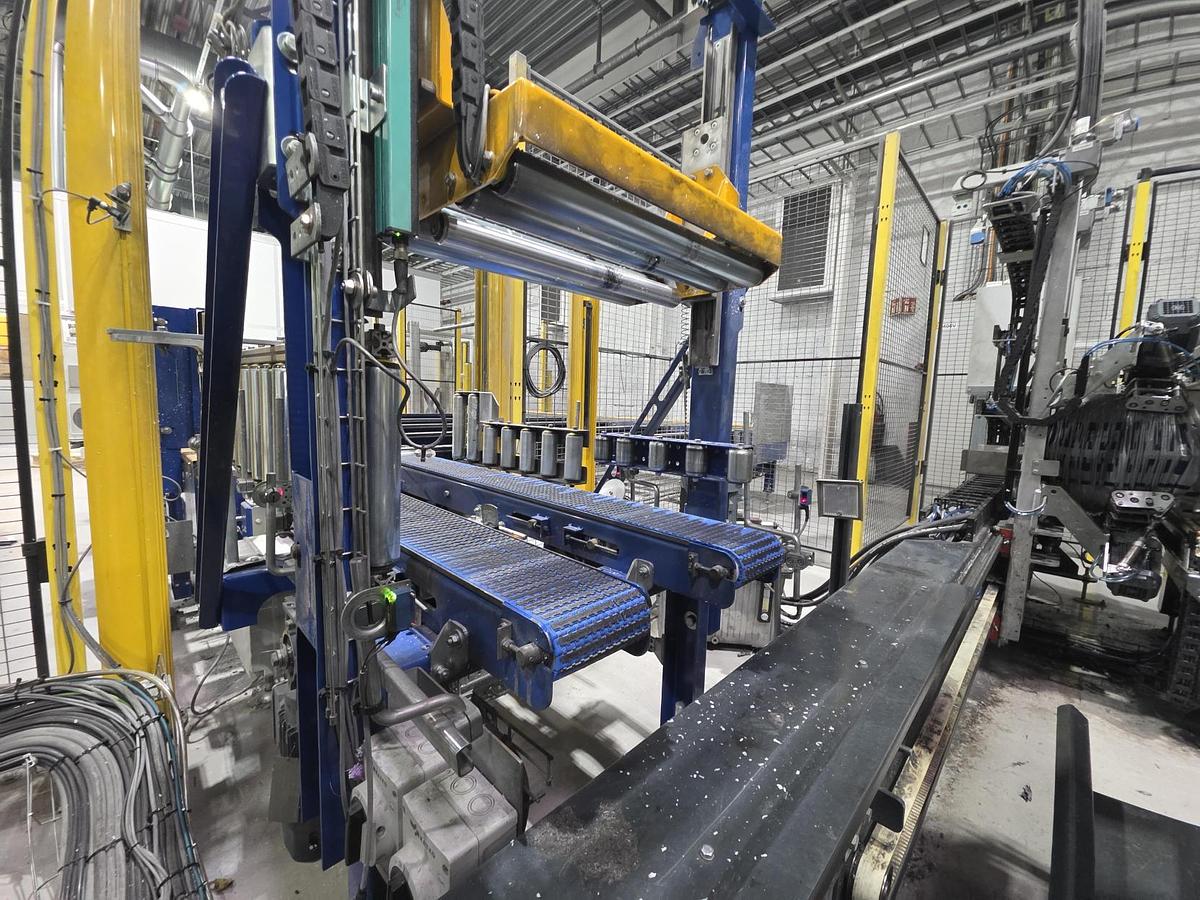

Tentoma RoRo StretchPack Semi-flow Packaging Machine

Manufacturer: Tentoma

Model: RoRo StretchPack

Type of Machine:Semi-flow Packaging System

Application: Automatic stretch-film packaging

Technical Specifications:

- Total Line Weight: approx. 1,313.70 kg

- Approx. Layout Length: 5,500 to 5,590 mm

- Approx. Layout Depth: 3,915 mm

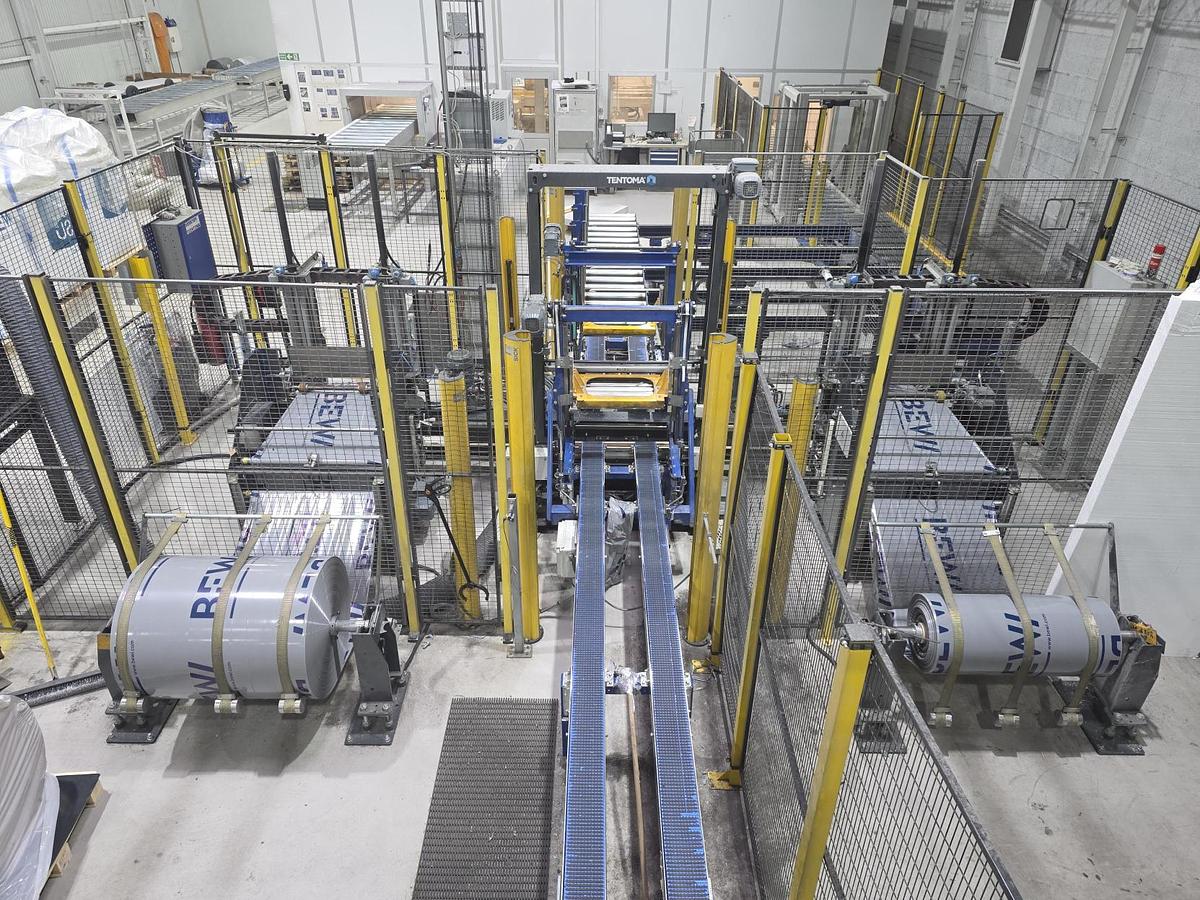

- Configuration: Linear packaging line

- Main Modules: Film stand, film unit, vacuum unit, gripper unit, back sealing unit

Main Machine Units and Function:

- Vacuum Unit: Approx. weight 238.24 kg. Includes vacuum tank, stand, guide rails, bottom plate, acrylic window and Holzmann fan rated at 2,900 m3/h.

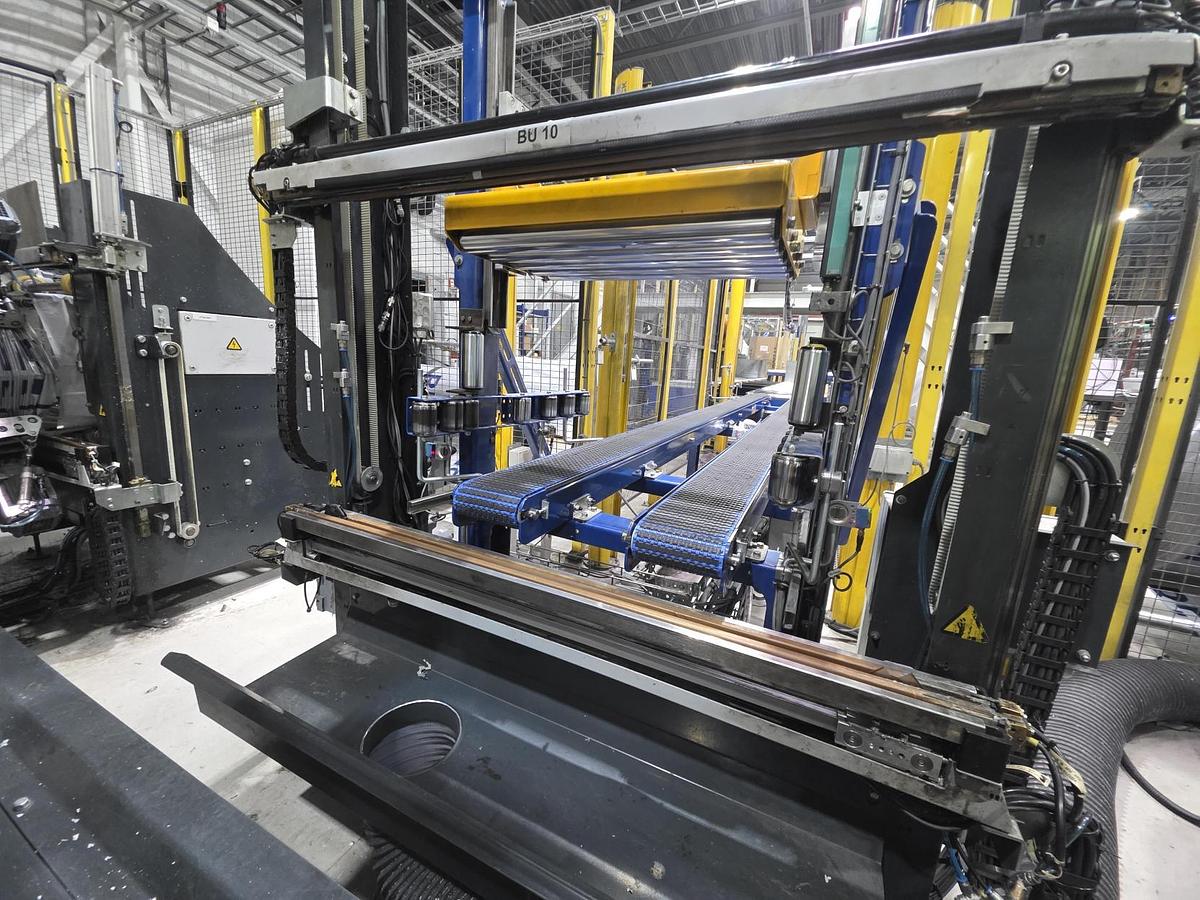

- Back Sealing Unit: Drawing reference 100-10024, Semi-flow version. Approx. weight 184.84 kg. Includes upper/lower sealing beam assemblies, drive shafts, timing belts, timing belt wheels, linear guides, runner blocks, sensors, pneumatic valves and drive motors.

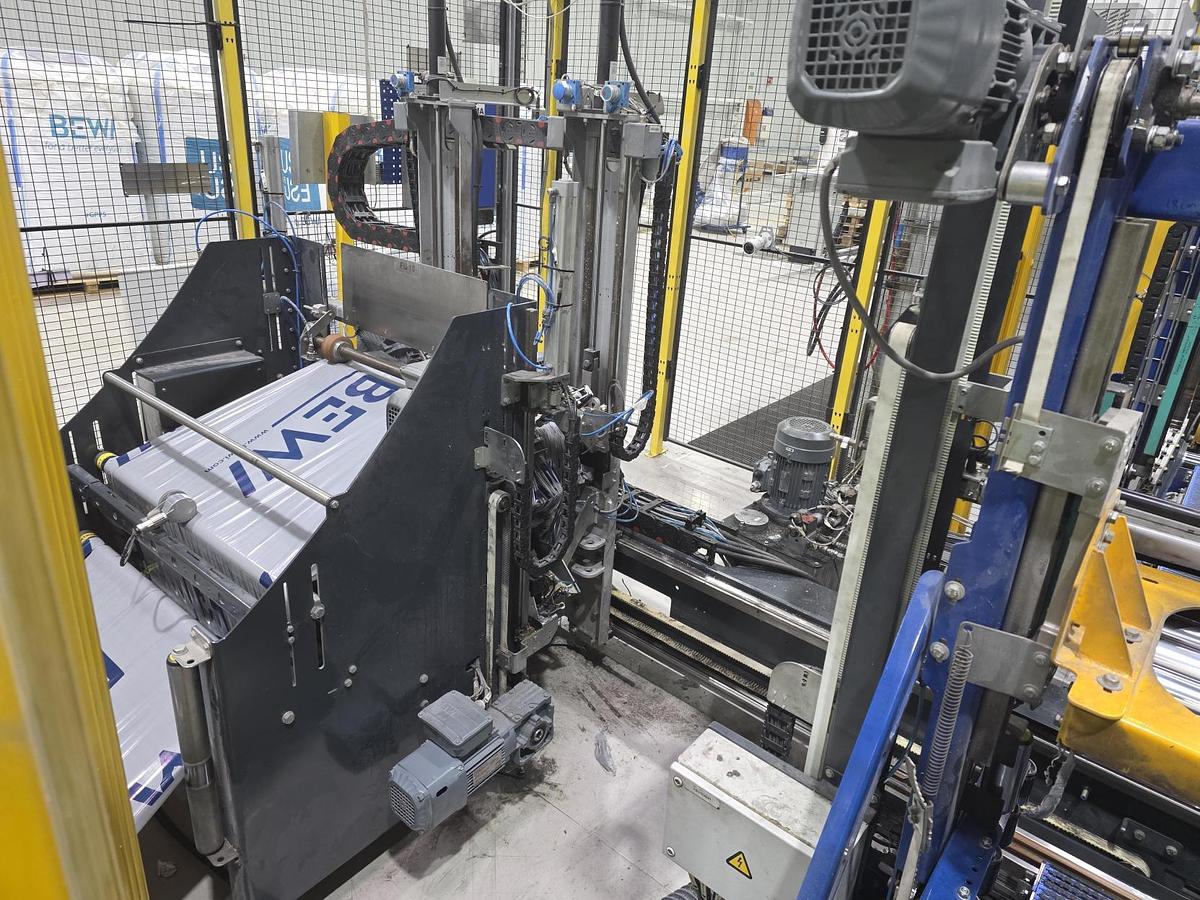

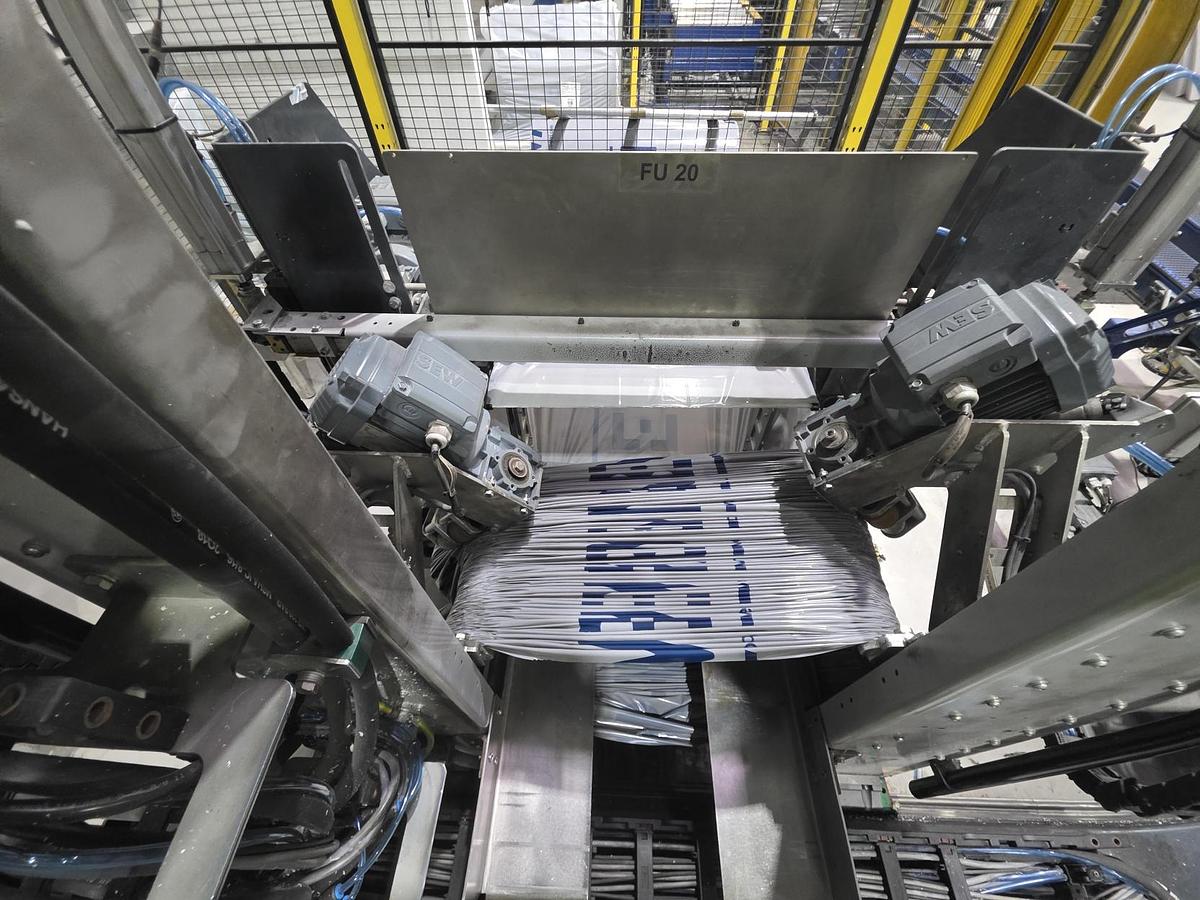

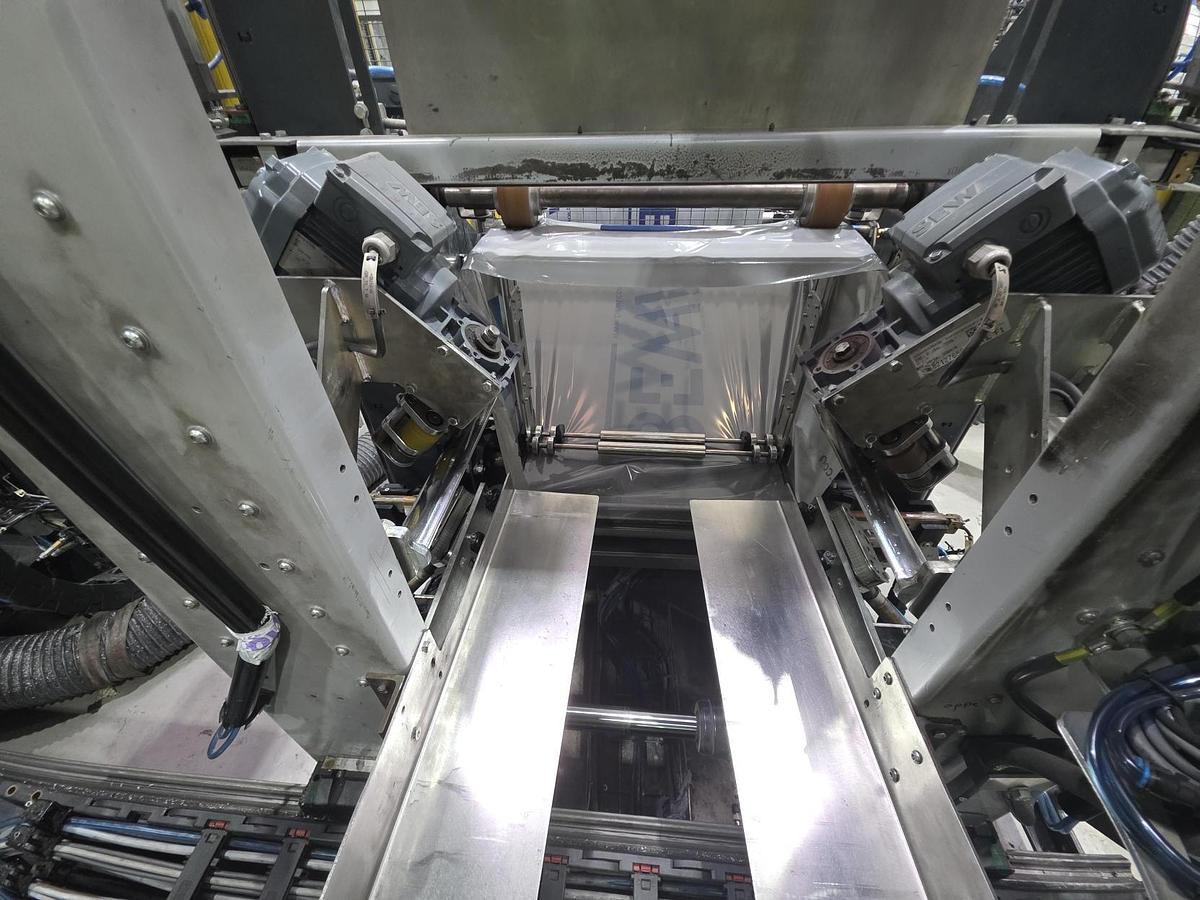

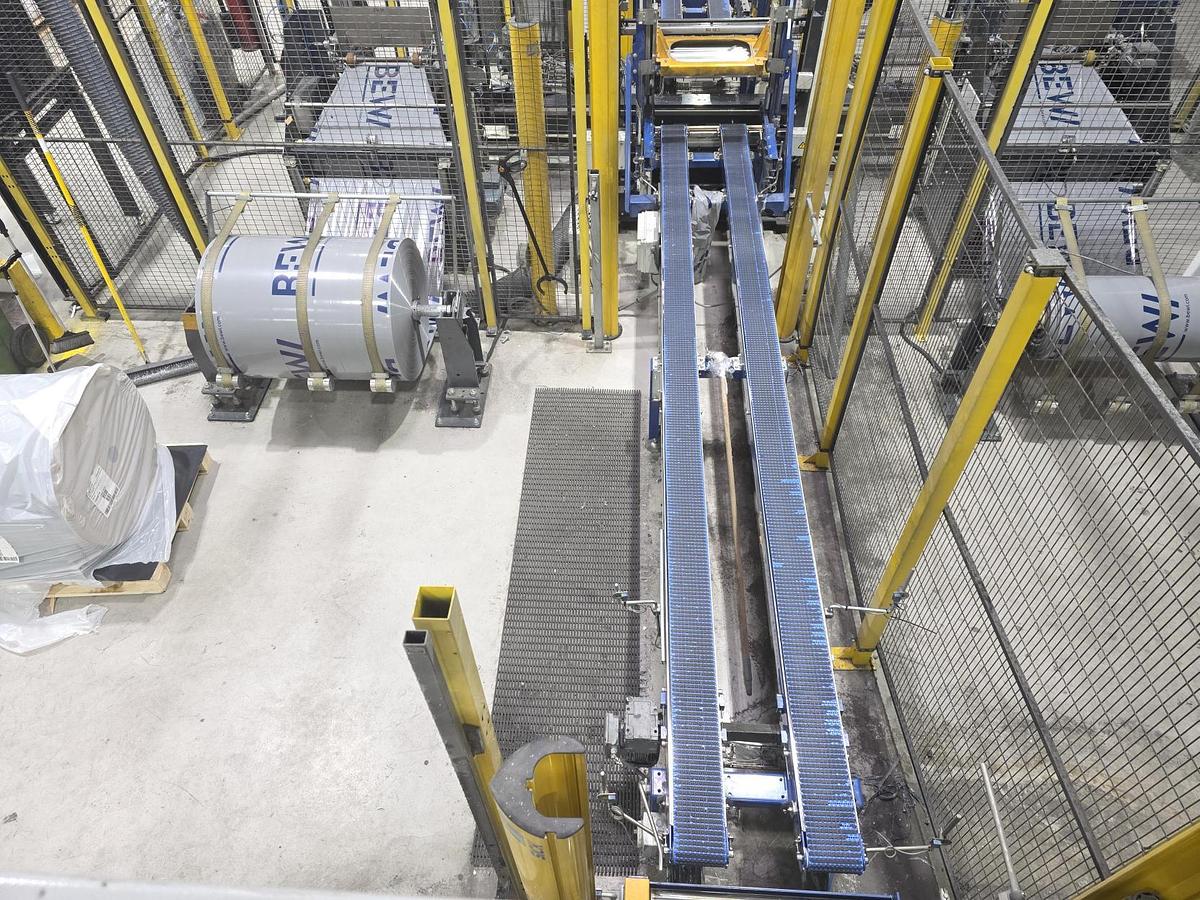

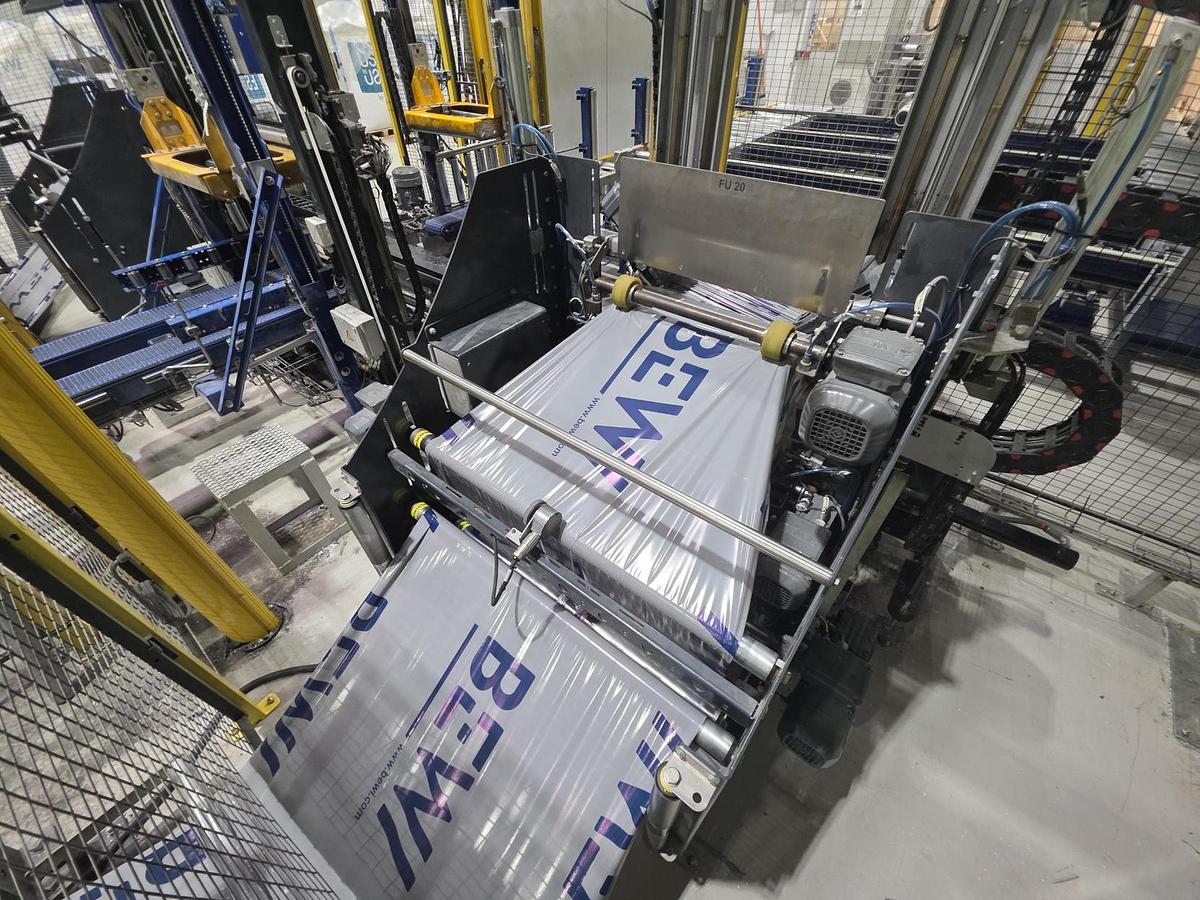

- Film Unit / Film Stand: Shown as part of the complete line layout. Used for film supply and film handling. Detailed film roll specification should be confirmed separately.

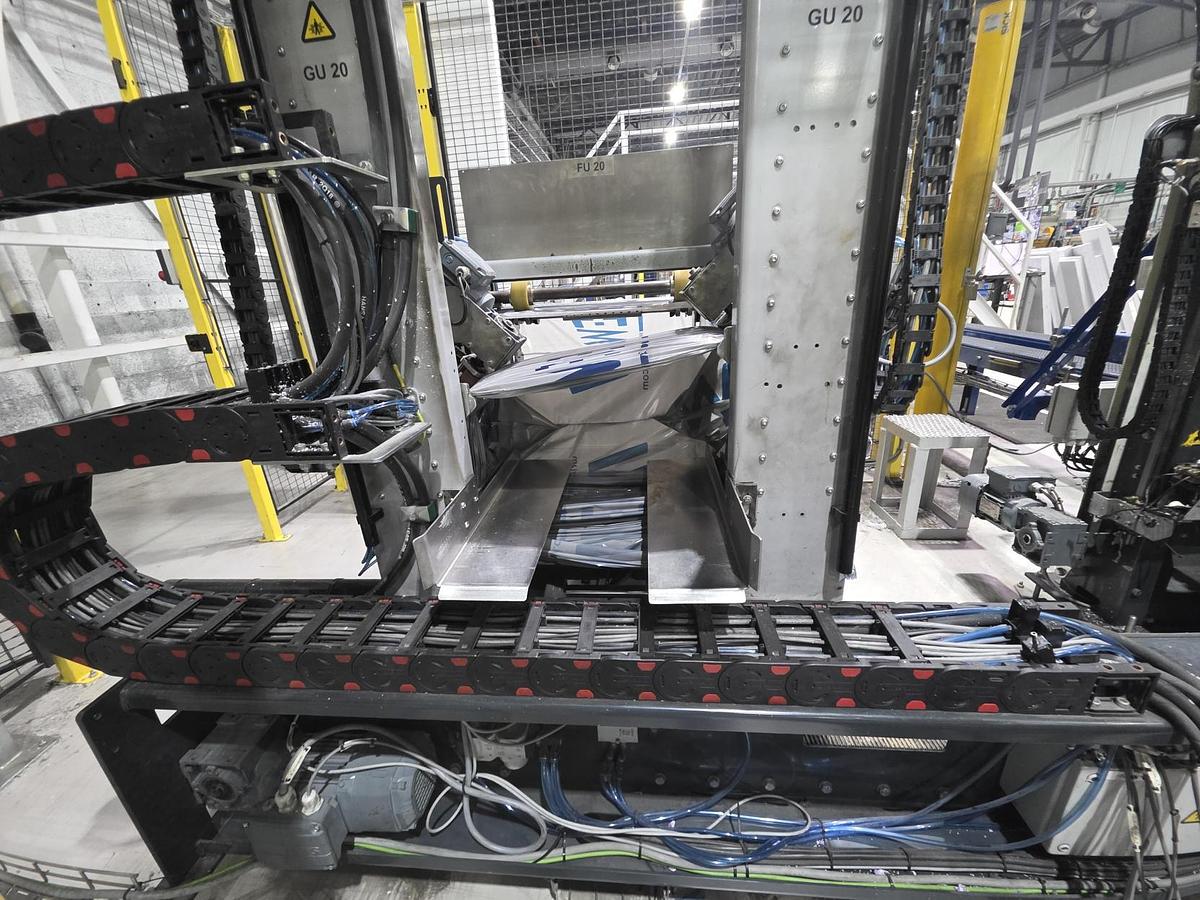

- Gripper Unit: Shown as part of the complete line layout. In semi-flow operation, the gripper unit can collect film for multiple products when possible.
