2021 LMlab Bodor i5

Manufacturer: LMlab

Model: Bodor i5 (Laser Welding-405)

Type of Machine: Laser Welding Machine

Year of Manufacture: 2021

Technical Data:

- Work Surface: 1300 x 900 mm

- Stroke Length X: 1300 mm

- Stroke Length Y: 900 mm

- Stroke Length Z: 75 mm

- Positioning Accuracy X/Y-axle: 0.03 mm

- Repeat Accuracy: 0.02 mm

- Max Movement Speed X/Y-axle: 60 m/min

- Max Acceleration X/Y-axle: 0.6 G

- Load Capacity: 250 kg

- Protective Enclosure: Class 1 m. laser safe inspection windows

- Laser Effect: 1 kW to 4 kW (step of 1 kW)

- Total Power Consumption: 1 kW laser = 16 kW, 2 kW laser = 22 kW, 3 kW laser = 27 kW

- Electricity Supply: 3-Phase plus earthing, 400V, 50-60Hz

- Total Size (L x B x H): 2.3 x 2.2 x 1.85 m

- Automatic alternating shuttles, electric driven, with position control, and with its own separate HMI

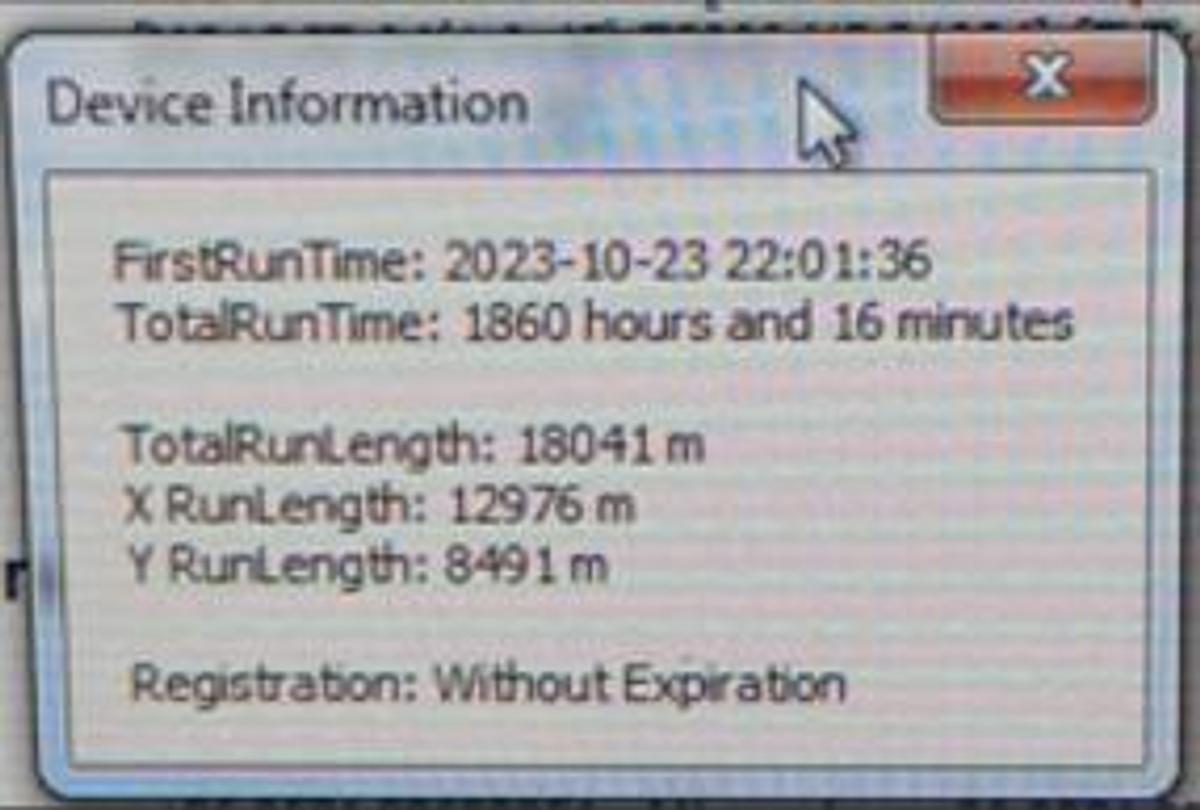

Usage Data:

- First Run Time: 2023-10-23 22:01:36

- Total Run Time: 1860 hours and 16 minutes

- Total Run Length: 18041 m

- X Run Length: 12976 m

- Y Run Length: 8491 m

- Registration: Without Expiration
