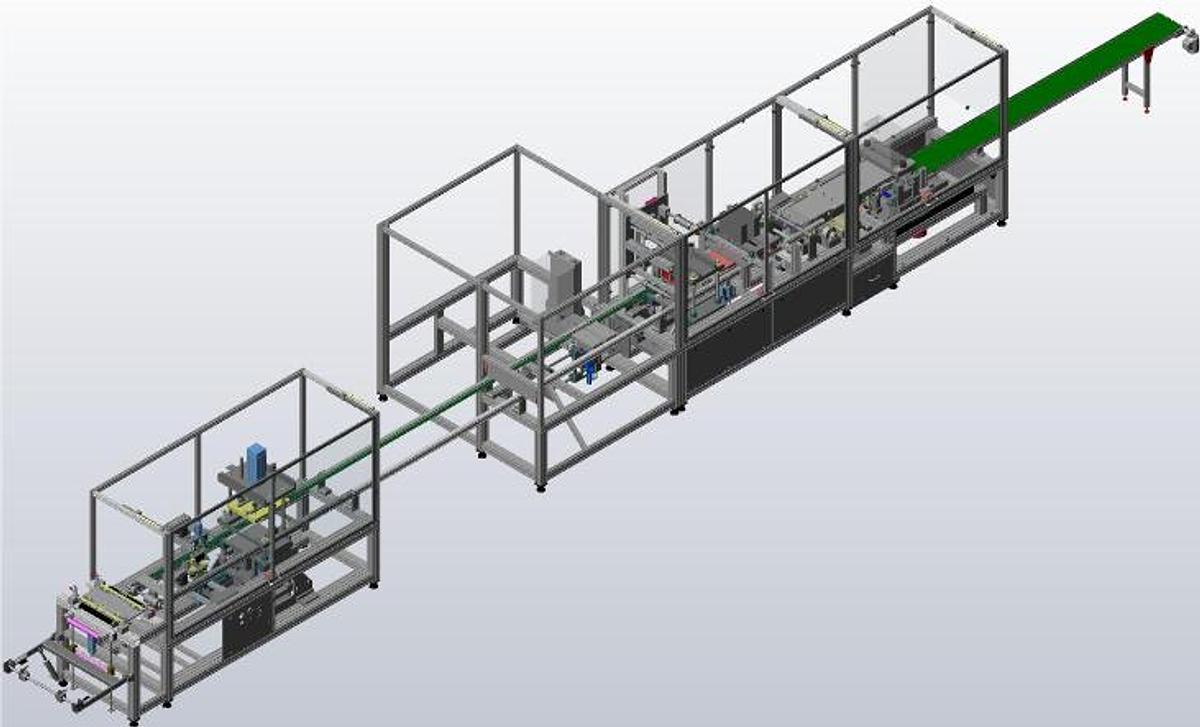

KOCH KBS-KF 40-30/85 Blister Packaging Machine

Manufacturer: KOCH

Model: KBS-KF 40-30/85

Type of machine: Blister Packaging Machine,

Technical data:

• Blister types: Blister with lid film incl. label and hanger hole

• Forming area: L 400 mm x W 300 mm

• Forming depth: 85 mm

• Sealing area: L 400 mm x W 300 mm

• Performance: max. 30 cycles/min., depending on material quality, blister shape, blister

size and sealing time

Highlights:

• Highly efficient packaging using proven technology

• Large format and sealing area

• Simple tool change

• Highest sealing quality

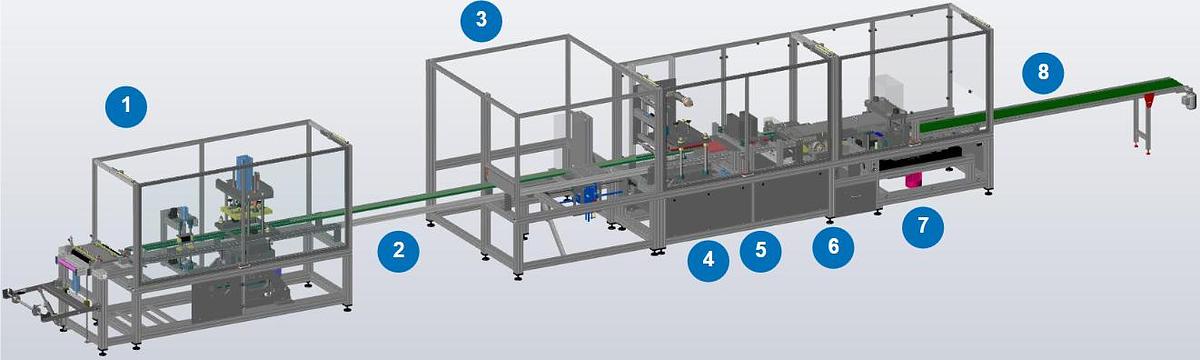

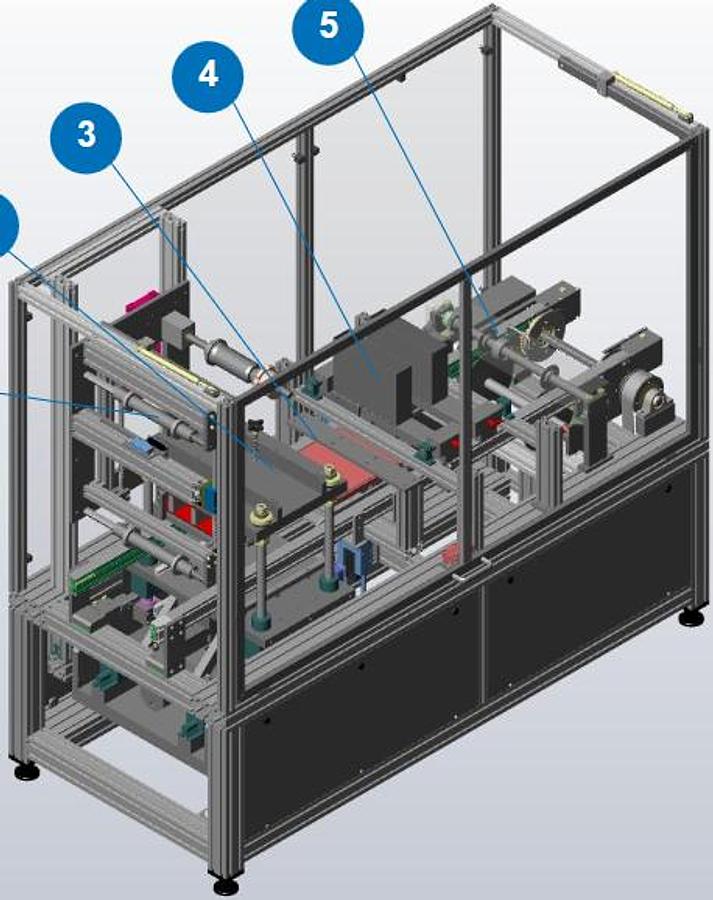

Main components and their function:

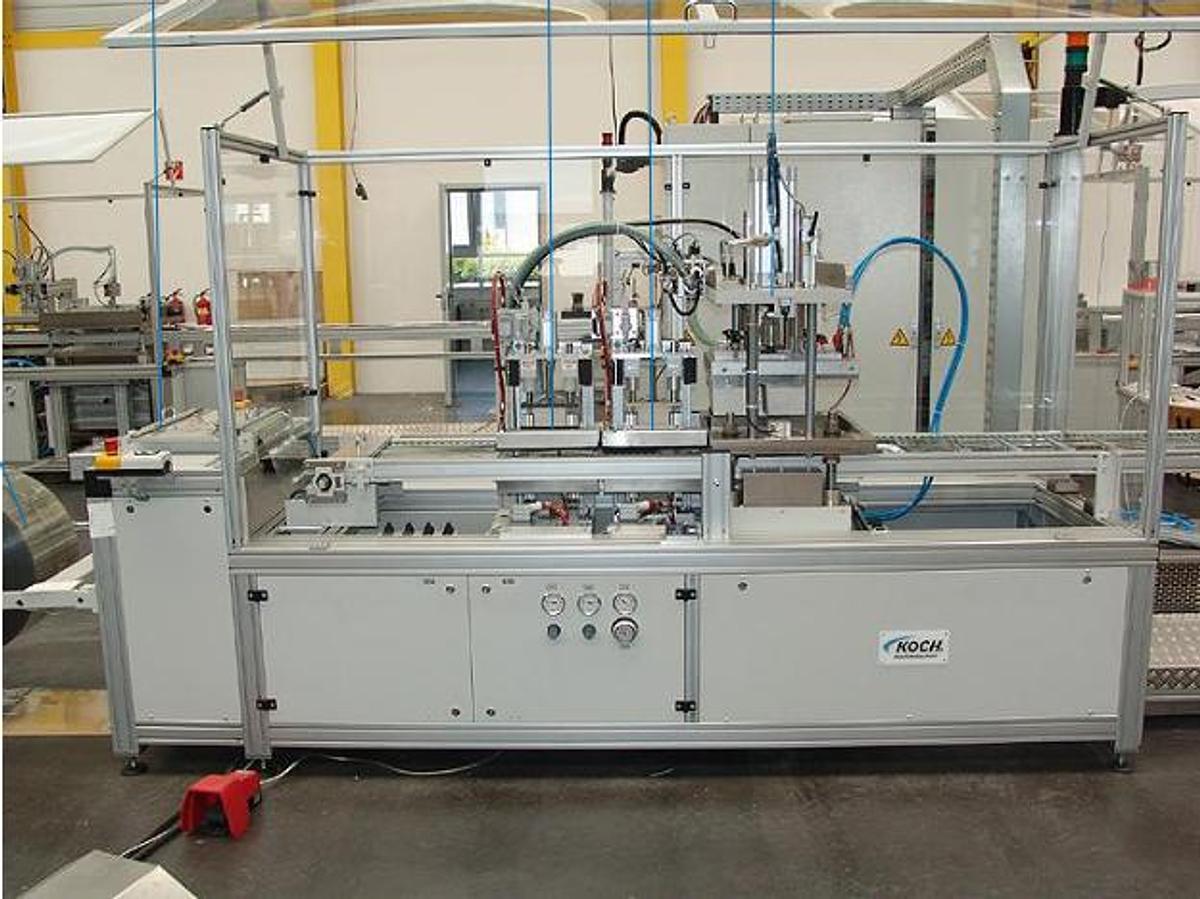

• Forming machine: film roll suspension for forming film, film cutting and splicing table for forming film, two heating stations, and a straight forming station, which together form the blister from the film

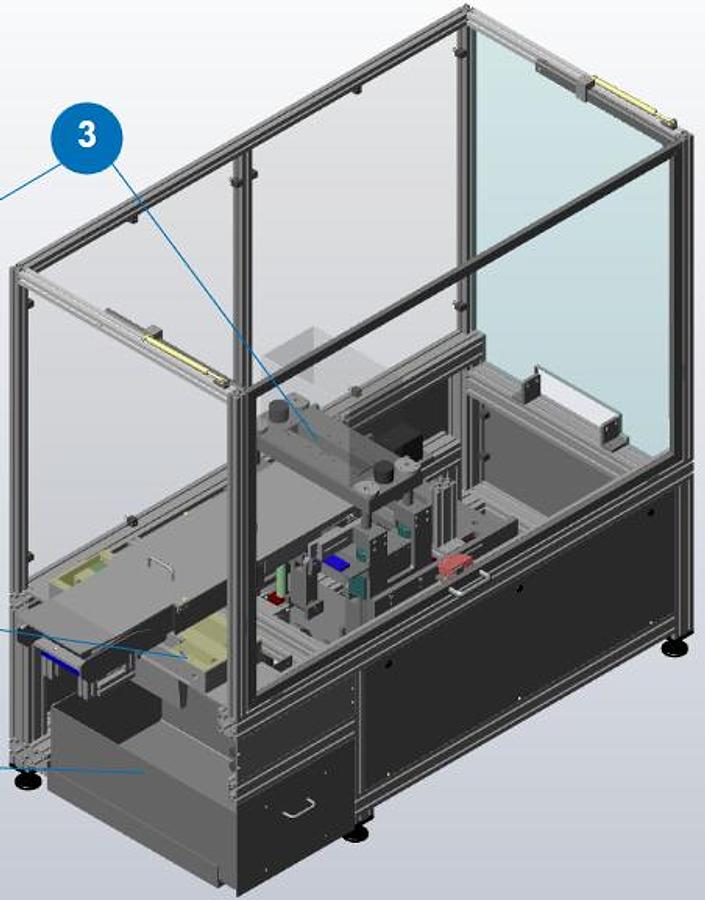

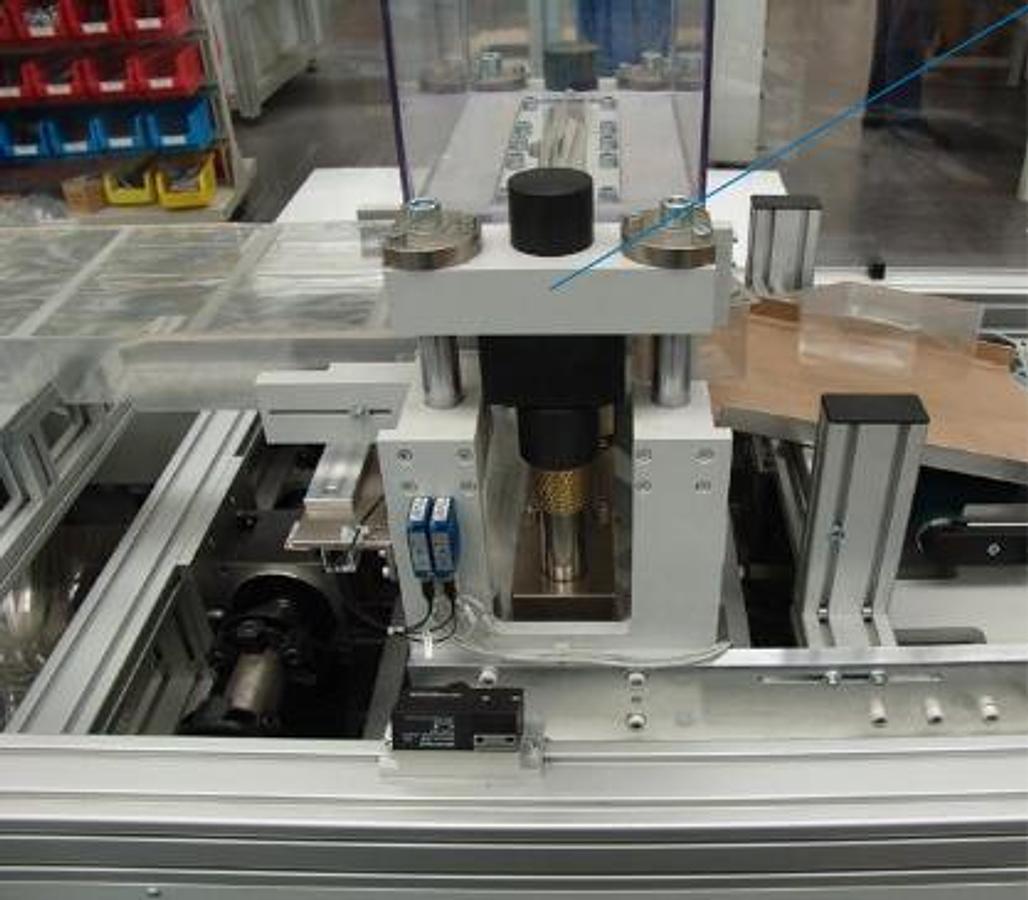

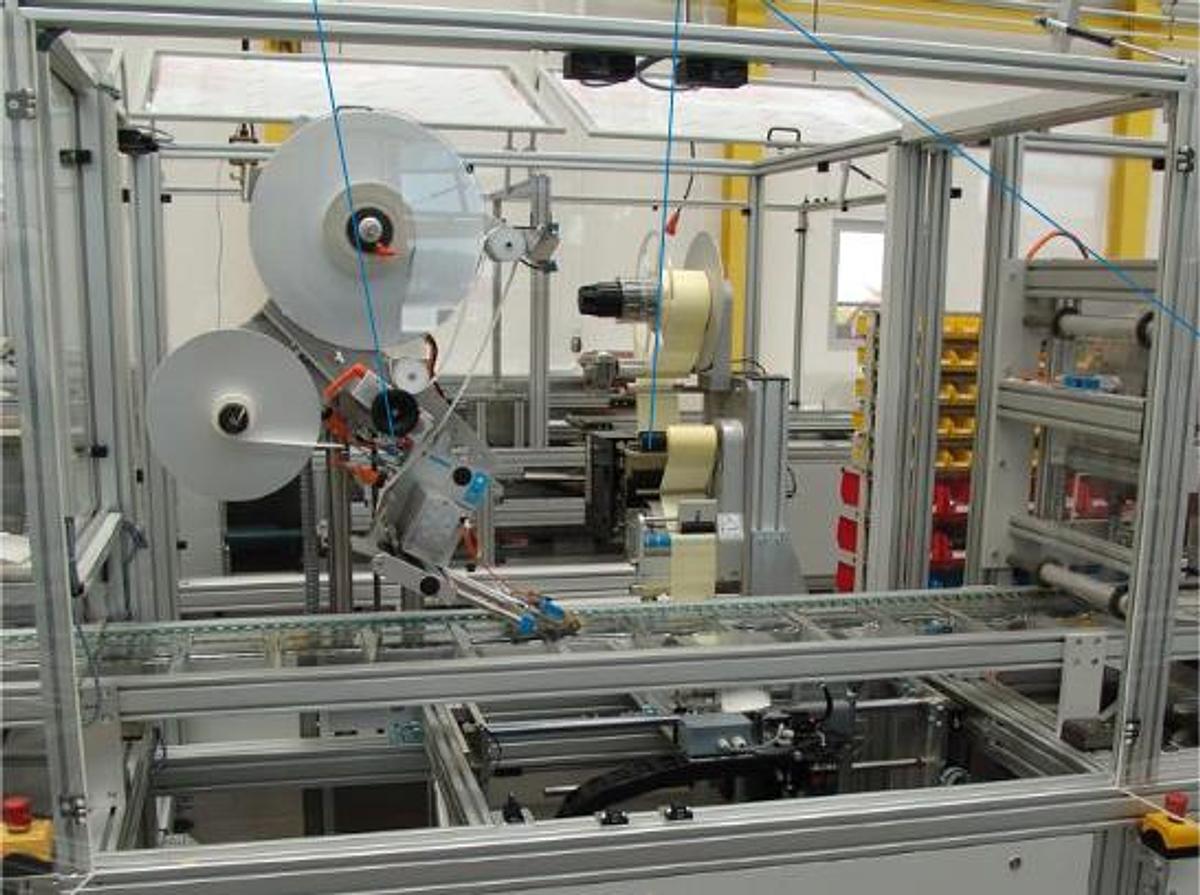

• Labelling machine: Zebra 110Pax4 label printer, Herma H400 V15R labelling unit for blister label application from the bottom with linear movement motor drive, and Herma 400 V8L labelling unit applying labels from the top, which apply labels to the blister

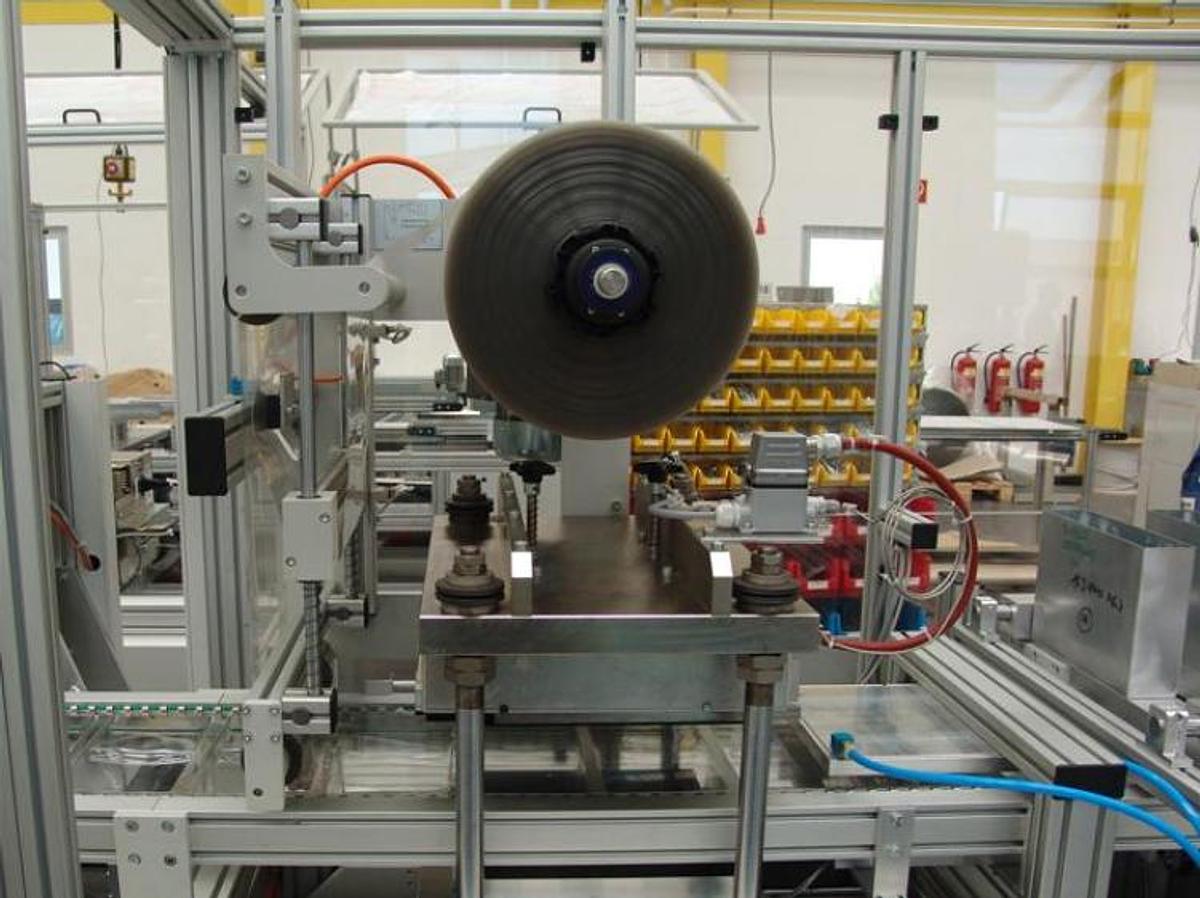

• Sealing machine: lid film feeding from a roll above, sealing station, cooling station, hanger hole punching with waste container on top, and mounting system for the longitudinal cutting unit, which seal the lid film onto the blister, punch the hanger hole and perform the longitudinal cut

• Punching machine: edge trim waste cutting unit, waste box for edge trim waste, and punching station for horizontal separation cut with waste container on top, which separate the individual finished blister packs

• Product outfeed: linear conveyor belt of 3.25 m, which transports the finished product out of the machine
