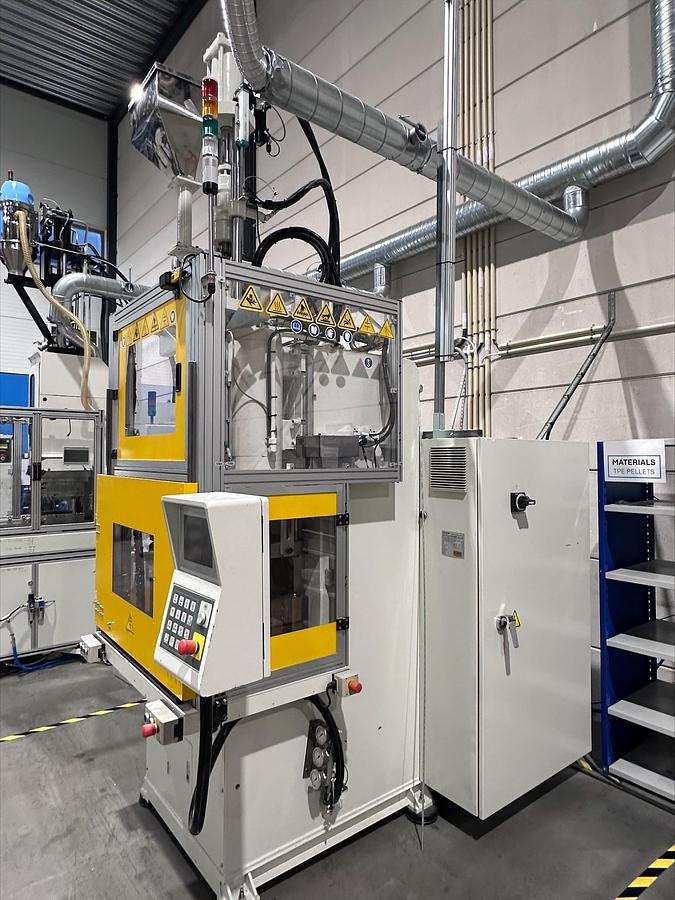

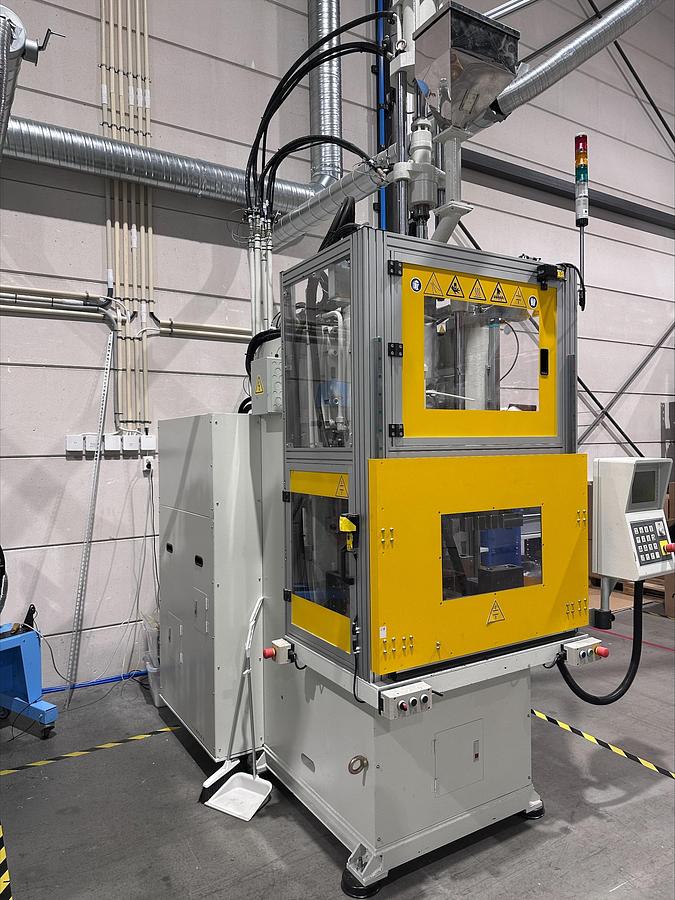

Multiplas V2C-50T Injection Molding Machine

Manufacturer: Multiplas

Year of manufacture: 2023

Model: V2C-50T

Type of machine: Injection Molding Machine

Technical Details

• Screw diameter: 35 mm
• Theoretical injection volume: 154 cm3
• Injection capacity (PVC): 145 gm
• Injection pressure: 1383 kg/cm2
• Injection rate: 69 cm3/sec
• Plasticizing capacity (PVC): 53 kg/hr
• Screw rotation speed: 186 rpm
• Heater capacity: 3.9 kw
• Clamping force: 55 ton
• Min. mold thickness: 350 mm
• Opening stroke: 300 mm
• Max. opening thickness: 650 mm
• Ejector stroke: 90 mm
• Ejector power: 1.8 ton
• Electric power: 10/7.5 hp/kw
• Oil tank capacity: 160 L
• Cooling water capacity: 230 l/hr
• Machine size (L.W.H.): 2.3 x 1.5 x 3.7 m
• Machine weight: 3.4 ton
• Operating hours: approximately 420
• Extras: Material hopper included
• Mould not included,
