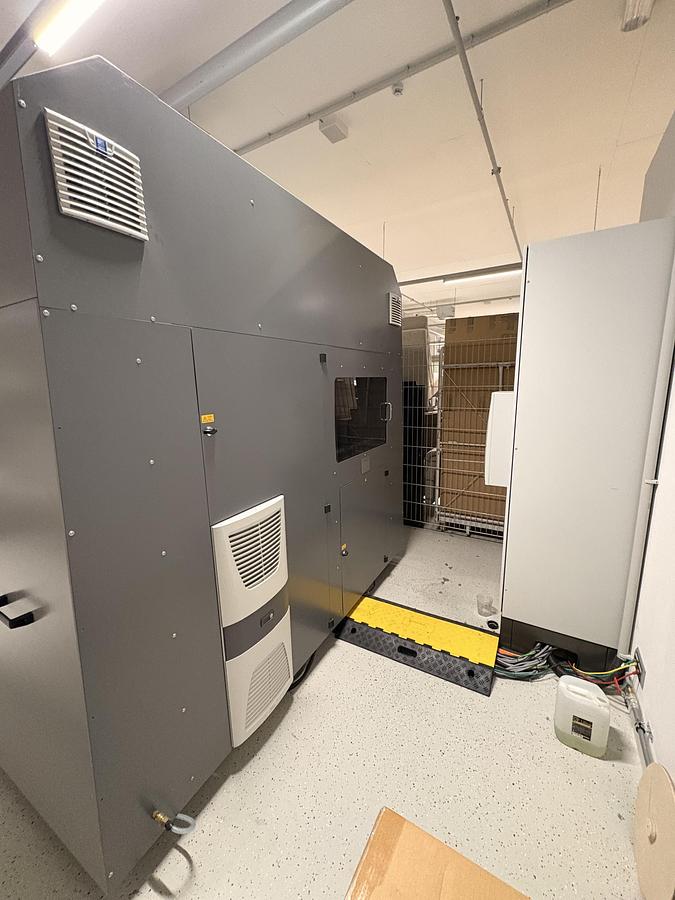

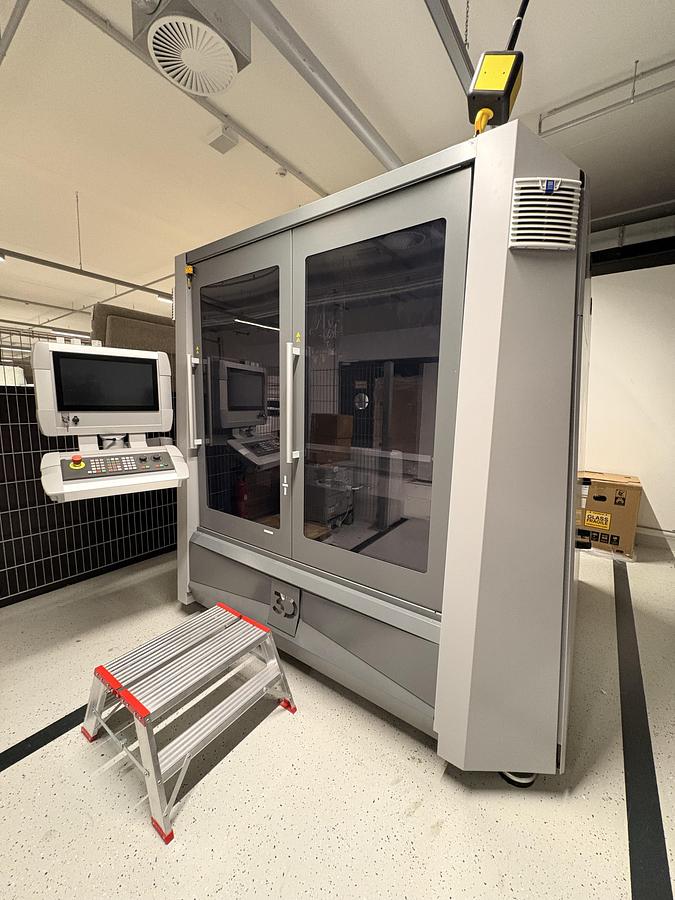

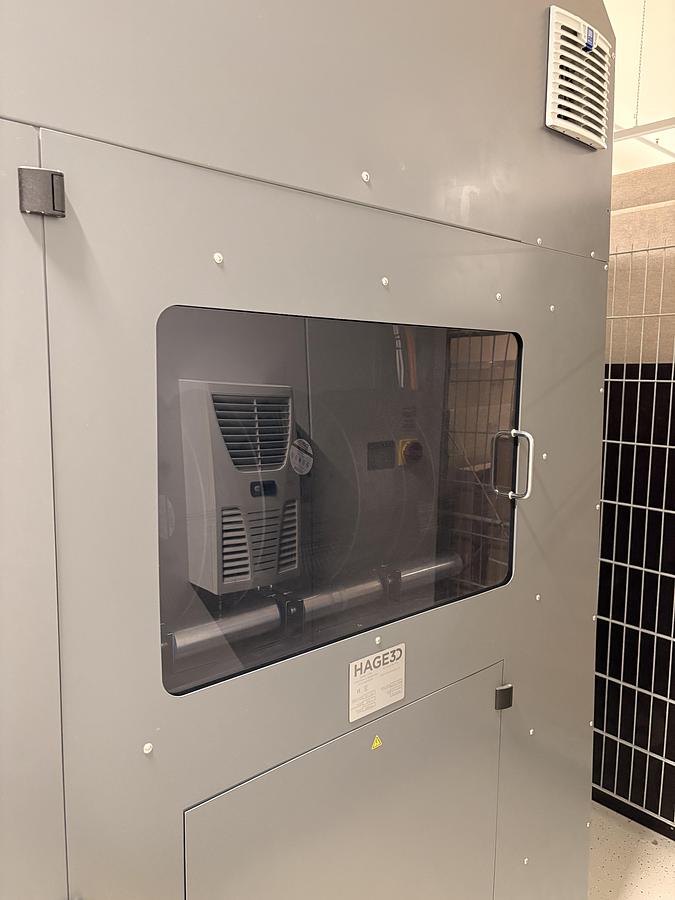

2021 HAGE 3D-1750L-B - 3D printer

Condition: Very good, lightly used

Technical Specifications

Model 175X Features (up to 1,750 litres build volume; 3-axis printing process)

Printing Technology: Material Extrusion (ME) / Fused Filament Fabrication (FFF) / Fused Deposition Modeling (FDM)

External Dimensions:

• 2,500 × 2,500 × 2,500 mm
• Weight: Approx. 2,500 kg
• Internal LED lighting

Large Build Volume:

• 1,200 × 1,200 × 1,200 mm

Build Chamber:

• Heated chamber, up to 80°C

Heated Print Bed:

• Heating power: 2,800 W
• Maximum temperature: 140°C

Print Head: Dual extruder

Filament Feeding: HFFS technology with water cooling

Nozzle Temperature: Up to 450°C

Nozzle Diameter: 0.3–1.0 mm (0.4 mm supplied as standard)

Positioning Accuracy: Via absolute encoders

• XY accuracy: Less than 0.05 mm

Layer Height: From 0.05 mm

Movement Speed:

• Approximately 250 mm/s
• Z-axis: Approximately 300 mm/min

Printing Speed: Material-dependent, up to 150 mm/s

• Machine Type: Industrial large-format 3D printer
• Printing Technology: Fused Filament Fabrication (FFF / FDM)
• Printing Configuration: 3-axis or 5-axis operation
• 3-Axis Build Volume: 1,200 × 1,200 × 1,000 mm
• 5-Axis Build Volume: 500 × 500 × 500 mm
• Maximum Workpiece Weight: 1,800 kg
• Maximum Print Head Temperature: 450°C
• Maximum Heated Build Plate Temperature: 140°C (optional up to 180°C)
• Maximum Heated Chamber Temperature: 80°C
• Nozzle Diameter: 0.25–1.0 mm
• Layer Height: 50–320 µm (with 0.4 mm nozzle)
• Maximum Printing Speed: Up to 150 mm/s, depending on material
• Maximum Linear Axis Speed: 250 mm/s
• Positioning Accuracy: 0.05 mm
• Print Head Options: Single, dual, triple or pellet extruder
• Compatible Filament Diameters: 1.75 mm and 2.85 mm
• Supported Materials: ABS, ASA, GPET/PETG and polyamide copolymer
• Control System: Siemens Sinumerik 840D sl
• Software: Simplify3D and Siemens NX
• Electrical Connection: 400 V AC / 50 Hz
• Rated Current: 32 A
• Power Rating: 22 kW
• Recommended Fuse Protection: 50 A
• Connectivity: USB 3.0 / Ethernet
• Machine Dimensions (L × W × H): Approx. 2,430 × 2,530 × 2,280 mm
• Machine Weight: Approx. 2,200 kg

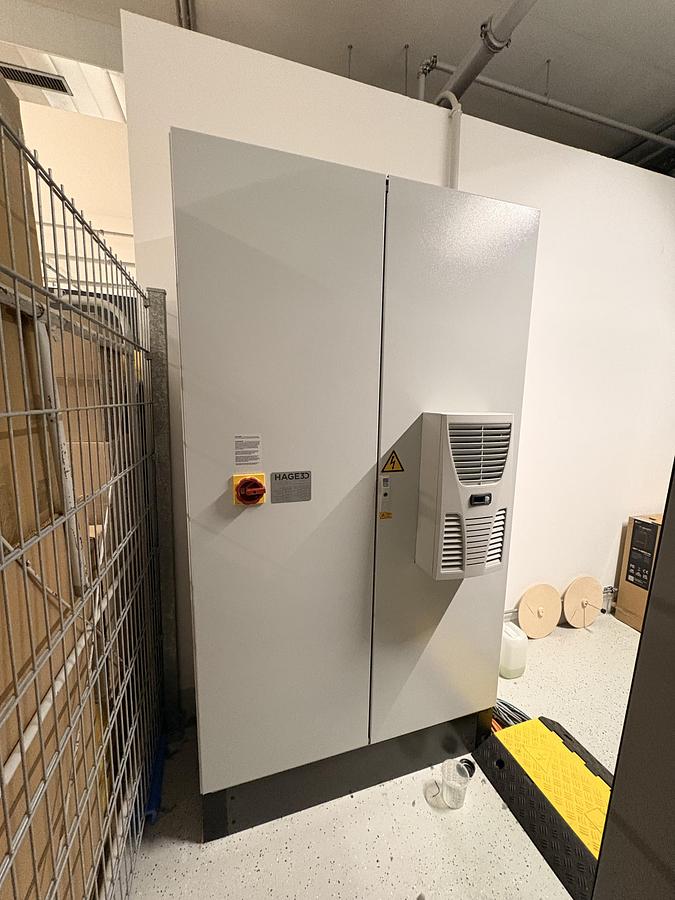

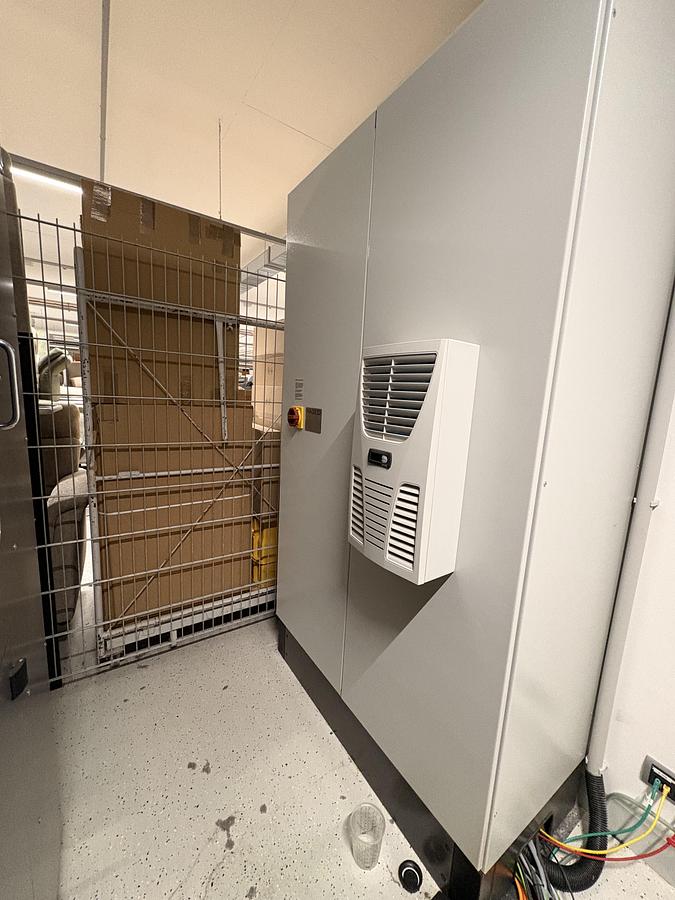

• Control Cabinet Weight: Approx. 500 kg
• Noise Emission: 67 dB(A) at maximum speed

Key Features

• Large-format industrial additive manufacturing
• Enclosed, heated build chamber
• Heated print bed with 2,800 W heating capacity
• Continuous-duty operation capability
• Interchangeable print head configurations
• Suitable for large components, functional prototypes and industrial parts
