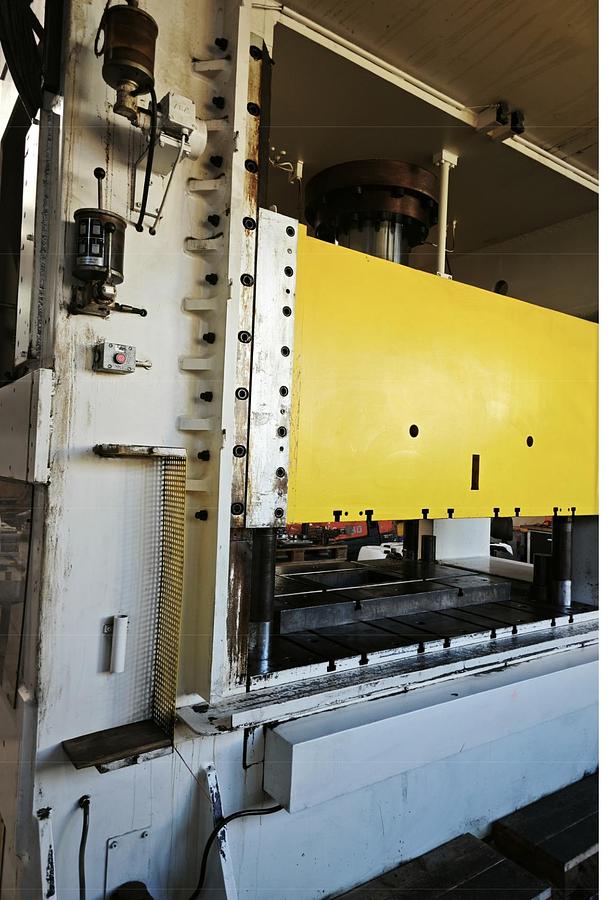

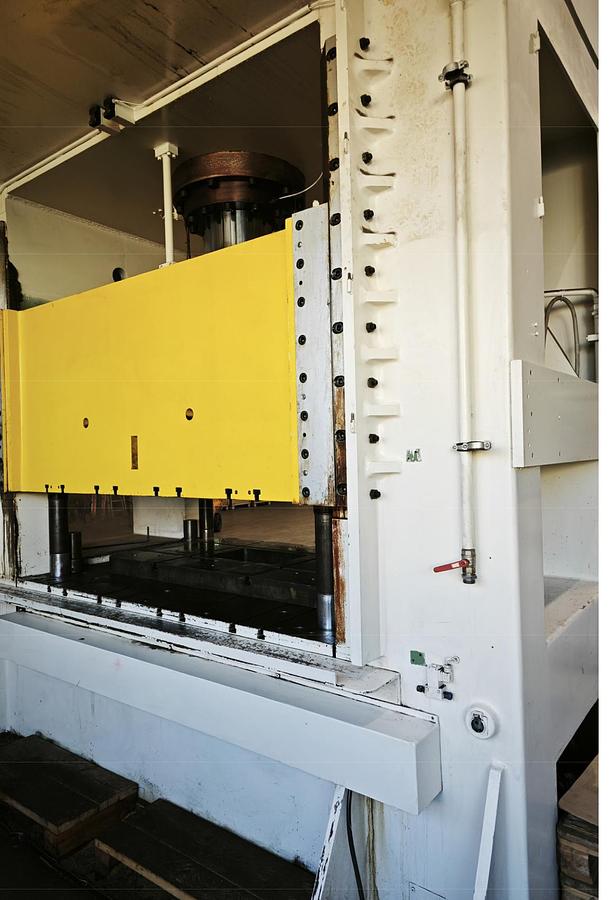

Exner EX SB2R 400/100 Hydraulic Press
Exner EX SB2R 400/100 Hydraulic Press
Contact us for price
Location:Münster, Germany
Description
Specifications
| Manufacturer | Exner |
| Model | EX SB2R 400/100 |
| Condition | Used |
| Stock Number | 758853 |
| Press Force | 400 t |
| Die Cushion Force | 100 Mp |
| Die Cushion Stroke | 200 mm |
| Ram Stroke | 500 mm |
| Installation Height | 1,000 mm |
| Upright Clearance Front | 2,200 mm |
| Upright Clearance Side (W x H) | 1,000 x 600 mm |
| Ram Plate (W x D) | 2,180 x 1,500 mm |
| Die Cushion Plate (W x D) | 1,450 x 1,150 mm |
| Table Height Above Floor | 930 mm |
| Machine Width | 3,500 mm |
| Machine Depth | approx. 2,500 mm |
| Machine Height | approx. 4,900 mm |
| Machine Weight | approx. 56,000 kg |
| Operating Pressure | 263 bar |
| Return Force | 52.7 Mp |
| Oil Capacity | approx. 2,375 l |
| Main Pump | A2V 250, 75 kW |
| Control Pump | 1PV2V3-30/25, 4 kW |
| Die Cushion Pump | IPH 6/5-125/50, 18.5 kW |
| Ram Speed Rapid Traverse | 400 mm/sec |
| Ram Speed Return | 300 mm/sec |
| Ram Speed Under 15% Load | 58 mm/sec |
| Ram Speed Under 100% Load | 16 mm/sec |
| Light Curtain Protection Height | 2 x 706 mm |

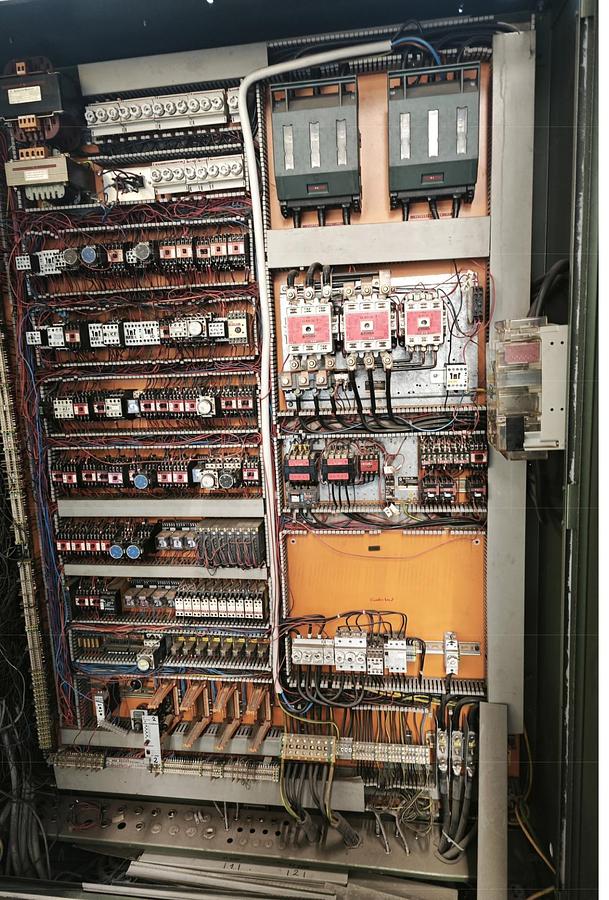

| Overhaul | Control system, hydraulics and pneumatics overhauled |
| Inspection | Machine can be inspected under power |
| Press Table (W x D) | 1,800 x 1,500 mm |
